Grand Prairie HVAC Case Study: Upgrading a Downstairs Bryant to a 14.5 SEER2 Goodman System with Custom Plenum Rebuild

For homeowners and property managers in Grand Prairie, TX (75052), the downstairs HVAC system carries the heaviest thermal load during the peak of the Texas summer. When this primary unit begins to fail, the entire first floor quickly becomes uninhabitable.

The engineering team at Greentech Engineering recently deployed to a single-family home in Grand Prairie to address a failing, inefficient 4-Ton Bryant air conditioning system that served the downstairs zone. The system was suffering from severe mechanical fatigue, restricted airflow, and poor humidity control.

Rather than executing a standard, corner-cutting "box swap," we engineered a comprehensive airflow and equipment upgrade. We replaced the aging unit with a high-efficiency Goodman 14.5 SEER2 Air Conditioner and an 80% AFUE Gas Furnace, completely rebuilt the supply and return plenums, and successfully qualified the property for cash back through the Oncor Utility Rebate Program .

Here is the complete technical breakdown of this Grand Prairie HVAC replacement, detailing why a custom plenum rebuild and strict installation protocols are critical for maximizing system lifespan and energy efficiency.

‍

The Problem: A Failing Downstairs Bryant System

Upon evaluating the property, our technicians identified multiple points of failure. The existing downstairs 4-Ton Bryant condenser had reached the end of its operational lifespan. The compressor was drawing excessive amperage, leading to spiked utility bills, and the indoor system was suffering from severe static pressure issues due to poorly designed, deteriorating duct plenums.

When a downstairs unit loses capacity, the cool air fails to properly circulate, causing the AC to run continuously without ever satisfying the thermostat. To solve this, we needed to address both the mechanical equipment and the airflow distribution.

The Engineering Solution: The 14.5 SEER2 Goodman Matchup

To provide exceptional cooling capacity and long-term reliability for a rental or property management situation, we selected a highly durable equipment combination from Goodman (a premium brand manufactured under the Daikin global umbrella).

By pairing a 4-Ton Goodman Straight Cool Condenser with a heavy-duty Daikin/Goodman Cased Coil and a 5-Ton capacity Gas Furnace, we achieved a verified 14.5 SEER2 performance rating.

Here are the specific, high-performance components we installed:

1. Goodman 48,000 BTU Split Air Conditioner (4-Ton Condenser)

• Energy-Efficient Compressor: Engineered to deliver consistent, reliable cooling while drawing less electricity than older generation units.
• Enhanced Copper Tube & Aluminum Fin Coil: Utilizes 5mm diameter tubing for rapid, superior heat transfer.
• Factory-Installed Filter Drier: Protects the sensitive compressor valves by capturing microscopic moisture and debris within the refrigerant lines.

2. Daikin/Goodman Horizontal Cased Coil

• Factory-Installed TXV: The Thermal Expansion Valve precisely meters the flow of refrigerant based on the real-time thermal load of the house, maximizing energy efficiency and humidity removal.
• All-Aluminum Construction: Built with rifled aluminum tubing and corrugated aluminum fins to completely eliminate the risk of copper-related formicary corrosion—the leading cause of indoor refrigerant leaks.
• Thermoplastic Drain Pan: Features a rust-resistant, low water-retention design to prevent mold growth and overflow.

3. Goodman 80,000 BTU Gas Furnace (80% AFUE)

• Multi-Speed ECM Blower Motor: An Electronically Commutated Motor provides quiet, continuous air circulation. It easily overcomes ductwork static pressure while using a fraction of the electricity of a standard motor.
• Heavy-Duty Aluminized-Steel Heat Exchanger: A highly durable tubular design built to withstand decades of thermal expansion.
• Silicon Nitride Igniter: A robust, long-lasting ignition system ensuring reliable heating during North Texas winters.

‍

Revolutionizing the Airflow: Custom Plenum Rebuild

The most significant upgrade to this Grand Prairie home was not just the mechanical equipment, but the custom ductwork engineering. Connecting a brand-new, powerful ECM blower motor to old, restrictive ductwork is a recipe for premature motor failure.

To guarantee perfect airflow distribution for the downstairs zone, our technicians executed a comprehensive Duct Optimization and Airflow Balancing overhaul:

• Supply Plenum Rebuild: We removed the deteriorating supply plenum and replaced it with a custom-fabricated, highly insulated metal air box. We modified the existing ductwork, adding new flex duct and airtight start collars, sealing all connections with heavy mastic duct sealant.
• Return Plenum & 4-Inch Filter Combo: We completely rebuilt the return plenum, upgrading the system to include a heavy-duty insulated metal 4-inch filter combo box. A 4-inch media filter provides vastly superior Indoor Air Quality (IAQ) and restricts airflow significantly less than standard 1-inch ceiling grilles, extending the life of the blower motor.

The Greentech Engineering Standard: Execution in the Field

A premium Goodman system requires a pristine installation environment to achieve its rated lifespan. We adhere to rigorous, data-driven installation protocols.

1. Refrigerant Line Purification & Silver Brazing

We aggressively flushed the existing copper line sets using RX-11 solvent and pressurized dry nitrogen. This chemical flush strips away the highly acidic, old mineral oil left behind by the failing Bryant compressor. All copper modifications were then soldered by our certified technicians using high-grade 15% silver brazing rods.

2. High-Pressure Nitrogen Testing

To guarantee absolutely zero micro-leaks, we pressurized the entire soldered system with dry nitrogen to 250 PSI and held the pressure for a strict 15-minute verification period.

‍

3. Deep Digital Vacuum (Sub-500 Microns)

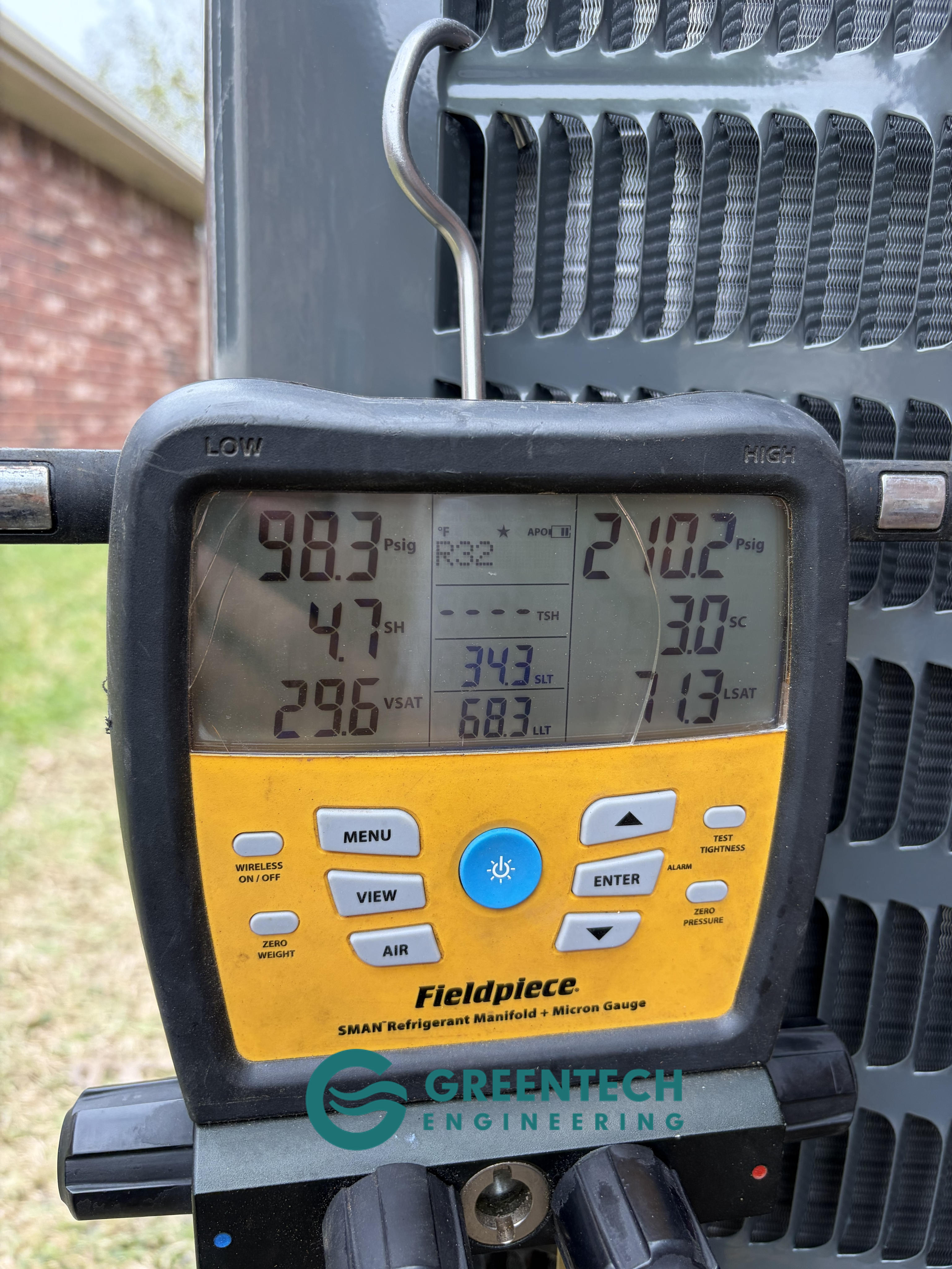

Following the pressure test, moisture must be eradicated from the lines. Using advanced Fieldpiece digital manifold gauges, we pulled a deep vacuum on the system, bringing it well below 500 microns. This boils off any microscopic moisture inside the pipes at room temperature before we release the factory refrigerant charge.

4. Perfect Leveling & Safety Protocols

We installed a new, heavy-duty concrete equipment pad and used precision spirit levels to ensure the condenser sat perfectly flat—a critical step for ensuring even compressor oil distribution. In the attic, we installed a new gas sediment trap, an insulated primary drain line, and a Safe-T drain switch to instantly shut down the unit if a clog ever occurs, protecting the property from water damage.

‍

The Ultimate ROI: Oncor Rebates & Property Management Upgrades

By refusing to compromise on ductwork and properly matching the system components to achieve an AHRI-Certified 14.5 SEER2 Rating, we successfully secured maximum Oncor Energy Efficiency Rebates for this property, driving down the total cost of the upgrade.

To finalize the installation for the property management company, we installed a brand-new, easy-to-use 1 Heat / 1 Cool digital thermostat.

Furthermore, this newly registered system includes industry-leading protections:

• 10-Year Factory Limited Parts Warranty
• 10-Year Unit Replacement Plan (on the evaporator coil)
• 20-Year Heat Exchanger Warranty (on the gas furnace)
• Greentech's Complimentary 3-Year Labor Warranty

If your downstairs air conditioner is struggling to cool your home, or if you are dealing with severely restrictive ductwork, do not settle for a basic equipment swap. Contact Greentech Engineering today to schedule a comprehensive evaluation in Grand Prairie, Arlington, or anywhere in the DFW metroplex. Let our engineers rebuild your airflow and maximize your utility rebates!

Frequently Asked Questions (FAQ): HVAC Replacements & Airflow

Q: Why did you rebuild the supply and return plenums?

A: The plenum is the main "breathing box" attached directly to your indoor furnace and coil. If the plenum is restrictive, poorly designed, or leaking, the new blower motor has to work twice as hard to push air into the house. Rebuilding the plenums with custom-insulated metal boxes ensures maximum, frictionless airflow and drastically reduces energy consumption.

Q: What is the benefit of a 4-inch filter combo box?

A: Standard 1-inch filters restrict a massive amount of airflow and clog very quickly. A 4-inch media filter has significantly more surface area. This allows the HVAC system to "breathe" effortlessly while capturing much smaller particles (like pet dander, pollen, and dust), vastly improving your Indoor Air Quality (IAQ) and only needing replacement every 6 months.

Q: What does a 14.5 SEER2 rating mean?

A: SEER2 (Seasonal Energy Efficiency Ratio 2) is the Department of Energy's newest, strictest standard for measuring air conditioning efficiency. A 14.5 SEER2 system provides excellent cooling output while using significantly less electricity than older 10 or 12 SEER units, directly lowering your summer energy bills.

Q: How does the Oncor HVAC Rebate program work?

A: Homeowners in the Oncor service area can receive cash rebates for upgrading to qualifying high-efficiency AC and heat pump systems. You must use an approved Oncor Participating Service Provider (like Greentech Engineering). We ensure the equipment matchup is AHRI-certified and handle the strict technical installation standards required to process your rebate.
