Stop Oversizing Your AC: Why Downsizing from a 5-Ton to 3-Ton Saved This Fort Worth (76177) Homeowner $1,700+
When the brutal Texas summer hits the Dallas-Fort Worth metroplex, a common misconception plagues the HVAC industry: “If my house is hot, I just need a bigger air conditioner.” Unfortunately, many retail HVAC contractors are happy to oblige this myth. They will gladly sell you the largest, most expensive system possible without ever running the thermodynamic math. This practice is known as "oversizing," and it is one of the most destructive things you can do to your home's comfort, your indoor air quality, and your electric bill.
In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.
Recently, we encountered an extreme case of oversizing at a beautiful single-family home in the 76177 zip code of Fort Worth, Texas. The homeowner was struggling with their upstairs climate. The system was loud, the air felt clammy and humid, and the equipment was constantly turning on and off. Upon inspection, we discovered the culprit: a massive, aging 5-Ton Goodman condenser dedicated solely to the upstairs level.
In this comprehensive case study, we pull back the curtain on how Greentech Engineering used hard data to downsize this home’s system to a highly efficient 3-Ton Goodman 15.2 SEER2 matchup, permanently curing their humidity problems while securing over $1,700 in instant Oncor utility incentives.
The Engineering First Step: ACCA Manual J Load Calculation
Air conditioners have two jobs: Sensible Cooling (lowering the temperature) and Latent Cooling (removing humidity).
If an AC is too big for the space (like putting a V8 engine in a golf cart), it drops the temperature far too quickly. The thermostat hits its target in 5 minutes and shuts the system off. Because the system didn't run long enough to pull air across the cold evaporator coil, the sticky humidity remains trapped in your home. This is called short-cycling.

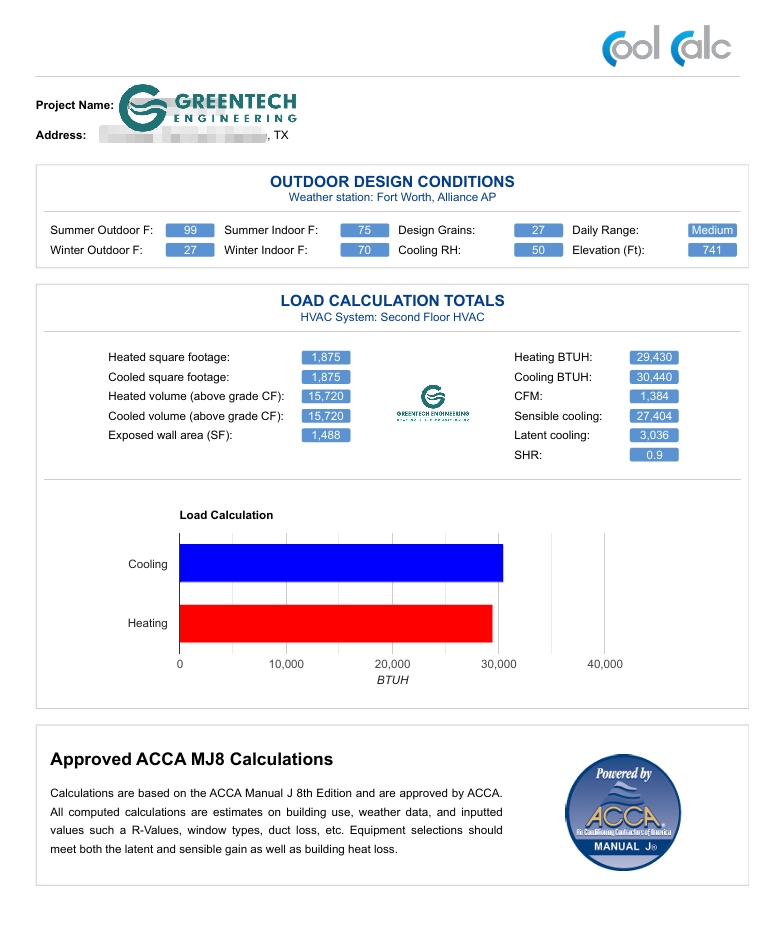

To prove to the 76177 homeowner that a 5-Ton system was structurally incorrect, we performed a strict ACCA Manual J Load Calculation. We measured the total square footage of the second floor, ceiling heights, window solar heat gain coefficients, and the thermal resistance (R-value) of the attic insulation.
The data was definitive. The second floor required exactly 3 Tons (36,000 BTUs) of cooling capacity and 60,000 BTUs of winter heating capacity. By downsizing the equipment, we guaranteed the system would run in longer, highly efficient cycles, properly wringing the humidity out of the Texas air.
Learn more about our ACCA Manual J Load Calculation process
The Goodman 15.2 SEER2 & 80% AFUE Matchup
With the precise sizing established via thermodynamics, we engineered an AHRI-certified matchup from Goodman Manufacturing that easily surpassed federal efficiency standards, achieving an impressive 15.2 SEER2 performance.

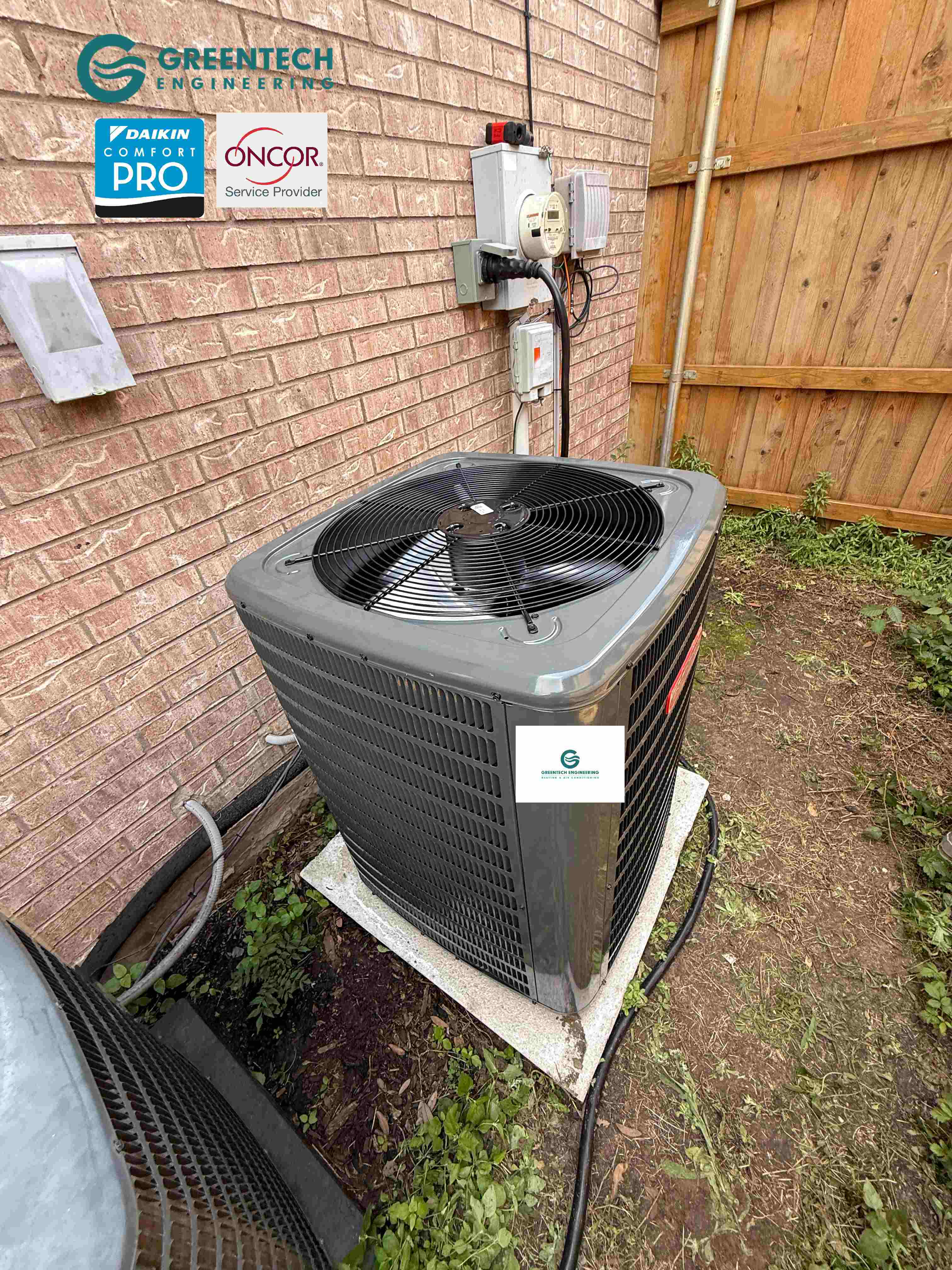

The 3-Ton Goodman Straight Cool Condenser
To provide quiet, reliable cooling, the newly sized outdoor unit features:
- Energy-Efficient Compressor: Designed to draw significantly fewer amps than the old 5-Ton unit.
- Optimized Coil Design: Features 5mm diameter copper tubes and enhanced aluminum fin coils to rapidly dissipate heat.
- Factory-Installed Filter Drier: Protects the compressor from microscopic moisture and dirt.
- 10-Year Factory Limited Parts Warranty (upon homeowner registration).
The Daikin/Goodman 36,000 BTU Up-Flow Cased Coil
- Internal Factory-Installed TXV: A Thermal Expansion Valve dynamically regulates refrigerant flow based on the exact heat load inside the house, maximizing latent cooling (dehumidification).
- All-Aluminum Construction: Rifled aluminum tubing prevents the formicary corrosion and refrigerant leaks common in older copper coils.
- Elite Protection: Backed by a 10-year parts warranty and an exclusive 10-Year Unit Replacement Plan.
The Goodman 60,000 BTU Gas Furnace (80% AFUE)
Because this is an up-flow closet installation, we upgraded the heating infrastructure with a robust Goodman Gas Furnace featuring a 4-Ton blower drive.
- Multi-Speed ECM Blower Motor: This electronically commutated motor adjusts airflow precisely, drastically reducing electricity usage and operating whisper-quiet compared to old single-stage motors.
- Silicon Nitride Igniter: A durable, long-lasting ignition system that ensures reliable winter heating without the failure rates of old hot-surface igniters.
- Heavy-Duty Heat Exchanger: Backed by a 20-year limited warranty.
The Greentech Standard: 11-Step Clinical Installation Protocols
An HVAC system is only as good as the technician who installs it. A premium 15.2 SEER2 system will fail prematurely if the refrigerant lines are contaminated. At Greentech Engineering, we executed the following strict clinical protocols at this 76177 property:
- Safe Recovery: The old, oversized system was removed and all refrigerant was pumped down and legally recovered.
- Infrastructure Upgrades: We installed a new concrete condenser pad, a new gas sediment trap, drain line insulation, and a mandatory Safe-T drain switch to prevent costly water damage.
- Nitrogen Drain Clearing: The condensation drain line was cleared with pressurized dry nitrogen to remove old sludge, and a new trap and vent were installed.
- Precision Sealing: The new coil and furnace were mechanically secured to the plenums using hex washer head HVAC screws. All connection areas were sealed with specialized HVAC metal tape and duct sealant to guarantee zero air leakage.
- Code Compliance: All necessary gas line and furnace exhaust flue pipe modifications were completed to strict municipal codes.
- RX-11 Copper Flushing: The existing copper line sets were chemically flushed with RX-11 and chased with dry nitrogen to remove old, acidic mineral oil.
- Nitrogen Purging & 15% Silver Brazing: All copper joints were soldered by certified technicians using premium 15% silver brazing rods while flowing dry nitrogen to prevent internal oxidation (black soot) from forming inside the pipes.
- 250 PSI Nitrogen Pressure Test: We pressurized the closed system with dry nitrogen to 250 psi and held it for 15 minutes to guarantee zero micro-leaks.
- 500-Micron Deep Vacuum: We utilized specialized vacuum pumps to pull the system pressure below 500 microns, physically boiling off and extracting any microscopic atmospheric water from the lines.

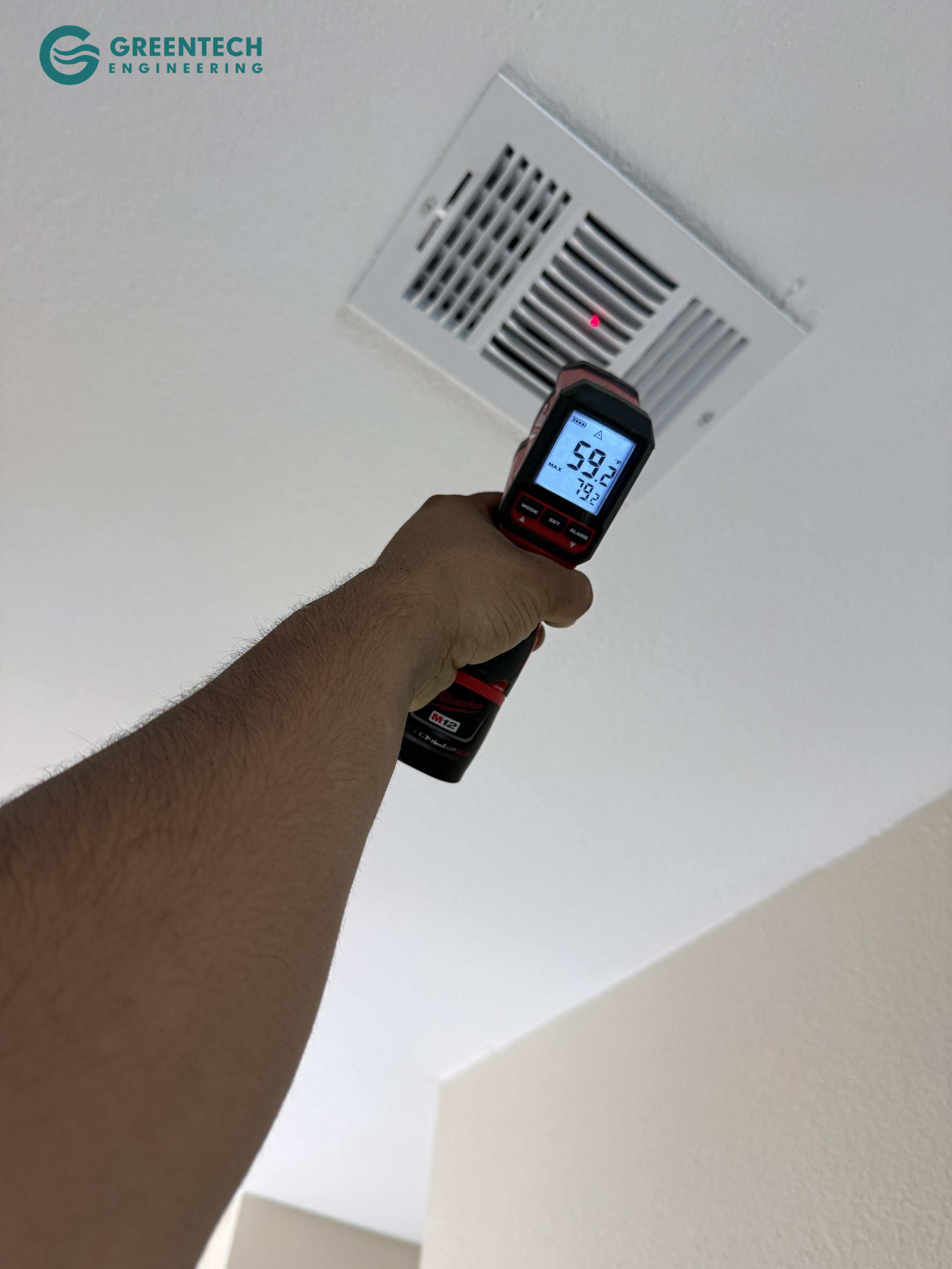

- Commissioning: The system was fully charged, run, and tested for precise superheat, subcooling, and airflow metrics.
Why You Need an Authorized Oncor Service Provider
Because we correctly downsized this system and utilized a highly efficient ECM motor and TXV, the energy savings for this home were massive. But the savings didn't stop at the monthly electric bill. This homeowner received over $1,700 in direct utility incentives.
You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.
To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.
When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.
Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice.
Learn more Oncor incentive case in Fort Worth.
2026 Oncor Incentive Snapshot: Dallas-Fort Worth
*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.
Frequently Asked Questions
Q: Why is it bad if my air conditioner is oversized?
A: An oversized AC cools the air too quickly and shuts off before it has a chance to pull humidity out of the house (short-cycling). This leads to a cold but clammy and damp indoor environment. Furthermore, the constant turning on and off draws massive spikes of electricity, wearing out the compressor prematurely and driving up your electric bill.
Q: How do I know what size AC my Fort Worth home needs?
A: The only legally recognized and scientifically accurate way to size an HVAC system is through an ACCA Manual J Load Calculation. A contractor should never guess your AC size based solely on the square footage of your home. They must account for ceiling height, window types, insulation R-values, and solar orientation.
Q: What is an ECM Blower Motor in a gas furnace?
A: ECM stands for Electronically Commutated Motor. Unlike older single-speed motors that blast air at 100% capacity and sound like a jet engine, an ECM motor is variable. It can ramp up and down slowly, pushing the exact amount of air needed through your ductwork. This provides whisper-quiet operation and uses a fraction of the electricity.
Q: Does a Goodman 15.2 SEER2 AC qualify for the Oncor rebate in Fort Worth?
A: Yes! When matched with the correct indoor coil and furnace, and installed by an Authorized Oncor Participating Service Provider like Greentech Engineering, a 15.2 SEER2 Goodman system exceeds the utility's minimum requirement of 14.3 SEER2 / 11.7 EER2, qualifying the homeowner for substantial instant rebates.
About the Author: Siwei (Lucas) Chen
CTO | Greentech Engineering Heating & Air Conditioning
Siwei (Lucas) Chen specializes in engineering-driven HVAC diagnostics, thermodynamic performance optimization, and custom ductwork design for Dallas homeowners. Holding a B.S. in Mechanical Engineering from Virginia Tech, he brings a strict, data-first approach to residential heating and cooling. Under his technical leadership, Greentech Engineering ensures every system is perfectly calibrated for the Texas climate, focusing relentlessly on ACCA Manual J load calculations, meticulous clinical installation standards, and securing maximum utility rebates for his clients.
Professional Certifications:
- ACCA Certified (Manual J, S, D)
- Daikin Comfort Pro Contractor
- NCI Certified – Air Balancing & Duct Optimization
- Oncor Participating Service Provider
