Case Study: How a Fort Worth Family Secured the Maximum $3,400 Oncor HVAC Incentive

‍

When the brutal reality of a Texas summer sets in, your air conditioning system is the only thing standing between your family and the unforgiving Tarrant County heat. But as energy costs continue to climb across the Dallas-Fort Worth metroplex, merely replacing an old AC unit with a standard model is a missed financial opportunity.

In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.

This is the exact philosophy we applied for a single-family homeowner in the 76177 zip code of Fort Worth. Facing a failing 5-Ton system, they called Greentech Engineering. By leveraging our expertise as an Authorized Oncor Participating Service Provider and our ACCA Manual J Certification, we didn't just restore their comfort; we engineered a robust, AHRI-certified Goodman Heat Pump solution with customized ductwork that successfully qualified them for the maximum Oncor Home Energy Efficiency Program incentive.

2026 Oncor Incentive Snapshot: Do You Qualify?

To qualify for Oncor's Home Energy Efficiency Program in the DFW area, your new system must meet specific engineering baselines. As an Authorized Provider, Greentech Engineering ensures your installation meets or exceeds these tiers to maximize your payout.

*Incentive Disclaimer: The $3,400 figure represents the maximum potential Oncor invoice discount, reserved for top-tier capacity and efficiency upgrades (e.g., 5-Ton, 18+ SEER2) combined with qualifying envelope improvements. Actual incentive amounts are strictly determined by Oncor's kW/kWh reduction formula. To maximize your payout and ensure compliance, Greentech Engineering utilizes our ACCA Manual J Certification to perform the mandatory, precision pre-installation load calculations required for approval.

The Problem: A Failing 5-Ton System in Tarrant County

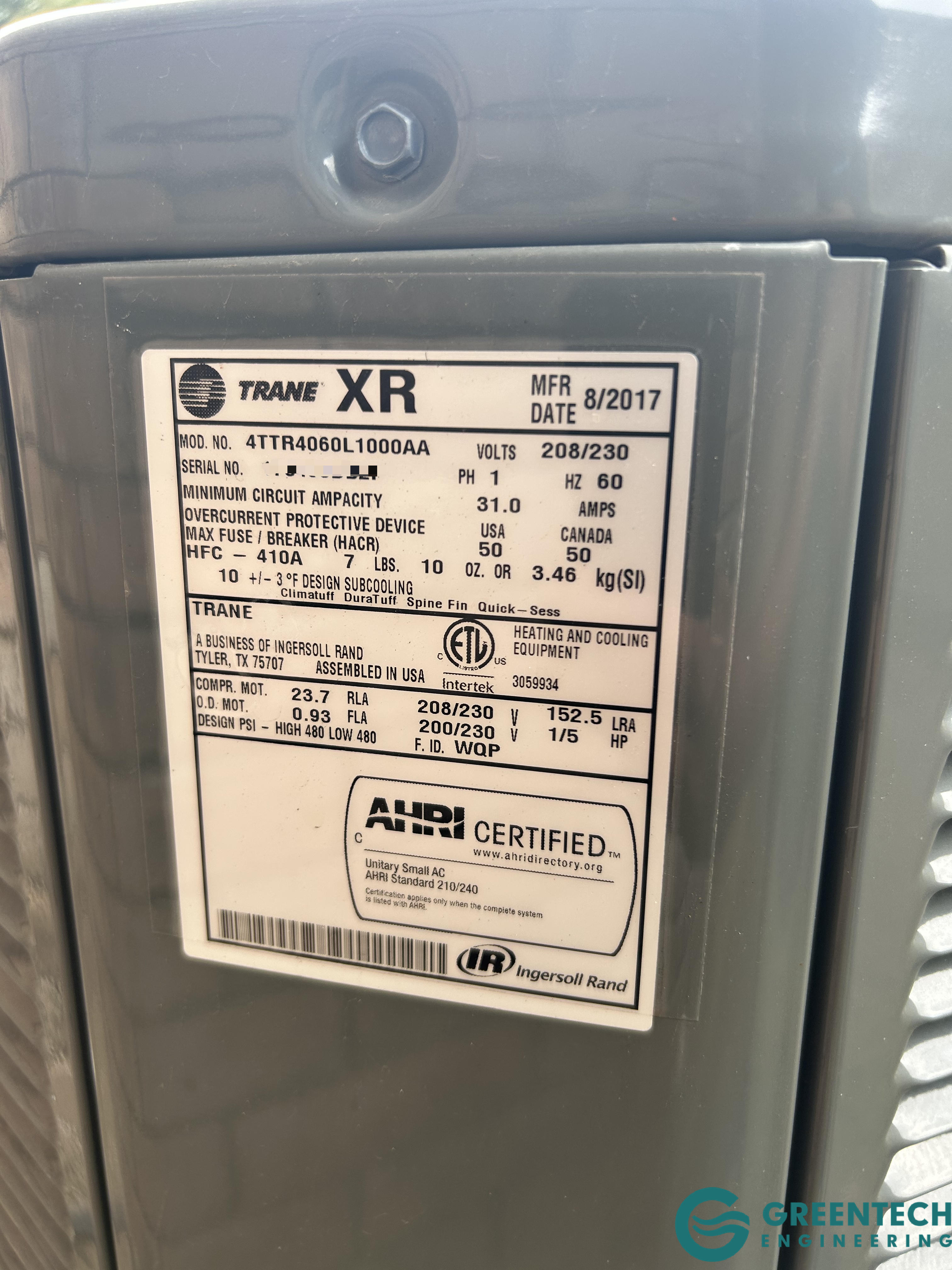

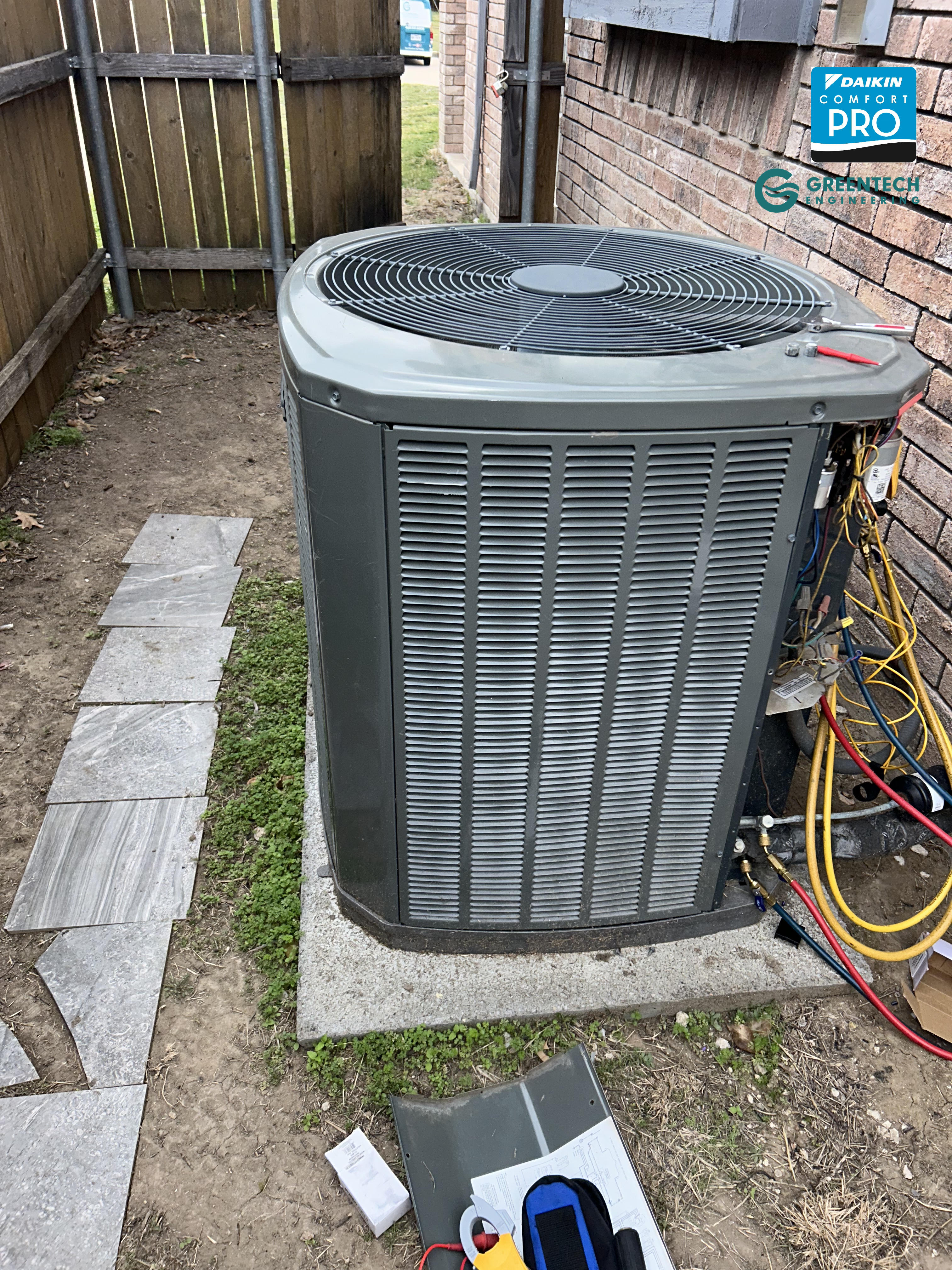

When our team dispatched from our centralized Dallas headquarters—our single operational hub serving the entire DFW metroplex—we conducted a comprehensive assessment of the Fort Worth property. The home was utilizing a 5-Ton Trane XR system (manufactured in August 2017) that was struggling to keep up with the thermal load of the house.

Inside the attic, the horizontal air handler was equally strained. The ductwork connections were aging, and the system was experiencing significant static pressure issues, preventing proper airflow. Because the Trane unit was still technically operational, the homeowner was in the perfect position to establish an energy baseline and qualify for Oncor incentives before a catastrophic breakdown.

The Greentech Engineering Solution: AHRI-Certified Goodman Heat Pump

To meet Oncor's strict 2026 minimums for a 5-Ton system (which require at least 13.8 SEER2 and 11.2 EER2), we engineered a highly specific equipment matchup. We selected a Goodman 14.3 SEER2 5-Ton Heat Pump System paired with a Goodman 60,000 BTU Multi-Position Air Handler.

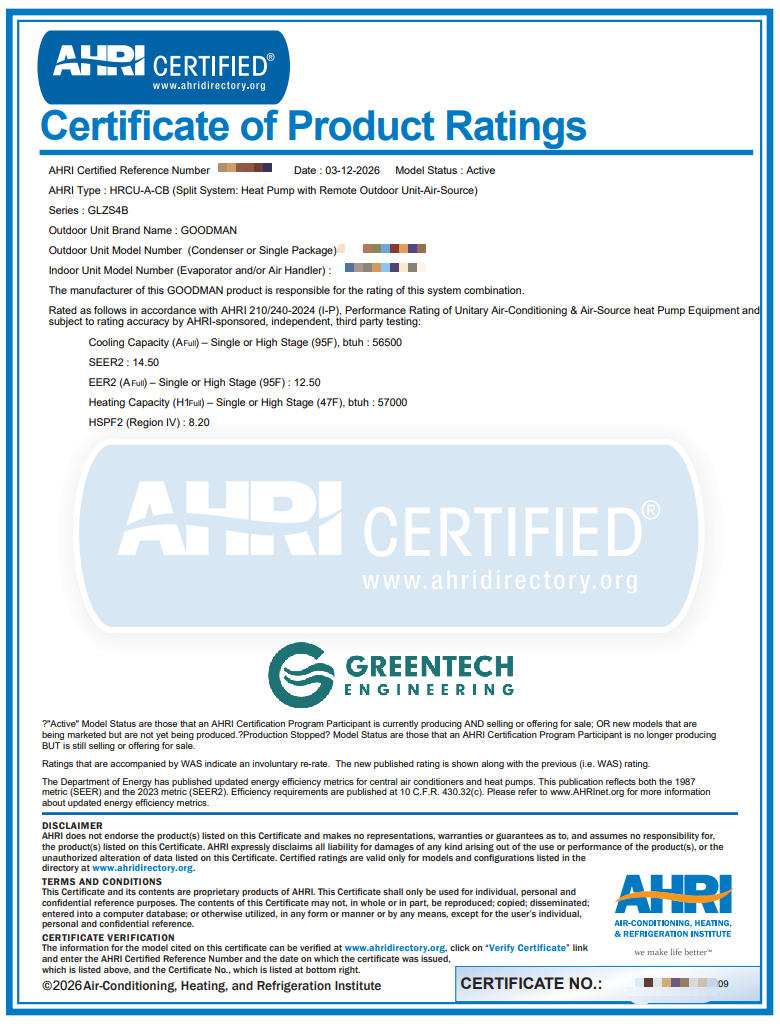

Using our ACCA Manual J precision calculations, we verified that this specific combination yields an AHRI-Certified performance of 14.50 SEER2, 12.50 EER2, and 8.20 HSPF2—easily surpassing the Oncor minimums and securing the maximum incentive tier.

‍

Scope of Work: Precision Installation & Airflow Optimization

A high-efficiency system is only as good as its installation. Our certified technicians executed a flawless removal of the old Trane system, safely pumping down and recovering all existing refrigerant. From there, we implemented our strict, data-driven installation protocol:

1. The Outdoor Condenser Setup

We installed the new Goodman 60,000 BTU Split Heat Pump on a brand-new concrete condenser equipment pad. To ensure the compressor's longevity and quiet operation (aided by its SmartShift® technology and factory-installed high-capacity muffler), we used a torpedo level to guarantee a perfectly flat resting surface.

2. Advanced Refrigerant Line Processing

We utilized the existing copper line sets, but only after putting them through a rigorous cleaning process. The lines were flushed with RX-11 and maintained with dry nitrogen. All necessary modifications were soldered using a 15% silver brazing rod by our certified technicians.

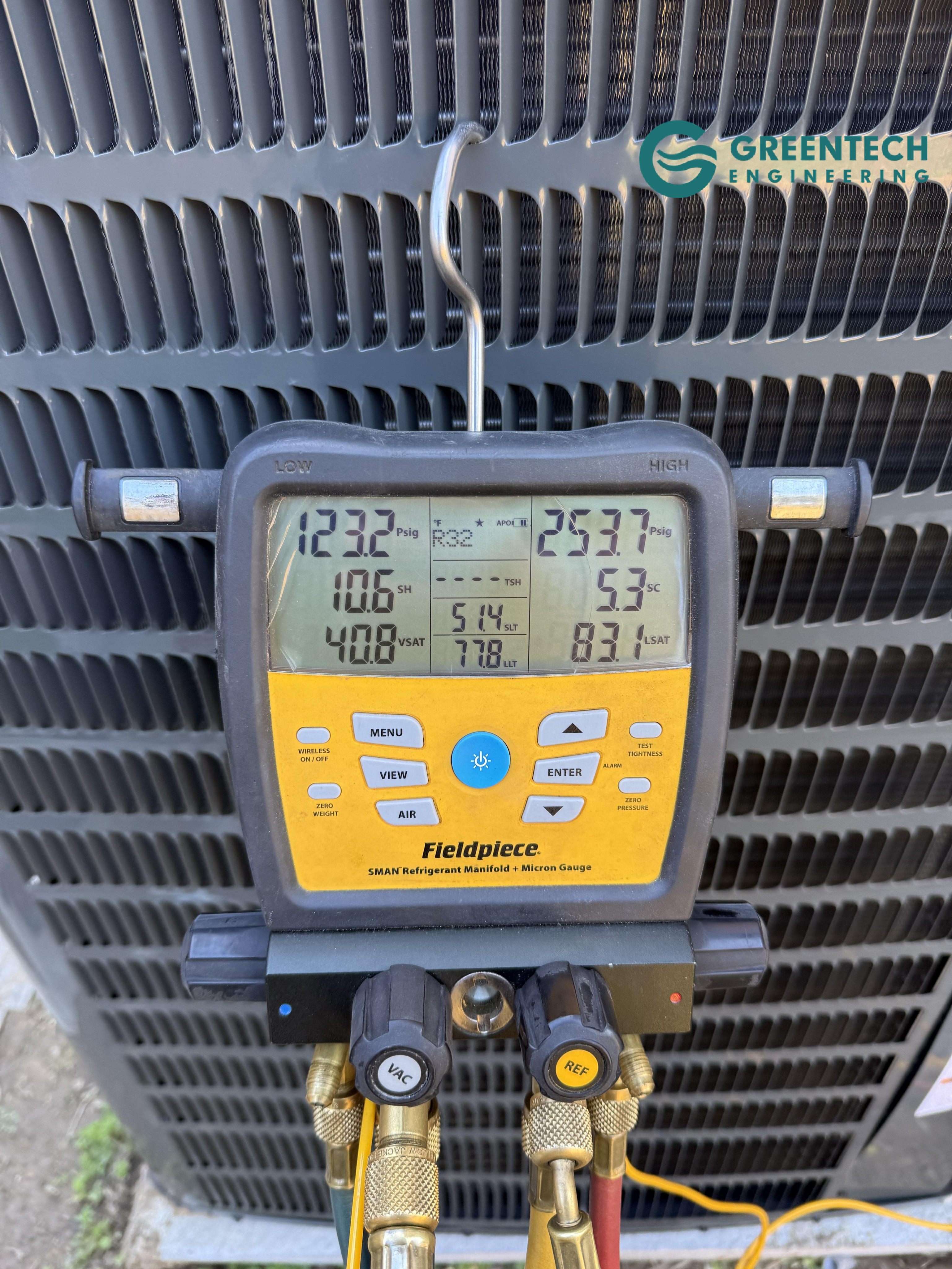

To guarantee zero leaks, the system was pressurized with dry nitrogen to 250 psi and held for 15 minutes. Finally, we pulled a deep vacuum, bringing the system well under 500 microns before releasing the factory charge.

‍

3. Indoor Air Handler & Custom Ductwork Modification

In the attic, the new Goodman air handler—featuring an all-aluminum evaporator coil, an internal TXV, and a 9-speed ECM blower motor—was secured horizontally. We installed a new Safe-T drain switch, a new drain trap and vent, and cleared the condensation line with pressurized dry nitrogen.

To solve the home's previous airflow issues, we performed several key upgrades:

• Plenum Replacement: We replaced the return plenum with a customized, insulated metal 4-inch filter combo air box.
• New Duct Run: We added a new R-6 flex duct run to improve air distribution. This included cutting a new start collar into the plenum, installing an insulated boot, and running the new R-6 duct suspended properly with nylon tape.
• Sealing: Every single connection point was meticulously sealed with designed HVAC metal tape and heavy-duty duct sealant to prevent air leakage.
• Heat Upgrade: We installed a new 15 KW electrical heat strip for robust winter backup heating.

‍

The Results: Instant Performance & Guaranteed Savings

Upon startup, we replaced the outdated thermostat with a new two-stage heat, one-stage cool thermostat specifically configured for the new heat pump system. The results were immediate. Using an infrared digital thermometer, we measured a crisp, powerful 56-degree supply air output at the ceiling registers.

‍

With a 10-year factory limited parts warranty and Greentech's 3-Year Labor Warranty, this Fort Worth family is now protected, comfortable, and significantly more energy-efficient. Furthermore, by utilizing our ACCA Manual J data to document the precise EER2 and SEER2 jump, we successfully processed their Oncor incentive paperwork without the homeowner having to lift a finger—securing them thousands of dollars in invoice discounts.

Fort Worth HVAC Upgrades FAQ

Q:Does a 14.5 SEER2 system qualify for Oncor incentives in Fort Worth?

A:Yes. For systems 4-Tons and larger (like the 5-Ton system in this case study), the 2026 Oncor minimum requirement is 13.8 SEER2 and 11.2 EER2. A properly matched 14.5 SEER2 / 12.5 EER2 system easily exceeds this baseline, qualifying the homeowner for an Oncor incentive.

Q: Why is ACCA Manual J Certification important for my Oncor rebate?

A:Oncor requires proof that your new system is correctly sized for your home's unique thermal load. If a contractor guesses your unit size, your rebate application can be rejected. Our ACCA Manual J Certification ensures your sizing data is indisputable, guaranteeing compliance with Oncor's strict performance formulas.

Q:Why did Greentech flush the existing copper lines with RX-11?

A:When replacing an older system, the existing copper lines must be completely purged of old oil, acid, and debris. RX-11 is a powerful flushing solvent that, when followed by a dry nitrogen sweep, ensures the new system's compressor isn't contaminated, protecting your 10-year warranty.

Q:Why is replacing the return plenum important during a system upgrade?

A:The return plenum acts as the "lungs" of your HVAC system, pulling air from the house into the air handler. If the old plenum is undersized, leaking, or degraded, a new high-efficiency system (like one with a 9-speed ECM motor) will be choked for air. Replacing it with a custom, sealed metal plenum ensures optimal static pressure and system longevity.
