Dual 17.2 SEER2 Daikin Upgrade in Plano (75025): Manual J Downsizing & $2,000+ Oncor Rebate
Homeowners in the 75025 zip code of Plano, Texas, know that keeping a large, two-story detached home cool during a 105-degree summer is a serious challenge. When both the upstairs and downstairs HVAC systems reach the end of their lifespans simultaneously, it presents a critical decision: Do you blindly replace them with the exact same size equipment, or do you take the opportunity to engineer a smarter, more efficient home?
“In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.”

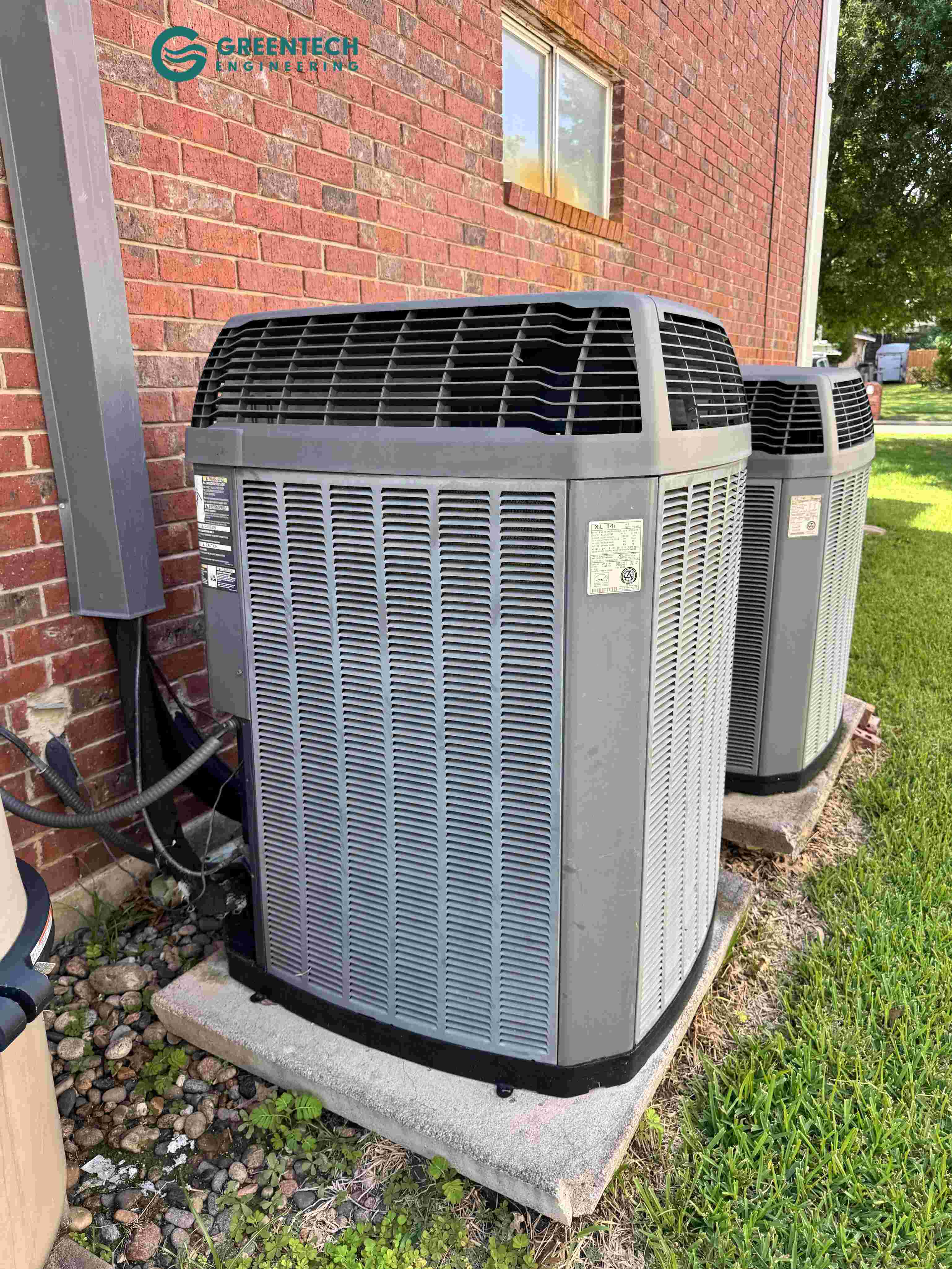

Recently, a Plano family contacted our team to overhaul their entire home's climate control. Their two aging, single-stage air conditioners were consuming massive amounts of electricity, yet the house still felt humid and uncomfortable.
In this deep-dive engineering case study, we will reveal how a strict ACCA Manual J whole-house load calculation led to a surprising recommendation: downsizing the downstairs unit. We will break down the installation of two highly advanced Daikin 17.2 SEER2 Communicating Systems, our clinical airflow optimization, the massive 12-Year Labor Warranty we provided, and how we secured over $2,000 in instant Oncor utility rebates.
The Engineering Secret: Why We Downsized the AC (Manual J)
A widespread epidemic in the residential HVAC industry is the practice of "like-for-like box swapping." If an old house has a 3.5-ton unit downstairs, a lazy contractor will simply install a new 3.5-ton unit without ever pulling out a tape measure.
At Greentech Engineering, we rely on physics and thermodynamic data. Before recommending any equipment, we performed a comprehensive ACCA Manual J Load Calculation for the entire two-story property. We mapped the exact square footage, evaluated the directional solar heat gain through the windows, and accounted for the home's insulation R-values.
The Data-Driven Revelation:
The math proved that the downstairs living space only required exactly 3 Tons of cooling capacity, not the 3.5 Tons that was originally installed years ago.
Why is an oversized AC a problem? An oversized 3.5-ton system cools the air too quickly. It "short-cycles," blasting freezing air for ten minutes and shutting off before the evaporator coil has enough time to wring the thick Texas humidity out of the air. By deliberately downsizing from 3.5 tons to 3 tons for the downstairs unit, the new system runs longer, gentler cycles, resulting in vastly superior dehumidification and massive energy savings.
The Technology: Dual 17.2 SEER2 Daikin Communicating Systems
Based on the Manual J data, we engineered a complete, whole-house overhaul utilizing top-tier Daikin technology.
The Setup:
- Downstairs: Daikin 17.2 SEER2 3-Ton High-Efficiency Communicating Two-Stage A/C with an 80,000 BTU 80% AFUE Gas Furnace.
- Upstairs: Daikin 17.2 SEER2 4-Ton High-Efficiency Communicating Two-Stage A/C with an 80,000 BTU 80% AFUE Gas Furnace.
Both AHRI-certified matchups heavily surpass the strict 2023 DOE Energy Conservation Standards and come packed with elite features:
Copeland® Ultra-Tech Two-Stage Compressors
Unlike standard units that only operate at 100% capacity, these Daikin condensers feature two-stage technology. On milder 85-degree days, they operate smoothly in "low gear" (around 65% capacity), saving immense amounts of electricity and keeping the home whisper-quiet. They only shift into 100% "high gear" during severe 100+ degree heat waves.
The Indoor Powerhouse: Variable-Speed Gas Furnaces
The outdoor units create the cooling, but the indoor furnaces deliver it. The new 80,000 BTU Daikin furnaces feature quiet variable-speed ECM blower motors. Instead of blasting air violently, they ramp up slowly. This works in perfect harmony with the two-stage condensers to continuously circulate air throughout the sprawling Plano home. Furthermore, the heavy-duty stainless-steel tubular heat exchangers come with a Lifetime Heat Exchanger Limited Warranty.
Daikin One+ Smart Thermostats
Because these are "Communicating Systems," the thermostat, furnace, and condenser continuously exchange digital data. The Daikin One+ acts as the brain, utilizing ambient temperature sensors and Copeland® ComfortAlert™ diagnostics to optimize compressor speeds in real-time.
Ductwork Optimization: New Plenums & Precision Airflow
17.2 SEER2 equipment is useless if it is connected to failing ductwork. Upon inspecting the attic, we found the original supply and return plenums (the main air distribution boxes) were degrading and restricting airflow.
As part of this Plano 75025 upgrade, we executed a comprehensive airflow optimization:
- Complete Plenum Replacement: Both the upstairs and downstairs systems received brand new supply and return plenums. We customized insulated metal air boxes (and duct board plenums) to ensure zero static pressure bottlenecks.
- Targeted Airflow Addition: To solve a specific hot spot in the house, we installed a new start collar on the supply plenum, added a new R-8 insulated flex duct run, and installed a brand new insulated boot.
- Mastic Sealing: Every single connection area on the new plenums and duct runs was meticulously sealed with HVAC metal tape and mastic duct sealant. This ensures that 100% of your highly pressurized, conditioned air makes it into your living room, rather than leaking out into the 130-degree attic.
Know more about our ductwork desing and optimization service.
The Greentech Standard: 11-Step Clinical Installation
To guarantee the 12-Year Unit Replacement Warranty and our exclusive 12-Year Labor Warranty, our engineers executed our strict clinical protocols:
- Environmental Safety: All old R-22/R-410A refrigerant was legally pumped down and recovered.
- Infrastructure Defense: New concrete condenser pads were laid outside. In the attic, we installed new gas sediment traps, insulated drain lines, and Safe-T drain switches to automatically prevent ceiling floods if a clog ever occurs.
- Nitrogen Drain Clearing: The old condensation drain lines were blasted with pressurized dry nitrogen to remove biological sludge, and new traps and vents were installed.
- Suspension & Leveling: The new evaporator coils and gas furnaces were secured and balanced using heavy-duty structural hanging systems.
- Code Compliance: All necessary gas line and furnace exhaust flue pipe modifications were meticulously completed.
- RX-11 Chemical Flush: Existing copper refrigerant line sets were chemically flushed with RX-11 and chased with dry nitrogen. This completely strips out the old, acidic mineral oil, ensuring the new synthetic POE oil remains pristine.
- Nitrogen-Purged Brazing: All copper modifications were soldered using 15% silver brazing rods by certified technicians while flowing dry nitrogen through the pipes to prevent internal carbon oxidation.
- 250 PSI Pressure Test: The closed systems were pressurized with dry nitrogen to 250 psi and held for a minimum of 15 minutes to mathematically prove there were zero micro-leaks.
- 500-Micron Deep Vacuum: Utilizing specialized digital pumps, we pulled the system pressures down under 500 microns. This boils off atmospheric moisture inside the lines, preventing the formation of highly corrosive acid.
- Smart Calibration: The Daikin One+ thermostats were wired and programmed.
- Final Commissioning: The dual systems were fully charged and tested for exact superheat and subcooling metrics.
Unmatched Peace of Mind: The 12-Year Labor Warranty
While most contractors offer a basic 1-year labor warranty, Greentech Engineering stands behind our clinical execution. For this Plano project, we provided an elite Twelve Years Labor Warranty alongside Daikin's 12-Year Parts and 12-Year Unit Replacement warranties. You are financially protected from mechanical failures for over a decade.
Why You Need an Authorized Oncor Service Provider
You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.
To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.
When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.
Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice. For this dual-system upgrade, we secured more than $2,000 in Oncor rebate discounts for the homeowner! Know more about our Oncor Energy rebate Consulting & HVAC Incentive service.
2026 Oncor Incentive Snapshot: Dallas-Fort Worth
*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.
Frequently Asked Questions
Q: What is a Manual J calculation, and why did my AC get downsized?
A: A Manual J is an engineering formula that calculates the exact amount of cooling your home needs based on square footage, windows, and insulation. Often, older homes had oversized systems installed by guessing. An oversized AC cools the house too fast and shuts off before it can remove humidity. Downsizing to the correct mathematical size ensures the system runs longer, quieter cycles, keeping your home incredibly dry and comfortable.
Q: Why is an RX-11 flush necessary when replacing an AC?
A: Old air conditioners used a different type of refrigerant and mineral oil. Modern high-efficiency systems (like Daikin) use synthetic POE oil. If the old, acidic mineral oil is left inside the existing copper pipes, it creates a sludge that will destroy the new compressor. We use a chemical called RX-11 to completely strip the old oil out of the pipes.
Q: What does a 500-micron vacuum do during installation?
A: Air contains moisture. If moisture is trapped inside your copper refrigerant lines, it mixes with the refrigerant to create hydrofluoric acid, which eats away at the system from the inside out. By pulling a deep 500-micron vacuum, we lower the boiling point of water so drastically that any microscopic moisture instantly vaporizes and is sucked out of the pipes.
Q: How do I qualify for the Oncor HVAC rebate in Plano, TX?
A: To qualify, your home must be in the Oncor service territory, you must upgrade to a high-efficiency system (like a 17.2 SEER2), and the installation must be verified by an Authorized Oncor Participating Service Provider like Greentech Engineering.
Ready for Engineering-Grade Comfort?
If you are tired of high electric bills and a humid, uncomfortable home, stop guessing and start engineering. Reach out to our team to schedule your comprehensive whole-house load calculation and upgrade to elite Daikin technology.
