Elevating Comfort in Little Elm, TX: A 15 SEER2 Daikin HVAC Transformation

For homeowners in Little Elm, TX (75068), a reliable HVAC system isn't a luxury; it is a necessity for surviving the brutal North Texas summers and unpredictable winter freezes. When an aging system starts to lose its cooling capacity, homeowners are often faced with rising utility bills, uneven temperatures, and the looming threat of a complete breakdown.

At Greentech Engineering Heating & Air Conditioning, we tackle these challenges with a data-driven, engineering-first approach. Recently, we helped a Little Elm family replace their deteriorating Lennox system with a state-of-the-art Daikin High-Efficiency HVAC System .

By perfectly matching a 3.5-Ton Daikin Straight Cool A/C with an 80,000 BTU 9-Speed ECM Gas Furnace, we achieved a highly efficient 15 SEER2 performance rating. Here is a detailed breakdown of how we executed this AHRI-certified installation to the highest industry standards.

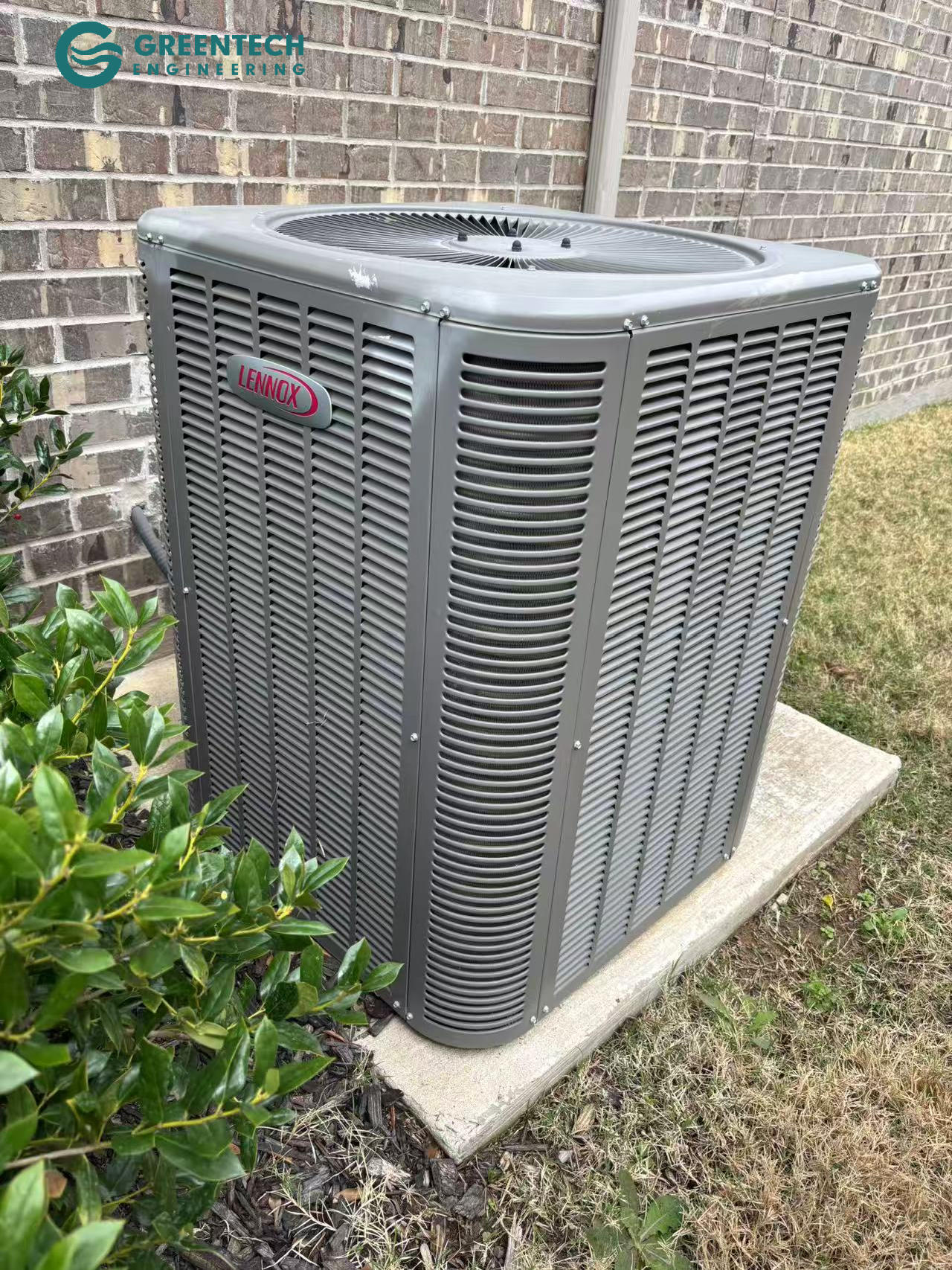

The Problem: The Outdated Lennox System

The homeowner's existing Lennox system had reached the end of its useful lifespan. It was struggling to keep up with the summer heat load, drawing excessive electricity, and failing to properly dehumidify the home.

‍

The Engineering Solution: A 15 SEER2 Daikin Matchup

To provide the Little Elm homeowner with ultimate reliability and lower utility bills, we engineered an AHRI Certified system matchup that meets and exceeds the strict 2023 DOE Energy Conservation Standards .

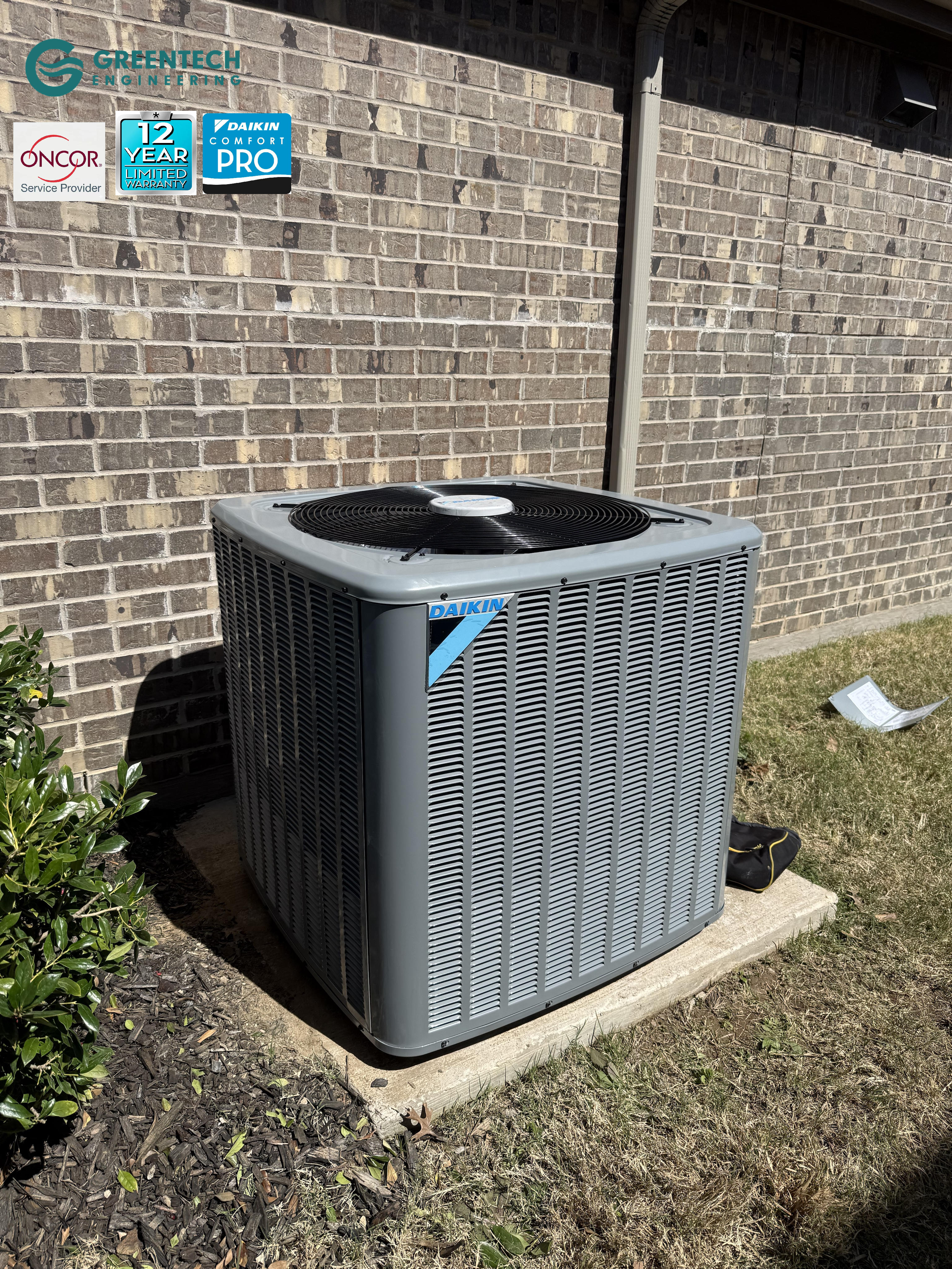

The Condenser: Daikin 3.5-Ton Straight Cool A/C (Up to 15.2 SEER2)

We installed a 42,000 BTU high-efficiency Daikin split-system air conditioner.

• Copeland® Scroll Compressor: Features advanced CoreSense™ Technology for premium reliability and smooth operation.
• Durability: Built with copper tubing and an enhanced 5mm aluminum fin coil for optimal heat transfer.
• Quiet Operation: Encased in a high-density foam compressor sound blanket to ensure peaceful backyard living.
• Protection: Equipped with factory-installed filter driers and high/low-pressure switches to protect the heart of the system.

The Evaporator Coil: Daikin 42,000 BTU Cased Coil

• Precision Cooling: Features an internal, factory-installed Thermal Expansion Valve (TXV) that continuously adjusts refrigerant flow based on the exact temperature of the coil, providing superior humidity removal.
• Tested for Perfection: Rifled aluminum tubing and enhanced aluminum fins, factory air-pressure tested at 500 psi, leak-tested with helium, and nitrogen pressurized.

The Furnace: Daikin 80,000 BTU 80% AFUE Gas Furnace

• 9-Speed ECM Blower Motor: Unlike older systems, this energy-efficient motor provides multiple continuous fan speed options. This allows us to dial in the exact airflow needed for quiet, balanced circulation throughout the home.
• Heavy-Duty Heating: Features a stainless-steel dual-diameter tubular heat exchanger and a highly durable Silicon Nitride igniter.
• Airtight Cabinet: Designed with a cabinet air leakage rate (QLeak) of ≤ 2%, maximizing the amount of conditioned air that actually makes it into your living spaces.

Precision Installation: Our Scope of Work

Premium equipment is only as good as the engineers who install it. At Greentech Engineering, we follow a strict, multi-point protocol to guarantee maximum system lifespan.

1. Clean Slate & Flushing

‍After safely recovering the old refrigerant, we flushed the existing copper line sets with RX-11 and dry nitrogen. This removes any acidic oil residue left behind by the old system, preventing cross-contamination.

2. Expert Brazing & Sealing

‍All necessary modifications to the refrigerant lines were soldered using a 15% silver brazing rod by our certified technicians. In the attic, the new coil and furnace were connected to the plenums using hex washer head HVAC screws, and all connection areas were meticulously sealed with mastic duct sealant and HVAC metal tape to eliminate air leaks.

‍

3. The 250 PSI Nitrogen Pressure Test

‍Before introducing refrigerant, we pressurized the system with dry nitrogen to 250 psi and held it for a minimum of 15 minutes. This strict test ensures there are absolutely no micro-leaks in the brazed joints.

4. The Sub-500 Micron Deep Vacuum

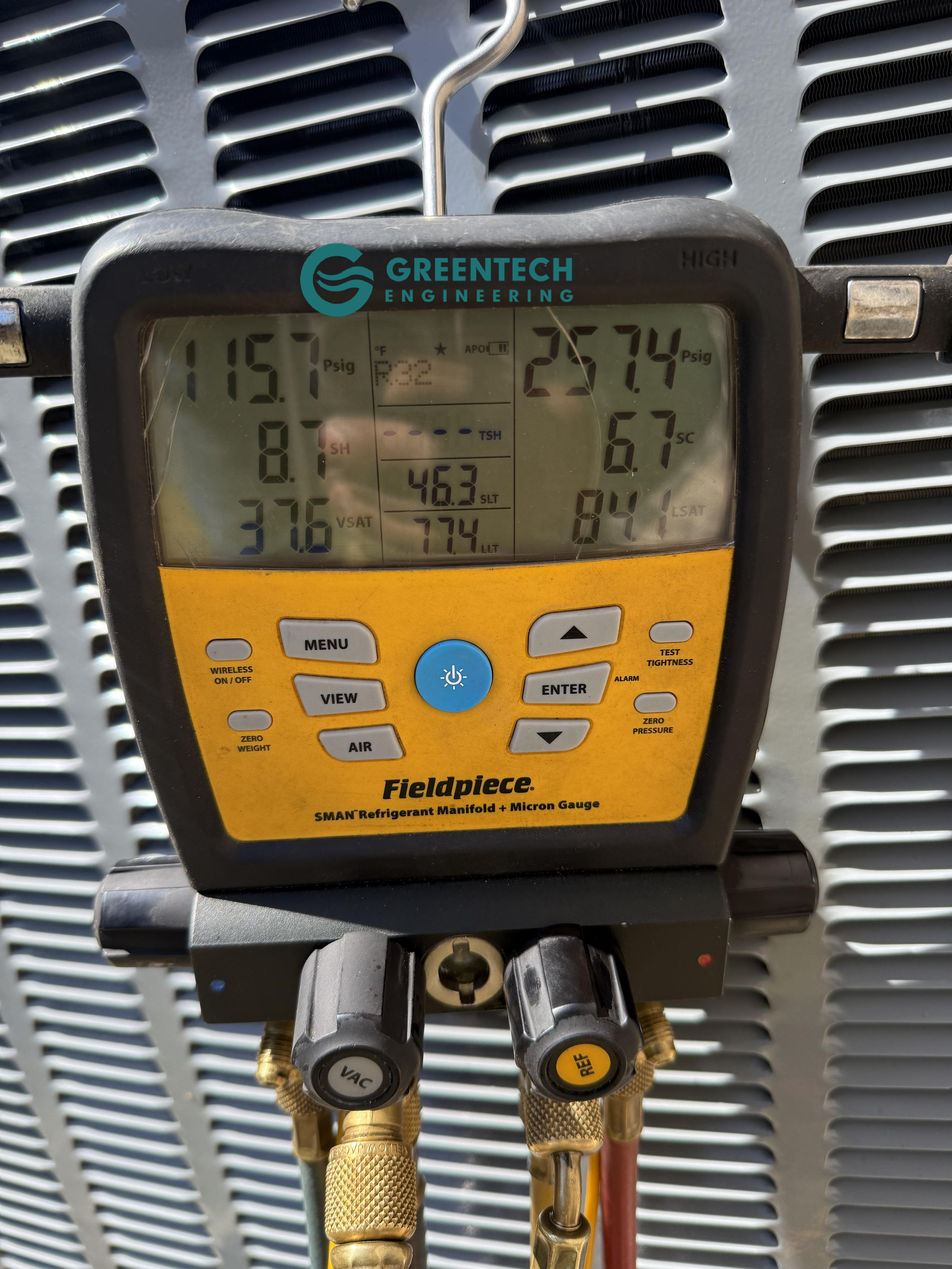

‍Moisture is the ultimate enemy of a compressor. We utilized advanced digital manifold gauges to pull a deep vacuum on the system, bringing it well below 500 microns. This process literally boils off any microscopic moisture inside the copper lines at room temperature.

‍

5. System Protection

‍We installed a new gas sediment trap, Safe-T drain switch, fresh drain line insulation, and cleared the condensation lines with pressurized dry nitrogen to prevent future clogs.

Unmatched ROI: Industry-Leading Warranties & Incentives

Because this system was installed to strict manufacturer specifications and meets the 2023 DOE efficiency standards, it qualified as an Oncor Participating Service Provider Project , securing a valuable cash rebate for the homeowner.

‍

By choosing a Daikin Comfort Pro like Greentech Engineering, this Little Elm homeowner secured incredible peace of mind. Upon registration, this system is backed by:

• 3-Year Labor Warranty (Providing absolute confidence in our craftsmanship)
• 12-Year Factory Limited Parts Warranty (Condenser, Coil, and Furnace)
• 12-Year Unit Replacement Plan (Evaporator Coil)
• 6-Year Unit Replacement Warranty (Condenser and Furnace)
• Lifetime Heat Exchanger Limited Warranty (Good for as long as you own your home!)

‍

‍

Little Elm HVAC Upgrades: Answer Engine FAQ

Q: What does an internal TXV do for my air conditioning?

‍A: A Thermal Expansion Valve (TXV) actively measures the temperature of the refrigerant leaving the evaporator coil and precisely adjusts the flow of liquid refrigerant entering the coil. This allows the system to adapt to the exact heat load of your house, offering superior efficiency and significantly better humidity removal compared to older systems.

Q: Why is a 9-Speed ECM motor better than a standard blower motor?

‍A: An Electronically Commutated Motor (ECM) uses far less electricity than a standard AC motor. Having 9 distinct speeds allows our engineers to dial in the exact cubic feet per minute (CFM) of airflow required for your specific ductwork. This eliminates hot and cold spots and provides ultra-quiet air circulation.

Q: Why do you flush the lines with RX-11?

‍A: When replacing an old system, the existing copper line sets are often coated internally with old, acidic refrigerant oil. If not properly cleaned, this old oil will mix with the new refrigerant, causing premature compressor failure. RX-11 is a specialized solvent that aggressively flushes the lines clean, ensuring the new Daikin system operates in a pure environment.

Q: Is the Federal Tax Credit 25C still available for HVAC upgrades?

‍A: No! The 25C energy efficient home improvement credit has expired at the end of last year (2025).But Oncor rebate and Greensense rebate program still workable this year.

Don't leave your family's comfort to chance. If you live in Little Elm or the greater Dallas-Fort Worth area, trust the engineering firm that does the math and backs their work. Contact Greentech Engineering Heating & Air Conditioning today to schedule your comprehensive system evaluation!
