Goodman 3.5-Ton Heat Pump Installation in Grand Prairie, TX (75052)

Engineering-Driven HVAC Replacement for Reliable Year-Round Comfort

When a homeowner in Grand Prairie, TX 75052 contacted Greentech Engineering Heating & Air Conditioning, their existing HVAC system was aging, inefficient, and no longer dependable during peak Texas heat. Instead of a basic “box swap,” we delivered a code-compliant, performance-verified system replacement built around engineering standards and long-term reliability.

This project included a 42,000 BTU (3.5 Ton) Goodman Split Heat Pump System designed to meet the comfort demands of North Texas’ hot summers and occasional winter freezes.

Installed Equipment Overview

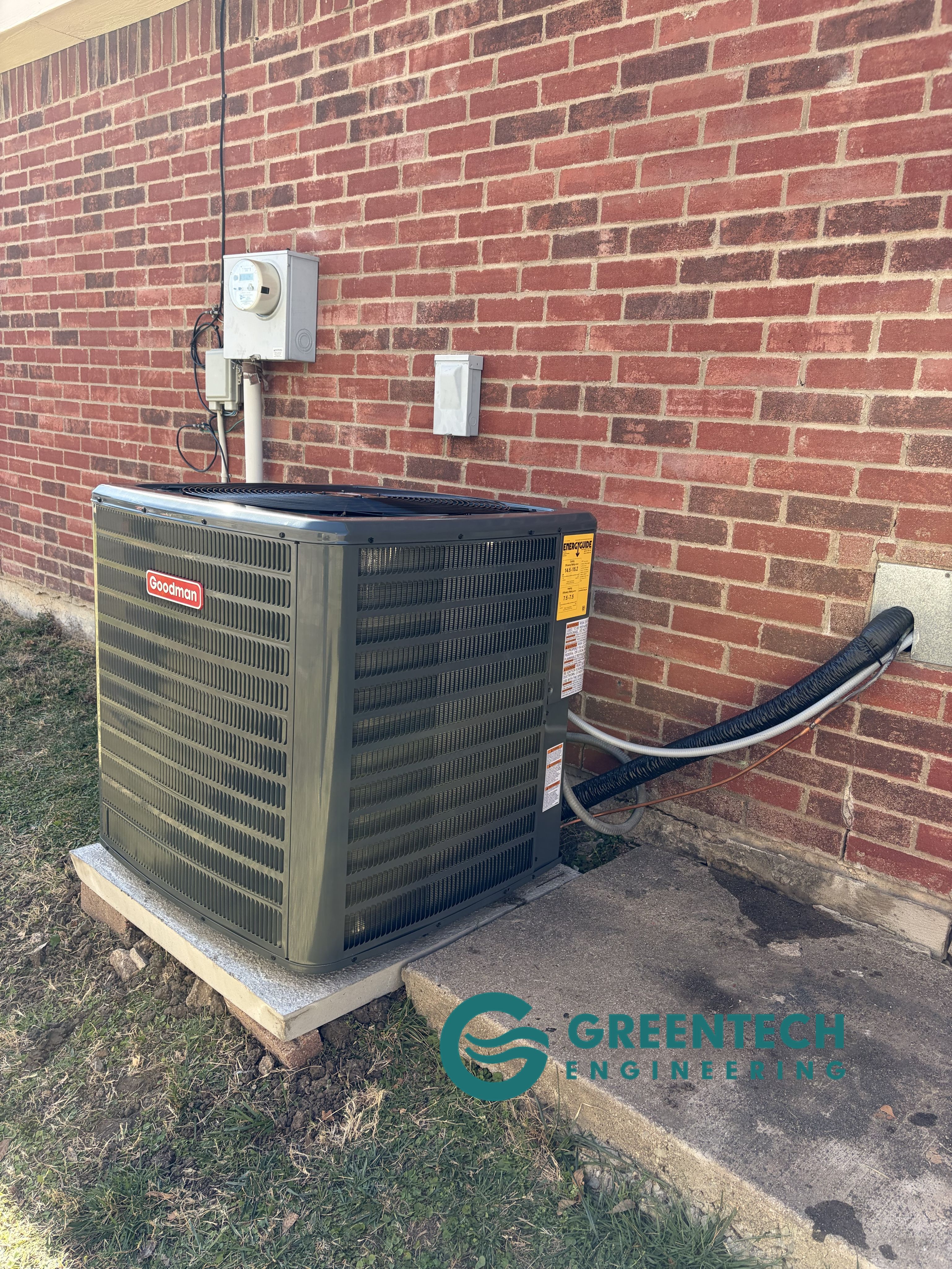

🔹 Outdoor Unit: Goodman 42,000 BTU Heat Pump (14.3 SEER2)

Key Features:

• Energy-Efficient Compressor
• SmartShift® Defrost Technology (quiet, reliable winter operation)
• Enhanced aluminum fin coil with 5mm copper tubing
• Factory-installed bi-flow filter drier
• Suction-line accumulator
• Compressor crankcase heater
• High-capacity muffler
• High- and low-pressure switches
• Pre-charged for 15 feet of line set
• 10-Year Factory Limited Parts Warranty

This configuration provides dependable performance while maintaining affordability for homeowners seeking balanced value and efficiency.

🔹 Indoor Unit: Goodman 42,000 BTU Multi-Position Air Handler

Key Features:

• Factory-installed TXV (Thermal Expansion Valve)
• 9-Speed ECM Direct-Drive Blower Motor
• All-aluminum evaporator coil with coated fins
• Optimized for single-stage AC and heat pump systems up to 15.2 SEER2
• 10-Year Factory Limited Parts Warranty

The ECM blower motor allows improved airflow control and better static pressure management—critical in many Grand Prairie single-family homes with older duct systems.

Engineering Scope of Work (Not Just a Swap)

At Greentech Engineering, installation quality determines system lifespan. Here is how this system was installed according to best practices aligned with ACCA and manufacturer standards.

1️⃣ Proper Refrigerant Recovery

All existing refrigerant was pumped down and recovered according to EPA guidelines before removal.

2️⃣ Drainage & Condensation Protection

• New Safe-T drain switch installed
• New insulated drain line
• New drain trap and vent
• Drain cleared with pressurized nitrogen
• Auxiliary drain pan installed
• New concrete condenser pad installed

Clogged drains are one of the most common service calls in Grand Prairie. We proactively eliminate that risk.

3️⃣ Air Handler Installation & Sealing

• Secured to return and supply plenums with hex-head HVAC screws
• Structural support adjustments included
• All seams sealed with HVAC metal tape and mastic sealant
• Air leakage minimized for maximum efficiency

4️⃣ Refrigerant Line Preparation

• Existing copper line sets flushed with RX-11
• Nitrogen purge during brazing
• 15% silver brazing rod used by certified technician
• Line modifications included as needed

5️⃣ Pressure & Vacuum Verification

• Nitrogen pressure test at 250 PSI
• Minimum 15-minute standing pressure verification
• Vacuum pulled below 500 microns

Many installations fail prematurely due to contamination or moisture left in the system. Pulling below 500 microns ensures system integrity and compressor longevity.

6️⃣ Final Commissioning

• System startup and performance testing
• Refrigerant charge verification
• Temperature split confirmation
• Electrical readings documented

Why Proper Installation Matters in Grand Prairie, TX

Grand Prairie experiences:

• Long cooling seasons
• High humidity
• Occasional winter freeze events
• Heavy usage cycles

A properly installed 3.5-ton heat pump must:

• Control humidity effectively
• Maintain correct airflow (CFM per ton)
• Prevent compressor damage
• Avoid drain line failures
• Operate quietly in residential neighborhoods

This project was completed with long-term reliability in mind—not short-term shortcuts.

Frequently Asked Questions (FAQ)

Q1: Is 14.3 SEER2 efficient enough for Texas?

Yes. 14.3 SEER2 meets current federal minimum efficiency standards for the South region. For homeowners prioritizing budget and reliability, it provides strong value.

Q2: Why is nitrogen pressure testing important?

Nitrogen testing confirms there are no leaks before charging the system. Skipping this step can lead to refrigerant loss and compressor failure.

Q3: What does pulling below 500 microns mean?

It ensures moisture and contaminants are removed from refrigerant lines. Moisture inside a system can create acid and damage internal components.

Q4: How long should this Goodman system last?

With proper installation and maintenance, 12–15 years is common in North Texas conditions.

Q5: Do you offer maintenance plans in Grand Prairie?

Yes. Routine maintenance improves efficiency, extends lifespan, and protects warranty coverage.

Local HVAC Experts in Grand Prairie, TX 75052

Greentech Engineering Heating & Air Conditioning serves single-family homeowners across:

• Grand Prairie
• Arlington
• Mansfield
• Irving
• South DFW communities

We specialize in:

• Engineering-based system sizing
• Heat pump installations
• Airflow diagnostics
• Duct optimization
• High-efficiency replacements

We do not guess system sizing based on square footage. We calculate performance.

Learn more about ACCA and ONCOR

Author

Siwei (Lucas) Chen
CTO | Greentech Engineering Heating & Air Conditioning

• B.S. in Mechanical Engineering
• ACCA Certified (Manual J, S, D)
• NCI Certified – Air Balancing & Duct Optimization
• Daikin Comfort Pro and Oncor Service Provider
• 10+ Years Residential HVAC Engineering Experience in DFW

This article has been reviewed and approved to ensure technical accuracy and compliance with professional HVAC engineering standards.
