Frisco HVAC Case Study: Downsizing a 17-Year-Old Carrier to a 15.2 SEER2 Daikin System for Ultimate Comfort

If you own a two-story home in Frisco, TX (75034), your HVAC system battles extreme temperature swings year-round. When an aging air conditioner begins to fail, the natural instinct for many homeowners—and unfortunately, many HVAC contractors—is to replace the broken unit with one of the exact same size, or even go bigger.

Recently, the Greentech Engineering team responded to a call at a single-family home in Frisco. The homeowner’s 17-year-old, 3-Ton Carrier AC was on its last legs. It was inefficient, noisy, and struggling to maintain a comfortable indoor humidity level.

Instead of performing a standard "box swap" and blindly installing another 3-Ton system, we relied on hard data. Our strict ACCA Manual J Load Calculation revealed that a 3-Ton unit was actually oversized for the specific thermal envelope of the space.

By downsizing the equipment to a precision-engineered 2.5-Ton Daikin High-Efficiency System, we permanently resolved their humidity issues, lowered their energy bills, and qualified the homeowner for significant Oncor Utility Rebates.

Here is the complete technical breakdown of this Frisco HVAC replacement and why our data-driven approach guarantees a better return on investment.

‍

The Problem: The 17-Year-Old Oversized Carrier

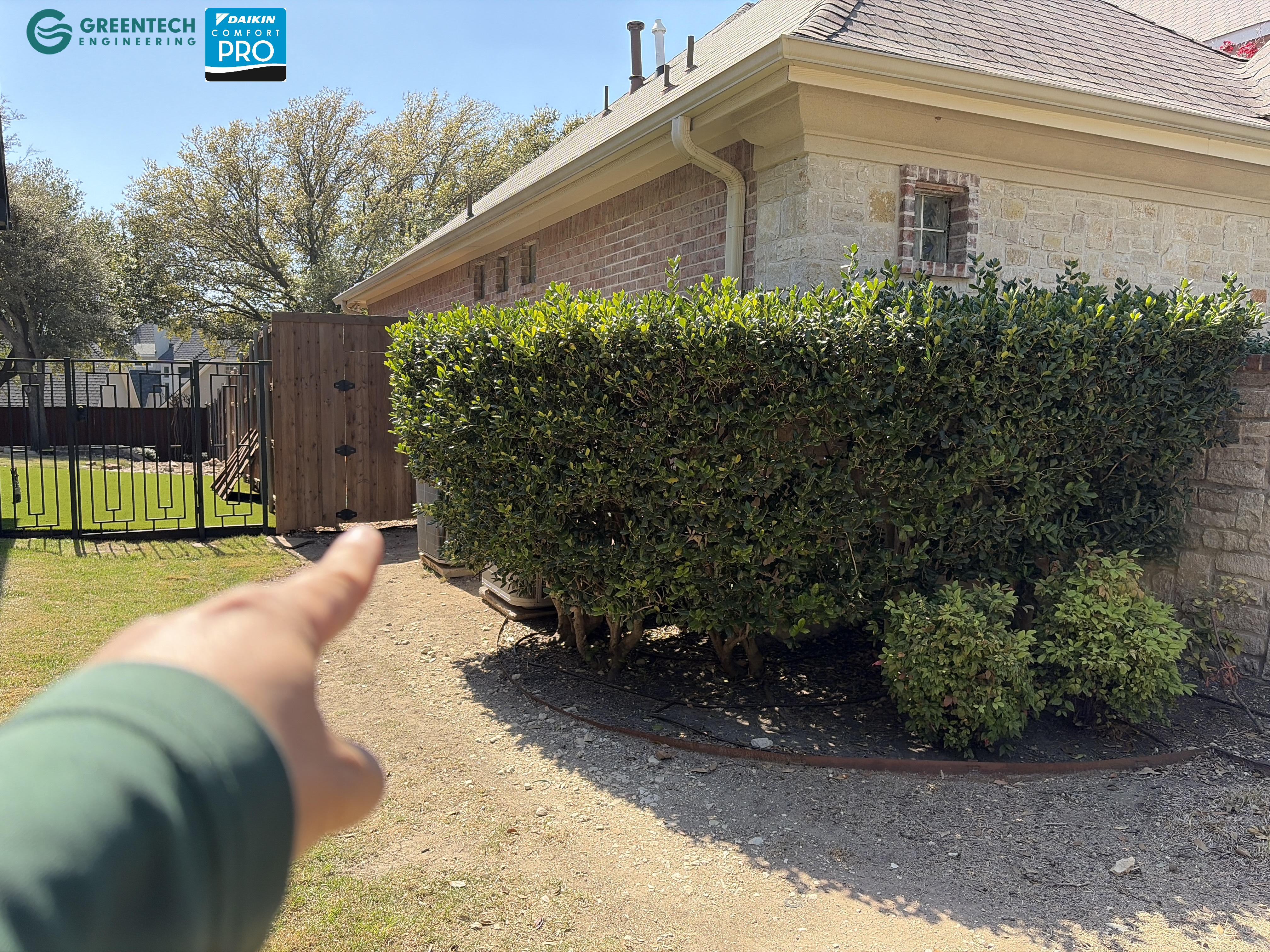

When our technicians evaluated the existing setup, the problems were immediately apparent. The 17-year-old 3-Ton Carrier condenser outside was suffering from extreme mechanical fatigue, and the indoor attic unit was caked with years of dust and restricted airflow.

However, the age of the equipment wasn't the only issue—the size of the equipment was fundamentally flawed.

When an air conditioner is oversized, it "short-cycles." It blasts the home with cold air, satisfies the thermostat in a matter of minutes, and shuts off. Because the cooling cycle is so brief, the system never has the chance to extract the latent heat (humidity) from the air. This leaves the home feeling cool, but uncomfortably sticky and clammy.

‍

The Solution: Manual J Engineering & The Daikin Matchup

To provide the ultimate climate control, we executed an ACCA Manual J Load Calculation. By measuring the Frisco home's exact square footage, window ratings, and insulation depth, the math proved the space only required 2.5 Tons of cooling capacity.

We engineered a completely new system utilizing premium Daikin components. By matching a specific 2.5-Ton Daikin straight cool condenser with a Daikin all-aluminum cased coil and a Two-Stage Gas Furnace, the total system efficiency reached an elite 15.2 SEER2 and 12.0 EER2.

Here is a breakdown of the premium technology installed:

1. Daikin 30,000 BTU High-Efficiency Condenser (2.5-Ton)

• Copeland® Scroll Compressor: The gold standard in HVAC, delivering consistent, highly efficient cooling while drawing significantly less electricity than standard compressors.
• Advanced CoreSense™ Technology: Built-in diagnostics that actively monitor the compressor, protecting it from electrical anomalies and extending its lifespan.
• Acoustical Comfort: Encased in a high-density foam sound blanket, this unit operates incredibly quietly, ensuring peaceful backyard living.
• Enhanced Copper Tube / Aluminum Fin Coil: Utilizing 5mm diameter tubing for superior, rapid heat transfer.

2. Daikin 30,000 BTU Horizontal Cased Coil

• Factory-Installed TXV: A Thermal Expansion Valve precisely meters the microscopic flow of refrigerant based on the exact cooling load, maximizing efficiency.
• All-Aluminum Construction: Built with rifled aluminum tubing to completely eliminate the risk of copper-related formicary corrosion (the #1 cause of indoor coil leaks).

3. Daikin 60,000 BTU 2-Stage Gas Furnace (80% AFUE)

• Variable-Speed ECM Blower Motor: Unlike old single-speed motors, the ECM motor provides gentle, continuous, and highly energy-efficient air circulation.
• Heavy-Duty Stainless-Steel Heat Exchanger: A dual-diameter tubular design built to withstand extreme thermal expansion, backed by a Lifetime Limited Warranty.
• Ultra-Low Air Leakage: The heavy-gauge steel cabinet ensures QLeak ≤ 2%, meaning the conditioned air actually reaches your living space instead of leaking into the attic.

The Greentech Engineering Execution

Premium equipment will still fail prematurely if it is installed poorly. At Greentech Engineering, we operate on strict, data-driven HVAC Installation Protocols to guarantee maximum longevity.

1. Refrigerant Line Purification & Silver Brazing

We aggressively flushed the existing copper line sets using RX-11 solvent and pressurized dry nitrogen. This strips away the old, acidic mineral oil left behind by the 17-year-old Carrier system. All modifications to the refrigerant lines were then meticulously soldered by our certified technicians using high-grade 15% silver brazing rods.

2. Nitrogen Pressure Testing & Deep Digital Vacuum

To guarantee absolutely zero micro-leaks, we pressurized the entire system with dry nitrogen to 250 PSI and held it for 15 minutes. Following the pressure test, we used Fieldpiece digital manifold gauges to pull a deep vacuum well below 500 microns. This highly technical process dehydrates the copper lines, boiling off microscopic moisture at room temperature before we introduce the new refrigerant.

3. Equipment Leveling & Safety Drainage Upgrades

A condenser that is not perfectly level will suffer from uneven oil distribution, leading to a seized compressor. We poured a custom concrete pad and used precision spirit levels to ensure absolute balance. In the attic, we installed a new gas sediment trap, a primary drain pan, and a Safe-T drain switch to instantly shut off the system if a clog ever occurs, protecting the Frisco home from costly ceiling water damage.

‍

The Ultimate ROI: Oncor Rebates & Elite Warranties

By choosing an engineered installation over a standard "box swap," this Frisco homeowner unlocked massive financial value. Because we properly matched the system to achieve the 15.2 SEER2 AHRI Rating, we successfully secured the homeowner's Oncor Utility Rebate, putting cash directly back into their pocket.

‍

Furthermore, because Greentech Engineering is an authorized Daikin Comfort Pro, this system comes with profound peace of mind upon homeowner registration:

• 12-Year Factory Limited Parts Warranty
• 6-Year Unit Replacement Warranty (If the compressor fails within 6 years, Daikin provides a brand-new unit).
• Lifetime Heat Exchanger Limited Warranty
• Greentech's Complimentary 3-Year Labor Warranty

If your aging air conditioner is struggling to keep up, or if your home feels constantly humid, do not let a contractor blindly install another oversized unit. Contact Greentech Engineering today . Let our engineers do the math, perfectly size your equipment, and help you claim your utility rebates!

Frequently Asked Questions (FAQ): HVAC Replacement in Frisco, TX

Q: Why does my AC run for 5 minutes and then shut off?

A: This is called "short-cycling," and it is almost always caused by an oversized air conditioner. Because the unit is too large for the space, it cools the air too rapidly and shuts down before it has time to extract humidity. A Manual J load calculation prevents this by ensuring you install the exact tonnage your home requires.

Q: What is the benefit of a Variable-Speed ECM blower motor?

A: Standard motors only have one speed: 100% blast. A variable-speed ECM motor adjusts its speed smoothly based on your home's needs. It uses significantly less electricity, operates much more quietly, and provides continuous air filtration and humidity control.

Q: Why is an RX-11 flush necessary when replacing an old AC?

A: Your old 17-year-old system used a different type of refrigerant and mineral oil. Modern systems use synthetic POE oil. If these two oils mix inside the existing copper lines, they create a highly acidic sludge that will destroy your brand-new compressor. The RX-11 flush chemically sterilizes the lines before the new unit is attached.

Q: How do I get the Oncor HVAC Rebate in Frisco?

A: You must use an approved Oncor Participating Service Provider like Greentech Engineering Heating and Air Conditioning. We install qualifying high-efficiency equipment (verified by an official AHRI certificate) and handle the strict technical installation standards required by Oncor to process your cash rebate.

About the Author: Siwei (Lucas) Chen

CTO | Greentech Engineering Heating & Air Conditioning

Siwei (Lucas) Chen specializes in engineering-driven HVAC diagnostics, thermodynamic performance optimization, and energy-efficiency upgrades for North Texas homeowners. Holding a B.S. in Mechanical Engineering from Virginia Tech, he brings a strict, data-first approach to residential heating and cooling. Under his technical leadership, Greentech Engineering ensures every system is perfectly calibrated for the Dallas-Fort Worth climate, focusing on ACCA Manual J load calculations, meticulous installation standards, and maximizing homeowner ROI through utility rebates.

Professional Certifications:

• ACCA Certified (Manual J, S, D)
• NCI Certified – Air Balancing & Duct Optimization
• Daikin Comfort Pro Contractor
• Oncor Participating Service Provider

‍
