Multi-Family HVAC Upgrade in Forney, TX (75126): 2-Ton Daikin Goodman ECM System & Crane Installation
Replacing an HVAC system in a multi-family apartment building presents a unique set of logistical and engineering challenges. Unlike a standard single-family home with an outdoor unit sitting in the backyard, apartments in the 75126 zip code of Forney, Texas, often require rooftop condenser placements, careful coordination with property management, and specialized heavy-lifting equipment.
Furthermore, cooling a 2-bedroom apartment requires precise airflow management to ensure the master bedroom and the living areas receive balanced temperatures without wasting electricity.
“In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.”

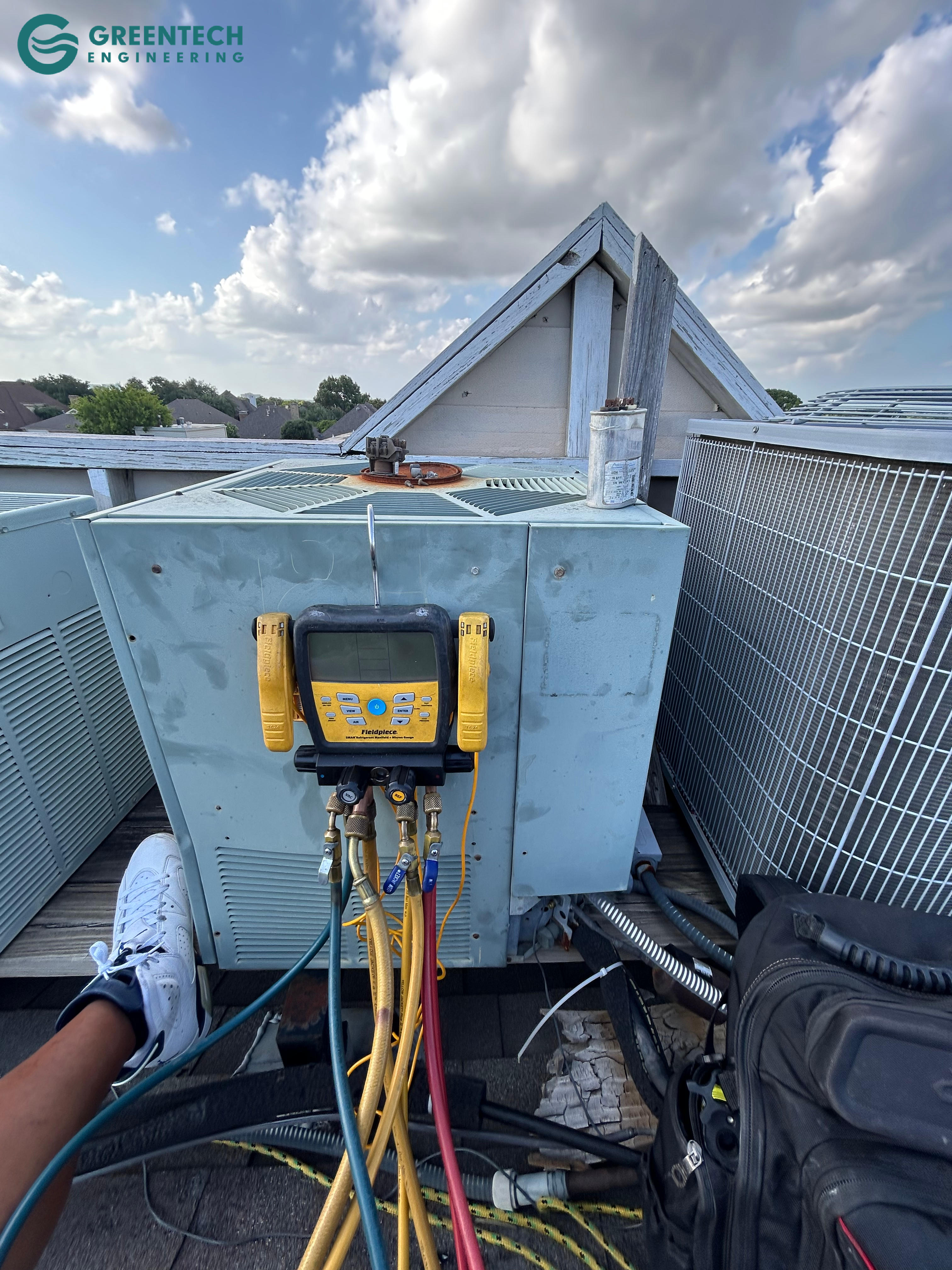

Recently, a homeowner of a two-bedroom apartment in Forney (75126) reached out to our engineering team. Their aging rooftop condenser and indoor air handler were failing, leading to massive temperature imbalances and skyrocketing utility bills. In this technical case study, we detail how strict ACCA Manual J sizing, specialized crane logistics, and the installation of a high-efficiency Goodman 15.0 SEER2 System with a 9-Speed ECM Blower transformed this property's comfort profile.
The Engineering Foundation: ACCA Manual J & Proper Sizing
A common mistake in multi-family HVAC replacements is the assumption that all 2-bedroom apartments require the exact same size air conditioner.
At Greentech Engineering, we do not guess. A second-floor apartment absorbs significantly more radiant heat from the roof than a first-floor unit. An apartment facing west takes a brutal thermal load in the afternoon. To ensure absolute precision, we performed a rigorous ACCA Manual J Load Calculation.
By evaluating the specific thermal boundaries, window solar heat gain, and insulation values of this Forney apartment, the mathematical data confirmed that a 2-Ton (24,000 BTU) straight cool capacity was perfectly sized to handle the peak summer load without short-cycling. Proper Manual J sizing is the only way to ensure the system runs long enough to extract thick indoor humidity, keeping the apartment dry and comfortable.
The Technology: Goodman 15.0 SEER2 Performance Matchup
To provide the homeowner with exceptional reliability and lower utility costs, we engineered an AHRI-certified matchup utilizing premium Goodman technology.

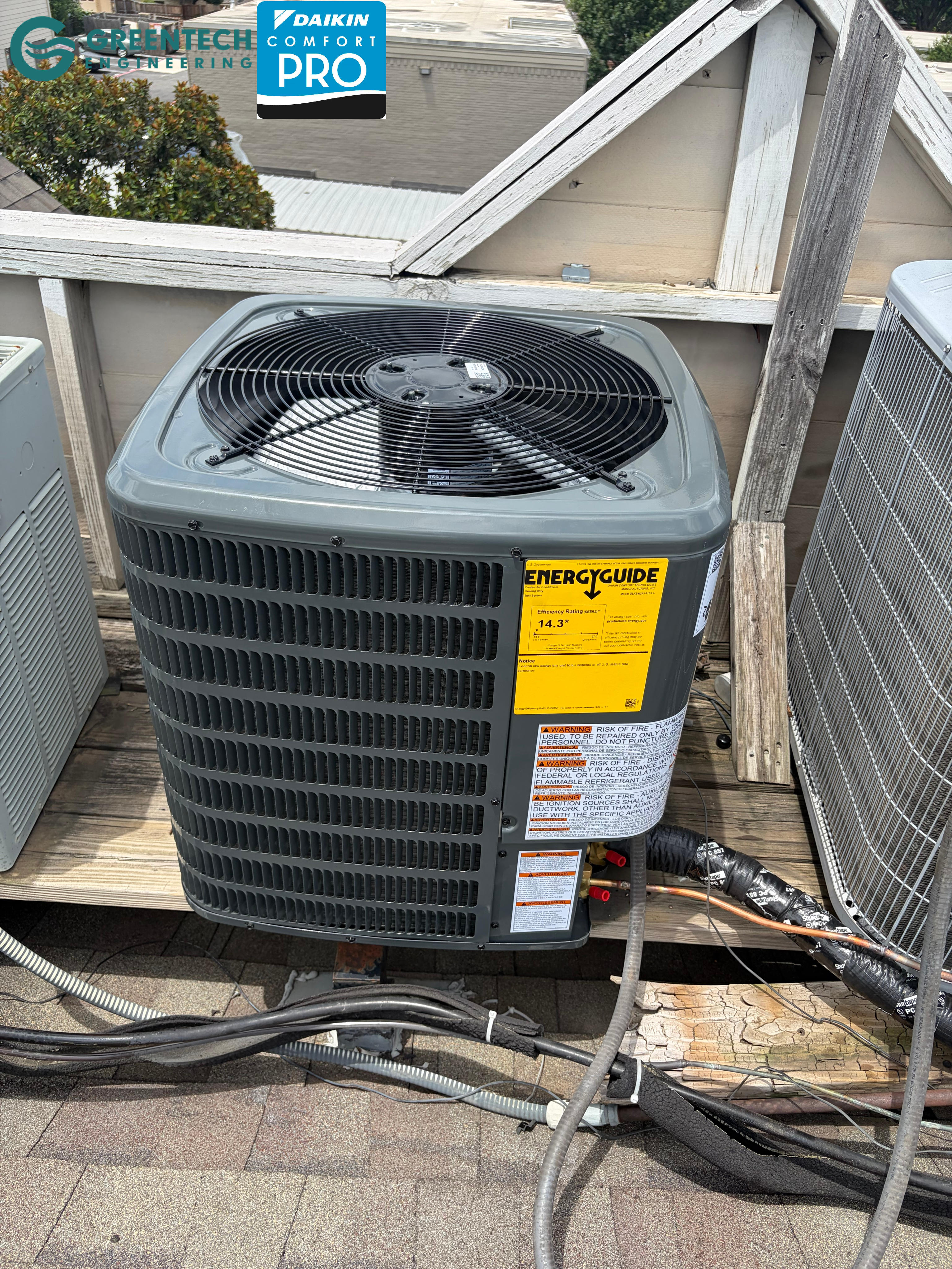

The Rooftop Condenser: Goodman 24,000 BTU Split Air Conditioner
Designed for endurance in the harsh Texas climate, the new outdoor unit provides up to 15.0 SEER2 performance:
- Energy-Efficient Compressor: Engineered for consistent, reliable cooling while drawing significantly fewer amps than the legacy unit.
- 5mm Copper Tube & Enhanced Aluminum Fin Coil: This advanced coil design maximizes thermodynamic heat transfer while reducing the total volume of refrigerant required.
- Factory-Installed Filter Drier: Protects the compressor by capturing microscopic moisture and debris within the refrigerant lines.
- Protection: Backed by a 10-year factory limited parts warranty.
The Indoor Powerhouse: Goodman 30,000 BTU Multi-Position Air Handler
Installed horizontally, this indoor unit is the true star of the airflow optimization:
- Direct-Drive, 9-Speed ECM Blower Motor: Unlike older, noisy PSC motors that blast air at 100% and abruptly shut off, an Electronically Commutated Motor (ECM) provides continuous, smooth airflow. This 9-speed motor ensures whisper-quiet air circulation, perfectly balancing the temperatures between the master bedroom and the living room.
- Internal Factory-Installed TXV: A Thermal Expansion Valve actively meters the exact amount of liquid refrigerant entering the coil based on the real-time heat load inside the apartment, maximizing dehumidification.
- All-Aluminum Evaporator Coil: Designed with 7mm tubing and high-performance coated fin stock to completely prevent the formicary corrosion and microscopic leaks that plague older copper coils.
Logistics & Execution: Crane Service and Clinical Protocols
Replacing a rooftop unit on a multi-family complex requires more than just HVAC knowledge; it requires heavy machinery logistics. Our team safely coordinated specialized Crane Service to extract the old, heavy condenser from the roof and hoist the new Goodman unit into position without disrupting the neighbors.
Once the equipment was staged, our engineers executed our strict 10-step clinical installation protocols to guarantee long-term reliability:
- Environmental Safety: The old system was dismantled, and all legacy refrigerant was safely pumped down and recovered per EPA regulations.
- Infrastructure Defense: We installed a new concrete condenser equipment pad on the roof. Indoors, we installed a new drain pan, drain line insulation, and a Safe-T drain switch to instantly shut down the system and prevent catastrophic ceiling floods for the tenant below if a clog occurs.
- Nitrogen Drain Clearing: The condensation drain line was blasted with pressurized dry nitrogen to clear organic debris. A new drain trap and vent were installed.
- Precision Sealing: The new horizontal air handler was secured to the return and supply plenums using hex washer head HVAC screws. Every connection area was meticulously sealed with designed HVAC metal tape and mastic duct sealant to minimize any possible air leak.
- RX-11 Chemical Flush: Existing copper refrigerant lines embedded in the apartment walls were chemically flushed with RX-11 and chased with dry nitrogen to strip out the old, acidic mineral oil.
- Nitrogen-Purged Silver Brazing: All line set modifications were soldered using premium 15% silver brazing rods while flowing dry nitrogen through the pipes to prevent internal oxidation from clogging the delicate TXV.
- 250 PSI Pressure Test: The closed system was pressurized with dry nitrogen to 250 psi and held for 15 minutes to mathematically prove there were zero micro-leaks.
- 500-Micron Deep Vacuum: Utilizing specialized digital vacuum pumps, we pulled the system pressure down under 500 microns. This boils off atmospheric moisture inside the copper lines, preventing the formation of corrosive hydrofluoric acid.

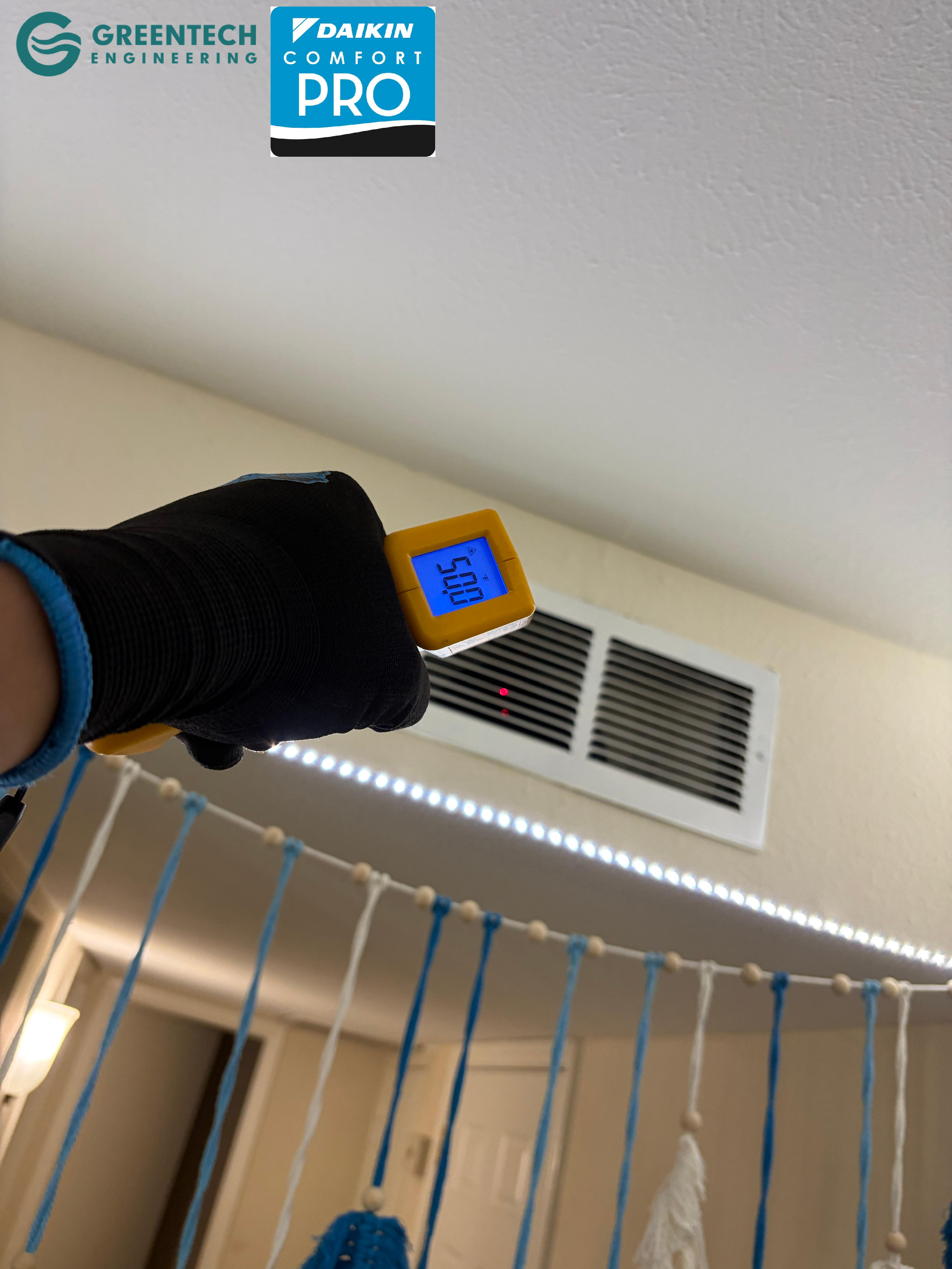

- Final Commissioning: The system was fully charged, run, and tested for exact thermodynamic performance.
Why You Need an Authorized Oncor Service Provider
You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.
To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.
When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.
Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice.
2026 Oncor Incentive Snapshot: Dallas-Fort Worth
*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.
Frequently Asked Questions
Q: Why do apartment HVAC replacements sometimes require a crane?A: In many multi-family complexes, condominiums, and townhomes, the outdoor condenser units are located on the flat roof of the building to save ground space. Because modern high-efficiency HVAC units are incredibly heavy and bulky, they cannot be safely carried up stairwells. Professional crane service is required to safely hoist the old unit off the roof and lower the new equipment into place without damaging the building structure.
Q: What is a 9-Speed ECM blower motor?A: ECM stands for Electronically Commutated Motor. Unlike standard motors that only run at one speed (full blast) and consume a lot of electricity, an ECM is a smart, variable-speed motor. A 9-speed ECM can slowly ramp up airflow, resulting in much quieter operation, significantly better humidity removal, and lower electrical bills.
Q: Why is pulling a 500-micron vacuum so important during installation?A: The ambient air contains moisture. If an installer connects your new AC but fails to remove the air inside the copper pipes, that moisture mixes with the refrigerant oil to create a highly corrosive acid. A deep 500-micron vacuum literally boils away and extracts that microscopic moisture, ensuring your compressor lasts for its full 10-year warranty period.
Ready for Engineering-Grade Comfort?
Whether you own a single-family home or a rooftop multi-family property in Forney, do not trust your comfort to guesswork.
🔗 Contact Greentech Engineering Today to schedule your comprehensive diagnostic and discover how a perfectly engineered system can lower your energy bills.
