The Dallas Historic Home Challenge: Upgrading Airflow in Lakewood & Preston Hollow

Dallas is renowned for its stunning, established neighborhoods. From the mid-century modern ranches of Lake Highlands to the sprawling, stately architectures of Preston Hollow and the historic charm of Lakewood, these homes carry a legacy. However, behind the beautiful brick facades and vaulted ceilings lies a hidden, frustrating reality: aging, restrictive ductwork.

If you own an older Dallas home, you are likely intimately familiar with the symptoms. You might constantly search for ways to fix a hot upstairs room in Dallas, or wonder why your master bedroom is freezing while the living room feels incredibly stuffy. The culprit is rarely just the air conditioner itself; it is the archaic infrastructure delivering the air.

In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.

In this engineering case study, we will break down a recent transformation in a two-story Dallas (75248) home. We will explore how rebuilding supply plenums, performing ACCA Manual J load calculations, and upgrading to a Daikin Fit Variable-Speed Heat Pump can cure the static pressure nightmares plaguing historic Dallas real estate.

The Root of the Problem: Static Pressure and Failing Plenums

When homeowners set out to replace an AC in an old Dallas home, they often fall victim to the "box swap" mentality. Contractors will install a shiny new outdoor unit but completely ignore the ductwork.

This is the equivalent of putting a sports car engine on a bicycle frame. Old ductwork is notoriously restrictive, creating high static pressure—which means your new blower motor has to work twice as hard to push air through choked, leaky passages.

‍

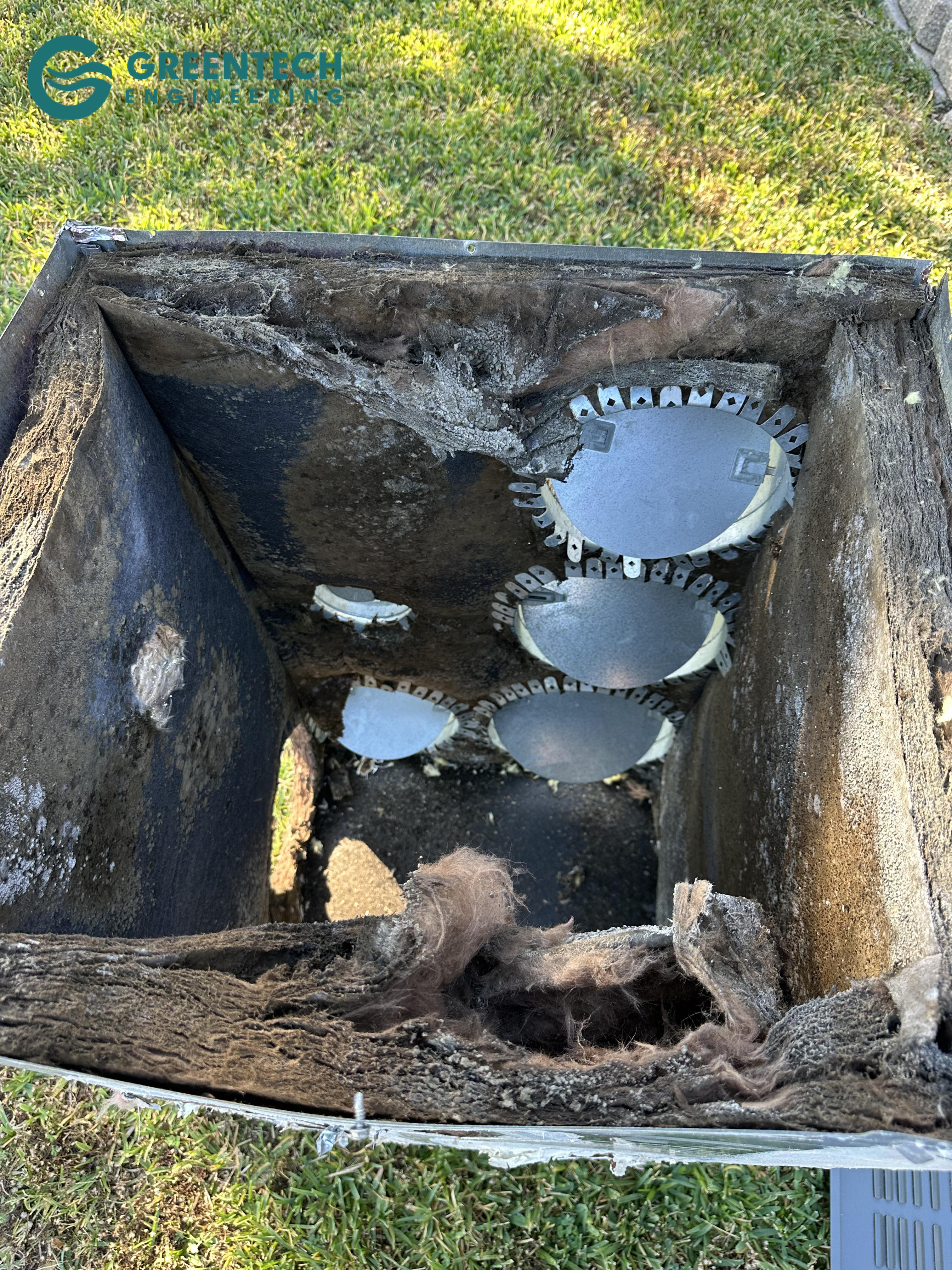

The supply plenum is the central chamber where conditioned air first leaves your indoor air handler before branching out to individual rooms. If this plenum is failing, undersized, or deteriorating (as seen above), no amount of cooling capacity will fix your hot rooms.This modly is a 'hidden killer' for the family health.

Case Study: The 75248 Dallas Airflow Overhaul

We were called to a two-level, single-family home in Dallas (75248) suffering from severe air imbalance. The master bedroom's adjacent sunroom was uncomfortably hot, and the main living area felt constantly starved for air.

To solve this, we couldn't just replace the failing condenser and furnace. We had to rethink the home's "lungs."

1. Ductwork Optimization & Air Balancing

Before selecting equipment, our team performed an ACCA Manual J Load Calculation to determine exactly how much air each specific room required. Armed with this thermodynamic data, our scope of work evolved:

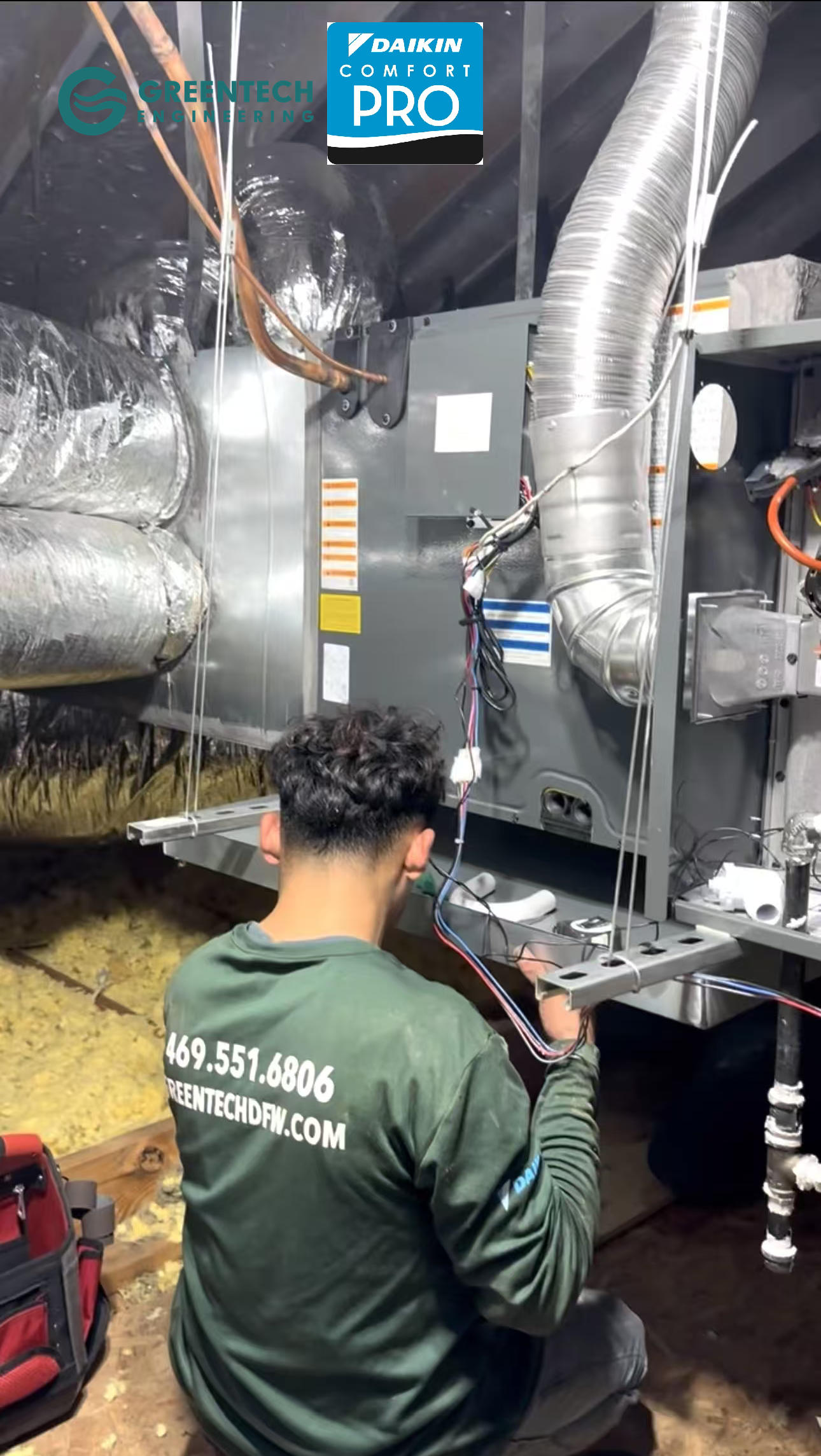

• Plenum Replacement: We completely removed the moldy, restrictive supply plenum and fabricated a new, insulated air box designed for optimal aerodynamic flow.
• Sunroom Duct Replacement: We tore out the undersized, collapsed duct feeding the sunroom near the master suite, replacing it with correctly sized, high R-value ductwork.
• Targeted Air Delivery: To cure the stuffy living area, we engineered and installed a brand-new 8-inch supply duct directly from the new plenum to the living room ceiling.

‍

2. The Variable-Speed Muscle: Daikin 17.5 SEER2 Fit

With the infrastructure optimized, we brought in the heavy machinery.

‍

We installed a 3.5-Ton Daikin Fit Variable-Speed Heat Pump System. For older Dallas homes with complex architectures, a variable-speed inverter is the ultimate weapon against humidity and uneven temperatures.

The Equipment Specs:

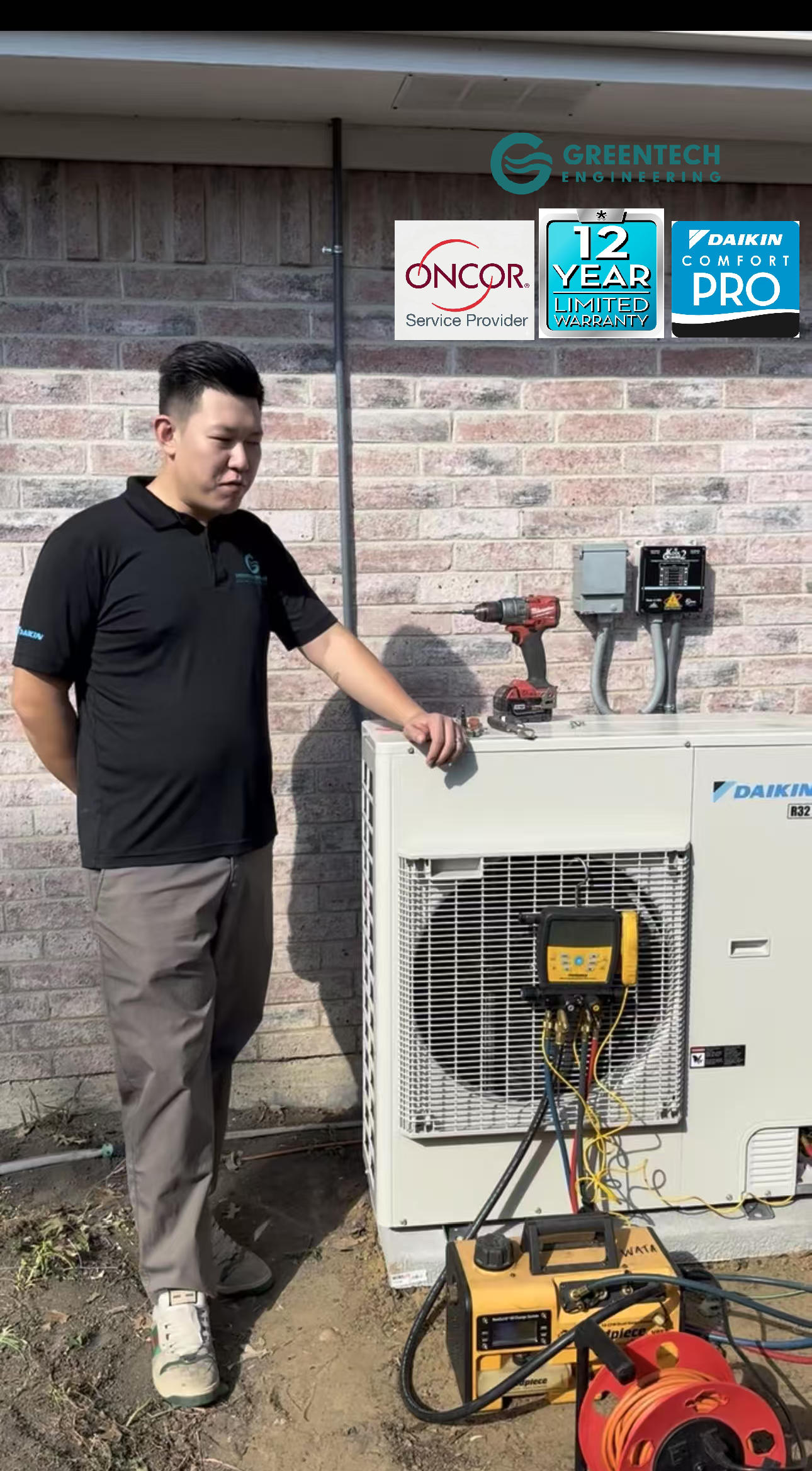

• Outdoor Unit: Daikin 42,000 BTU Side-Discharge Heat Pump. This ultra-compact, ultra-quiet unit features a proprietary variable-speed swing compressor. Instead of blasting at 100% and shutting off, it constantly modulates its speed to run long, low-capacity cycles. This acts as a whole-home dehumidifier, which is critical during sticky Dallas summers.
• Indoor Unit: Daikin 42,000 BTU Multi-Position Air Handler. We matched this with a Variable-Speed ECM blower motor and an Electronic Expansion Valve (EEV). The ECM motor easily overcomes the home's remaining static pressure, delivering a constant CFM of air to the new living room grille and the distant sunroom.
• Winter Security: We completely eliminated the old gas furnace and installed a 20 KW electrical heat kit. Combined with the heat pump's Intelligent Defrost Mode, this setup provides bulletproof heating during severe Texas winter freezes.

‍

3. The Brains and Armor

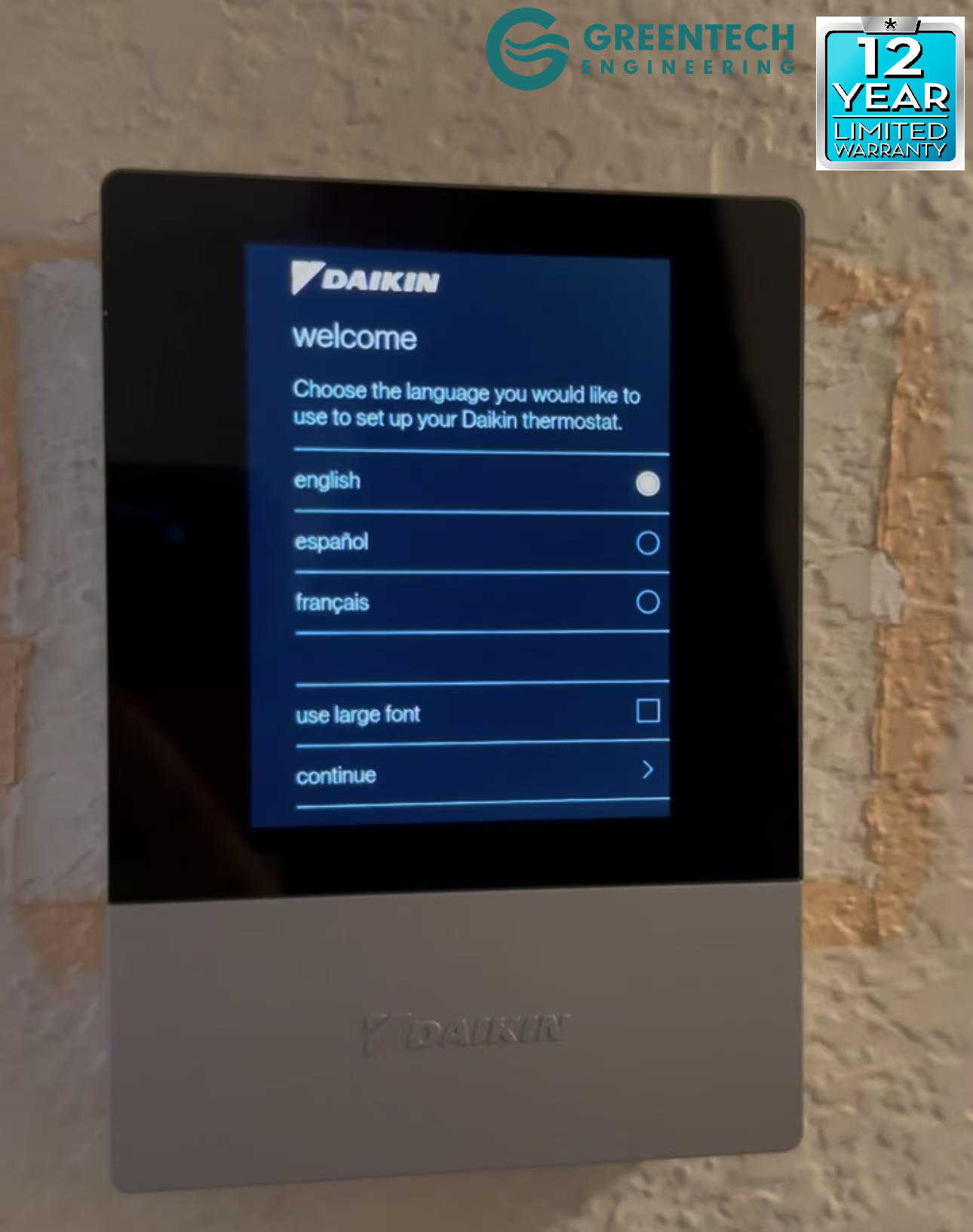

Finally, we integrated the system into the homeowner's smart ecosystem. We ran brand-new thermostat wiring to support the Daikin One Touch Smart Communicating Thermostat. This acts as the command center, utilizing Daikin's control algorithmic logic to continuously monitor ambient conditions and adjust compressor speeds.

To protect this sophisticated computer hardware, we installed a dedicated 220v voltage monitor and surge protection device at the condenser, shielding the sensitive communicating boards from erratic Texas grid fluctuations.

‍

The Financial Edge: 2026 Oncor Rebates

Fixing the airflow in your historic Dallas home is a significant investment, but proactive engineering pays dividends. Because we downsized the home's energy load and achieved a verified 17.5 SEER2 rating, this Daikin Fit Heat Pump setup easily qualifies for the top tier of utility funding.

2026 Oncor Incentive Snapshot: Dallas & Collin County

*Incentive Disclaimer: The maximum $3,400 incentive is scaled based on your home's total kW/kWh reduction formula. As an Authorized Oncor Service Provider, Greentech Engineering processes your Manual J data and AHRI certificates, applying your approved rebate directly to your invoice as an instant discount.

Don't let your beautiful Dallas home suffer from terrible airflow. Schedule a custom ductwork and HVAC assessment with Greentech Engineering today.

FAQ: Dallas Historic Home HVAC

Q: How do I fix a hot upstairs room in my Dallas home?

A: A hot upstairs room is usually a symptom of poor static pressure, undersized ductwork, or a failing supply plenum, rather than a broken AC unit. To fix it, an HVAC engineer must perform a Manual J calculation, redesign the supply plenum to reduce friction, and potentially add dedicated, correctly sized supply ducts to the starved rooms.

Q:Can I install a high-efficiency AC without changing my old ductwork?

A:Technically yes, but it is a massive financial mistake. Connecting a modern 17.5 SEER2 variable-speed system to 40-year-old, leaky, or restrictive ductwork will choke the new blower motor. The system will never reach its advertised efficiency, and the excessive static pressure will cause premature part failure. Upgrading the supply plenum is the bare minimum for a successful retrofit.

Learn more about Greentech Duct design service.

Q:What is the best HVAC system for older homes in Lakewood and Preston Hollow?

A:Variable-speed heat pumps, such as the Daikin Fit, are the best choice for historic Dallas homes. Older homes often suffer from poor insulation and drafty windows. Variable-speed systems run long, continuous, low-speed cooling cycles that aggressively remove humidity and constantly circulate air, preventing hot and cold spots from forming in complex, multi-story architectures.

Q:What is static pressure in an HVAC system?

A: Static pressure is the resistance to airflow within your duct system. Think of it like blood pressure for your home. If your ducts are crushed, poorly designed, or your supply plenum is too small, the static pressure spikes. This forces your blower motor to work incredibly hard just to push air, resulting in noisy operation, high energy bills, and rooms that never cool down.

Learn more about how the Oncor Home Energy Efficiency Program (HEEP) helps Dallas residents upgrade their homes.
