Precision AC Upgrade in Dallas (75248): 3-Ton Goodman 14.5 SEER2 Replacement & Oncor Rebates
Dallas summers are unforgiving. For homeowners in the 75248 zip code, maintaining a consistent, comfortable indoor climate in a single-family home requires more than just pushing cold air through vents; it requires a perfectly engineered thermodynamic system. When an aging air conditioner begins to fail, it doesn't just compromise your comfort—it forces your system to run 24/7, skyrocketing your monthly electric bills and placing immense strain on the local power grid.
Recently, a homeowner in North Dallas faced this exact scenario. Their existing air conditioning unit was physically degrading, leading to poor humidity control and excessive energy waste.
In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.
In this detailed case study, we pull back the curtain on our clinical installation process. We will walk you through how our engineering team utilized strict ACCA Manual J load calculations to size a brand new Goodman 3-Ton Straight Cool A/C System with a 10 KW Electrical Heat Strip, and how choosing an Authorized Oncor Service Provider can unlock instant utility rebates for your Dallas home.
The Engineering Foundation: ACCA Manual J Load Calculation
A widespread and costly mistake made by high-volume retail HVAC contractors is "box-swapping"—replacing an old unit with a new unit of the exact same size without running the math. Over the lifespan of a home, its thermal envelope changes. Windows are upgraded, insulation settles, and ductwork degrades.
To properly address the cooling needs of this Dallas single-family home, we relied strictly on an ACCA Manual J Load Calculation. By measuring the total square footage, ceiling heights, window solar heat gain coefficients, and insulation R-values, we removed all guesswork.
The data was definitive: to achieve perfect sensible cooling (temperature reduction) and latent cooling (humidity removal), the property required exactly 3 Tons (36,000 BTUs) of cooling capacity. Proper sizing is the absolute most critical step in maximizing equipment lifespan and securing utility rebates.
Learn more about our ACCA Manual J Load Calculation process
The Goodman 14.5 SEER2 Matchup
With the precise sizing established via the Manual J calculation, we engineered an AHRI-certified matchup from Goodman Manufacturing. By pairing specific outdoor and indoor components, this newly installed system actually exceeds its base rating, achieving an impressive 14.5 SEER2 and 12.0 EER performance.

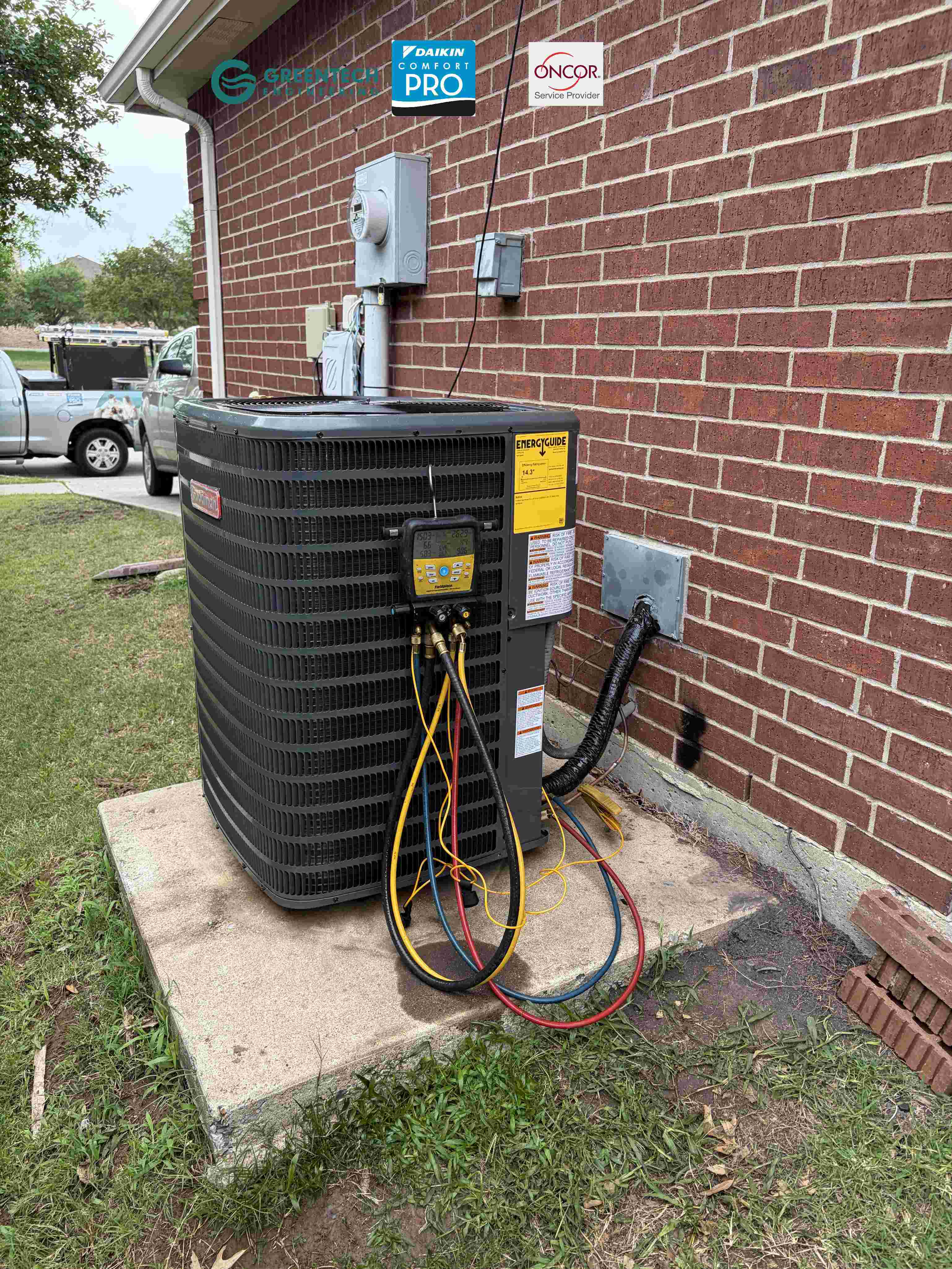

The 3-Ton Goodman Straight Cool Condenser
To combat the brutal Texas heat, the newly installed outdoor unit features:
- Energy-Efficient Compressor: Designed for superior reliability and lower power draw compared to legacy models.
- Optimized Coil Design: Features a copper tube and enhanced aluminum fin coil (5mm diameter) to rapidly dissipate heat.
- Factory-Installed Filter Drier: A critical component that protects the compressor from microscopic moisture and dirt.
- Total Protection: Backed by a 10-year factory limited parts warranty.

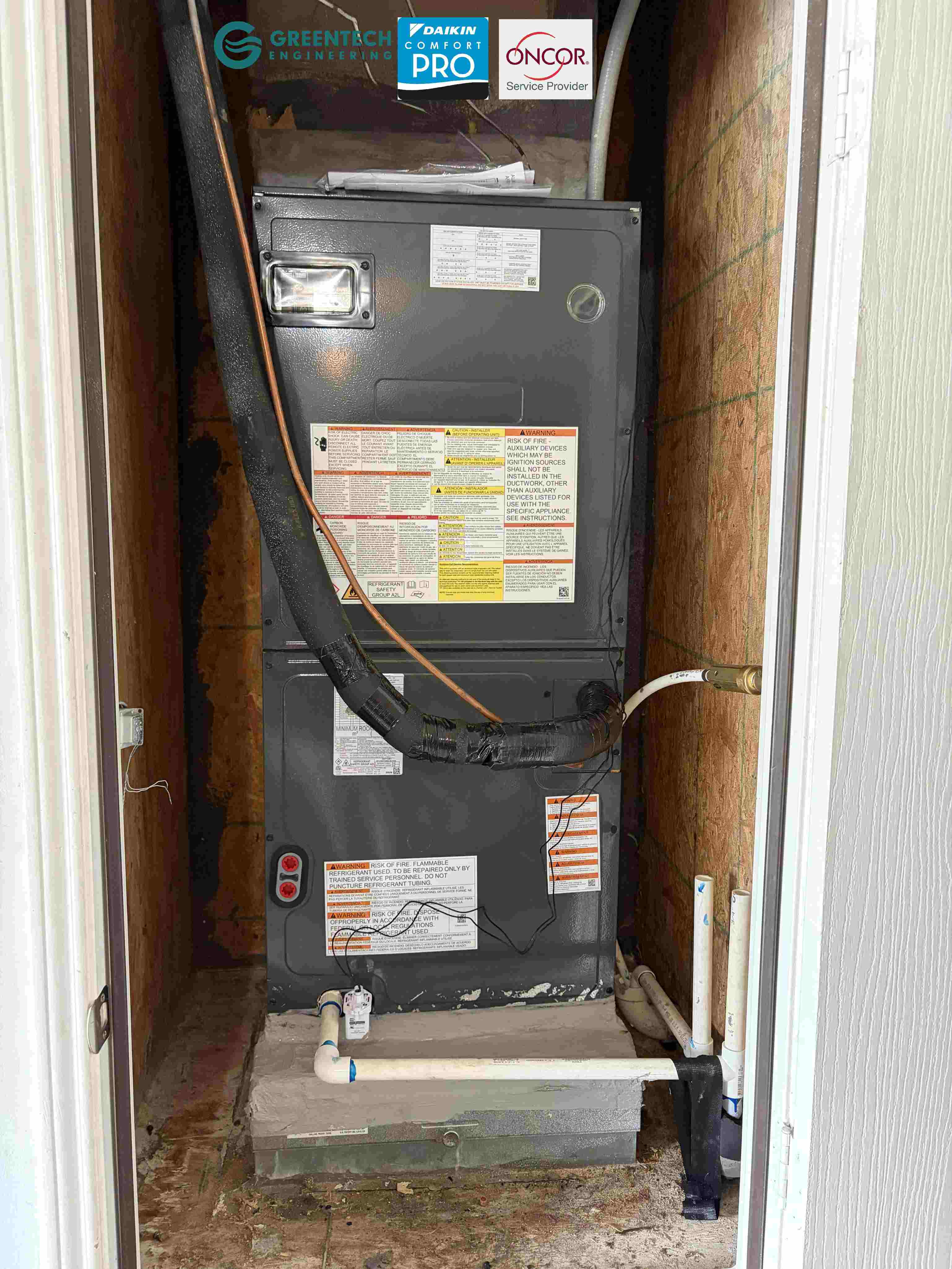

The Multi-Position Air Handler (Up-Flow Configuration)
The indoor unit is the lungs of the home. We installed a Goodman 36,000 BTU Multi-Position Air Handler optimized for high-efficiency outdoor units.
- Direct-Drive, 9-Speed ECM Blower Motor: Unlike old single-speed motors that blast air at one velocity, this electronically commutated motor (ECM) adjusts airflow precisely, drastically reducing electricity usage and operating whisper-quiet.
- Internal TXV (Thermal Expansion Valve): This factory-installed valve dynamically regulates refrigerant flow based on the exact temperature needs of the evaporator coil, preventing coil freezing and maximizing the system's ability to wring sticky humidity out of the indoor air.
- All-Aluminum Evaporator Coil: Features a 7mm tube size and high-performance coated fin stock to prevent formicary corrosion and refrigerant leaks.
Winter Readiness: 10 KW Electrical Heat Strip
Because this is a "straight cool" system (meaning it does not have a gas furnace or heat pump reversing valve), winter heating must be handled electrically. We installed a heavy-duty 10 KW Electrical Heat Strip inside the air handler. We also replaced the obsolete thermostat with a modern, single-stage (one heat, one cool) conventional thermostat to ensure seamless, reliable control during sudden North Texas winter freezes.
The Greentech Standard: Clinical Installation Protocols
An HVAC system is only as good as the technician who installs it. A premium 14.5 SEER2 system will perform like a cheap, inefficient unit if the refrigerant lines are contaminated or the ductwork leaks. At Greentech Engineering, we hold our technicians to strict, clinical installation protocols.
Here is the exact 10-step scope of work executed at this 75248 property to guarantee lifetime reliability:

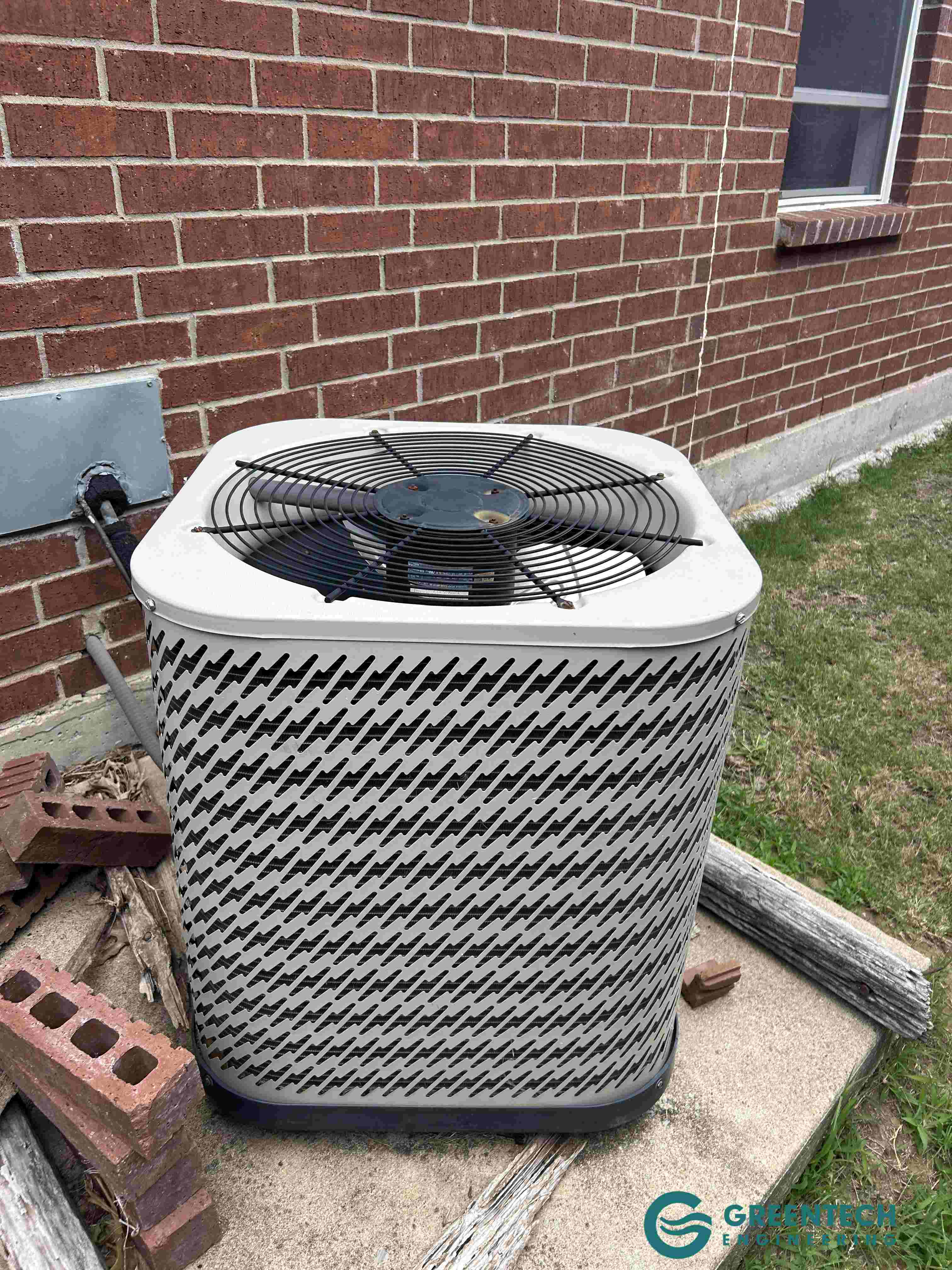

- Safe Recovery: The old refrigerant was pumped down, safely recovered, and the obsolete equipment was disposed of according to EPA regulations.

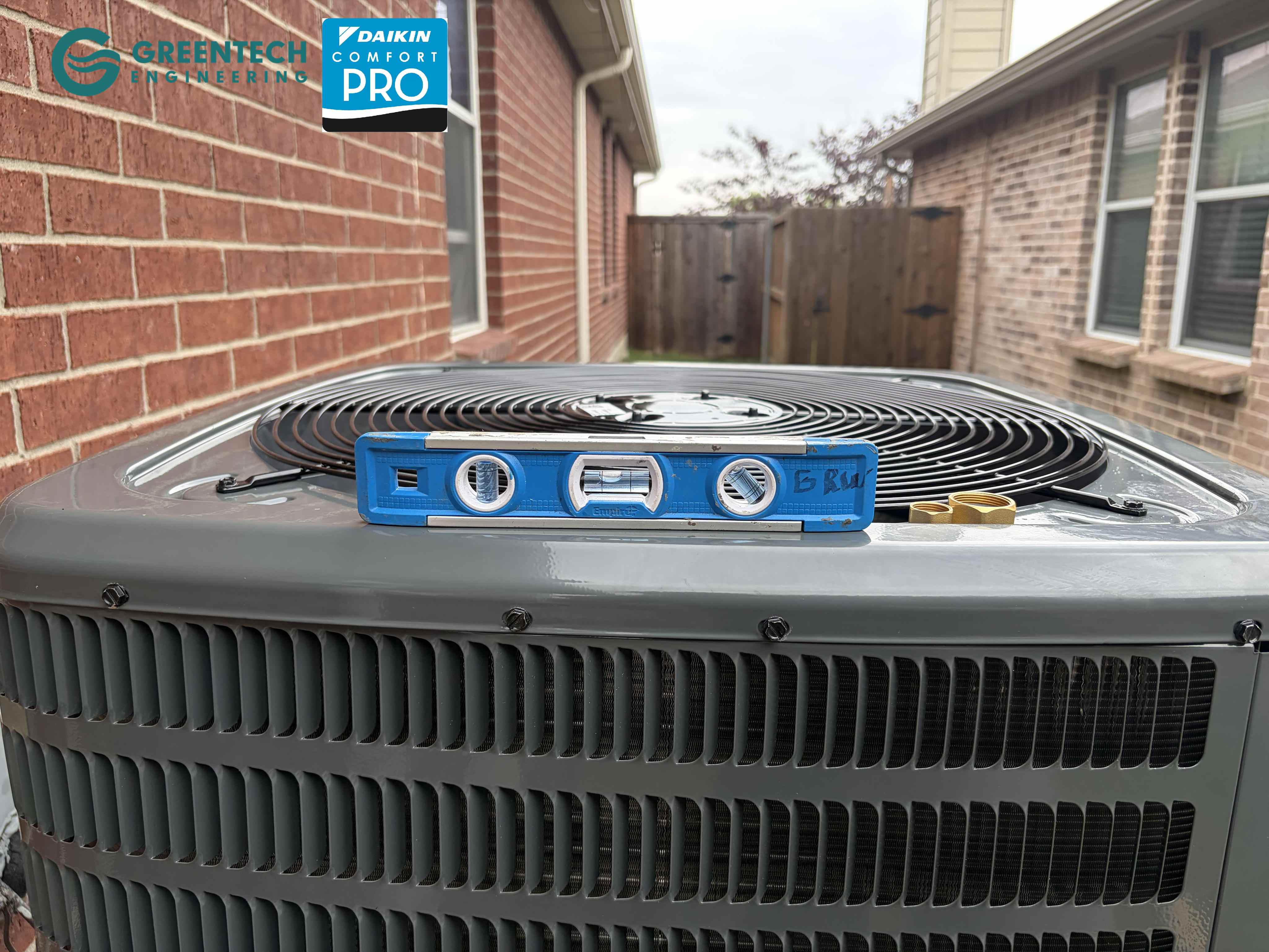

- Infrastructure Upgrades: A brand new concrete condenser equipment pad was leveled. Indoors, we installed new drain line insulation and a mandatory Safe-T drain switch to automatically shut down the system if a clog ever occurs, preventing costly water damage.
- Nitrogen Drain Clearing: We cleared the primary condensation drain line with pressurized dry nitrogen to blow out years of sludge and debris, installing a new drain trap and vent.
- Precision Sealing: The new air handler was mechanically secured to the return and supply plenums using hex washer head HVAC screws. All connection areas were meticulously sealed with specialized HVAC metal tape and duct sealant to achieve maximum system efficiency and zero air leakage.
- RX-11 Copper Flushing: The existing copper refrigerant lines were chemically flushed with RX-11 and chased with dry nitrogen to remove old, acidic mineral oil left behind by the previous system.
- Nitrogen Purging & 15% Silver Brazing: All copper line set modifications were soldered by certified technicians using premium 15% silver brazing rods while flowing nitrogen to prevent internal oxidation and scaling inside the pipes.
- 250 PSI Nitrogen Pressure Test: Before adding a drop of refrigerant, we pressurized the entire closed system with dry nitrogen to 250 psi and held the pressure for a minimum of 15 minutes to absolutely guarantee there were zero micro-leaks.

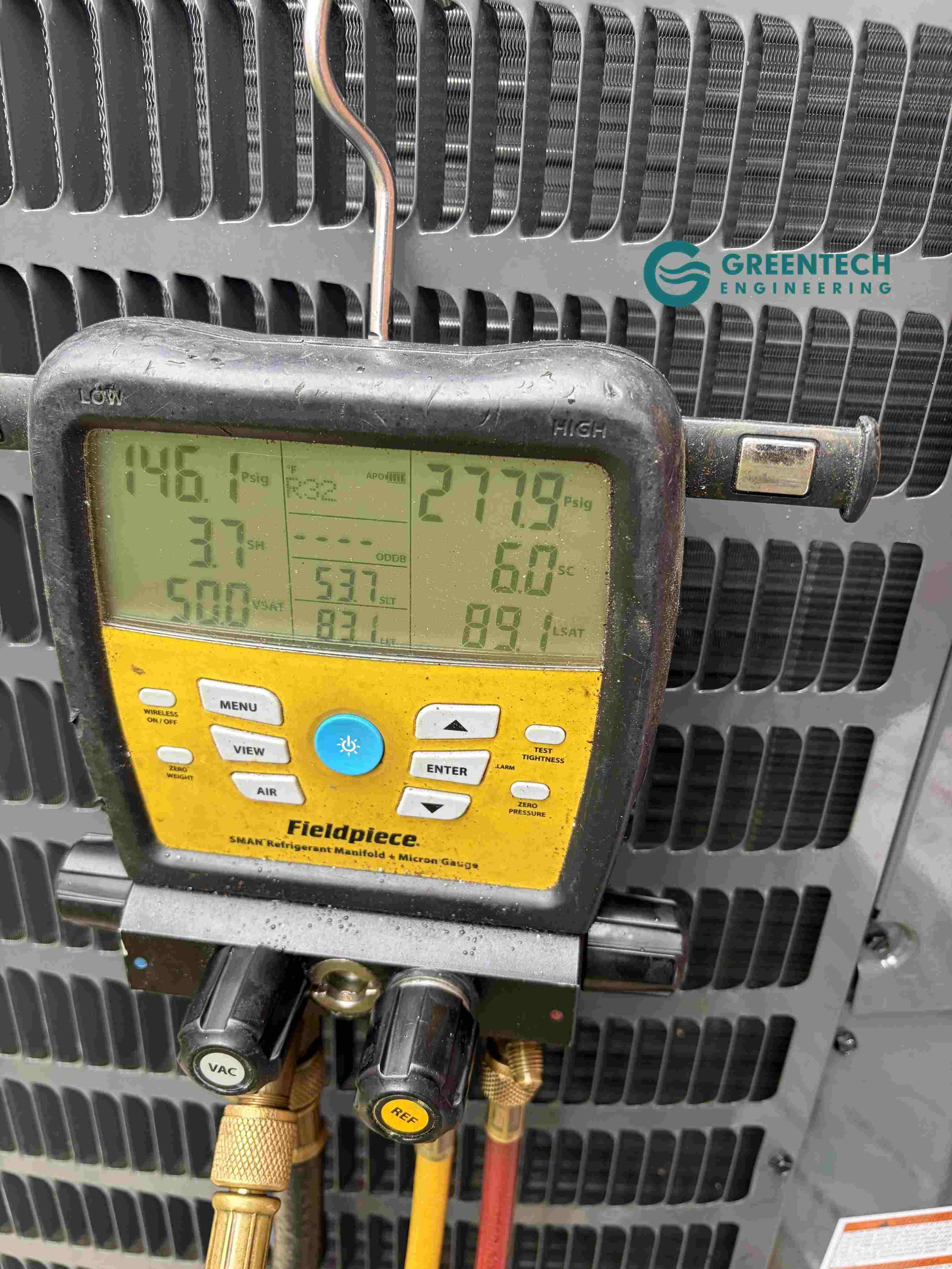

- 500-Micron Deep Vacuum: Atmospheric moisture is the enemy of compressor oil. We utilized specialized vacuum pumps to pull the system pressure down under 500 microns, physically boiling off and extracting any microscopic water from the copper lines.
- Commissioning: The system was fully charged and run-tested to verify exact airflow, temperature drop, and electrical amp draws.
Why You Need an Authorized Oncor Service Provider
You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.
To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.
When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.
Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice.
2026 Oncor Incentive Snapshot: Dallas-Fort Worth
*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.
Verify your home's eligibility on the official Oncor Energy Efficiency page.
Frequently Asked Questions
Q: What is a 9-Speed ECM Blower Motor and why is it better?
A: ECM stands for Electronically Commutated Motor. Older AC systems use single-speed motors that blast air at one speed, which is loud and consumes a massive amount of electricity. A 9-speed ECM motor can precisely adjust its airflow based on the static pressure of your ductwork. This results in whisper-quiet operation, better humidity control, and significantly lower monthly energy bills.
Q: What is an internal TXV on an air handler?
A: A Thermal Expansion Valve (TXV) is a precision metering device located inside the indoor air handler. Instead of feeding a constant, fixed amount of refrigerant into the evaporator coil, a TXV dynamically opens and closes to feed the exact amount of refrigerant needed based on the heat load inside the house. This prevents the indoor coil from freezing over and maximizes energy efficiency.
Q: Does a Goodman 14.5 SEER2 AC qualify for the Oncor rebate in Dallas?
A: Yes, a Goodman 14.5 SEER2 / 12.0 EER system easily qualifies for the Oncor Home Energy Efficiency rebate when installed by an Authorized Oncor Participating Service Provider. For a 3-Ton system, Oncor requires a minimum efficiency of 14.3 SEER2 / 11.7 EER2, meaning this system exceeds the utility's requirements.
Q: Why do HVAC technicians pull a vacuum below 500 microns?
A: Standard atmospheric air contains moisture. If even a microscopic drop of water mixes with the refrigerant and oil inside a modern HVAC system, it creates a highly corrosive acid that will eat the compressor from the inside out. Pulling a deep vacuum below 500 microns using specialized pumps physically boils off and extracts all microscopic moisture from the copper pipes, ensuring a 15+ year lifespan for the equipment.
About the Author: Siwei (Lucas) Chen
CTO | Greentech Engineering Heating & Air Conditioning
Siwei (Lucas) Chen specializes in engineering-driven HVAC diagnostics, thermodynamic performance optimization, and custom ductwork design for Dallas homeowners. Holding a B.S. in Mechanical Engineering from Virginia Tech, he brings a strict, data-first approach to residential heating and cooling. Under his technical leadership, Greentech Engineering ensures every system is perfectly calibrated for the Texas climate, focusing relentlessly on ACCA Manual J load calculations, meticulous clinical installation standards, and securing maximum utility rebates for his clients.
Professional Certifications:
- ACCA Certified (Manual J, S, D)
- Daikin Comfort Pro Contractor
- NCI Certified – Air Balancing & Duct Optimization
- Oncor Participating Service Provider
