Upgrading Older Fort Worth Homes: High-Efficiency HVAC & Oncor Rebates

As the housing infrastructure across Tarrant County ages, homeowners in Fort Worth, TX are facing a critical tipping point. The legacy HVAC systems installed 15 to 20 years ago are failing under the stress of extreme Texas summers and unpredictable winter freezes. For two-story homes in particular, these aging units simply cannot maintain consistent comfort across both levels, resulting in skyrocketing utility bills and frustrating "hot spots."

In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.

Recently, the engineering team at Greentech Engineering was called to a two-story residence in the 76177 zip code of Fort Worth. The homeowners were battling a failing system that left the upstairs baking in July and the downstairs freezing in January. Instead of performing a standard, low-tier "box swap," we completely re-engineered their home's thermal management.

We upgraded the property to a highly advanced Goodman 15.2 SEER2 Heat Pump System. By pairing a 4-Ton Goodman Heat Pump with a 9-Speed ECM Air Handler and a 20 KW auxiliary heat kit, we provided elite, year-round climate control and qualified the homeowner for significant cash back through the Oncor Utility Rebate Program.

Here is the complete technical breakdown of this Fort Worth heat pump installation, demonstrating why strict thermodynamic engineering is the ultimate key to maximizing your home's ROI.

‍

The Challenge: Two-Story Climate Imbalance

Two-story homes represent a unique thermodynamic challenge. Heat naturally rises, which means the upstairs often suffers from high thermal loads in the summer, while the downstairs remains stubbornly cold in the winter.

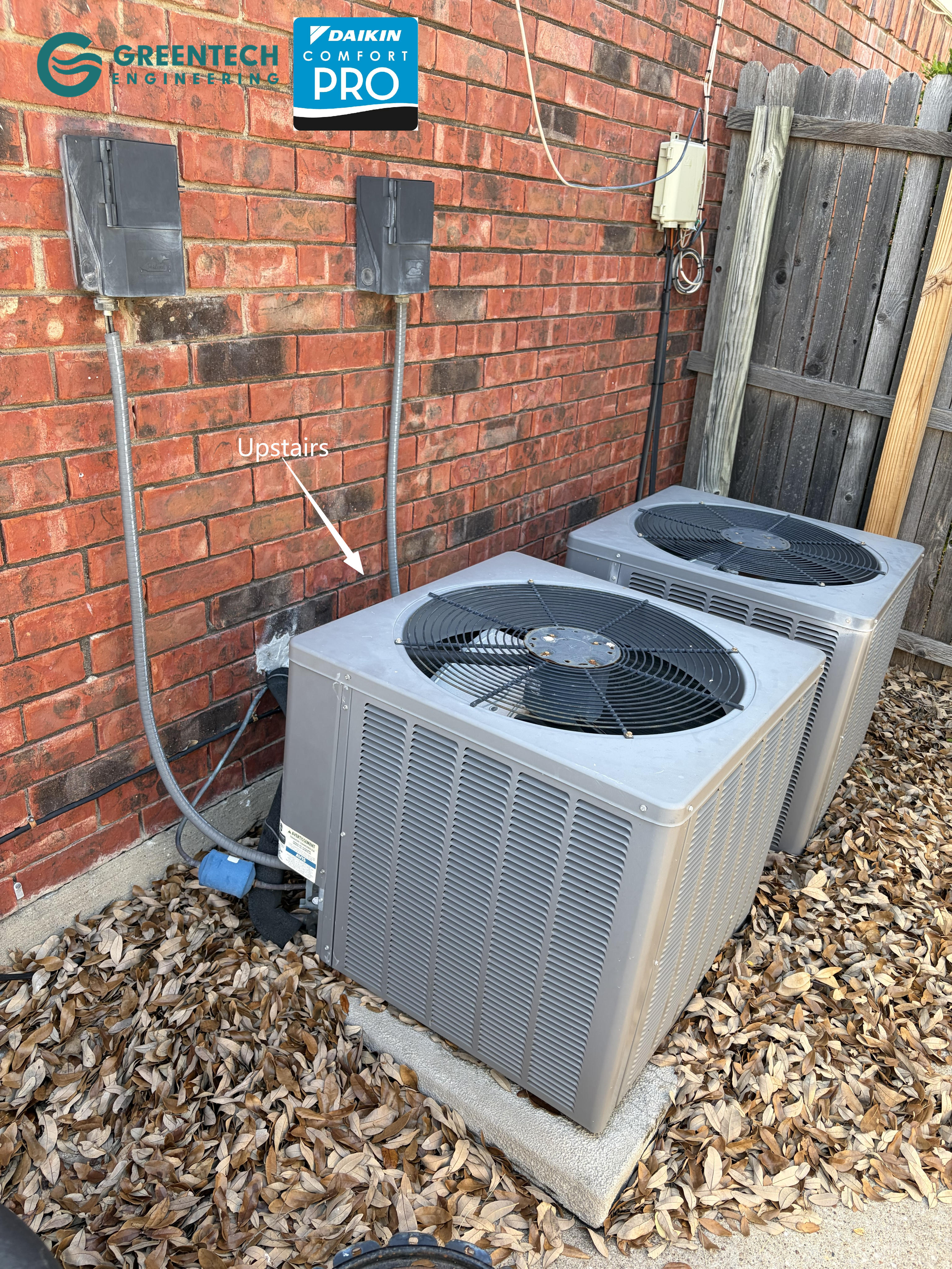

When we evaluated this Fort Worth property, the old air conditioning system was suffering from severe mechanical fatigue. The compressor was drawing excessive amperage, and the indoor blower motor lacked the static pressure capabilities to push adequate, conditioned airflow to the second floor.

‍

The Engineering Solution: The 15.2 SEER2 Goodman Heat Pump Matchup

To provide exceptional, energy-efficient comfort for this two-story home, we selected a premium heat pump combination from Goodman. A heat pump doesn't just cool your home; in the winter, it reverses the refrigeration cycle to extract ambient heat from the outside air and pump it indoors, making it exponentially more efficient than traditional electric heating.

By pairing a 48,000 BTU (4-Ton) Goodman Split Heat Pump with a perfectly matched Goodman Multi-Position Air Handler, we achieved a verified 15.2 SEER2 performance rating.

Here are the specific, high-performance components we engineered for this space:

1. Goodman 48,000 BTU Split Heat Pump (Outdoor Unit)

• Energy-Efficient Compressor: Delivers consistent, reliable thermal transfer while drawing significantly less electricity than older-generation units.
• SmartShift® Technology: A proprietary feature that ensures quiet, reliable defrost cycles during freezing Texas winter mornings by smoothly transitioning the system's reversing valve.
• Factory-Installed Protection: Includes a high-capacity muffler, a suction-line accumulator (to prevent liquid refrigerant from damaging the compressor), and a crankcase heater (to keep compressor oil warm and viscous during winter operation).
• Enhanced Copper Tube Coil: Utilizes 5mm diameter tubing for rapid, superior heat transfer.

2. Goodman 48,000 BTU Multi-Position Air Handler (Indoor Unit)

• Direct-Drive, 9-Speed ECM Blower Motor: This is a game-changer for two-story homes. A 9-speed Electronically Commutated Motor provides continuous, perfectly calibrated air circulation. It easily overcomes ductwork static pressure to push air upstairs while operating whisper-quiet.
• Factory-Installed TXV: The internal Thermal Expansion Valve precisely meters the flow of refrigerant based on the real-time thermal load of the house, maximizing energy efficiency and humidity removal.
• All-Aluminum Evaporator Coil: Built with high-performance coated fin stock to completely eliminate the risk of copper-related formicary corrosion.

‍

Winterizing the System: The 20 KW Auxiliary Heat Kit

Heat pumps are incredibly efficient, but when Fort Worth temperatures drop below freezing, the amount of ambient heat available in the outside air decreases.

To ensure this family stays warm during a severe Texas winter freeze, we installed a 20 KW electrical heat kit directly into the new air handler to act as a powerful auxiliary heating element. We also upgraded the wall control to a modern 2-Stage Heat / 1-Stage Cool Thermostat. The thermostat acts as the brain: it primarily uses the hyper-efficient heat pump for stage-one heating, but if the temperature plummets, it automatically engages the 20 KW heat strips for stage-two emergency heating.

The Greentech Engineering Execution Standard

A premium Goodman system requires a pristine installation environment to achieve its rated lifespan. At Greentech Engineering, we never cut corners. We adhere to rigorous, data-driven HVAC Installation Protocols .

1. Refrigerant Line Purification: We aggressively flushed the existing copper line sets using RX-11 solvent and pressurized dry nitrogen to strip away old, acidic mineral oil. All copper modifications were soldered using high-grade 15% silver brazing rods.
2. High-Pressure Leak Testing: We pressurized the entire soldered system with dry nitrogen to 250 PSI and held the pressure for a strict 15-minute verification period to guarantee zero micro-leaks.
3. Deep Digital Vacuum: Using advanced Fieldpiece digital manifold gauges, we pulled a deep vacuum on the system, bringing it well below 500 microns. This literally boils off any microscopic moisture inside the pipes before releasing the refrigerant charge.

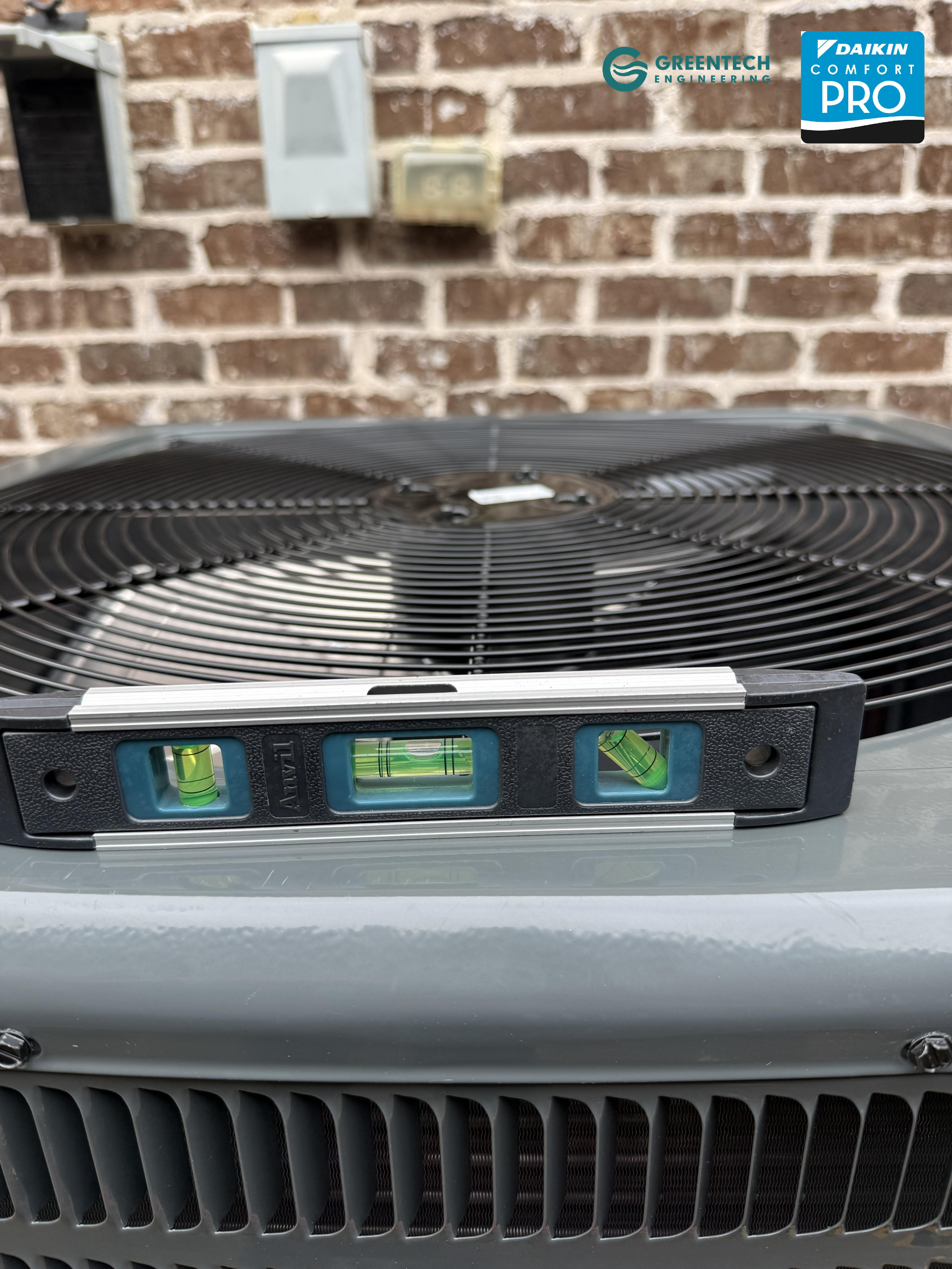

4. Perfect Leveling & Safety Protocols: We poured a new concrete equipment pad and used precision spirit levels to ensure the condenser sat perfectly flat—a critical step for ensuring even compressor oil distribution. Inside, we installed an insulated primary drain line and a Safe-T drain switch to instantly shut down the unit if a clog ever occurs.

‍

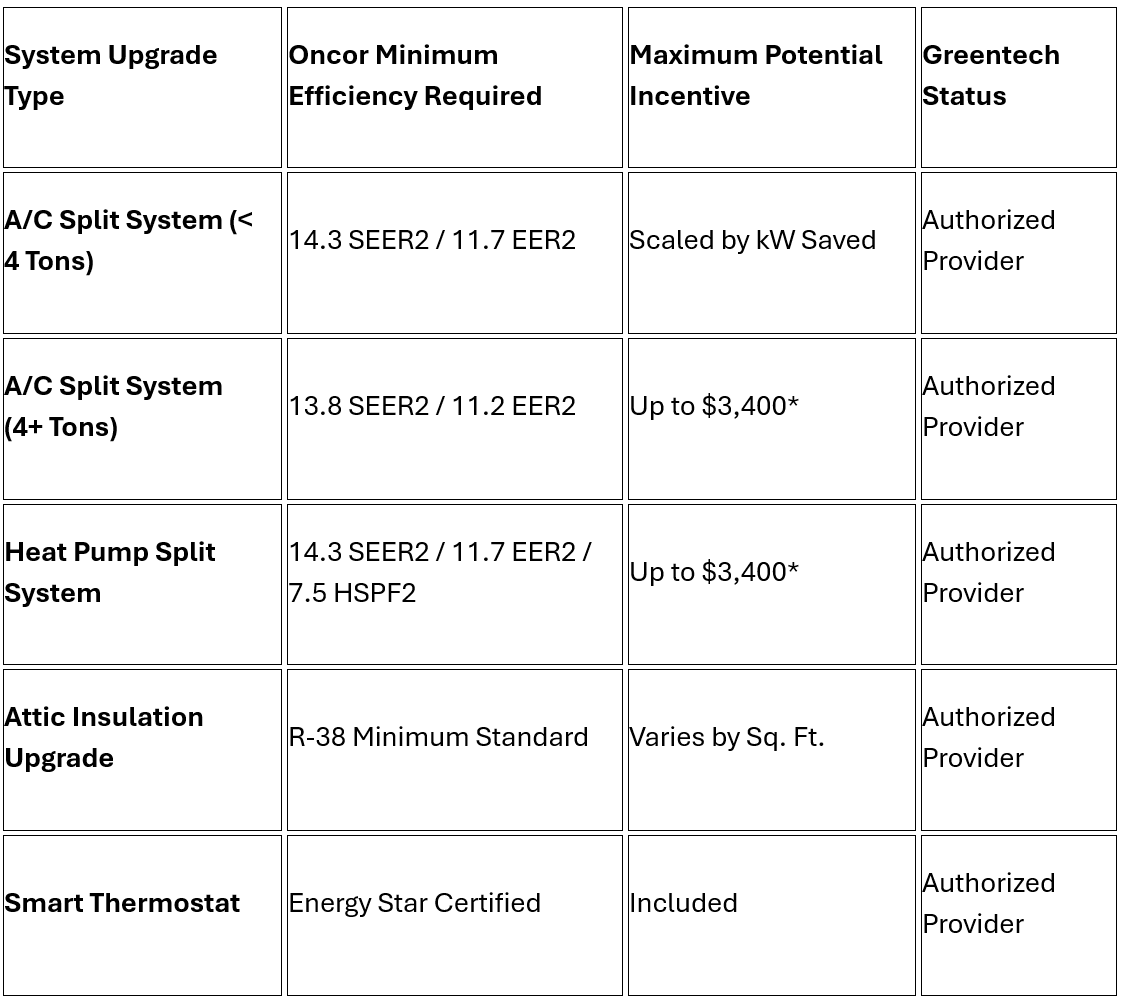

2026 Oncor Incentive Snapshot: Do You Qualify?

By prioritizing precision engineering and properly matching the system components to achieve an AHRI-Certified 15.2 SEER2 Rating, we successfully secured maximum Oncor Energy Efficiency Rebates for this Fort Worth homeowner.

To qualify for Oncor's Home Energy Efficiency Program in the DFW area, your new system must meet specific engineering baselines. As an Authorized Service Provider, Greentech Engineering Heating and Air Conditioning ensures your installation meets or exceeds these tiers to maximize your payout.

*Incentive Disclaimer: The $3,400 figure represents the maximum potential Oncor invoice discount, reserved for top-tier capacity and efficiency upgrades (e.g., 5-Ton, 18+ SEER2) combined with qualifying envelope improvements. Actual incentive amounts are strictly determined by Oncor's kW/kWh reduction formula. To maximize your payout and ensure compliance, Greentech Engineering utilizes our ACCA Manual J Certification to perform the mandatory, precision pre-installation load calculations required for approval.

Contact Greentech Engineering today to schedule your comprehensive evaluation in Fort Worth, Tarrant County, or anywhere in the DFW metroplex. Let our engineers do the math, perfectly size your equipment, and maximize your utility rebates!

Frequently Asked Questions (FAQ): Heat Pumps in Fort Worth, TX

Q: What is the difference between a Heat Pump and a standard AC?

A: A standard air conditioner only cools your home. A heat pump uses a reversing valve to act as an air conditioner in the summer, and a highly efficient heater in the winter by extracting ambient heat from the outdoor air and pumping it inside.

Q: Why do I need a 20 KW electrical heat kit if I have a heat pump?

A: Heat pumps are highly efficient, but their heating capacity drops when outdoor temperatures fall below freezing. The 20 KW heat kit serves as "auxiliary" or "emergency" heat. Your 2-stage thermostat will automatically turn on these electric heat strips during severe Texas winter storms to ensure your home stays warm.

Q: How does a 9-Speed ECM Blower Motor fix a hot upstairs?

A: Standard blower motors only operate at one speed, which often isn't strong enough to push air upstairs. A 9-speed Electronically Commutated Motor (ECM) smoothly ramps up its speed and torque to easily overcome ductwork static pressure, ensuring powerful, calibrated airflow reaches the second floor.

Q: How do I get the Oncor Heat Pump Rebate?

A: You must use an approved Oncor Participating Service Provider (like Greentech Engineering LLC). We ensure the equipment matchup is AHRI-certified (like this 15.2 SEER2 system) and handle the strict technical installation standards required by Oncor to process the rebate.
