Trane HVAC System Replacement in Dallas, TX 75229

High-Efficiency Split System Installation Meeting 2023 DOE Energy Conservation Standards

For homeowners in Dallas, TX 75229, replacing an aging HVAC system is not simply about upgrading equipment—it is about correcting airflow, improving energy efficiency, and ensuring long-term reliability under North Texas climate conditions. In this residential project, Greentech Engineering Heating & Air Conditioning completed a full HVAC system replacement, upgrading an older Carrier system to a high-efficiency Trane split system engineered to comply with 2023 DOE Energy Conservation Standards.

This case study demonstrates how installation quality, commissioning discipline, and system verification are just as critical as the HVAC brand itself.

Project Overview: HVAC Replacement in Dallas, TX 75229

Service Area: Dallas, Texas 75229
Property Type: Single-Family Residence
System Type: Gas Furnace + Split Air Conditioning System
Project Goal: Improve comfort consistency, airflow performance, and code compliance while increasing long-term system reliability

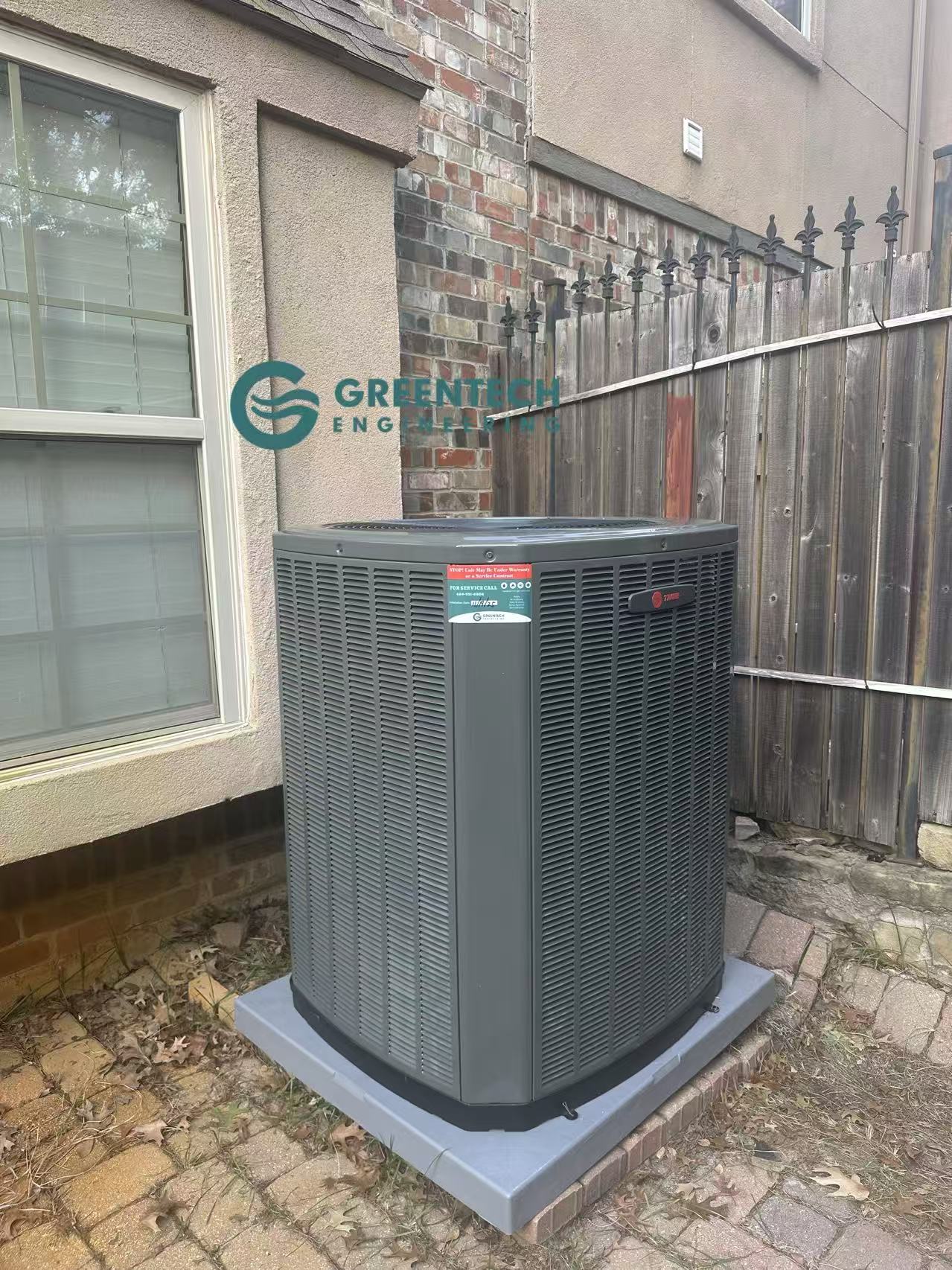

Installed HVAC Equipment

• Air Conditioner
  Trane 60,000 BTU High-Efficiency Split System Air Conditioner
  Up to 14.3 SEER2, compliant with 2023 DOE Energy Conservation Standards
• Evaporator Coil
  ADP 60,000 BTU Horizontal Cased Evaporator Coil
• Gas Furnace
  Trane 100,000 BTU Multi-Position Single-Stage Gas Furnace
  80% AFUE, 5-Ton capacity, equipped with a variable-speed ECM blower motor
• Manufacturer Warranty
  10-Year Factory Limited Parts Warranty (with homeowner registration)

This system configuration was selected to properly match cooling load, heating demand, and duct airflow requirements commonly found in homes within the 75229 Dallas corridor.

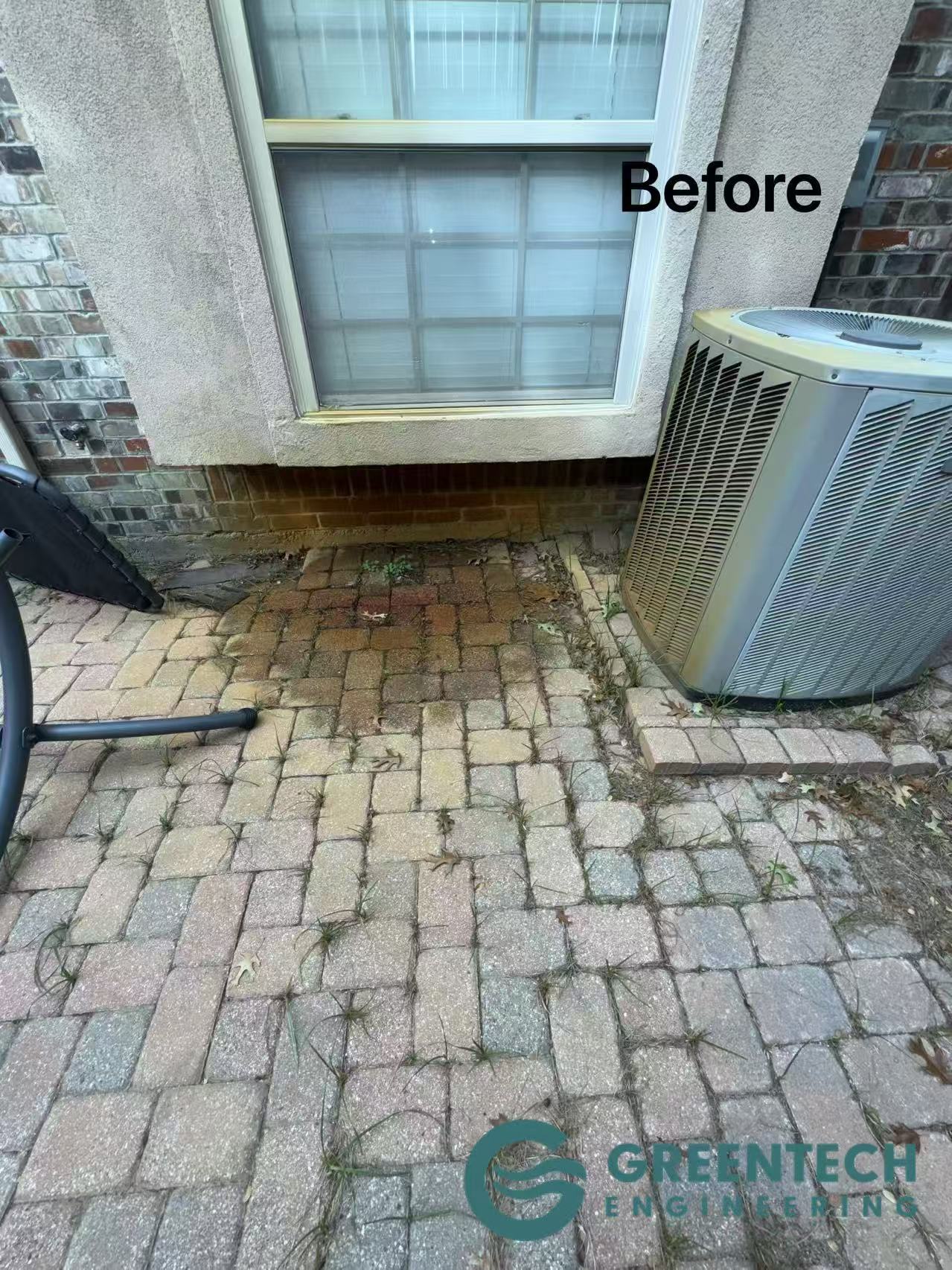

Why Replace an Older Carrier System?

Many Carrier systems installed 10–15 years ago in North Dallas neighborhoods were designed under earlier efficiency standards. Over time, homeowners often experience:

• Uneven temperatures between rooms
• Increased utility costs during peak cooling months
• Aging blower motors with limited airflow control
• Coil and refrigerant compatibility issues

The new Trane system provides modern airflow modulation, improved system sealing compatibility, and compliance with today’s SEER2 and DOE regulations, while maintaining dependable single-stage furnace performance suitable for Dallas winters.

Engineering-Based Scope of Work

Greentech Engineering HVAC follows a process-driven installation methodology. Every step below directly affects comfort, efficiency, and equipment longevity.

1. System Removal & Refrigerant Recovery

• Existing HVAC system safely removed and disposed
• All refrigerant pumped down and recovered in accordance with EPA standards

2. Safety & Drainage Upgrades

• Installed new:
  • Gas sediment trap
  • Auxiliary drain pan
  • Safe-T condensate safety switch
  • Insulated primary drain line
  • Concrete condenser equipment pad

These components protect the home from water damage, overflow shutdowns, and foundation settling.

3. Condensate Drain System Cleaning

• Drain line cleared using pressurized dry nitrogen
• New drain trap and vent installed
• All required drain modifications completed to prevent future clogs and backups

4. Coil & Furnace Mechanical Installation

• ADP evaporator coil and Trane gas furnace securely connected to supply and return plenums
• Installed using hex washer head HVAC screws
• Unit properly supported and balanced with necessary hanging and structural materials

5. Air Sealing & Efficiency Control

• All connections sealed with:
  • HVAC-rated metal tape
  • Professional duct sealant
• Reduces air leakage and preserves designed system efficiency

6. Gas Line & Exhaust Adjustments

• All required gas piping modifications completed
• Furnace exhaust flue adjusted to ensure safe combustion and proper draft

7. Refrigerant Line Set Flushing

• Existing copper line sets flushed using RX-11
• Followed by dry nitrogen purge
• Prevents oil cross-contamination and acid formation

8. Brazing & Refrigerant Line Modifications

• Line sets brazed using 15% silver brazing rod
• Work completed by certified technicians
• All necessary line modifications included

9. Nitrogen Pressure Test

• System pressurized to 250 PSI
• Pressure held for a minimum of 15 minutes
• Confirms refrigerant circuit integrity

10. Deep Vacuum Evacuation

• System evacuated to below 500 microns
• Removes moisture and non-condensables to protect the compressor

11. Startup & System Testing

• System fully commissioned and tested
• Verified airflow, refrigerant charge, furnace operation, and temperature split

Why Installation Quality Matters in Dallas, TX

In Dallas homes—especially in areas like 75229—heat load, duct layout, and attic conditions significantly affect HVAC performance. Even a premium Trane system will underperform without:

• Proper refrigerant evacuation
• Correct airflow sealing
• Verified pressure testing
• Commissioned startup procedures

This project reflects Greentech’s engineering-first approach, ensuring the homeowner receives the comfort and efficiency the equipment is designed to deliver.

Contact us

Frequently Asked Questions (Q&A)

Q1: Is a 14.3 SEER2 system sufficient for Dallas heat?
Yes. When properly sized and installed, a 14.3 SEER2 system meets DOE standards and performs efficiently in Dallas climate conditions.

Q2: What is the benefit of a variable-speed blower motor?
It improves airflow consistency, reduces noise, enhances humidity control, and lowers overall energy consumption.

Q3: Why flush refrigerant lines instead of replacing them?
If line sets are structurally sound, professional flushing with RX-11 and nitrogen safely removes contaminants without unnecessary demolition.

Q4: Why is evacuating below 500 microns critical?
It confirms moisture removal, protecting the compressor and extending system lifespan.

Q5: How do homeowners activate the 10-year Trane warranty?
The system must be registered. Greentech assists homeowners with warranty registration after installation.

Serving Dallas 75229 & the Greater DFW Metroplex

Greentech Engineering Heating & Air Conditioning is headquartered in Carrollton, TX and provides residential HVAC installation, replacement, and engineering-based diagnostics throughout Dallas, TX 75229, and surrounding North Texas communities.

Learn more about our service in Dallas

Author & Technical Review

Siwei (Lucas) Chen
CTO, Greentech Engineering Heating & Air Conditioning
B.S. Mechanical Engineering, Virginia Tech
ACCA Certified (Manual J, S, D)
NCI-Certified in Air Balancing & Duct Optimization
Daikin Comfort Pro Contractor
10+ Years HVAC Engineering Experience in Dallas–Fort Worth

This case study was reviewed and approved by Lucas Chen prior to publication.
