Smart HVAC Sizing in Allen: Why “Bigger” Isn’t Better

How an Engineering-First Manual J Saved This Homeowner Money, Energy, and Comfort

When North Texas homeowners replace an air conditioner, the most common—and most expensive—mistake is oversizing. Bigger equipment costs more upfront, runs less efficiently, struggles with humidity, and often shortens system life.

At Greentech Engineering Heating & Air Conditioning, we don’t “swap boxes.” We calculate comfort. This Allen, TX case study shows how precise engineering (not guesswork) delivered measurable savings and better performance.

The Home & The Problem (Allen, TX 75002)

• Property: Two-story single-family home
• Existing system: 3-ton unit
• Symptoms: Higher-than-necessary replacement quotes, uneven comfort, and humidity concerns common with oversized systems

Most contractors would default to another 3-ton system “because that’s what’s there.” That shortcut ignores how homes change over time—insulation upgrades, window replacements, duct modifications, or even shading from mature trees can all reduce actual load.

The Engineering Discovery: Manual J (The Only Right Way to Size)

We performed a Manual J Load Calculation, the ACCA-approved engineering standard that evaluates:

• Home orientation and envelope (walls, attic, insulation levels)
• Window size, type, and solar heat gain
• Infiltration rates and ceiling heights
• Internal loads (occupants, lighting, appliances)
• Actual duct performance, not assumptions

Result: The home required 2.5 tons, not 3.0.
That 0.5-ton difference is significant—it directly impacts equipment cost, energy use, humidity control, and comfort.

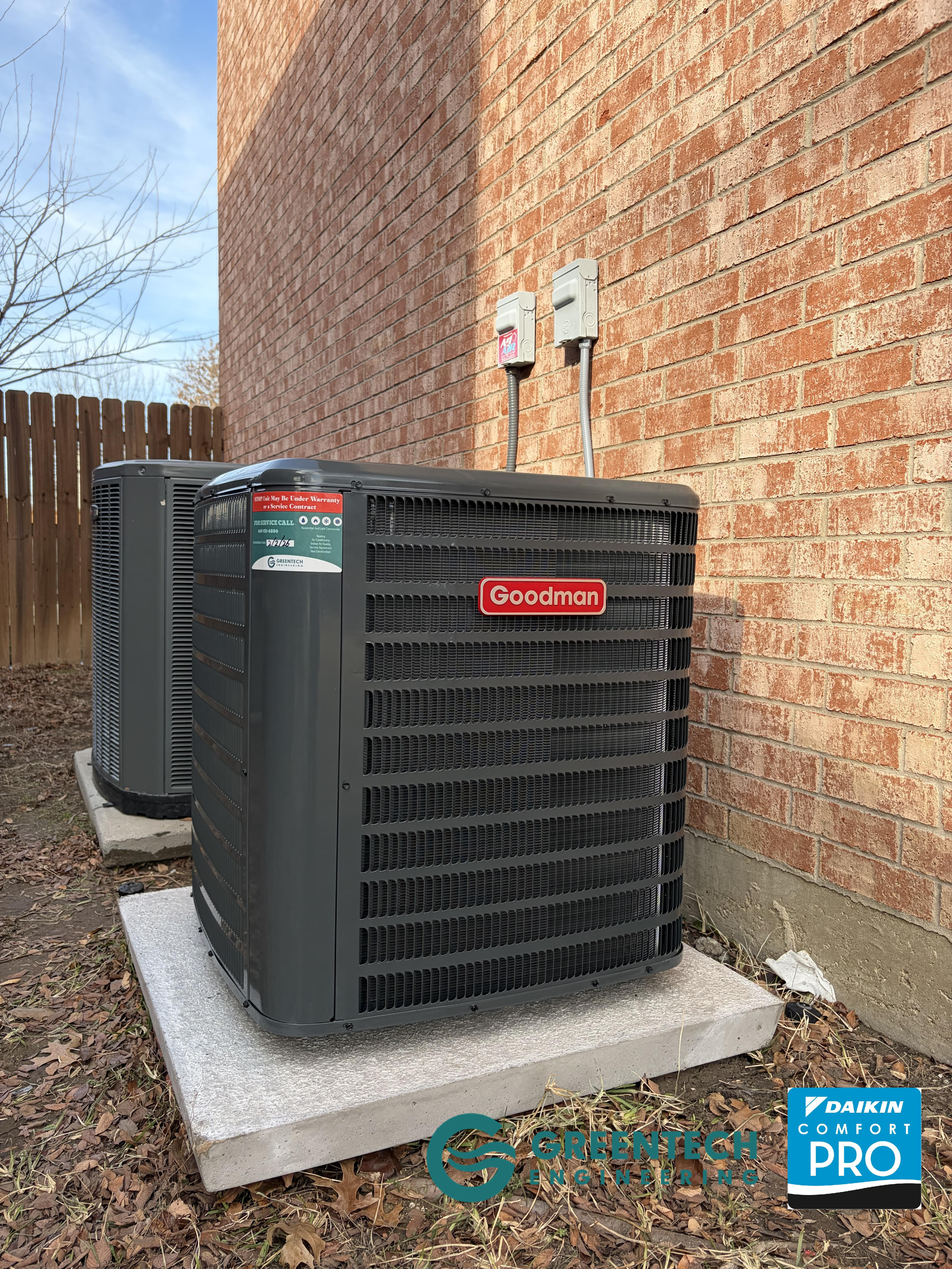

The Right-Sized Solution (Not the Biggest One)

• Recommended system: 2.5-Ton High-Efficiency Split System (15.2 SEER2 class)
• Why it matters:
  • Longer run times = better humidity removal
  • Lower compressor cycling = higher efficiency
  • Smaller equipment = lower upfront cost

Real Savings, Real Comfort

By right-sizing instead of oversizing, the homeowner:

• Paid less upfront for the equipment
• Reduced long-term energy bills
• Gained more stable temperatures across both floors

Incentives Done Right: Oncor Savings Applied

Engineering doesn’t stop at sizing. We also handled Oncor energy incentives, applying eligible rebates directly to the project to further reduce out-of-pocket cost. Many homeowners miss these savings because their contractor doesn’t understand the program requirements or paperwork.

Installation Quality: Where Engineering Meets Craft

Right equipment still fails without proper installation. This project included:

✔ System Prep & Verification

• Full refrigerant recovery from the old system
• Nitrogen pressure test to 250 PSI
• Triple evacuation down to 500 microns (verifiable, not “good enough”)

✔ Airflow & Ductwork Corrections

• Custom insulated metal air box
• New R-6 flex duct run to eliminate hot spots
• Airflow matched to the new 2.5-ton capacity (critical after downsizing)

✔ Safety & Reliability Upgrades

• New gas sediment trap
• Safe-T condensate overflow switch
• Reinforced concrete equipment pad

✔ Respect for the Home

• Full floor, stair, and hallway protection
• Detailed cleanup—home left spotless

What the Homeowner Said (5-Star Review)

“Lucas carefully measured and calculated what size system would actually work best for my home, instead of simply recommending a larger unit… Everything was clearly explained, and the whole process felt transparent and trustworthy.”

That transparency is intentional. We believe homeowners deserve to understand why a recommendation is made—not just accept it.

Why “Bigger” Is Often Worse in North Texas

Oversized HVAC systems typically cause:

• ❌ Short cycling (on/off constantly)
• ❌ Poor humidity control (clammy air)
• ❌ Higher utility bills
• ❌ More wear on compressors and controls

Right-sizing fixes all of the above.

Why Homeowners Choose Greentech Engineering

• We do the math: Manual J, Manual S, and airflow verification
• Incentive expertise: Oncor rebates handled correctly
• Engineering accountability: No guesswork, no shortcuts
• Peace of mind: 3-Year Labor Warranty included

📍 Service Area: Allen, TX 75002 and the greater DFW Metroplex
📞 Call today for a scientific HVAC assessment—before you overpay for an oversized system.

Frequently Asked Questions (FAQ)

What is a Manual J calculation?

Manual J is the industry-standard method for calculating a home’s heating and cooling load. It accounts for construction details, insulation, windows, orientation, and airflow to determine the exact system size required.

Is it common for existing systems to be oversized?

Yes. Many homes were oversized years ago due to rules of thumb or sales-driven recommendations. Energy upgrades over time often reduce the actual load even further.

Will a smaller system keep my home cool in Texas summers?

If properly calculated and installed—absolutely. A right-sized system runs longer, controls humidity better, and maintains steadier indoor temperatures.

Can downsizing really save money?

Yes. Smaller equipment costs less upfront, qualifies for incentives, and uses less electricity over its lifespan.

Do you handle rebates and incentives?

Yes. We manage Oncor incentive documentation and apply eligible savings directly to your project whenever possible.

Do you only serve Allen?

Allen is one of our core service areas, but we serve homeowners across the Dallas–Fort Worth metroplex.

Author & Technical Review

Lucas Chen
CTO | Greentech Engineering Heating & Air Conditioning
B.S. Mechanical Engineering
ACCA Certified (Manual J, S, D)
NCI Certified – Air Balancing & Duct Optimization
Daikin Comfort Pro Contractor
10+ years of residential HVAC engineering experience in Dallas–Fort Worth

This article was reviewed and approved by Lucas Chen to ensure technical accuracy and alignment with professional HVAC engineering standards.

Bottom line:
If your contractor didn’t run a Manual J, they didn’t size your system—they guessed.
Choose engineering. Choose comfort that actually fits. Contact us.

‍
