Downsizing for Efficiency: A 3.5-Ton Daikin HVAC Upgrade & Oncor Rebate Case Study in Plano, TX (75024)

When it comes to residential cooling in North Texas, there is a persistent myth that "bigger is always better." Many homeowners mistakenly believe that a larger air conditioning unit will cool their house faster and keep them more comfortable during the scorching Plano summers. From an engineering and thermodynamic perspective, this is fundamentally incorrect.

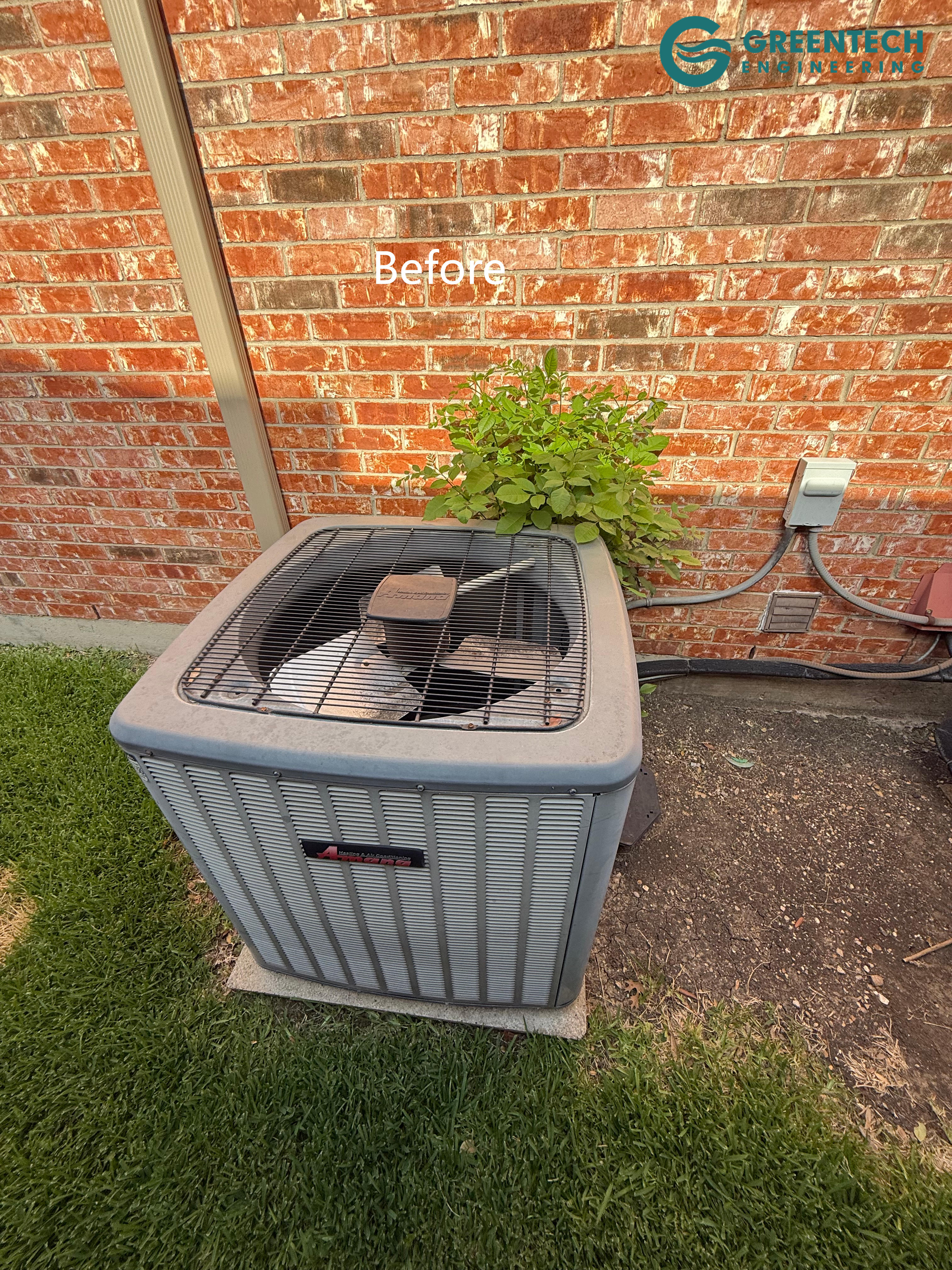

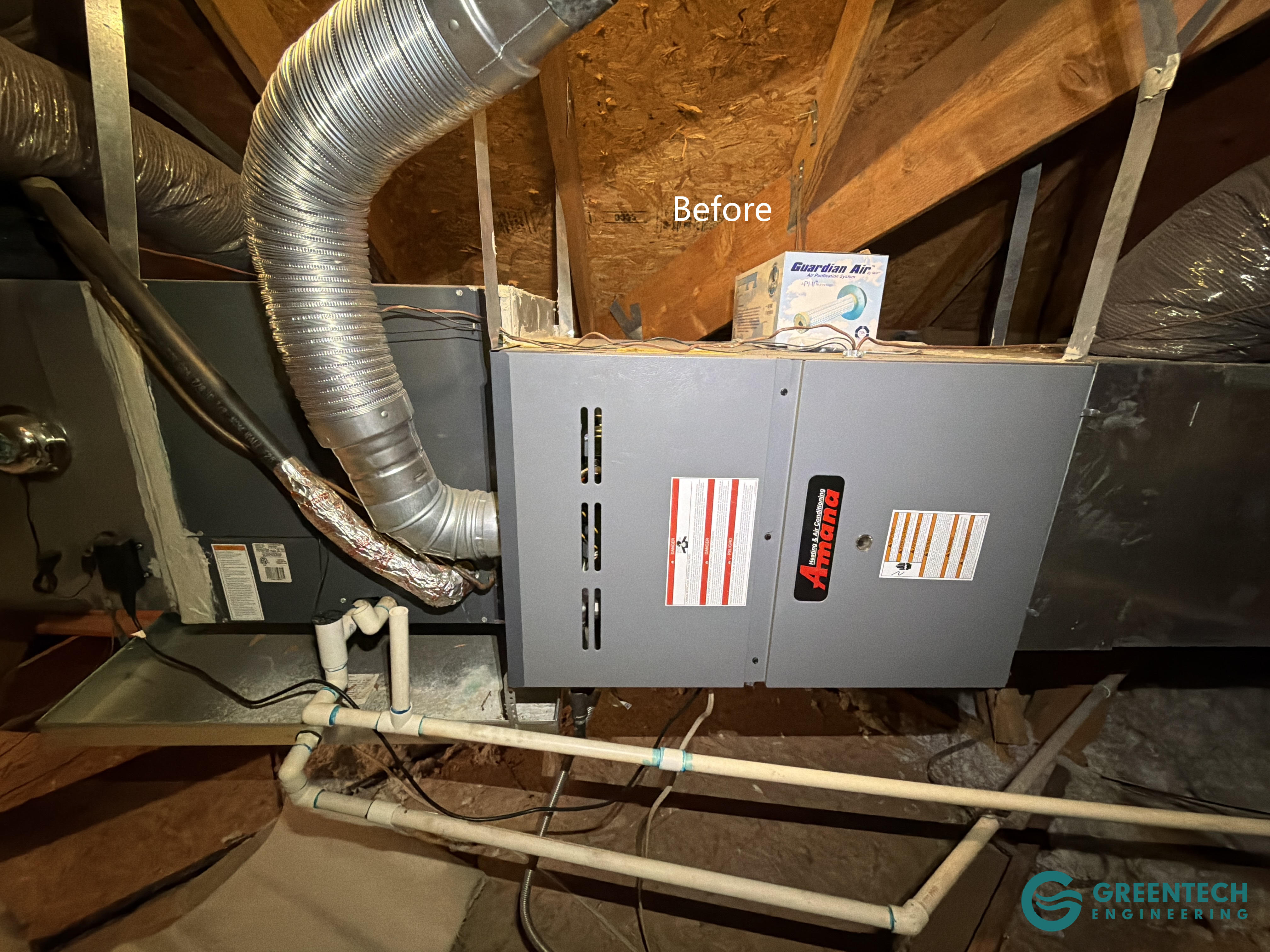

Recently, the owners of a two-story, single-family home in Plano, TX (75024) contacted our engineering team at Greentech Engineering to evaluate their failing HVAC system. Their old 4-Ton Amana system was struggling to maintain consistent temperatures and failing to control indoor humidity. Because Amana is a proud member of the Daikin manufacturing family, the homeowners already trusted the brand’s durability. When it came time to upgrade, they chose to stay within the family by upgrading to a flagship Daikin system, and they chose us to execute the project because we are a certified Daikin Comfort Pro.

“In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.”

In this deep-dive engineering case study, we will explain how we utilized ACCA Manual J calculations to downsize their equipment, installed a 15.2 SEER2 AHRI-certified Daikin matchup, executed our clinical 11-step installation protocols, and secured an instant $1,000+ Oncor rebate on their invoice.

The Engineering Foundation: ACCA Manual J & The Power of Downsizing

Before recommending any equipment, a proper HVAC replacement must begin with a thorough evaluation of the home's thermal boundaries.

The homeowner's legacy system was a 4-Ton unit. However, an oversized air conditioner is one of the worst things you can have in a humid climate. An oversized unit will quickly blast the home with cold air, satisfying the thermostat and shutting off prematurely—a phenomenon known as "short-cycling." Because the system doesn't run long enough, it fails to perform its secondary job: extracting humidity from the indoor air. The result is a cold, clammy, and uncomfortable house with skyrocketing energy bills due to the constant starting and stopping of the compressor.

‍

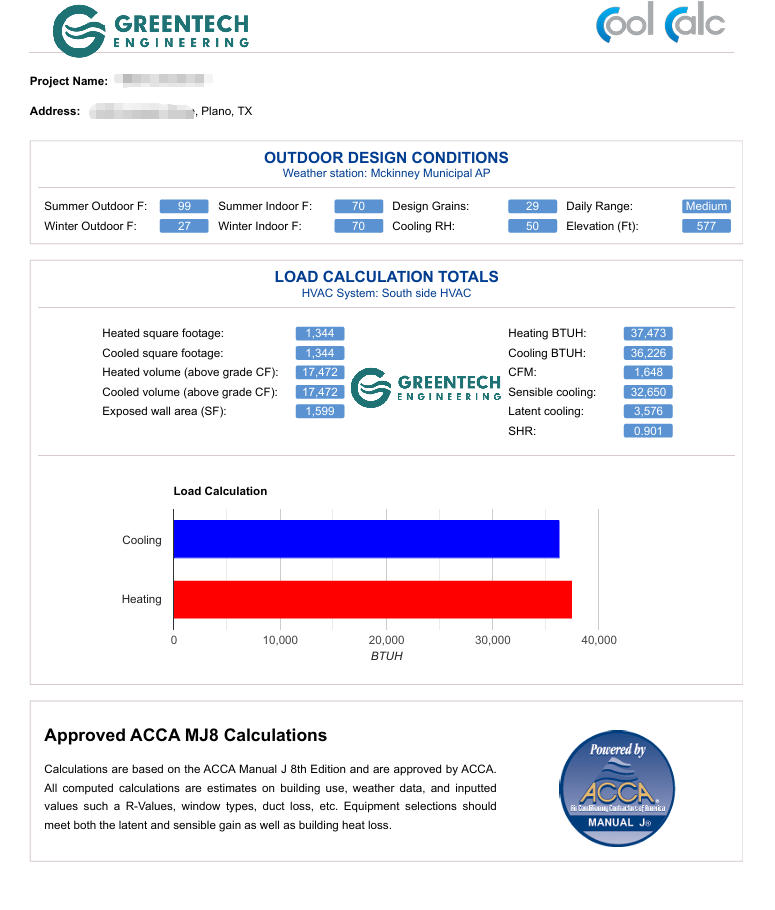

By performing a rigorous ACCA Manual J Load Calculation, taking into account the Plano home's square footage, window solar heat gain, insulation values, and ductwork, we determined that a 3.5-Ton (42,000 BTU) system was the mathematically perfect size. Downsizing to the correct tonnage ensures the system runs in longer, more efficient cycles, wringing the moisture out of the air while consuming significantly less electricity.

The Technology: Daikin 15.2 SEER2 / 12.0 EER Matchup

To provide the homeowner with exceptional reliability, lower utility costs, and a seamless transition from their old Amana unit, we engineered a complete AHRI-certified matchup utilizing premium Daikin technology that meets the strict 2023 DOE Energy Conservation Standards.

The Outdoor Powerhouse: Daikin 3.5-Ton Air Conditioner

The newly installed condenser is the heart of the home's heat-rejection process, delivering up to 15.2 SEER2 performance:

• High-Efficiency Copeland® Scroll Compressor: Designed for endurance, providing smooth, continuous refrigerant compression with incredible efficiency.
• Advanced Copeland® CoreSense™ Technology: This onboard diagnostic brain actively monitors the compressor's electrical and thermodynamic conditions to prevent failures before they happen.
• Advanced Heat Transfer Coils: Utilizing a 5mm diameter copper tube and enhanced aluminum fin coil design to maximize heat exchange surface area.
• Acoustic Engineering: A high-density foam compressor sound blanket dramatically reduces operational noise.
• Protection & Warranty: Equipped with high- and low-pressure switches, a factory-installed filter drier, and backed by a 12-year factory limited parts warranty and a 6-Year Unit Replacement plan upon registration.

‍

The Indoor Evaporator: Daikin 48,000 BTU Horizontal Cased Coil

To absorb heat and humidity effectively, we installed a heavy-duty indoor evaporator coil:

• Thermal Expansion Valve (TXV): An internal, factory-installed mechanical valve that actively meters the exact amount of liquid refrigerant entering the coil based on the real-time heat load inside the Plano home, ensuring ultimate humidity control.
• Durability Tested: Built with rifled aluminum tubing and enhanced aluminum fins. To guarantee leak-free operation, the coil is air pressure tested at 500 psi, leak tested with helium, and then sealed and nitrogen pressurized at the factory.
• Insulation & Drainage: Features fully insulated foil-faced insulation and a powder-coated galvanized steel horizontal drain pan.
• Warranty: Backed by an incredible 12-year factory limited parts warranty and a 12-year unit replacement plan.

‍

The Heating Core: Daikin 80,000 BTU 80% AFUE Gas Furnace

Winter in Collin County requires reliable heating. We installed a 5-Ton capacity, single-stage gas furnace to keep the home warm and circulate air year-round:

• 9-Speed ECM Blower Motor: An energy-efficient, multi-speed Electronically Commutated Motor offers incredibly quiet continuous fan circulation and adapts perfectly to the home's static pressure.
• Heavy-Duty Heat Exchanger: Features a stainless-steel dual-diameter/tubular design and a durable "Silicon Nitride igniter" for long-lasting reliability.
• Ultra-Low Leakage: The heavy-gauge steel cabinet with a baked-enamel finish boasts a cabinet air leakage (QLeak) of ≤ 2%.
• Smart Diagnostics: A self-diagnostic control board with constant memory fault code history output to a 3-digit 7-segment LED display.
• Warranties: CA Low NOx standard compliant, featuring a Lifetime Heat Exchanger Limited Warranty and a 12-year parts warranty.

The Greentech Standard: Clinical 11-Step Installation Protocols

At Greentech Engineering, we do not simply "swap boxes." We approach residential HVAC installations with the precision of a laboratory. By adhering strictly to ACCA standards and our internal clinical protocols, we ensured this Daikin system will outlast industry averages.

Here is the exact scope of work executed for this Plano 75024 residence:

1. Environmental Safety: The old Amana system was meticulously dismantled, and all legacy refrigerant was pumped down and legally recovered.
2. Infrastructure Upgrades: We installed a new gas sediment trap, a heavy-duty drain pan, and a brand-new concrete condenser equipment pad. Crucially, we installed a Safe-T drain switch—a failsafe that instantly shuts down the AC if the drain clogs, preventing thousands of dollars in ceiling water damage.
3. Nitrogen Drain Clearing: The existing condensation drain line was blasted with pressurized dry nitrogen to blow out years of algae and debris. A new drain trap, vent, and line insulation were installed.

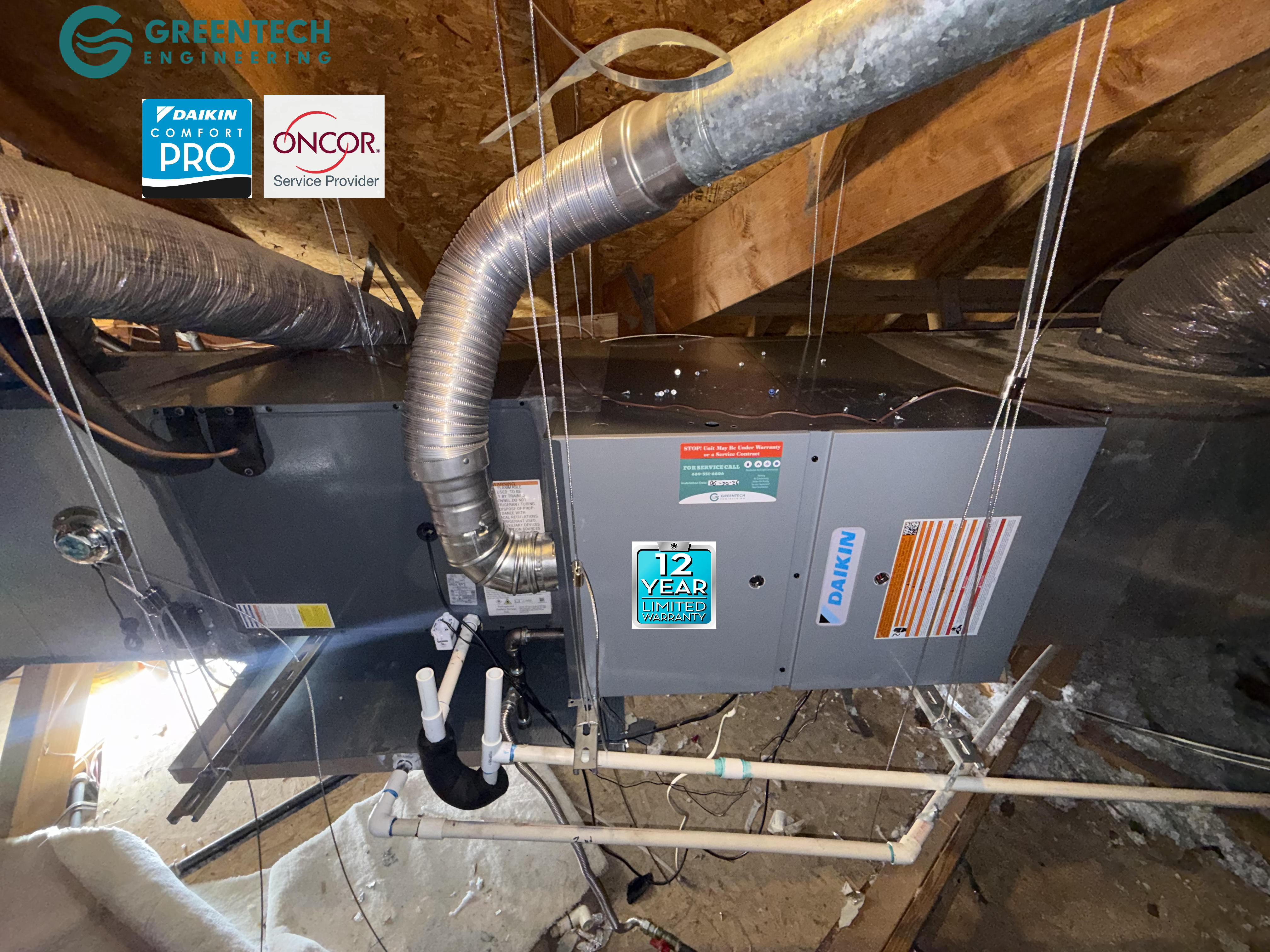

4. Structural Mating: The new Daikin evaporator coil and gas furnace were physically connected to the home's return and supply plenums using hex washer head HVAC screws, then structurally supported and balanced with custom hanging materials.
5. Aero-Sealing: Every single connection seam was sealed with engineered HVAC metal tape and mastic duct sealant, guaranteeing maximum system efficiency and zero air leaks into the attic.
6. Code Compliance: All necessary gas line and furnace exhaust flue pipe modifications were executed flawlessly.
7. RX-11 Chemical Flush: Because we reused the home's copper line sets hidden in the walls, a chemical flush was mandatory. We injected RX-11 flush through the copper lines and chased it with dry nitrogen to strip out the old, acidic mineral oil, ensuring the new synthetic POE oil remains pure.
8. Nitrogen-Purged Silver Brazing: To prevent internal carbon soot (oxidation) from clogging the delicate TXV, our certified technicians flowed dry nitrogen through the copper pipes while welding the joints with premium 15% silver brazing rods.
9. 250 PSI Pressure Test: The closed copper network was pressurized with dry nitrogen to 250 psi and held for 15 minutes to mathematically prove there were zero micro-leaks.
10. 500-Micron Deep Vacuum: Utilizing specialized digital vacuum pumps, we pulled the system pressure down under 500 microns. This extreme vacuum boils off any microscopic atmospheric moisture inside the pipes, preventing the formation of corrosive hydrofluoric acid.
11. Final Commissioning: The system was fully charged, run, and digitally tested for exact thermodynamic performance. We finalized the project by installing a brand new digital single-stage thermostat.

Securing Your $1,000+ Oncor Rebate in Plano, TX

Because this homeowner trusted the Manual J downsizing process and invested in a highly efficient 15.2 SEER2 Daikin matchup, the system qualified for substantial utility rebates. We successfully secured an Oncor incentive that resulted in an invoice discount of approximately $1,000.

‍

Why You Need an Authorized Oncor Service Provider

You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.

To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.

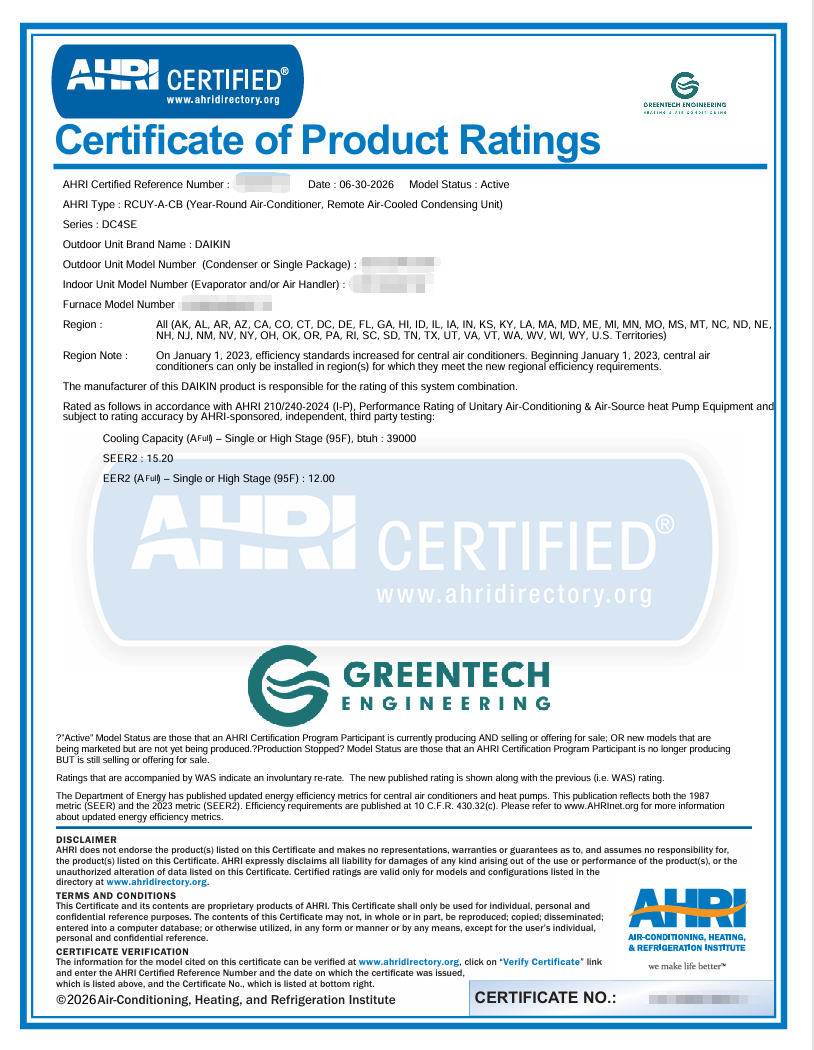

When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.

Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice. We guarantee you to have the highest incentive you could have.

2026 Oncor Incentive Snapshot: Dallas-Fort Worth

*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.

Plano HVAC & Rebate FAQs

To help our neighbors in Plano and Collin County better understand the science of home climate control and utility incentives, our engineering team has answered the most common questions related to this case study.

Q: Why would an HVAC contractor recommend a smaller AC unit for my house?

A: Bigger is not better when it comes to air conditioning. If an AC unit is oversized for your home’s square footage and thermal envelope, it cools the air too rapidly and shuts off before it can extract the indoor humidity. This "short-cycling" leaves your home feeling cold but clammy and wears out the compressor prematurely. A smaller, correctly sized unit (determined by a Manual J calculation) runs longer, uses less electricity, and perfectly dehumidifies the space.

Q: Are Amana and Daikin the same company?

A: Yes. Amana heating and cooling systems are manufactured by Daikin, which is the largest HVAC manufacturer in the world. Upgrading from an older Amana system to a premium Daikin system ensures you are getting industry-leading compressor technology (like the Copeland® Scroll), exceptional build quality, and superior factory warranties, all from the same trusted manufacturing family.

Q: How do I qualify for the Oncor AC replacement rebate in Plano, TX?

A: To qualify for the Oncor Home Energy Efficiency rebate, three conditions must be met: your home must be in the Oncor service territory, the new system must meet strict minimum efficiency ratings (e.g., 14.3 SEER2 for systems under 4 tons), and the installation must be performed by an Authorized Oncor Participating Service Provider like Greentech Engineering. Homeowners cannot claim this rebate directly or use an unapproved contractor.

Q: Why do you use dry nitrogen when installing a new air conditioner?

A: When welding copper refrigerant pipes with a torch, the oxygen inside the pipe burns and turns into black carbon flakes. If these flakes break loose, they will permanently clog the delicate thermal expansion valve (TXV) of your new AC. By constantly flowing dry nitrogen through the pipes during the brazing process, we displace the oxygen and ensure the inside of the copper remains surgically clean.

Q: What is a 500-micron deep vacuum, and why does it matter?

A: Before adding refrigerant to a newly installed system, all atmospheric air and moisture must be removed from the copper lines. We use specialized digital pumps to pull the internal system pressure down below 500 microns. At this extreme vacuum level, any microscopic moisture left inside instantly boils into a vapor and is sucked out. If this moisture is left inside, it mixes with the refrigerant oil to create hydrofluoric acid, which will slowly eat your new compressor from the inside out.

‍

Ready for Engineering-Grade Comfort?

Stop paying high utility bills for a poorly sized, failing air conditioner. Whether you live in Plano 75024 or the surrounding DFW metroplex, true home comfort requires data, engineering, and clinical execution.

Contact Greentech Engineering Today to schedule your comprehensive residential HVAC diagnostic, request a Manual J load calculation, and discover how much you can save with a new Daikin system and Oncor rebates.
