Heat Pump Upgrade & $2,000 Oncor Rebate in Grand Prairie, TX (75052): A Manual J Case Study
For homeowners in Grand Prairie, Texas (75052), extreme weather is simply a fact of life. From blistering summer heatwaves to unpredictable winter freezes, maintaining indoor comfort requires a mechanical system that is both incredibly resilient and highly efficient. As energy costs soar across the Dallas-Fort Worth metroplex, relying on an aging, inefficient central air conditioner is a fast track to exorbitant utility bills.
“In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.”

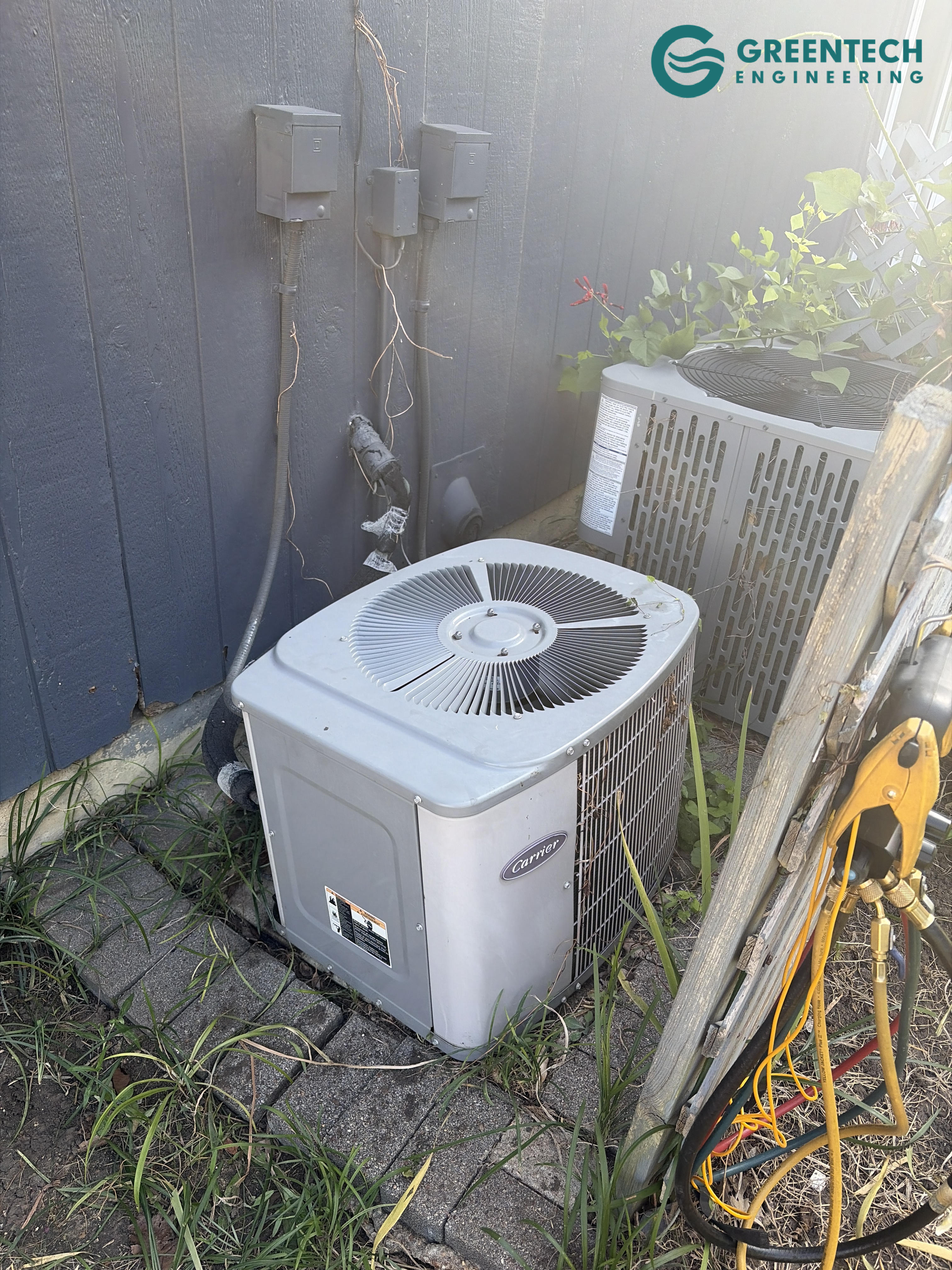

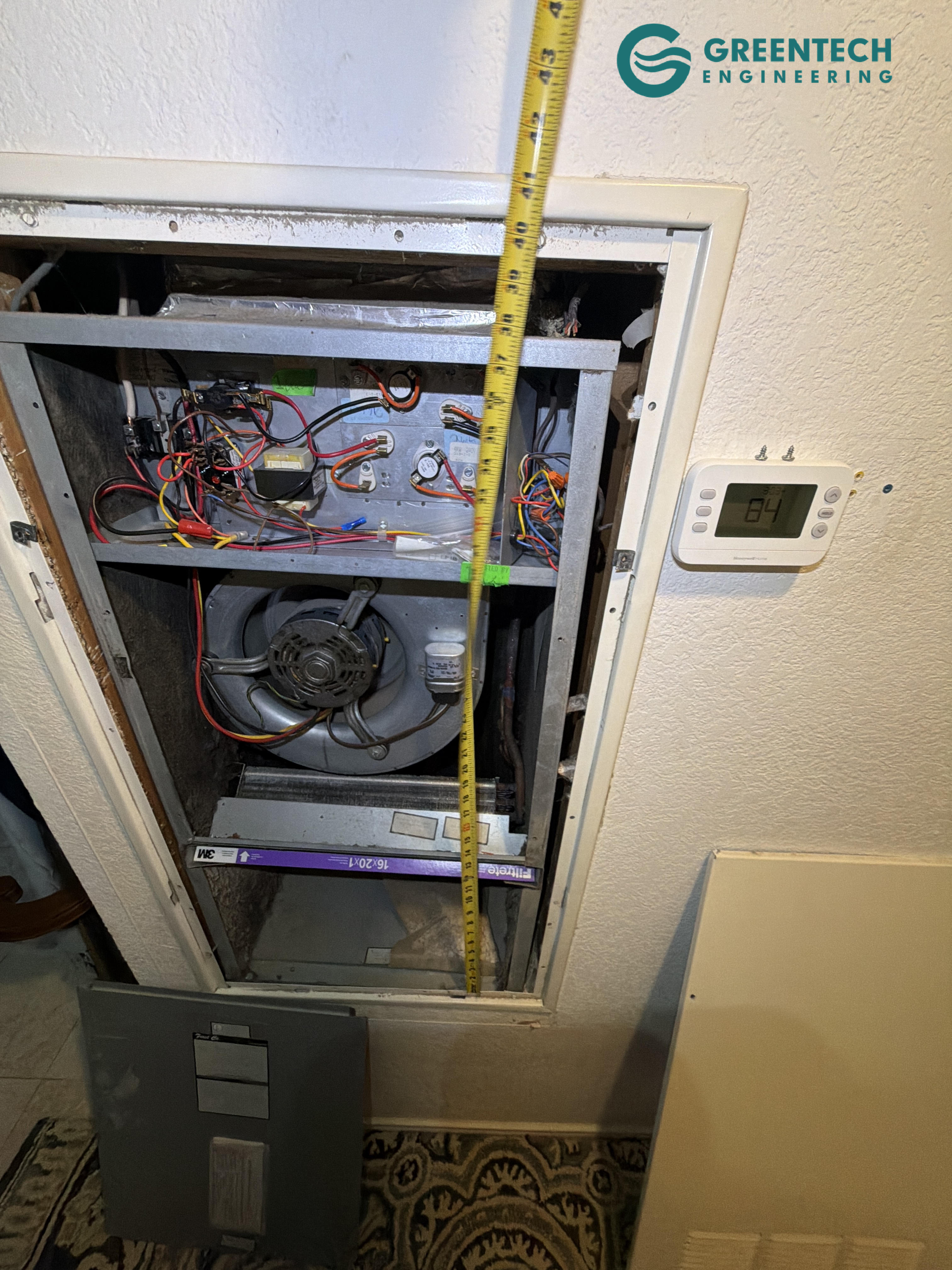

Recently, a family residing in a single-family home in the 75052 zip code of Grand Prairie reached out to our engineering team. Their outdated central air conditioning system was failing, resulting in uneven cooling, poor humidity control, and high electricity consumption. Rather than simply swapping their old AC for a slightly newer AC, our engineers recognized an opportunity to completely modernize their home's thermal management by transitioning them to a high-efficiency Heat Pump system.
In this deep-dive engineering case study, we will explore the deployment of an AHRI-certified Goodman 14.5 SEER2 2-Ton Heat Pump System, the absolute necessity of ACCA Manual J load calculations when making this transition, our clinical 10-step installation protocol, and how we secured a massive $2,000 Oncor incentive for the homeowner.
The Engineering Foundation: The Power of Manual J Calculations
One of the most dangerous practices in the residential HVAC industry is the "rule of thumb" equipment sizing. Many uncertified contractors will look at a failing 2-ton AC and simply order a new 2-ton unit to replace it. When transitioning a home from a traditional straight-cool AC to a Heat Pump, this guesswork can be disastrous.
Before selecting any equipment for this Grand Prairie home, our team performed a rigorous ACCA Manual J Load Calculation. This digital, thermodynamic assessment analyzes the home's exact square footage, ceiling height, window solar heat gain, insulation values, and ductwork condition.
The Manual J data proved that a precisely calibrated 2-Ton (24,000 BTU) system was mathematically perfect for the home's thermal boundary. By confirming the exact load requirement, we ensured the new heat pump would run in optimized, long cycles. This precise sizing is the secret to ultimate humidity extraction during the humid Texas summers and efficient, steady warmth during the winter, completely avoiding the harsh "short-cycling" that plagues oversized systems.
The Technology: Goodman 14.5 SEER2 Heat Pump Matchup
To provide this Grand Prairie homeowner with year-round reliability and drastically lower energy consumption, we engineered a complete split-system overhaul utilizing premium Goodman technology. This specific matchup achieves a remarkable 14.5 SEER2, 7.5 HSPF, and 12.0 EER performance rating, fully compliant with the 2023 Department of Energy (DOE) Conservation Standards.
The Outdoor Powerhouse: Goodman 24,000 BTU Split Heat Pump
A heat pump is a thermodynamic marvel. During the summer, it extracts heat from inside the home and pushes it outside. During the winter, it reverses the flow of refrigerant, extracting latent ambient heat from the outdoor air and pumping it inside. This 2-Ton condenser features robust engineering:
- Energy-Efficient Compressor: Delivers smooth, continuous refrigerant flow, drastically reducing electrical draw compared to legacy models.
- SmartShift® Technology: A proprietary defrost control system that ensures a quiet, reliable transition into defrost mode during freezing Texas winter nights.
- Advanced Heat Transfer: Utilizing 5mm diameter copper tubes and an enhanced aluminum fin coil, maximizing the surface area for rapid thermal exchange.
- Factory-Installed Defenses: Equipped with a bi-flow filter drier to capture microscopic debris, a suction-line accumulator to protect the compressor from liquid slugging, and a compressor crankcase heater for cold-weather startups.
- Acoustic Engineering: A high-capacity muffler dampens operational noise, while high- and low-pressure switches protect the system from critical failures.
- Unmatched Warranty: Backed by a 10-year factory limited parts warranty.

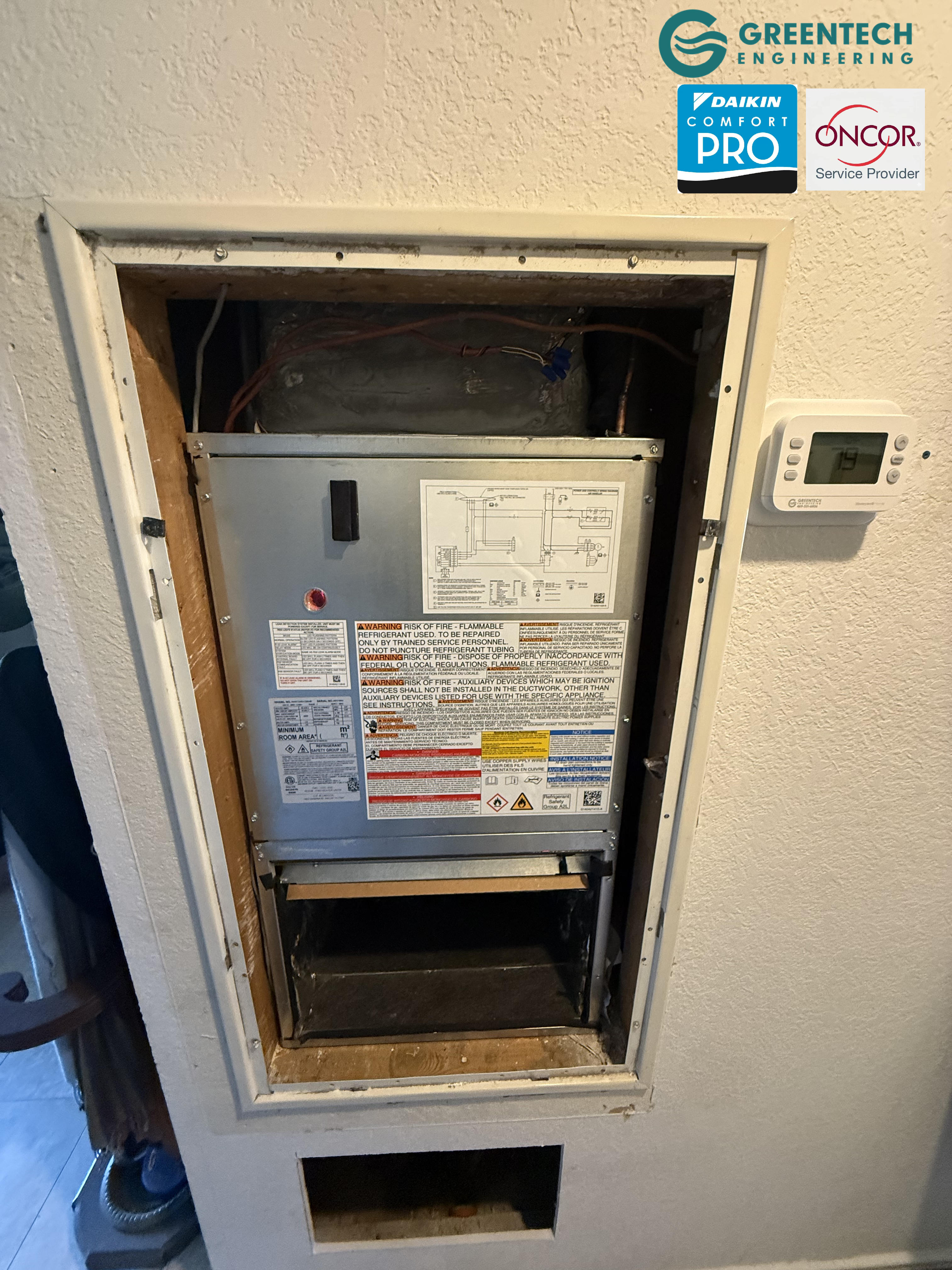

The Indoor Air Handler: Goodman 24,000 BTU Wall Mount
To complement the outdoor heat pump, we installed a perfectly matched 24,000 BTU wall-mount air handler.
- 9-Speed ECM Blower Motor: An Electronically Commutated Motor offers incredible static pressure adaptability and ultra-quiet air circulation, dialing in the perfect airflow for the home.
- Factory-Installed TXV: A Thermal Expansion Valve actively meters the exact amount of liquid refrigerant entering the coil based on the real-time heat load inside the home, guaranteeing dynamic humidity control.
- All-Aluminum Evaporator Coil: Built with 7mm tubing and high-performance coated fin stock, this coil is heavily resistant to indoor formicary corrosion.
- 5 kW Heat Kit: We integrated a 5 kW supplemental electric heat strip to act as a secondary heat source during extreme, sub-freezing winter weather.
The Greentech Standard: 10-Step Clinical Installation
A premium heat pump requires a premium, laboratory-grade installation. We executed the following strict protocols for this 75052 property to ensure the system operates at peak thermodynamic efficiency:
- Environmental Recovery: The old central AC system was safely dismantled, and all legacy refrigerant was pumped down and legally recovered.
- Infrastructure Defense: We installed heavily insulated drain lines and a new concrete condenser equipment pad. Most importantly, we installed a Safe-T drain switch—a critical failsafe that instantly powers down the unit if a clog is detected, preventing disastrous water damage.
- Nitrogen Drain Clearing: The existing condensation drain line was blasted with pressurized dry nitrogen to clear hidden organic blockages. A new drain trap and vent were installed.
- Structural Mating: The new air handler was physically connected to the return and supply plenums using hex washer head HVAC screws, completely secured and balanced.
- Aero-Sealing: Every single connection seam was sealed with engineered HVAC metal tape and heavy mastic duct sealant, guaranteeing zero conditioned air loss.
- Chemical Purging: Because we reused the home's hidden copper line sets, we injected an RX-11 chemical flush through the pipes and chased it with dry nitrogen. This safely stripped out all acidic legacy mineral oil.
- Nitrogen-Purged Silver Brazing: To prevent internal carbon oxidation, our certified technicians flowed dry nitrogen through the copper pipes while soldering all joints with premium 15% silver brazing rods.
- 250 PSI Pressure Test: The closed refrigerant system was pressurized with dry nitrogen to 250 psi and held for a minimum of 15 minutes to mathematically prove the absolute integrity of our welds.
- 500-Micron Deep Vacuum: We attached specialized digital vacuum pumps to pull the system pressure below 500 microns. This extreme vacuum boils off any microscopic moisture trapped in the lines, preventing the formation of corrosive hydrofluoric acid.

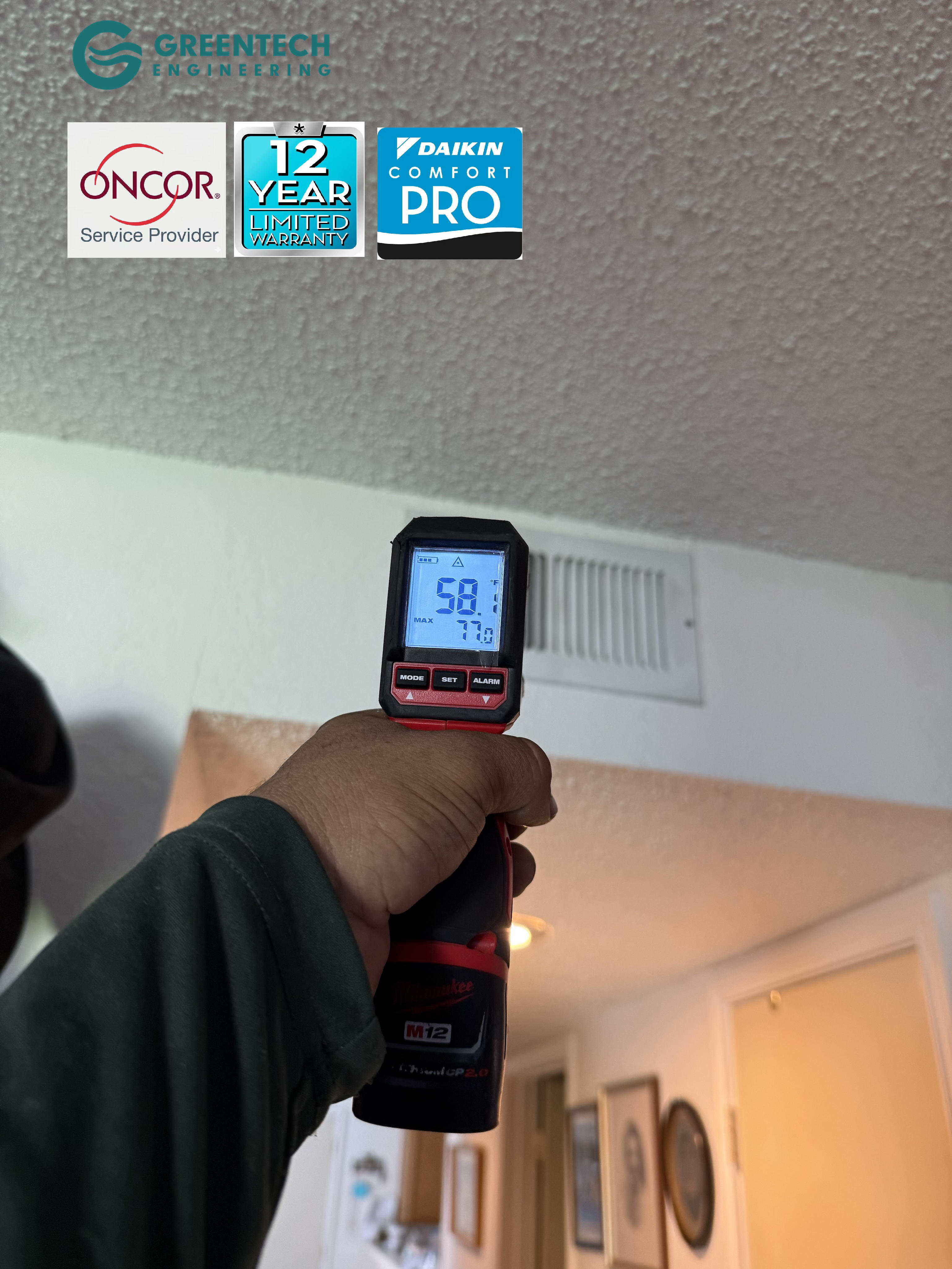

- Final Commissioning: The system was digitally calibrated, charged with fresh refrigerant, and run-tested for exact thermodynamic performance.
Securing a $2,000 Oncor Incentive
High-efficiency heat pump upgrades drastically reduce the overall strain on the Texas power grid, especially during peak winter and summer months. Because this Grand Prairie homeowner trusted our data-driven Manual J process and invested in an AHRI-certified 14.5 SEER2 Goodman Heat Pump, the project qualified for substantial utility incentives.
Why You Need an Authorized Oncor Service Provider
You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.
To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.
When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.
Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice. We guarantee you to have the highest incentive you could have.
2026 Oncor Incentive Snapshot: Dallas-Fort Worth
*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.
Grand Prairie Heat Pump FAQs
To help our neighbors in Grand Prairie understand the shift toward heat pump technology, our engineers have answered the most common questions related to this case study.
Q: What is the difference between a traditional AC and a Heat Pump?
A: A traditional central AC only provides cooling by removing heat from your home. To heat your home, it relies on a separate gas furnace or electric heater. A Heat Pump, however, is a two-way system. It acts exactly like an air conditioner in the summer, but a reversing valve allows it to run backward in the winter, pulling latent heat from the outside air to warm your home. It provides both heating and cooling in one highly efficient unit.
Q: Why is an RX-11 chemical flush necessary during installation?
A: When upgrading a system, we often reuse the existing copper lines hidden in your walls. Older systems used mineral oil, while modern highly efficient systems (like this Goodman unit) use synthetic POE oil. If these two oils mix, they create a thick sludge that will destroy the new compressor. The RX-11 flush completely chemically strips the inside of the copper lines, ensuring the new synthetic oil remains 100% pure.
Q: Can any HVAC contractor get me the Oncor rebate in Grand Prairie, TX?
A: No. To qualify for the Oncor rebate, the installation must feature AHRI-certified equipment that meets minimum efficiency standards, and the installation must be performed by an official Authorized Oncor Participating Service Provider like Greentech Engineering.
Q: What does HSPF mean for my winter heating bills?
A: HSPF (Heating Seasonal Performance Factor) measures the efficiency of a heat pump during the winter heating season. The higher the HSPF rating, the less electricity the unit uses to warm your home. This 7.5 HSPF Goodman unit uses significantly less power than traditional electric resistance heating, keeping your winter electric bills impressively low.
Transform Your Home's Climate Today
Are you tired of paying exorbitant utility bills for a poorly sized, failing central air conditioner? Transitioning to a modern, high-efficiency Heat Pump system requires an engineering-first approach, strict clinical installation standards, and the right authorized provider to secure your maximum utility rebates.
Dispatched directly from our single Dallas headquarters on Reeder Road, our highly trained engineers are ready to elevate your home's infrastructure. We provide precise, transparent services with our standardized $80 diagnostic fee across the entire DFW region.
Contact Greentech Engineering Today to schedule your comprehensive residential HVAC diagnostic, request a Manual J load calculation, and discover what true thermodynamic efficiency feels like.
About the Author: Siwei (Lucas) Chen
CTO | Greentech Engineering Heating & Air Conditioning
Siwei (Lucas) Chen specializes in engineering-driven HVAC diagnostics, thermodynamic performance optimization, and custom ductwork design for Dallas homeowners. Holding a B.S. in Mechanical Engineering from Virginia Tech, he brings a strict, data-first approach to residential heating and cooling. Under his technical leadership, Greentech Engineering ensures every system is perfectly calibrated for the Texas climate, focusing relentlessly on ACCA Manual J load calculations, meticulous clinical installation standards, and securing maximum utility rebates for his clients.
