Maximizing Comfort in Grand Prairie: A 5-Ton Daikin HVAC Upgrade for a Two-Story Home

When you own a two-story single-family home in Grand Prairie, Texas (75050), summer heat is an unforgiving adversary. Second floors are notoriously difficult to cool, and when an aging HVAC system begins to fail, the entire home suffers from poor airflow, high humidity, and skyrocketing utility bills.

At Greentech Engineering Heating & Air Conditioning, we don't just swap boxes; we engineer comfort solutions. Recently, we helped a Grand Prairie homeowner upgrade their failing, outdated York system to a state-of-the-art Daikin High-Efficiency HVAC System.

By adhering to strict 2023 Department of Energy (DOE) Conservation Standards, executing rigorous vacuum and pressure tests, and right-sizing the equipment, we secured a massive Oncor rebate for the homeowner and guaranteed years of reliable comfort.

Here is a detailed engineering breakdown of this Grand Prairie HVAC transformation.

The Problem: An Aging York System Losing the Battle

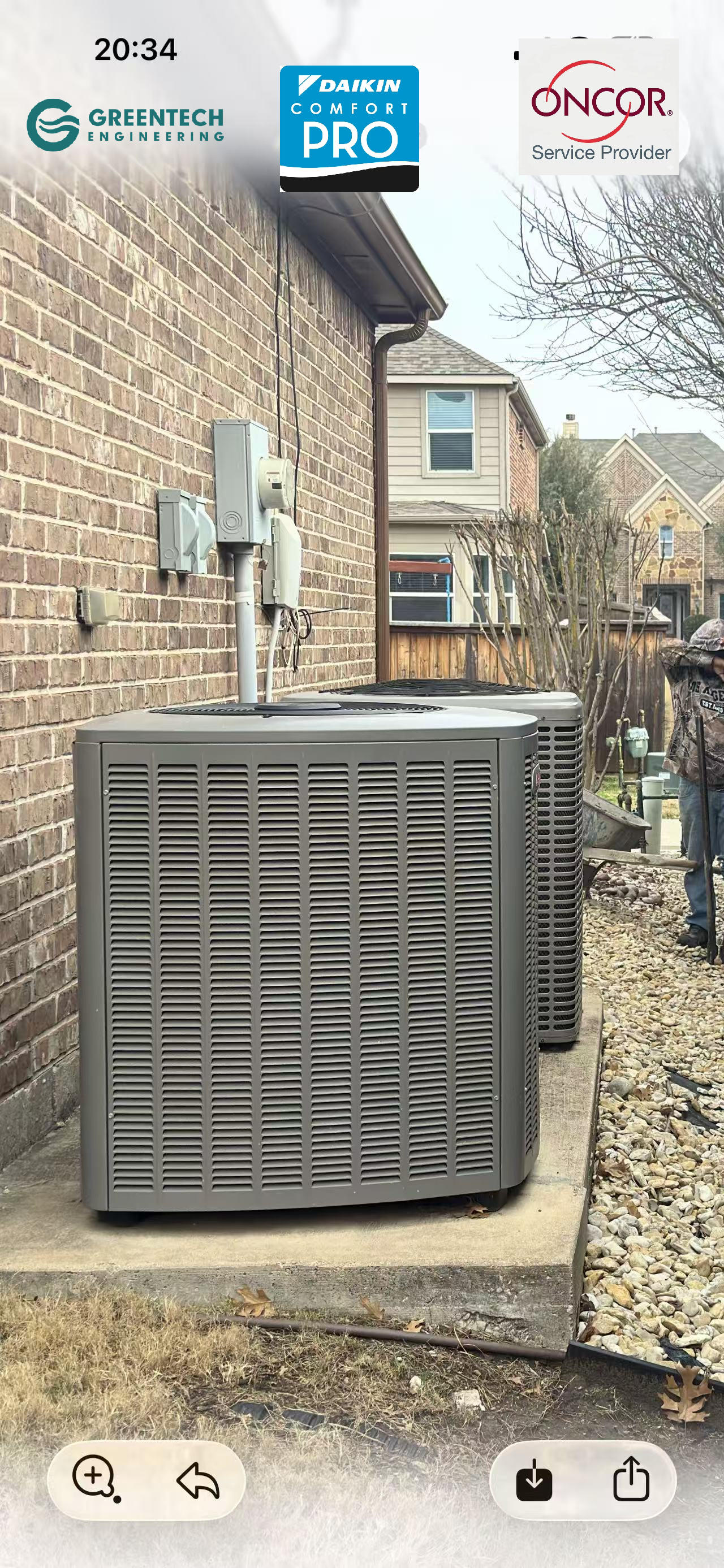

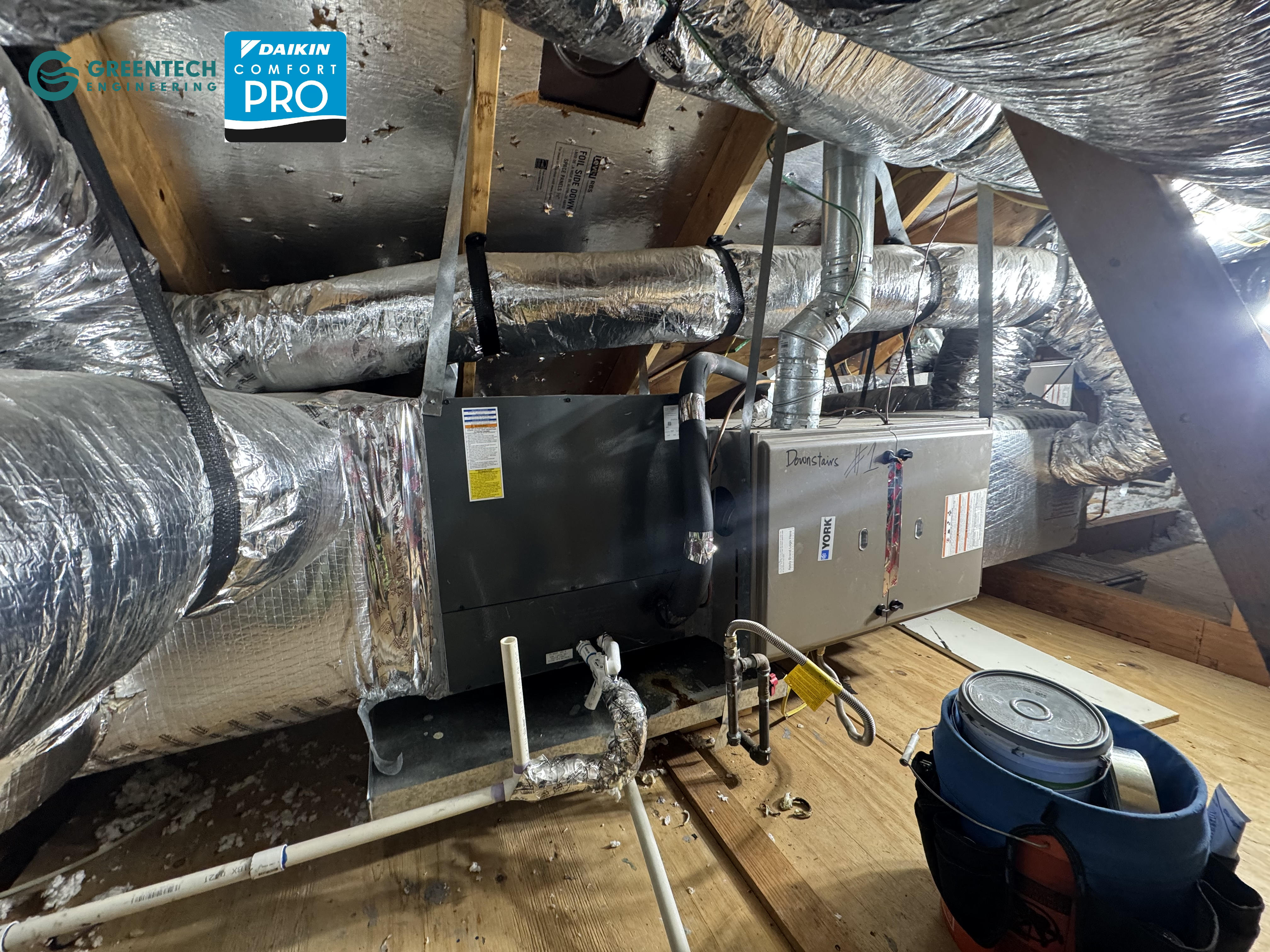

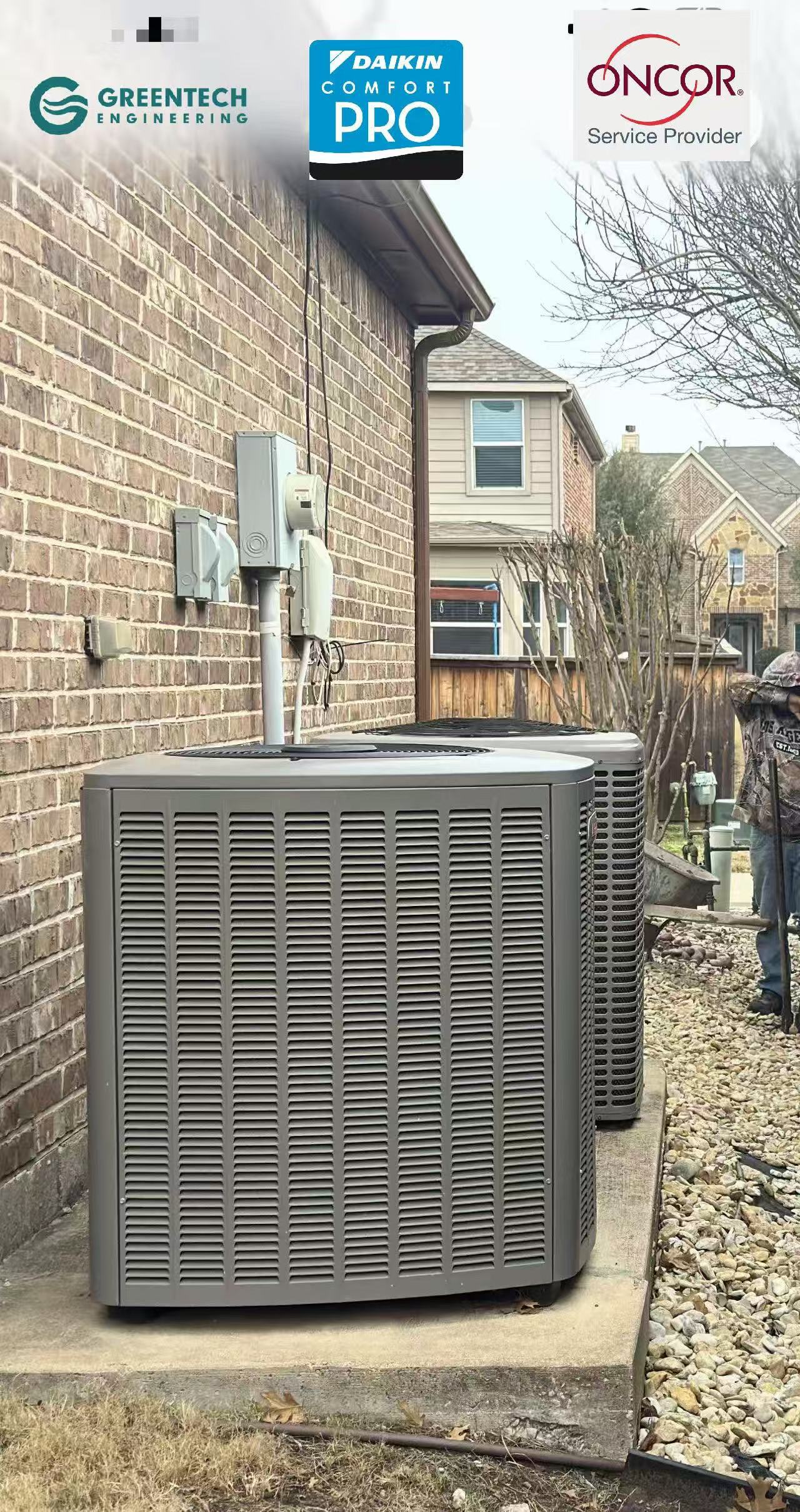

The homeowner was dealing with an old York straight-cool AC and gas furnace combo that was no longer keeping up with the thermal load of their two-story home. The system was short-cycling, struggling to push cold air to the second-floor bedrooms, and drawing excess electricity.

‍

The Solution: Daikin 14.5 SEER2 & 80% AFUE Gas Furnace

To properly condition a large two-story layout, we engineered a complete system overhaul using AHRI Certified Daikin equipment.

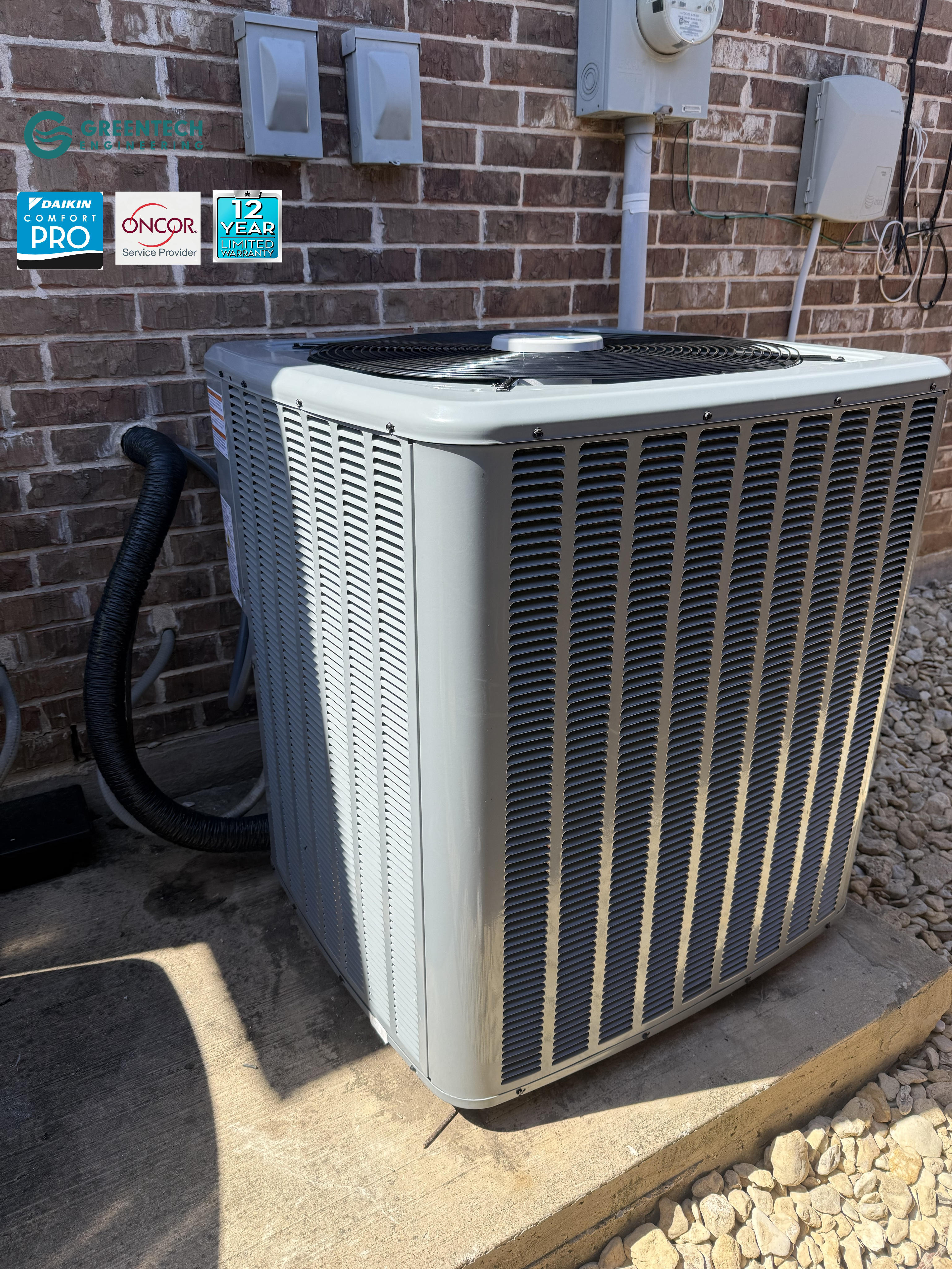

The Condenser: Daikin 5-Ton Straight Cool A/C (14.5 SEER2)

To handle the heavy cooling load, we installed a 60,000 BTU (5-Ton) Daikin high-efficiency split-system air conditioner.

• High-Efficiency Copeland® Scroll Compressor: Paired with advanced CoreSense™ Technology for maximum reliability and smooth operation.
• Durability & Quiet Operation: Features copper tubing with a 5mm enhanced aluminum fin coil, protected by a high-density foam compressor sound blanket to keep backyard noise to a minimum.
• Safety First: Factory-installed filter drier and built-in high/low-pressure switches protect the compressor from anomalies.

The Evaporator Coil

• Precision Metering: Features an internal, factory-installed Thermal Expansion Valve (TXV). This valve precisely controls the flow of refrigerant based on the exact temperature of the coil, maximizing efficiency and humidity removal.
• Built to Last: An all-aluminum evaporator coil with rifled tubing and a rust-resistant, high-temperature thermoplastic drain pan designed for low water-retention.

The Furnace: Daikin 100,000 BTU 80% AFUE Gas Furnace

Because heat rises, proper airflow is critical for a two-story home.

• 9-Speed ECM Blower Motor: This energy-efficient motor provides multiple continuous fan speed options, ensuring quiet air circulation and powerful static pressure to push conditioned air to the second floor.
• Heavy-Duty Construction: Features a stainless-steel dual-diameter tubular heat exchanger and a durable Silicon Nitride igniter for long-lasting winter performance.
• Airtight Efficiency: Designed with a cabinet air leakage rate (QLeak) of ≤ 2% and complies with strict CA Low NOx standards.

The Engineering Execution: Our Scope of Work

At Greentech Engineering, the difference is in the details. A high-end Daikin system will only perform efficiently if the installation strictly follows thermodynamic principles. Here is how our certified technicians executed this Grand Prairie installation:

1. Safe Removal & Recovery

‍We safely pumped down and recovered all old refrigerant from the York system before complete disposal, adhering to all EPA guidelines.

2. Deep Cleaning the Line Sets

‍We utilized the existing copper line sets, but before connecting the new equipment, we flushed them thoroughly with RX-11 and dry nitrogen to remove any acidic oil residue from the old system.

3. Precision Brazing

‍All modifications to the refrigerant line sets were soldered to the new unit using a high-quality 15% silver brazing rod by our certified technicians, ensuring incredibly strong, leak-proof joints.

4. The 250 PSI Pressure Test

‍Before charging the system, we pressurized the entire refrigerant circuit with dry nitrogen to 250 psi. We held this pressure for a minimum of 15 minutes to guarantee there were absolutely no micro-leaks.

5. Sub-500 Micron Vacuum

‍Moisture is the enemy of a refrigeration system. We pulled a deep vacuum on the system, bringing it down below 500 microns to boil off any microscopic moisture inside the copper lines before releasing the factory refrigerant charge.

‍

6. Flawless Airflow & Drainage

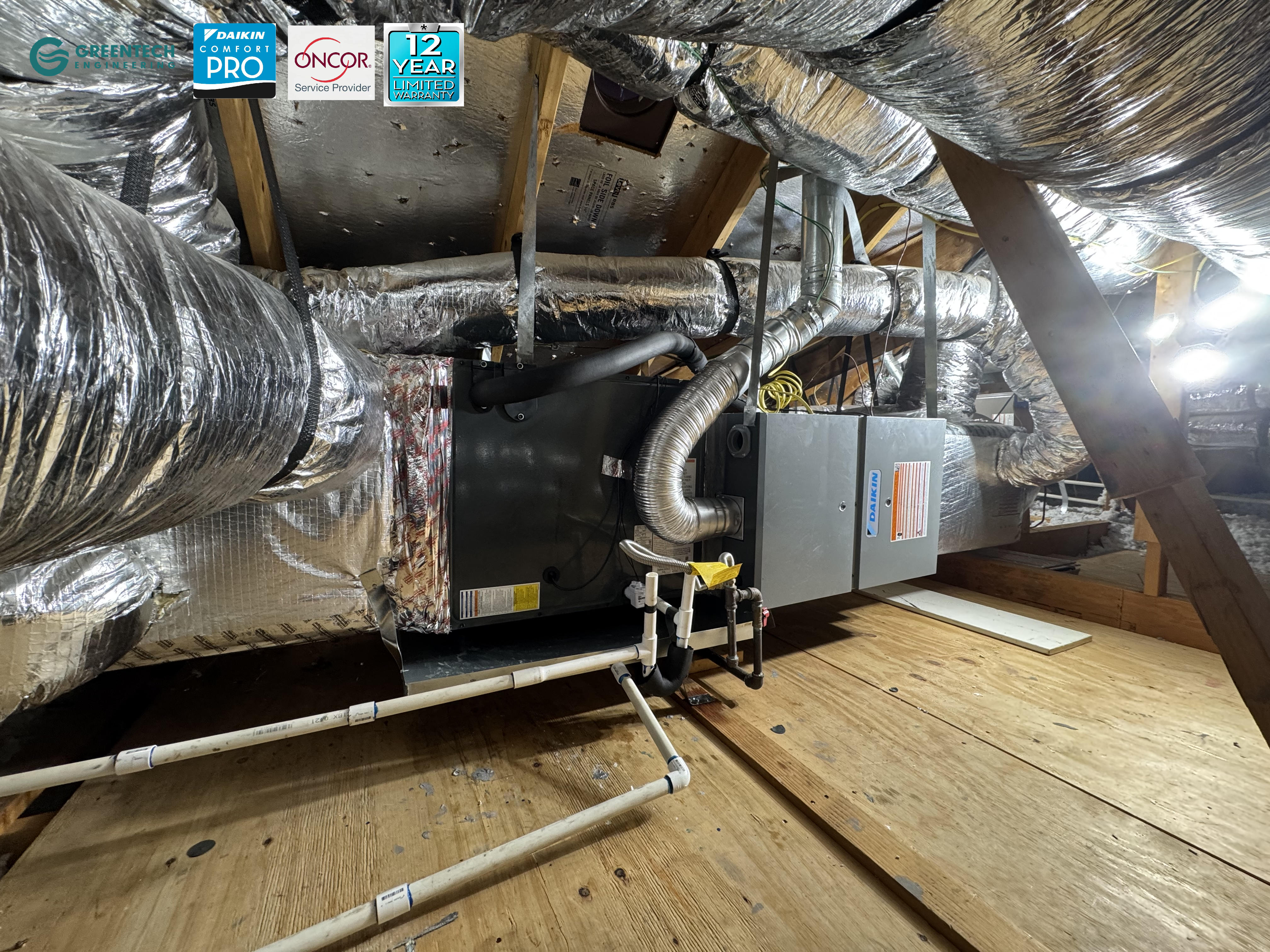

‍In the attic, the new Daikin furnace and coil were secured, balanced, and connected to the plenums using hex washer head HVAC screws. Every connection was sealed with mastic duct sealant and specialized HVAC metal tape to minimize air leakage. We also installed a new Safe-T drain switch, a concrete condenser pad, and cleared the condensation lines with pressurized nitrogen.

‍

7. Perfect Leveling & Final Testing

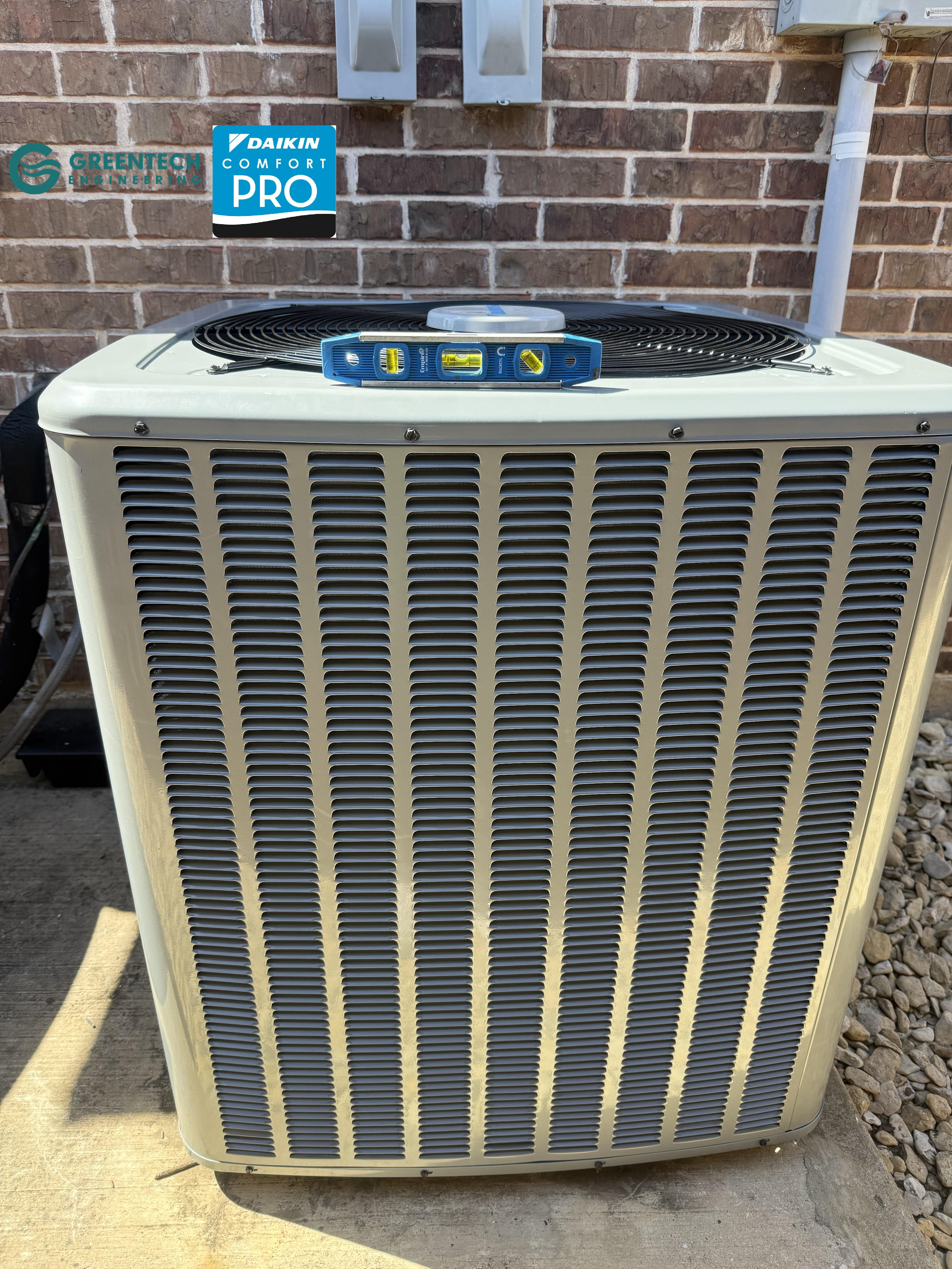

‍An off-balance condenser can lead to poor compressor lubrication and premature failure. We ensured the outdoor unit was perfectly leveled before final commissioning.

‍

The Financial ROI: Warranties & Oncor Rebates

In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech Engineering Heating and Air, we engineer systems that reduce your energy load and prepare your home for the future.

Because this system was installed to strict manufacturer specifications and meets the 2023 DOE efficiency standards, it qualified as an Oncor Participating Service Provider Project , securing a valuable cash rebate for the homeowner.

Furthermore, peace of mind is guaranteed through Daikin's industry-leading warranties (upon homeowner registration):

• 12-Year Factory Limited Parts Warranty (Condenser, Coil, and Furnace)
• 6-Year Unit Replacement Warranty (Condenser and Furnace)
• Lifetime Heat Exchanger Limited Warranty (Good for as long as you own your home!)

Grand Prairie HVAC Upgrades: Answer Engine FAQ

Q: Why do you pressurize the lines with nitrogen to 250 psi?

‍A: Pressurizing the system with dry nitrogen is a crucial step to detect micro-leaks before releasing the refrigerant. If a system cannot hold 250 psi for 15 minutes, there is a leak in the brazing. Fixing leaks before adding refrigerant protects the environment and ensures the system operates at peak capacity.

Q: What does a vacuum below 500 microns achieve?

‍A: Air and moisture inside copper refrigerant lines are highly destructive. Moisture reacts with the refrigerant oil to create acids that eat the compressor from the inside out. Pulling a deep vacuum below 500 microns literally boils away any microscopic moisture at room temperature, ensuring a perfectly pure environment for the refrigerant.

Q: What is a TXV and why is it important?

‍A: A Thermal Expansion Valve (TXV) actively measures the temperature of the refrigerant leaving the evaporator coil and precisely adjusts the flow of liquid refrigerant entering the coil. Unlike older fixed-orifice systems, a TXV adapts to the heat load of the house, offering superior efficiency and much better humidity removal.

Q: Why does an 80% AFUE furnace have a 9-Speed ECM motor?

‍A: An Electronically Commutated Motor (ECM) uses significantly less electricity than a standard AC motor. Having 9 distinct speeds allows us to dial in the exact cubic feet per minute (CFM) of airflow needed to push air effectively through the ductwork of a two-story home, eliminating hot spots upstairs.

Don't let a failing HVAC system ruin your summer. If you live in Grand Prairie or the greater Dallas area, trust the engineers who do the math. Contact Greentech Engineering Heating & Air Conditioning today to schedule your comprehensive system evaluation and see if your home qualifies for Oncor utility rebates!
