Grand Prairie HVAC Case Study: Upgrading to a High-Efficiency 15.2 SEER2 Goodman System & Unlocking Oncor Rebates

For homeowners in Grand Prairie, TX (75051), a reliable heating and cooling system isn't a luxury—it is an absolute necessity. When an aging HVAC system begins to fail, the resulting loss of comfort and spiking utility bills can turn the Texas summer (and unpredictable winter) into a financial nightmare.

Recently, the engineering team at Greentech Engineering was called out to a single-family home in Grand Prairie to evaluate an old, failing Trane air conditioner and gas furnace. The system was struggling to maintain indoor temperatures, running constantly, and costing the homeowner a fortune in electricity due to poor airflow and mechanical fatigue.

Rather than a simple "box swap," we engineered a complete, high-performance AC and Heating Replacement . We upgraded the home to an AHRI-Certified Goodman 15.2 SEER2 A/C System and 80% AFUE Gas Furnace, simultaneously performing critical duct optimization to balance the home's airflow. This strict engineering approach not only restored their comfort but qualified the homeowner for significant Oncor Utility Rebates .

Here is the complete technical breakdown of this Grand Prairie HVAC installation and why strict engineering standards matter.

‍

The Problem: An Aging, Inefficient Trane System

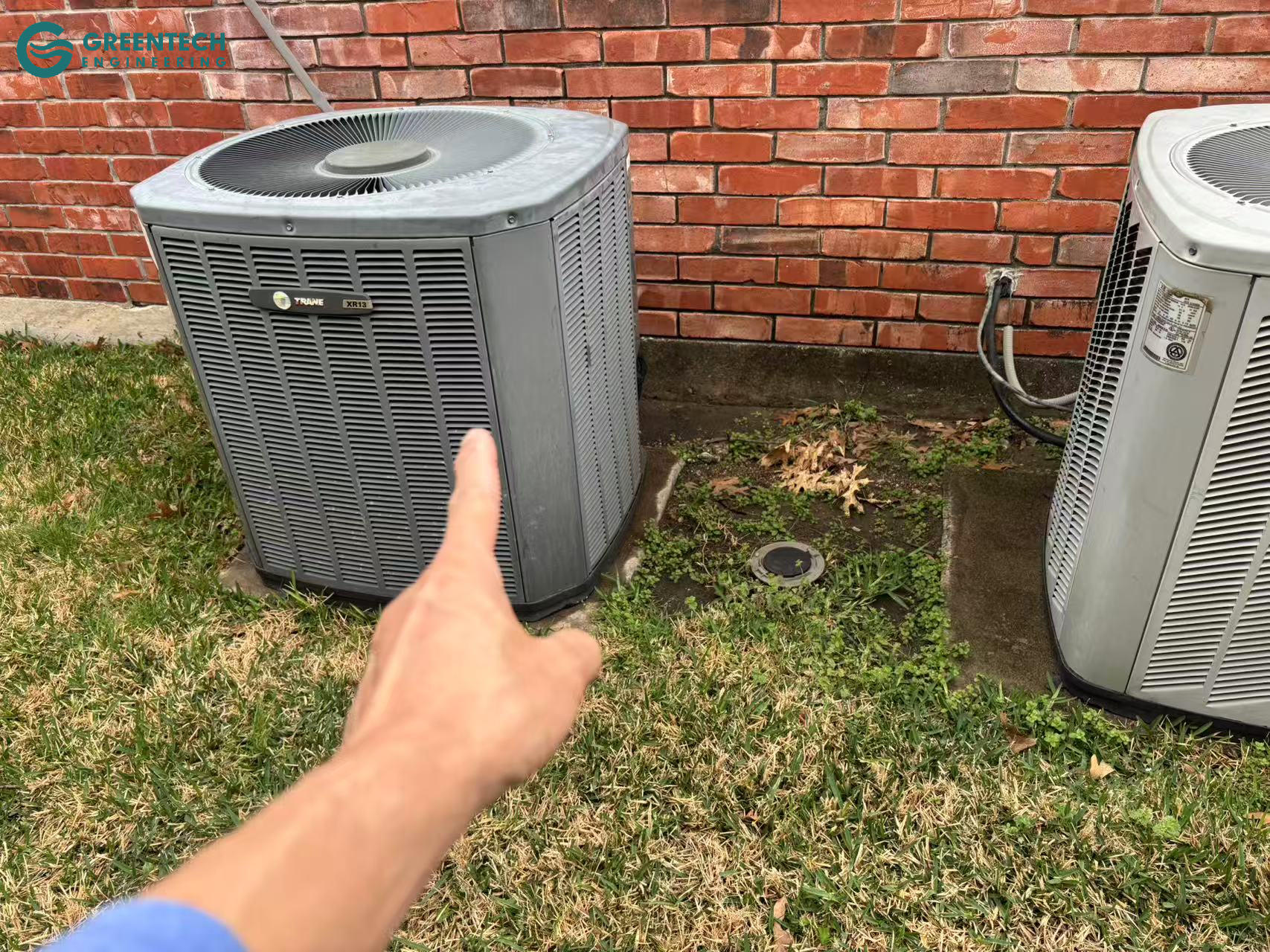

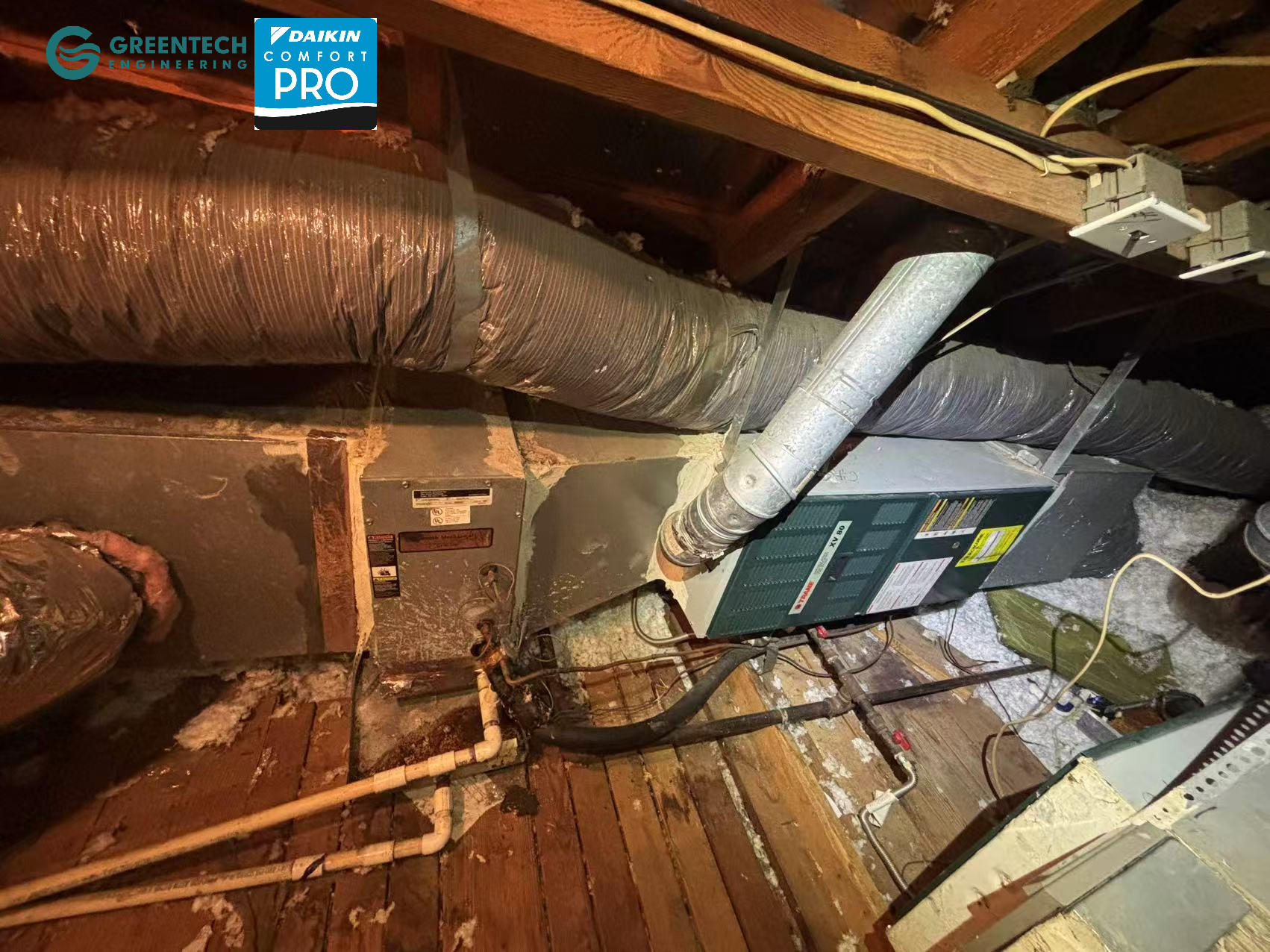

Upon arriving at the property, our technicians evaluated the existing setup: an outdated Trane XR13 condenser outside and an aging Trane XV80 gas furnace in the attic.

Older systems like this suffer from significant wear and tear. Over time, the compressor loses its efficiency, the evaporator coil becomes prone to micro-leaks, and the blower motor struggles against static pressure. Furthermore, the homeowner complained of severe "hot spots" in specific rooms. The existing ductwork simply lacked the optimal airflow distribution to keep the entire floor plan comfortable.

‍

The Engineering Blueprint: Manual J & Duct Optimization

At Greentech Engineering, we never assume the original builder sized the HVAC system correctly. Before selecting the new Goodman equipment, we performed a strict, data-driven engineering assessment.

1. ACCA Manual J Load Calculation

To guarantee maximum energy efficiency and absolute humidity control, we executed a complete ACCA Manual J Load Calculation. We measured the home's exact square footage, evaluated the attic insulation, assessed the window thermal ratings, and inputted the historical extreme weather data specific to the 75051 zip code.

The math confirmed that a 3-Ton system was the exact capacity required to handle the thermodynamic load of the home. By refusing to guess the tonnage, we prevented the new system from short-cycling, ensuring perfect dehumidification during the sticky Texas summer.

2. Duct Optimization and the New R-6 Flex Duct Run

A premium 3-Ton air conditioner is useless if the cold air cannot reach the rooms that need it. During our Manual D airflow assessment, we identified a significant restriction causing the historical hot spots the homeowner had complained about.

To resolve this, we executed a precise Duct Optimization protocol:

• Creating a New Pathway: We mapped out a custom airflow route and created a new, perfectly sized hole directly on the supply/return plenum.
• Installing the Start Collar & Boot: We installed an airtight start collar at the plenum and mounted a new insulated supply/return boot in the ceiling of the under-served room.
• Routing the R-6 Flex Duct: We ran a brand-new, highly insulated R-6 flex duct between the collar and the boot.
• Sealing and Suspension: To prevent any CFM (Cubic Feet per Minute) air loss into the hot attic, all connection points were meticulously sealed with specialized HVAC flex duct tape and heavy mastic duct sealant. Finally, the new R-6 duct was properly suspended using wide nylon strapping to prevent kinks or sagging that could restrict airflow in the future.

The Solution: The 15.2 SEER2 Goodman Matchup

With the thermal load calculated and the airflow optimized, we selected a highly specific equipment combination from Goodman (a premium brand manufactured under the Daikin global umbrella).

By pairing a Goodman 14.3 SEER2 3-Ton Straight Cool Condenser with a specific Daikin/Goodman Horizontal Cased Coil and an ECM-driven Gas Furnace, the combined efficiency rating of the system actually boosts to a 15.2 SEER2 and 12.0 EER2.

📄 Proving the Performance: The AHRI Certificate

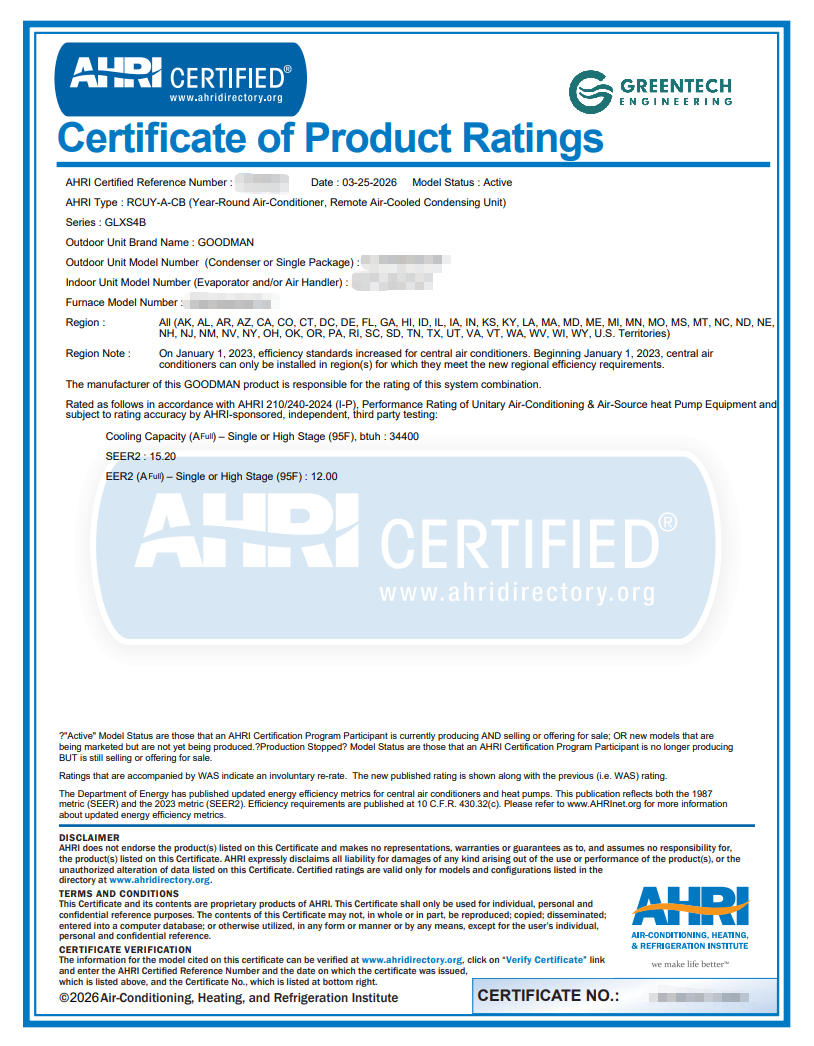

In the HVAC industry, you should never take a contractor's word for system efficiency. Efficiency is dictated by how the outdoor and indoor units physically interact. We provided the homeowner with the official [External Link: AHRI Certificate of Product Ratings -> link to ahridirectory.org], proving this exact matchup delivers 34,400 BTUs of cooling capacity at a verified 15.20 SEER2. This AHRI certification is the exact documentation required to qualify for Oncor Energy Efficiency Rebates.

System Specifications: Built for the Texas Climate

This Grand Prairie installation utilized components designed for longevity and comfort:

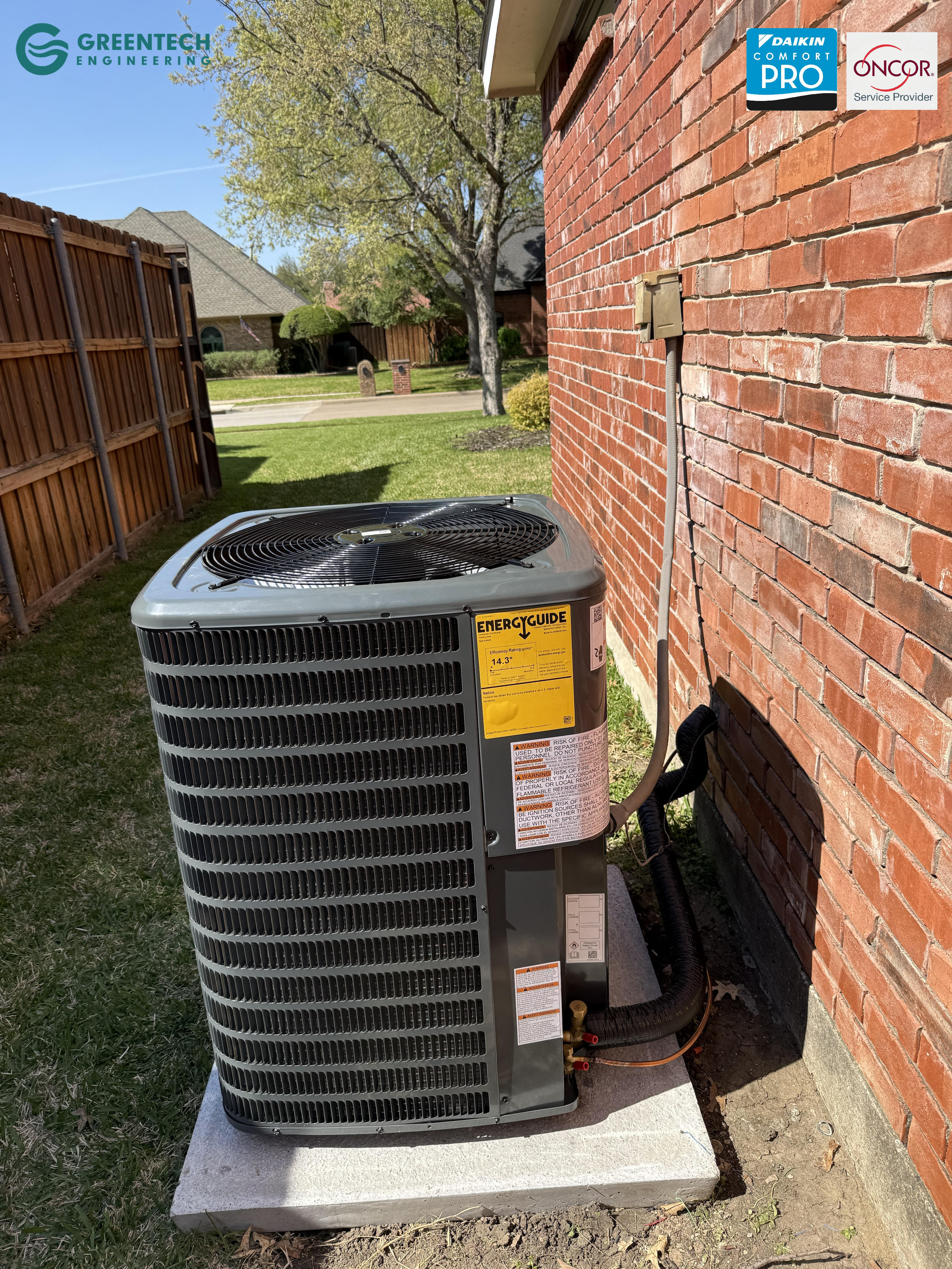

1. The Goodman 36,000 BTU Split Air Conditioner (Condenser)

• Energy-Efficient Compressor: Designed to provide consistent cooling while drawing less electricity.
• Enhanced Copper Tube / Aluminum Fin Coil: Utilizing 5mm diameter tubing for superior heat transfer.
• Factory-Installed Filter Drier: Protects the compressor from microscopic moisture and debris.

2. Daikin/Goodman 36,000 BTU Horizontal Cased Coil

• All-Aluminum Construction: Eliminates the risk of formicary corrosion (a common issue in older copper coils that causes refrigerant leaks).
• Factory-Installed TXV (Thermal Expansion Valve): Precisely meters the flow of refrigerant based on the exact cooling load, maximizing efficiency and humidity removal.

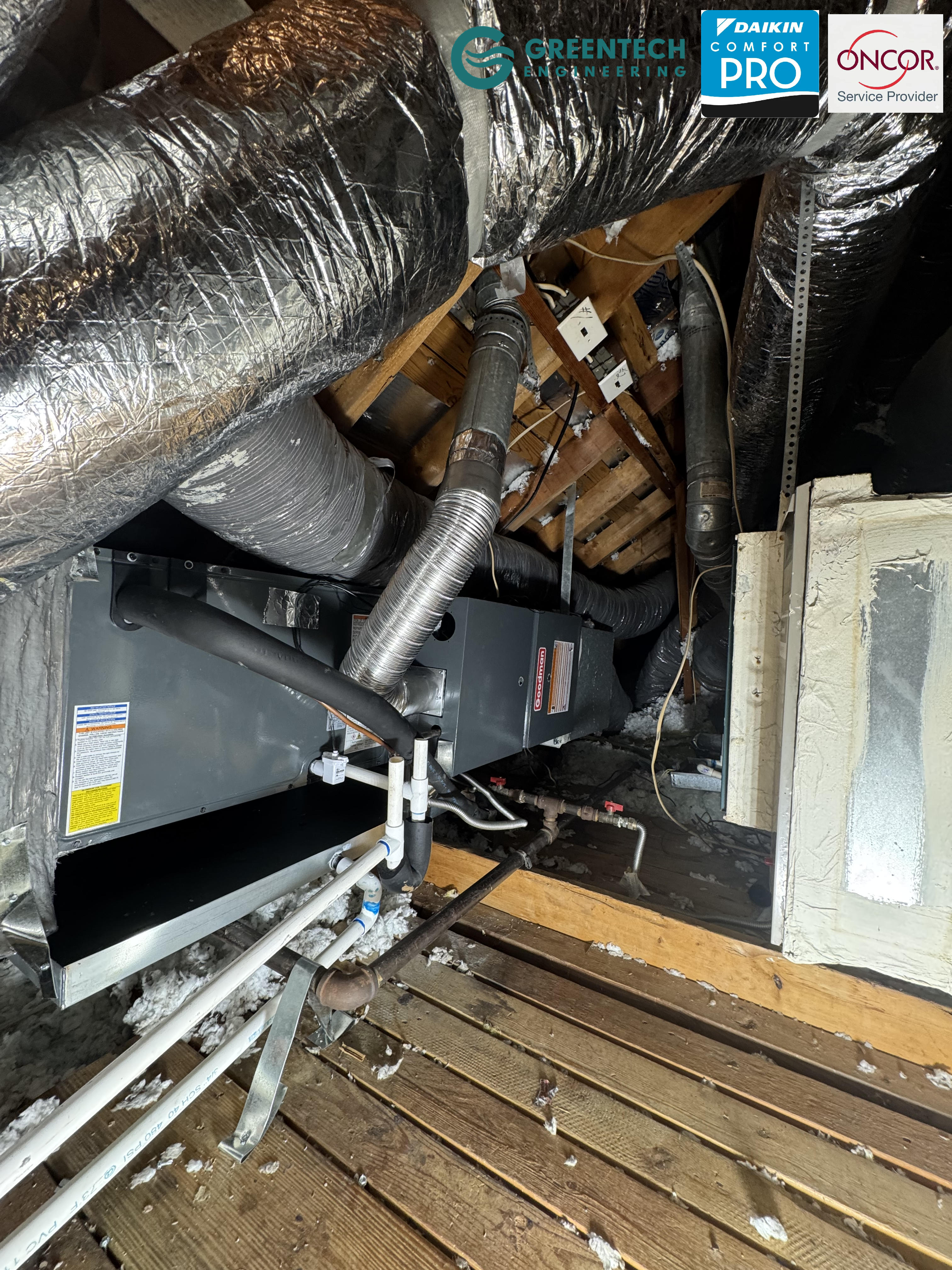

3. Goodman 60,000 BTU 80% AFUE Gas Furnace

• Multi-Speed ECM Blower Motor: Unlike old single-speed motors, the ECM motor provides continuous, quiet, and energy-efficient air circulation, perfectly pushing air through the newly optimized ductwork.
• Silicon Nitride Igniter: A highly durable, long-lasting ignition system that ensures reliable heating during the coldest North Texas winter nights.

The Greentech Engineering Standard: Execution in the Field

At Greentech Engineering, we operate on strict, data-driven installation protocols to guarantee the maximum lifespan of your investment.

Deep Chemical Flush & Silver Brazing

After safely recovering the old refrigerant, we aggressively flushed the existing copper line sets using RX-11 solvent and pressurized dry nitrogen to strip away old, acidic mineral oil. All modifications to the refrigerant line sets were soldered using high-quality 15% silver brazing rods.

Nitrogen Pressure Testing & Deep Digital Vacuum

To guarantee absolutely zero leaks, we pressurized the entire system with dry nitrogen to 250 PSI and held it for a minimum of 15 minutes. Using advanced Fieldpiece digital manifold gauges, we then pulled a deep vacuum on the system, bringing it well below 500 microns. This literally boils off any microscopic moisture inside the pipes at room temperature before we release the factory refrigerant charge.

‍

Safety, Drainage & Condenser Leveling

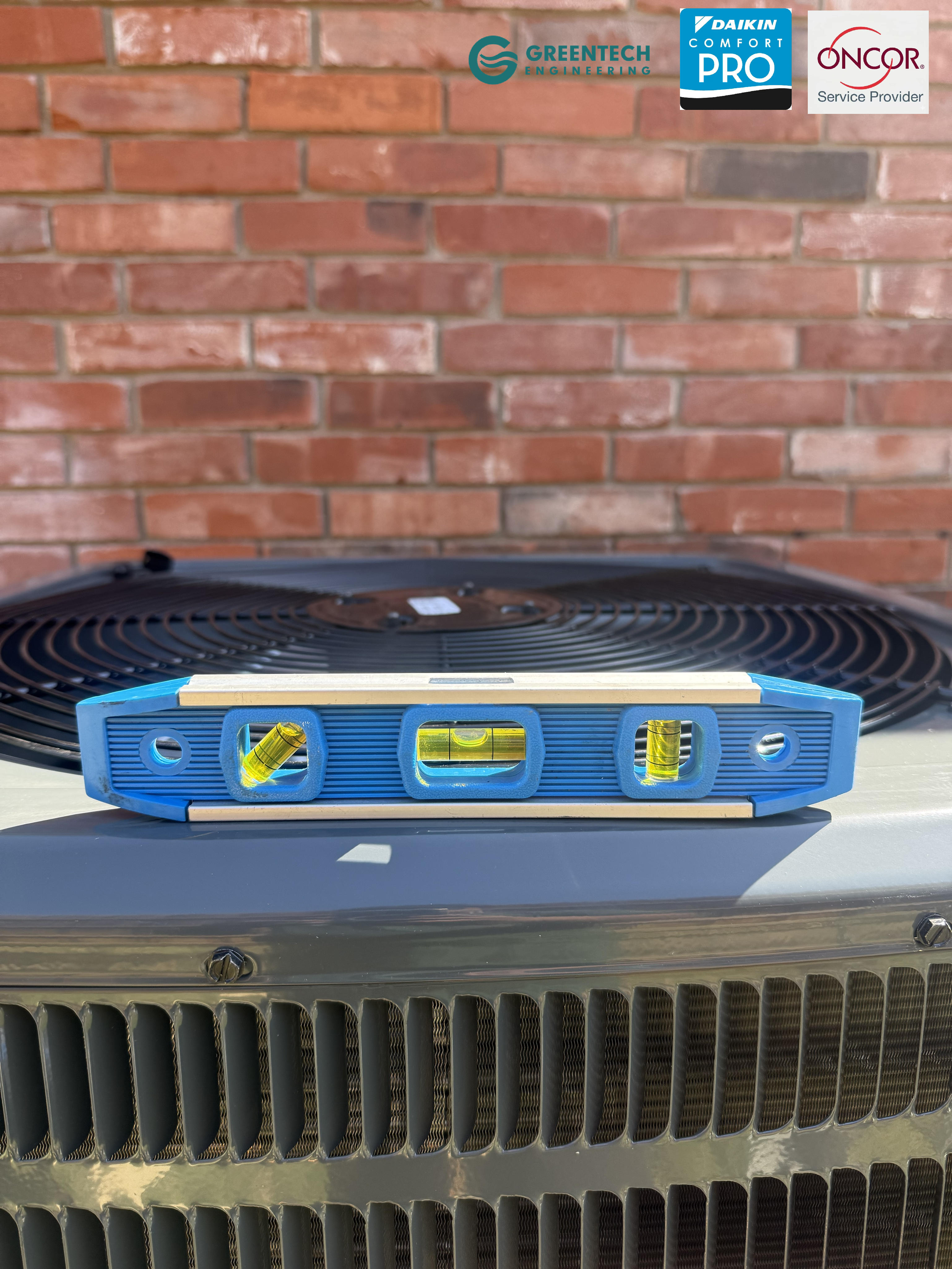

We installed a new gas sediment trap, a primary drain pan, and a Safe-T drain switch to instantly shut off the system if a clog ever occurs. The condensation drain lines were blown clear with high-pressure nitrogen. Outside, we installed a new, heavy-duty concrete equipment pad and used precision spirit levels to ensure the condenser sat perfectly flat, which is vital for proper compressor oil distribution.

‍

The Ultimate ROI: Rebates and Elite Warranties

By choosing an engineered installation over a standard "box swap," this Grand Prairie homeowner unlocked massive value. Because we performed the Manual J load calculation and properly matched the system to achieve the 15.2 SEER2 AHRI Rating, we successfully secured the homeowner's Oncor Utility Rebate, putting cash directly back into their pocket.

Furthermore, because Greentech Engineering is an authorized Daikin/Goodman installer, this system comes with profound peace of mind upon registration:

• 10-Year Factory Limited Parts Warranty
• 10-Year Unit Replacement Plan (on the evaporator coil)
• 20-Year Heat Exchanger Warranty (on the gas furnace)
• Greentech's 2-Year Labor Warranty

If your air conditioner is struggling to keep up, or if you have specific rooms that never seem to cool down, don't wait for a total system failure. Contact Greentech Engineering Heating and Air Conditioning today to schedule your comprehensive system evaluation in Grand Prairie or anywhere in the DFW metroplex. Let our engineers run the Manual J load calculation, optimize your ductwork, and help you claim your utility rebates!

Frequently Asked Questions (FAQ): HVAC Replacement in Grand Prairie

Q: Why do I need a Manual J calculation if I am just replacing my AC?

A: If an HVAC contractor just guesses your system size based on your old unit, you could end up with an oversized system. Oversized units turn on and off rapidly (short-cycling), failing to remove humidity and causing your electric bills to spike. A Manual J calculation uses exact math to match the equipment to your home's actual thermal envelope.

Q: Why was a new R-6 flex duct necessary?

A: Air conditioners require precise airflow. If a room is historically hot, it means the existing ductwork isn't delivering enough CFM (Cubic Feet per Minute) to that space. Adding an insulated R-6 flex duct directly from the plenum ensures that specific zone gets the proper volume of conditioned air, maximizing the efficiency of the new Goodman ECM blower motor.

Q: What does a 15.2 SEER2 rating mean?

A: SEER2 (Seasonal Energy Efficiency Ratio 2) is the newest, most rigorous testing standard mandated by the Department of Energy. A 15.2 SEER2 system uses significantly less electricity to cool your home compared to older 10 or 12 SEER units, directly lowering your monthly utility bills.

Q: How do I get the Oncor HVAC Rebate?

A: You must use an approved Oncor Participating Service Provider (like Greentech Engineering). We install qualifying high-efficiency equipment (verified by an AHRI certificate) and handle the strict technical installation standards required by the utility company to process your cash rebate.
