Duct Design & Return Air Optimization in Fort Worth, TX 76244

Engineering-Driven HVAC Ductwork Upgrade with R-8 Insulation

Poor airflow is rarely an equipment problem—it is almost always a duct design problem.
In this Fort Worth, TX 76244 project, Greentech Engineering Heating & Air Conditioning was asked to redesign and correct an inefficient return air configuration that was restricting airflow, increasing system static pressure, and compromising overall comfort on the first floor.

This case study documents how a properly engineered duct redesign—focused on return air capacity, insulation value, and pressure balance—can materially improve HVAC system performance without replacing the equipment itself.

Project Location

Fort Worth, TX 76244
Residential single-family home | Attic duct system

The Core Problem: Return Air Restriction

The existing duct layout revealed several red flags common in builder-grade installations:

• Multiple undersized return ducts competing for airflow
• Long, inefficient flex runs with excessive bends
• A return plenum that was not optimized for modern airflow requirements
• Return boots placed in sub-optimal locations (including the dining room)

These conditions resulted in:

• Elevated static pressure
• Reduced airflow across the blower and coil
• Uneven temperatures and longer system runtimes
• Increased wear on the blower motor

From an engineering standpoint, the return side was the system bottleneck.

Engineering Solution Overview

Rather than adding more ducts blindly, our approach focused on simplifying and upsizing the return path while improving insulation and sealing integrity.

Key Design Principles Applied

• Reduce return complexity
• Increase effective return cross-sectional area
• Minimize friction loss
• Improve thermal performance with R-8 insulation
• Ensure airtight connections to prevent attic air infiltration

Scope of Work (Detailed)

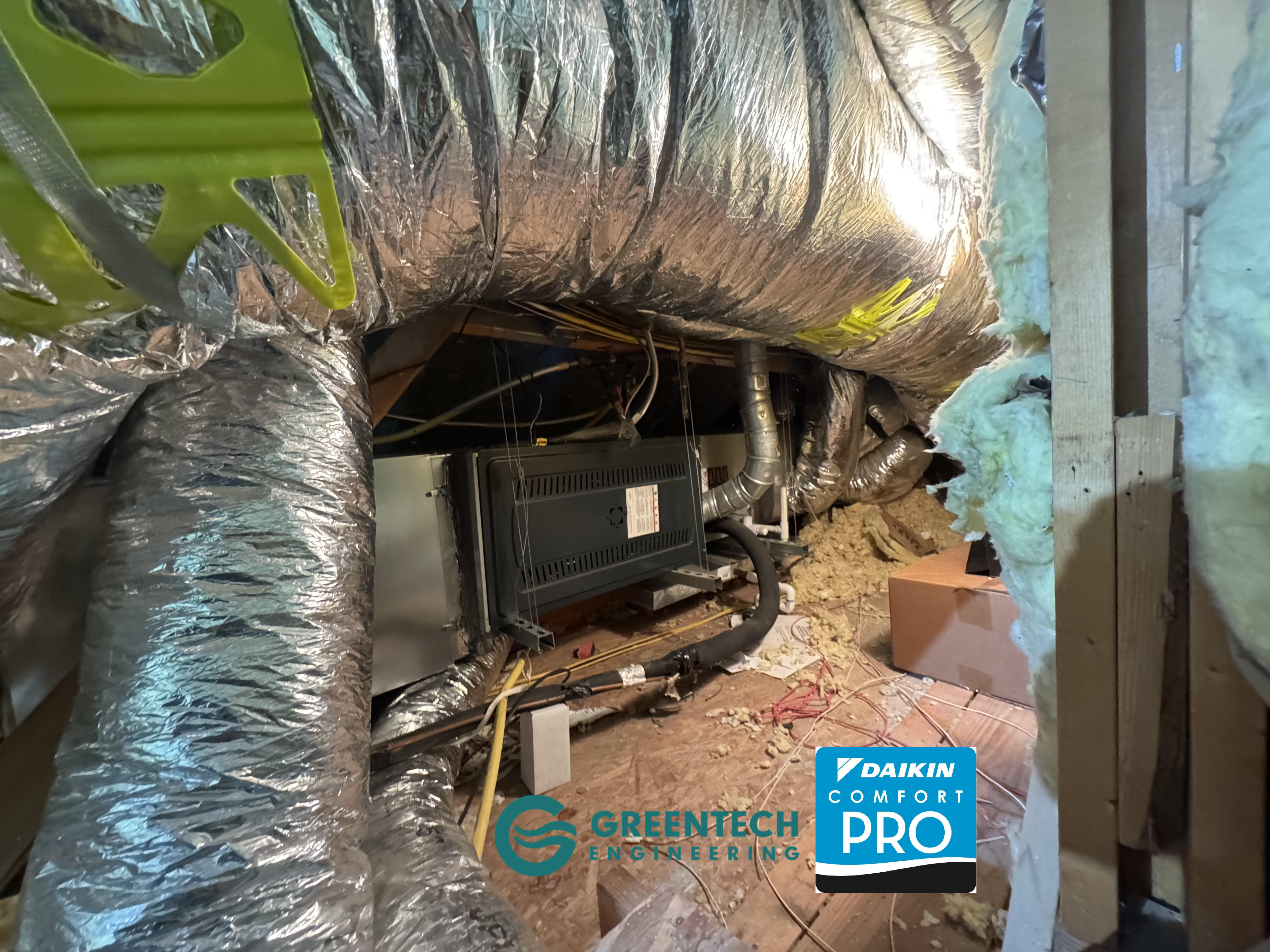

1. Return Plenum Replacement

• Removed the existing return plenum
• Installed a new insulated 20” × 25” dual-filter metal return plenum
• Designed to support higher airflow with lower pressure drop
• Improved serviceability and filtration efficiency

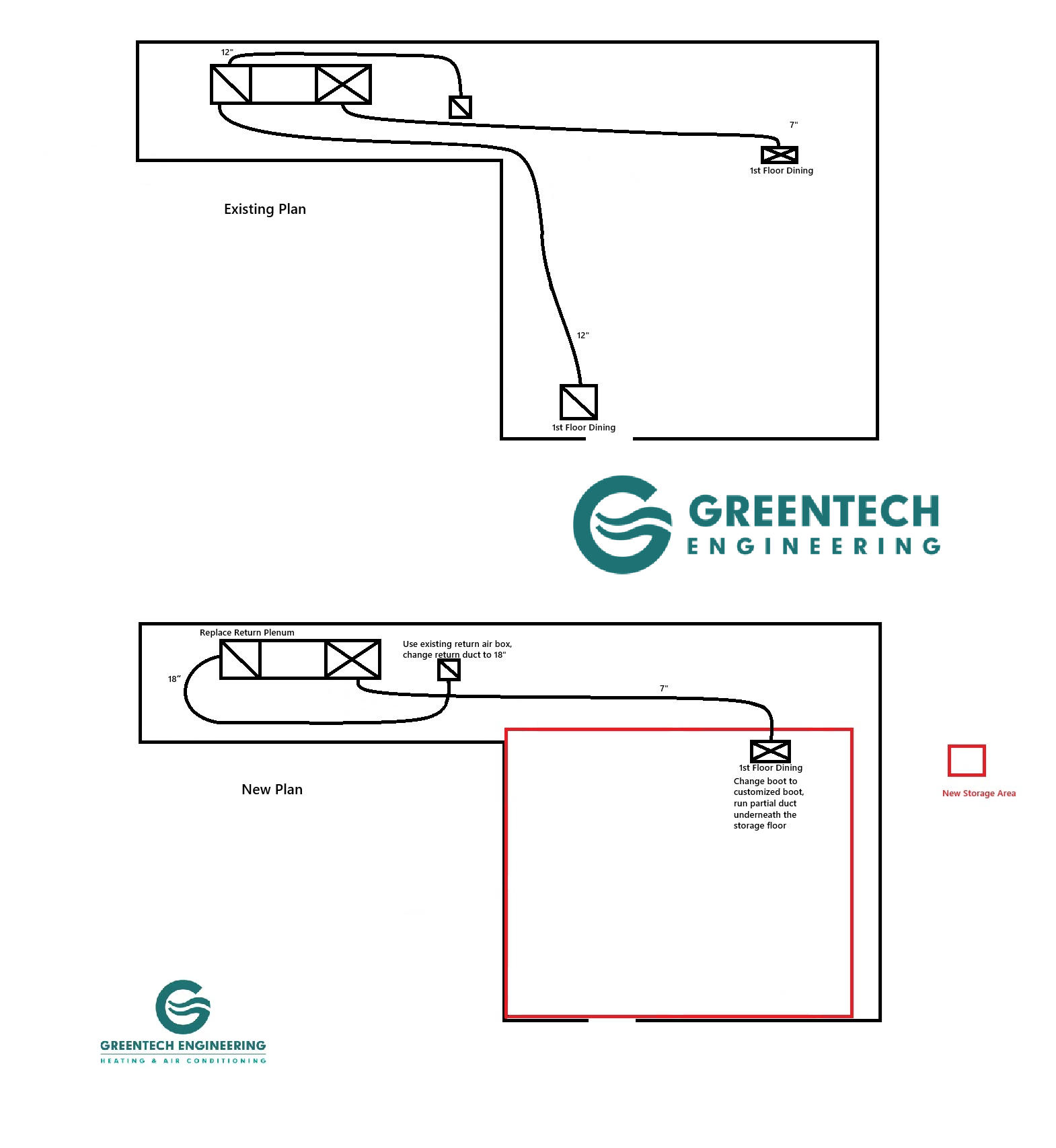

2. Return Duct Reconfiguration

• Cancelled two existing 12” return ducts
• Removed the return boot located in the dining room
• Installed one properly sized 18” R-8 insulated return duct

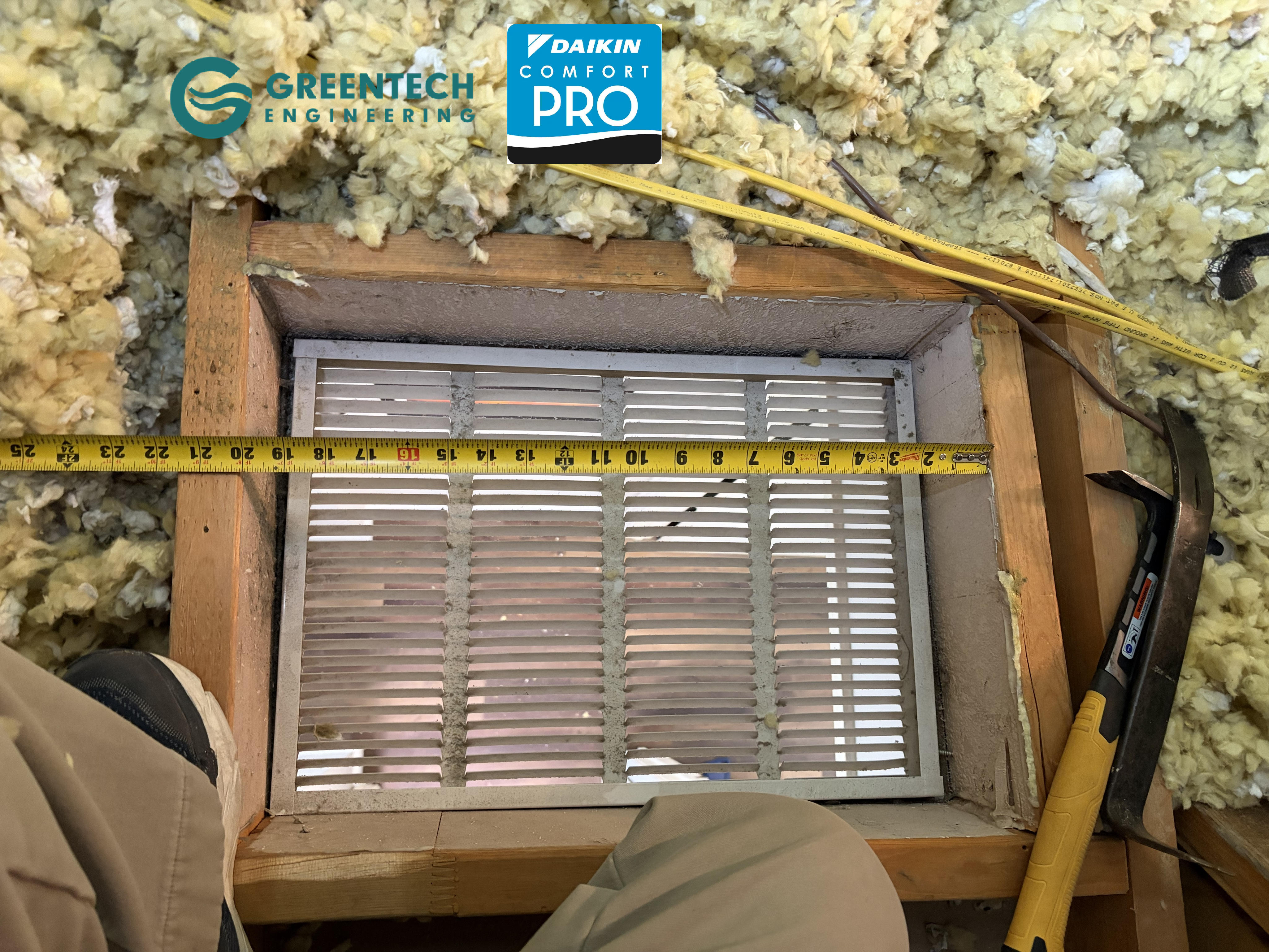

• Routed from the new return plenum directly to the hallway return boot
• Reduced turbulence and simplified airflow path

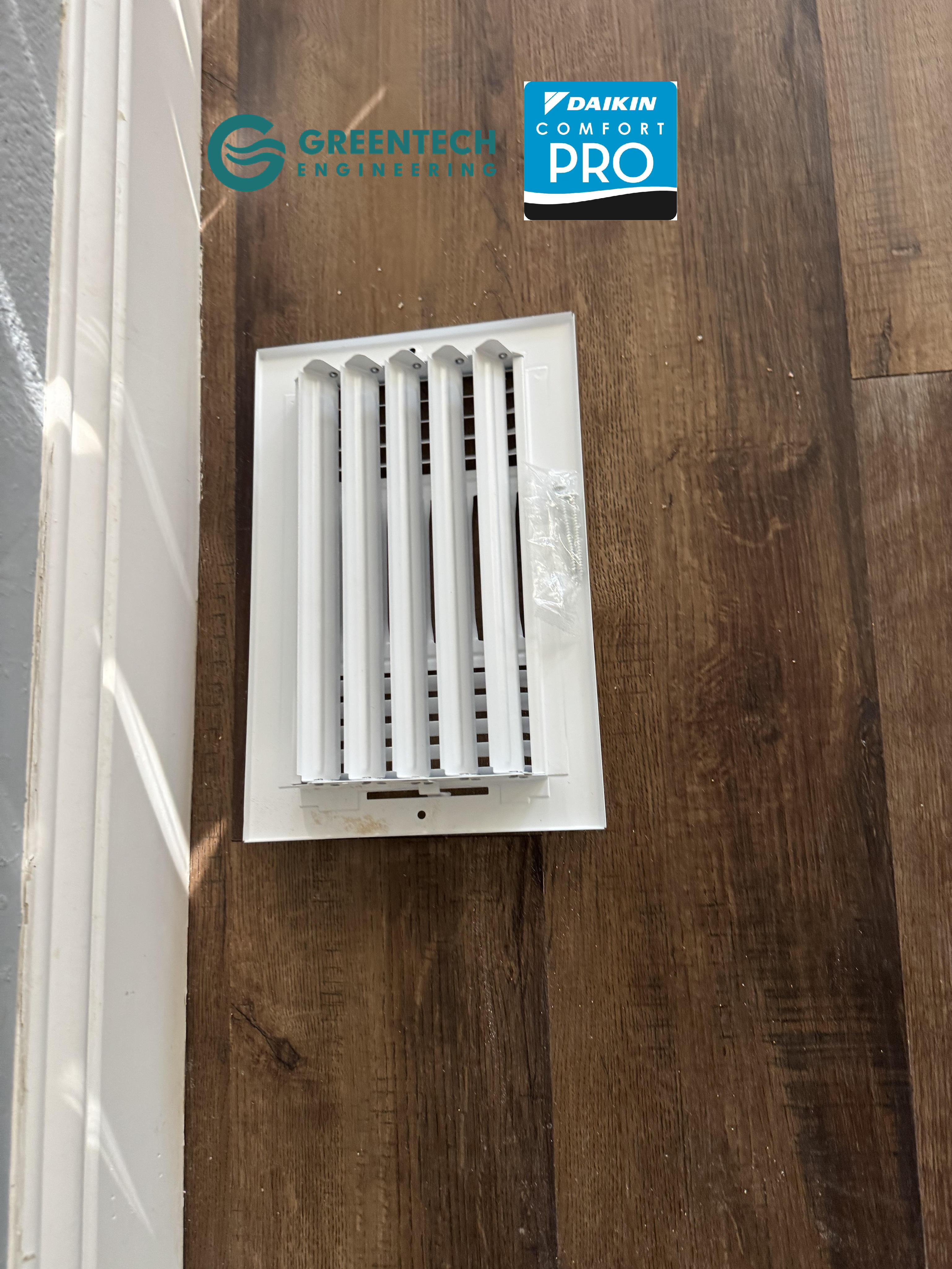

3. Supply Boot Modification

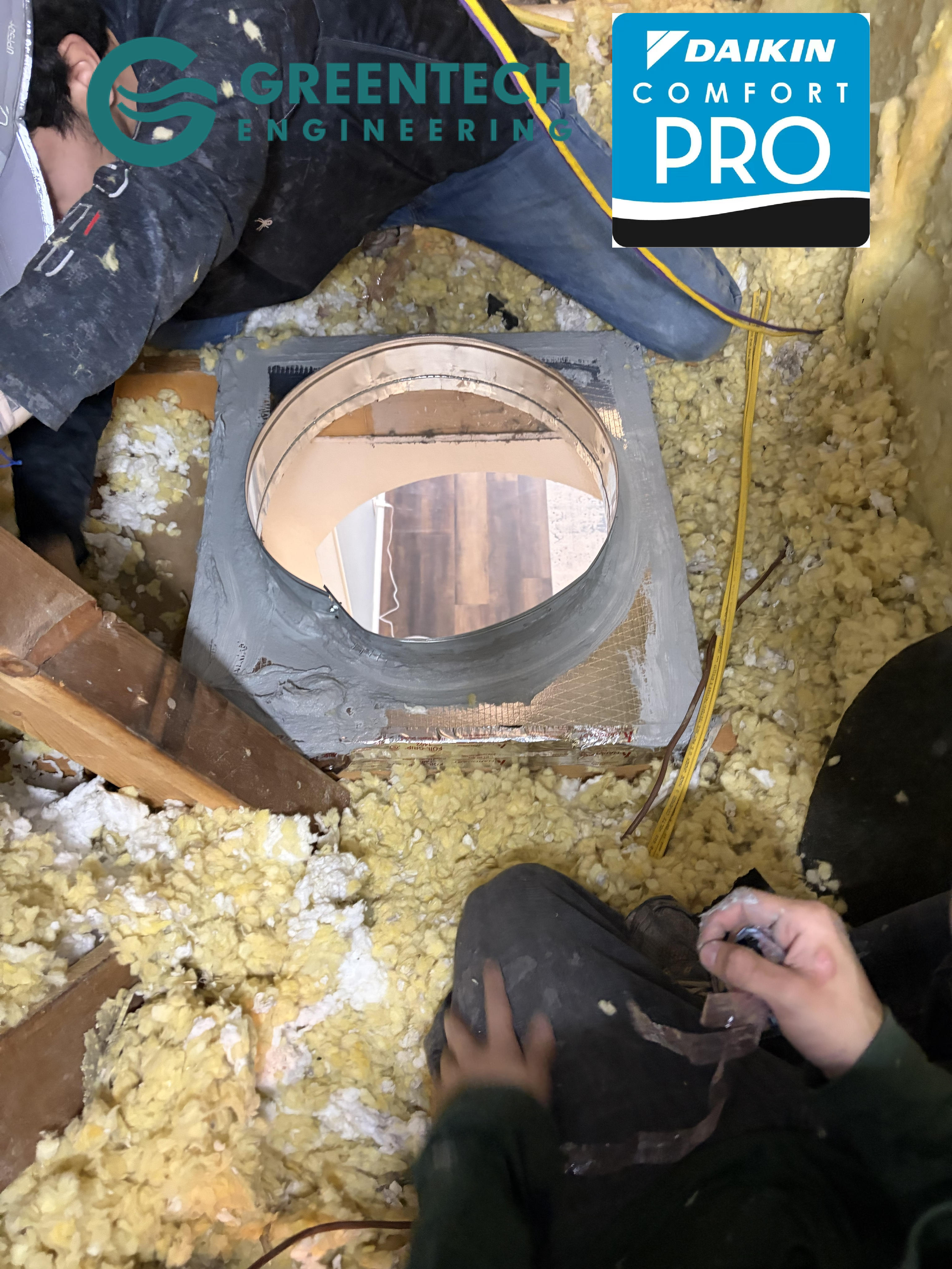

• Replaced the existing 7” supply boot at the 1st-floor dining room
• Performed all required duct transitions and modifications to maintain proper airflow balance

4. Duct Installation Standards

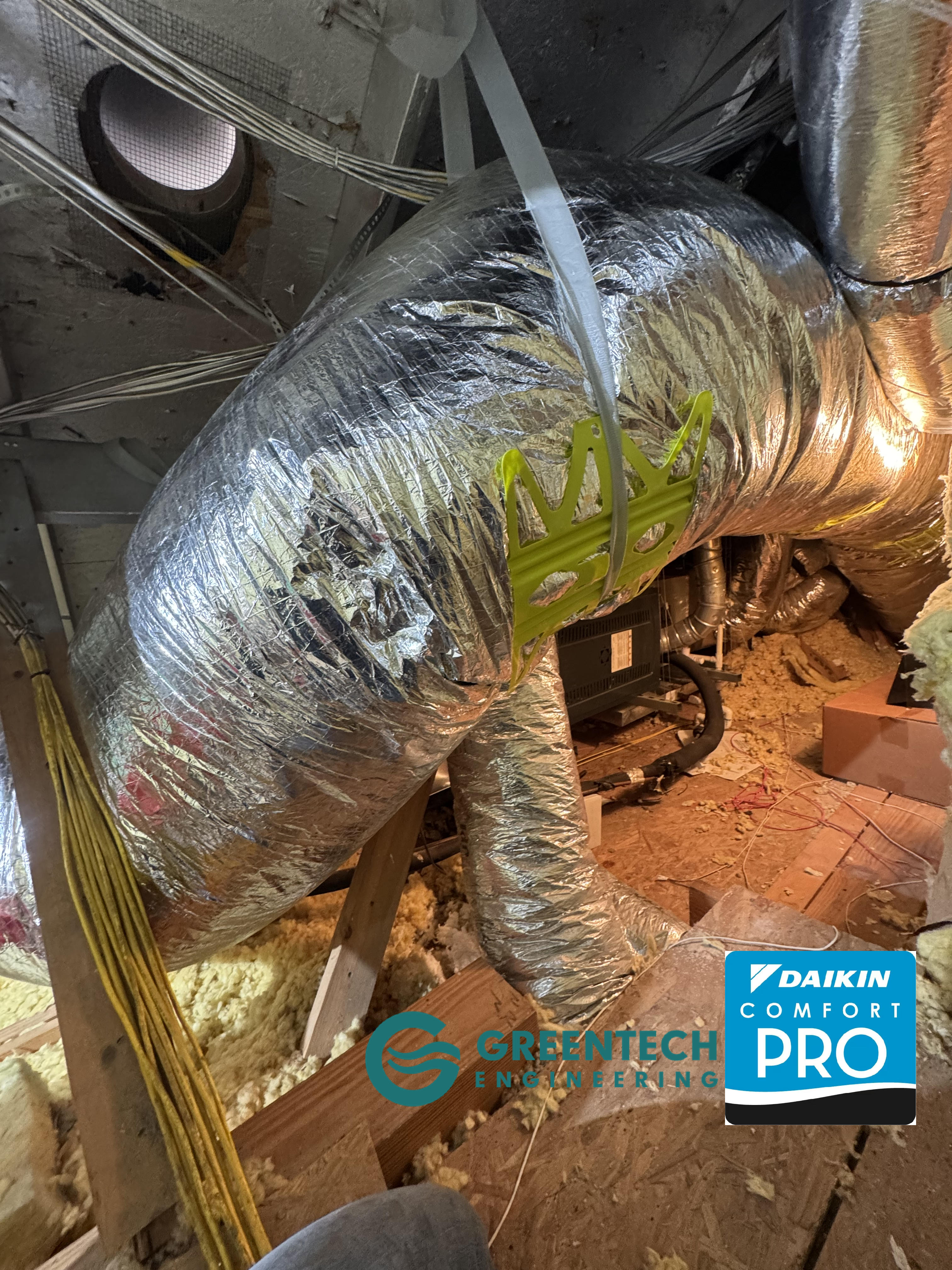

• All new ducts upgraded to R-8 insulated flex duct
• Connections sealed using:
  • UL-listed flex duct tape
  • Professional-grade duct sealant (mastic)
• All duct runs properly supported with nylon hanging straps to prevent sagging and restriction

Why R-8 Duct Insulation Matters in North Texas

In Fort Worth’s climate, attic temperatures routinely exceed 130°F.
R-8 insulation provides:

• Reduced conductive heat gain and loss
• Higher delivered BTUs to the conditioned space
• Improved system efficiency and comfort consistency
• Lower energy waste compared to R-6 or poorly insulated ducts

Results After Completion

• Noticeably stronger and quieter airflow
• Improved temperature balance across living areas
• Lower static pressure on the blower
• Reduced system stress and improved long-term reliability
• Cleaner, more professional duct layout for future service access

This project demonstrates how airflow engineering—not equipment replacement—often delivers the biggest performance gains.

Why This Matters for Fort Worth Homes

Many homes in Fort Worth, TX 76244 were built with minimum-code duct systems that do not account for real-world airflow demands. As systems age or homes are remodeled, duct design issues become more pronounced.

A properly designed return system is foundational to:

• Comfort
• Efficiency
• Equipment longevity
• Noise reduction

Frequently Asked Questions (Q&A)

Q1: Why eliminate two 12” return ducts and replace them with one 18”?

Because airflow capacity matters more than duct count. One correctly sized, direct 18” return provides smoother airflow and less resistance than multiple smaller, inefficient runs.

Q2: Is replacing the return plenum really necessary?

Yes. The return plenum is the airflow gateway to the system. An undersized or poorly designed plenum restricts the entire HVAC system regardless of equipment quality.

Q3: What is the benefit of a dual-filter return plenum?

It increases filter surface area, reduces pressure drop across the filters, and improves air cleanliness while protecting the blower motor.

Q4: Why use R-8 instead of R-6 duct?

R-8 significantly reduces thermal losses in hot attics, improving delivered air temperature and system efficiency—especially important in North Texas summers.

Q5: Does duct sealing really make a difference?

Absolutely. Even small leaks can pull super-heated attic air into the system or dump conditioned air into the attic, wasting energy and reducing comfort.

Warranty

✔ One-Year Labor Warranty on all ductwork and modifications
✔ Installed according to professional HVAC engineering best practices

Author & Technical Review

Siwei (Lucas) Chen
CTO | Greentech Engineering Heating & Air Conditioning
B.S. Mechanical Engineering – Virginia Tech
ACCA Certified (Manual J, S, D)
NCI Certified – Air Balancing & Duct Optimization
10+ Years HVAC Engineering Experience in Dallas–Fort Worth

This article was reviewed and approved by Lucas Chen to ensure technical accuracy, airflow integrity, and compliance with HVAC engineering standards.

Learn more about ACCA.

Final Takeaway

If your HVAC system struggles with comfort, noise, or efficiency, the problem is often hidden in the ductwork.
An engineering-based duct redesign—like this Fort Worth project—can unlock the performance your equipment was always capable of delivering.

For homeowners who value long-term comfort and system health, duct design is not optional—it is essential.
