Total Comfort Restoration in Little Elm (75068): 4-Ton Daikin Upgrade & Airflow Optimization

Summers in Little Elm, Texas, are relentless. When the temperature pushes past 100 degrees, your home’s HVAC system becomes the only barrier between your family and the brutal Texas heat. However, true indoor comfort involves much more than simply generating cold air. It requires precise thermodynamic engineering, perfectly balanced airflow, and equipment that operates reliably without causing your utility bills to skyrocket.

Recently, our engineering team at Greentech responded to a single-family homeowner in the 75068 zip code of Little Elm. They were dealing with a frustrating but common scenario: an aging, low-efficiency Lennox system that ran constantly but still left certain rooms in the house feeling stuffy and warm.

In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.

In this detailed case study, we will walk you through our complete comfort restoration process. We’ll show you how we utilized ACCA Manual J load calculations to properly size a premium 4-Ton Daikin 14.5 SEER2 System, how we solved their specific airflow issues by engineering a new R-6 flex duct run, and how we leveraged our status as an Authorized Oncor Service Provider to secure them instant utility rebates.

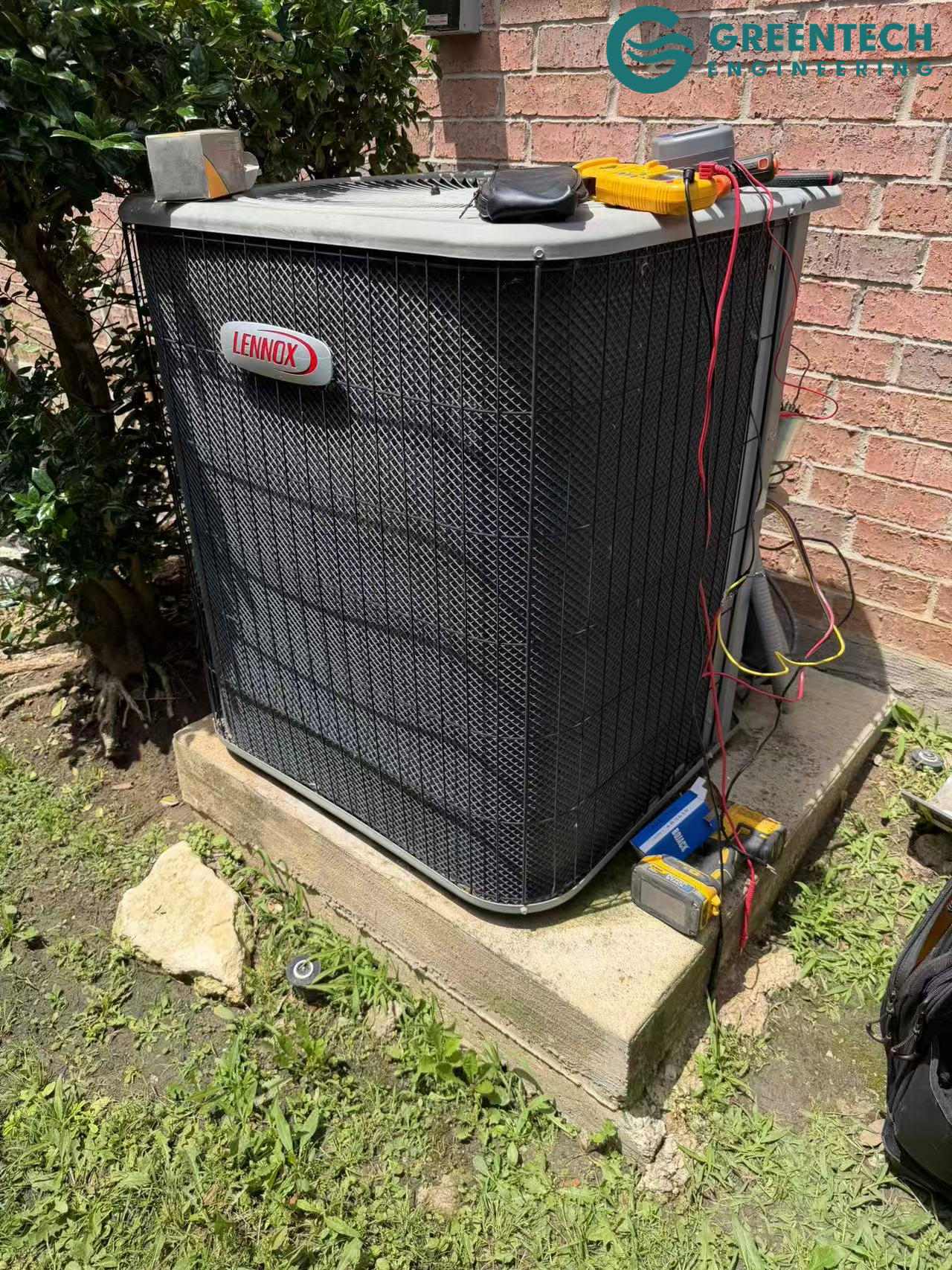

An aging, inefficient Lennox air conditioning condenser sitting outside a brick single-family home in Little Elm, Texas 75068. — The Baseline Problem: The original Lennox condenser was technologically obsolete. It struggled to maintain adequate refrigerant pressures during peak summer heat, leading to poor dehumidification and surging energy consumption.

An older Lennox horizontal gas furnace and evaporator coil installed in a residential attic with aging ductwork connections. — The Attic Baseline: The original horizontal indoor setup. Beyond the aging equipment, the system suffered from airflow distribution imbalances, leaving specific rooms in the house starved for conditioned air.

‍

The Engineering Foundation: ACCA Manual J & Airflow Diagnostics

When a homeowner complains about hot spots, a "box-swapping" retail contractor will usually just try to sell them a larger air conditioner. This is a catastrophic mistake. Oversizing an AC unit leads to short-cycling, high humidity, and premature compressor failure.

At Greentech Engineering, we rely strictly on data. Our first step was performing a comprehensive ACCA Manual J Load Calculation. By measuring the home’s thermal envelope—including square footage, window solar heat gain, ceiling height, and attic insulation levels—we determined the exact sensible and latent cooling loads required for the property.

The math proved that the home required exactly 4 Tons (48,000 BTUs) of cooling capacity and 80,000 BTUs of winter heating capacity.

Solving the Hot Spot: Custom R-6 Ductwork Integration

The Manual J calculation confirmed the 4-Ton capacity was correct, which meant the hot rooms were suffering from an airflow delivery problem, not an equipment capacity problem.

To permanently resolve this, our clinical installation included custom ductwork modifications. We engineered and installed a brand new R-6 insulated flex duct run.

We precisely cut a new hole into the supply and return plenums and installed a heavy-duty start collar.
We routed the new R-6 flex duct to a newly installed, insulated supply/return boot in the problem area.
To ensure zero energy loss, every connection point was meticulously sealed with specialized flex duct tape and mastic duct sealant, and the new run was properly suspended using nylon webbing to prevent sagging and restricted airflow.

The Premium Daikin 14.5 SEER2 Matchup

With the airflow geometry corrected, we installed an AHRI-certified Daikin Comfort Pro system. Daikin is the largest HVAC manufacturer in the world, and this specific matchup delivers incredibly quiet, ultra-efficient performance that fully supports the 2023 DOE Energy Conservation Standards.

The 4-Ton Daikin Straight Cool Condenser

To defend against the Little Elm summer, the newly installed outdoor unit features:

High-Efficiency Copeland® Scroll Compressor: The absolute gold standard in compressor technology.
Copeland® CoreSense™ Technology: Advanced onboard diagnostics that actively monitor the compressor and can shut the system down to prevent catastrophic failure if an electrical anomaly occurs.
High-Density Foam Sound Blanket: Wraps the compressor to ensure whisper-quiet operation in your backyard.
Elite Warranties: Backed by a 12-Year Factory Limited Parts Warranty and a massive 6-Year Unit Replacement Warranty (if the compressor fails in the first 6 years, you get a brand new outdoor unit).

The Daikin/Goodman Horizontal Cased Coil

Internal Factory-Installed TXV: A Thermal Expansion Valve dynamically regulates refrigerant flow based on the exact heat load inside the house, maximizing latent cooling (dehumidification) and preventing coil freeze-ups.
All-Aluminum Construction: Rifled aluminum tubing prevents the formicary corrosion and refrigerant leaks common in older copper coils.

The Daikin 80,000 BTU Gas Furnace (80% AFUE)

Because this is a horizontal attic installation, we upgraded the heating infrastructure with a robust Daikin Gas Furnace featuring a 5-Ton blower drive.

9-Speed ECM Blower Motor: This electronically commutated motor precisely adjusts airflow across 9 different speed taps. It uses a fraction of the electricity of standard motors and provides whisper-quiet continuous air circulation.
QLeak ≤ 2% Cabinet: The heavy-gauge steel cabinet is highly insulated, ensuring less than 2% of conditioned air leaks into the unconditioned attic.
Lifetime Heat Exchanger Limited Warranty: Designed with heavy-duty stainless-steel tubular heat exchangers, guaranteeing safe winter heating for as long as you own your home.

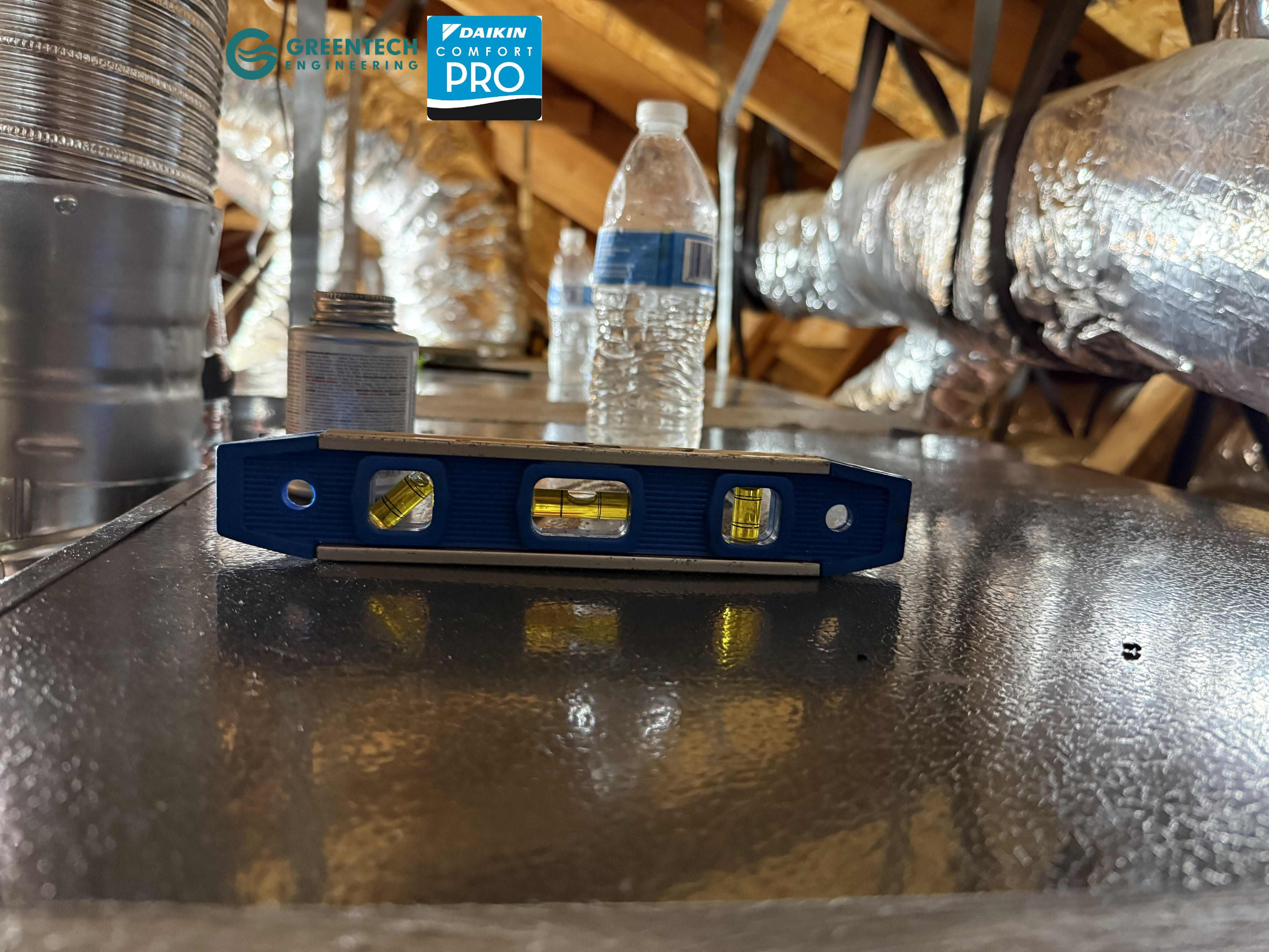

A blue torpedo level sitting on top of a newly installed Daikin horizontal evaporator coil in an attic to ensure perfect pitch for the condensation drain pan. — The Greentech Standard. Perfect leveling is non-negotiable. An improperly pitched horizontal coil will trap condensation, leading to catastrophic attic water leaks and mold growth. Our engineers verify perfect alignment on every install.

Attic Engineering Perfected: The new 4-Ton Daikin gas furnace and cased coil installed horizontally. Featuring an advanced 9-Speed ECM blower motor, internal TXV, and newly integrated R-6 ductwork to guarantee perfect airflow delivery to every room.

‍

The Greentech Standard: 11-Step Clinical Installation Protocols

A premium Daikin system will fail prematurely if installed by a sloppy technician. We hold our engineers to the strictest clinical installation protocols in Texas:

Safe Recovery: Old equipment removed; all refrigerant legally pumped down and recovered.
Infrastructure Upgrades: Installed a new concrete condenser pad, a new gas sediment trap, drain pan, and a mandatory Safe-T drain switch (shuts system off to prevent attic floods).
Nitrogen Drain Clearing: The condensation drain line was cleared with pressurized dry nitrogen to remove sludge; new trap and vent installed.
Precision Sealing: The new coil and furnace were mechanically secured. All connection areas were sealed with HVAC metal tape and mastic sealant to guarantee maximum efficiency.
Code Compliance: All gas line and furnace exhaust flue pipe modifications were completed strictly to municipal codes.
RX-11 Copper Flushing: Existing copper line sets were chemically flushed with RX-11 and chased with dry nitrogen to remove old, acidic mineral oil.
Nitrogen-Purged Brazing: All copper joints were soldered using premium 15% silver brazing rods while flowing dry nitrogen to prevent internal oxidation (black soot) from forming inside the pipes.
250 PSI Nitrogen Pressure Test: We pressurized the closed system with dry nitrogen to 250 psi and held it for 15 minutes to guarantee absolutely zero micro-leaks.
500-Micron Deep Vacuum: We utilized specialized vacuum pumps to pull the system pressure below 500 microns, physically boiling off and extracting microscopic atmospheric moisture from the lines.
Custom Airflow Geometry: Integrated and sealed the new R-6 flex duct run to resolve the home's specific hot spots.
Commissioning: The system was fully charged, run, and tested for precise superheat, subcooling, and ECM airflow metrics.

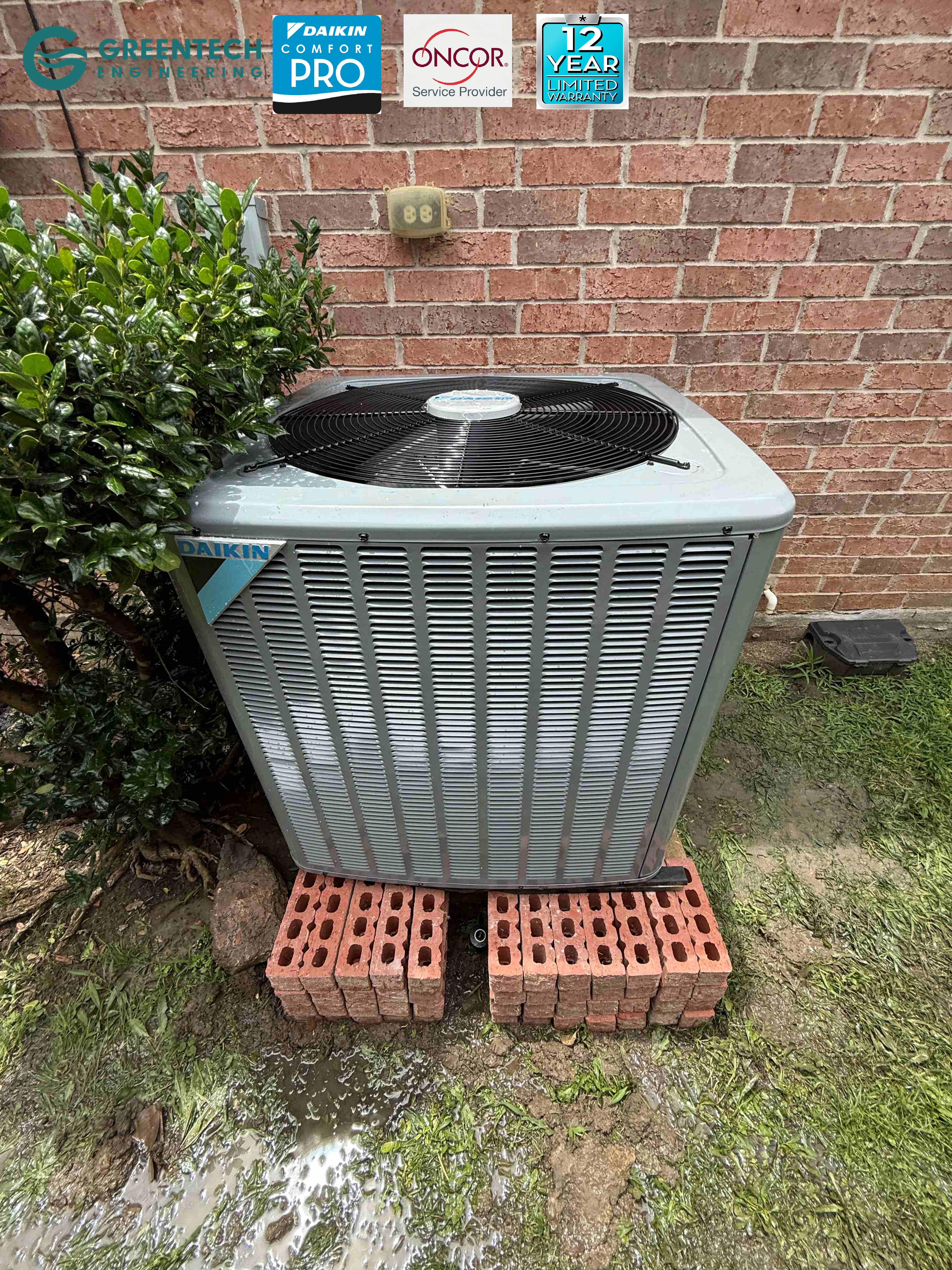

A pristine, newly installed Daikin 4-Ton air conditioning condenser outside a Little Elm home, featuring Daikin Comfort Pro and Oncor Service Provider badges. — The Final Result: A perfectly sized, precisely engineered 4-Ton Daikin system. Equipped with Copeland CoreSense and a high-density sound blanket, this unit delivers quiet, hyper-efficient cooling while unlocking maximum Oncor rebates.

‍

Why You Need an Authorized Oncor Service Provider

You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.

To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.

When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.

Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice.

2026 Oncor Incentive Snapshot: Dallas-Fort Worth

*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.

Frequently Asked Questions

Q: Why was a new R-6 flex duct run added to this system?

A: Even perfectly sized AC units cannot cool a room if the ductwork doesn't physically deliver the air. In this Little Elm home, the Manual J calculation proved the AC capacity was correct, but the airflow geometry was flawed. Adding a new, properly sealed R-6 insulated flex duct run directly to the "hot spot" room bypassed the old restriction and provided immediate, balanced cooling.

Q: What is Copeland® CoreSense™ Technology?

A: CoreSense is an advanced diagnostic module built into the outdoor Daikin compressor. It constantly monitors the electrical draw and temperature of the compressor. If it detects a dangerous anomaly (like a locked rotor or severe power surge), it will actively shut the system down to protect the compressor from destroying itself, saving you thousands in potential repair costs.

Q: Why do HVAC technicians flush the lines with RX-11?

A: Old systems (like the Lennox we replaced) used a different type of refrigerant and mineral oil. Modern systems use R-410A or R-32 refrigerant with synthetic POE oil. If the old, acidic mineral oil mixes with the new synthetic oil, it creates a sludge that will ruin the new compressor. We chemically flush the copper lines with RX-11 to completely strip away the old oil, ensuring the new Daikin system runs with pristine purity.

Q: Does a Daikin 14.5 SEER2 AC qualify for the Oncor rebate in Little Elm, TX?

A: Yes! For a 4-Ton system, Oncor requires a minimum efficiency of 13.8 SEER2 / 11.2 EER2. Because this Daikin matchup achieves 14.5 SEER2 and 11.7 EER, it comfortably exceeds the utility's requirements, allowing the homeowner to claim substantial instant rebates when installed by an Authorized Oncor Service Provider like Greentech. Contact us .
