Mastering Two-Story Comfort in Allen, TX (75013): Daikin Two-Stage Upgrade & Custom Plenums

Cooling a two-story, single-family home in the 75013 zip code of Allen, Texas, requires highly specific mechanical engineering. The thermodynamic behavior of a two-story house is complex: the upstairs absorbs the punishing radiant heat from the roof, while the downstairs load is heavily influenced by large open living areas, kitchen heat generation, and the "stack effect" (where cold air sinks and hot air rises).

When the downstairs air conditioning system fails in one of these homes, you cannot simply swap the outdoor box and expect comfortable results. The entire airflow delivery system—from the blower motor to the ductwork plenums—must be evaluated and rebuilt.

“In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.”

Recently, a homeowner in Allen (75013) contacted our engineering team. Their aging downstairs Trane system was bleeding energy, struggling to maintain consistent temperatures, and suffering from severe airflow restrictions due to collapsing, leaky duct plenums.

In this comprehensive technical case study, we pull back the curtain on a master-class residential upgrade. We will detail how strict ACCA Manual J sizing, the installation of a Daikin 17.2 SEER2 Two-Stage Communicating System, and a complete custom plenum rebuild transformed this home’s comfort—and how our clinical installation protocols secured over $1,500 in instant Oncor utility incentives.

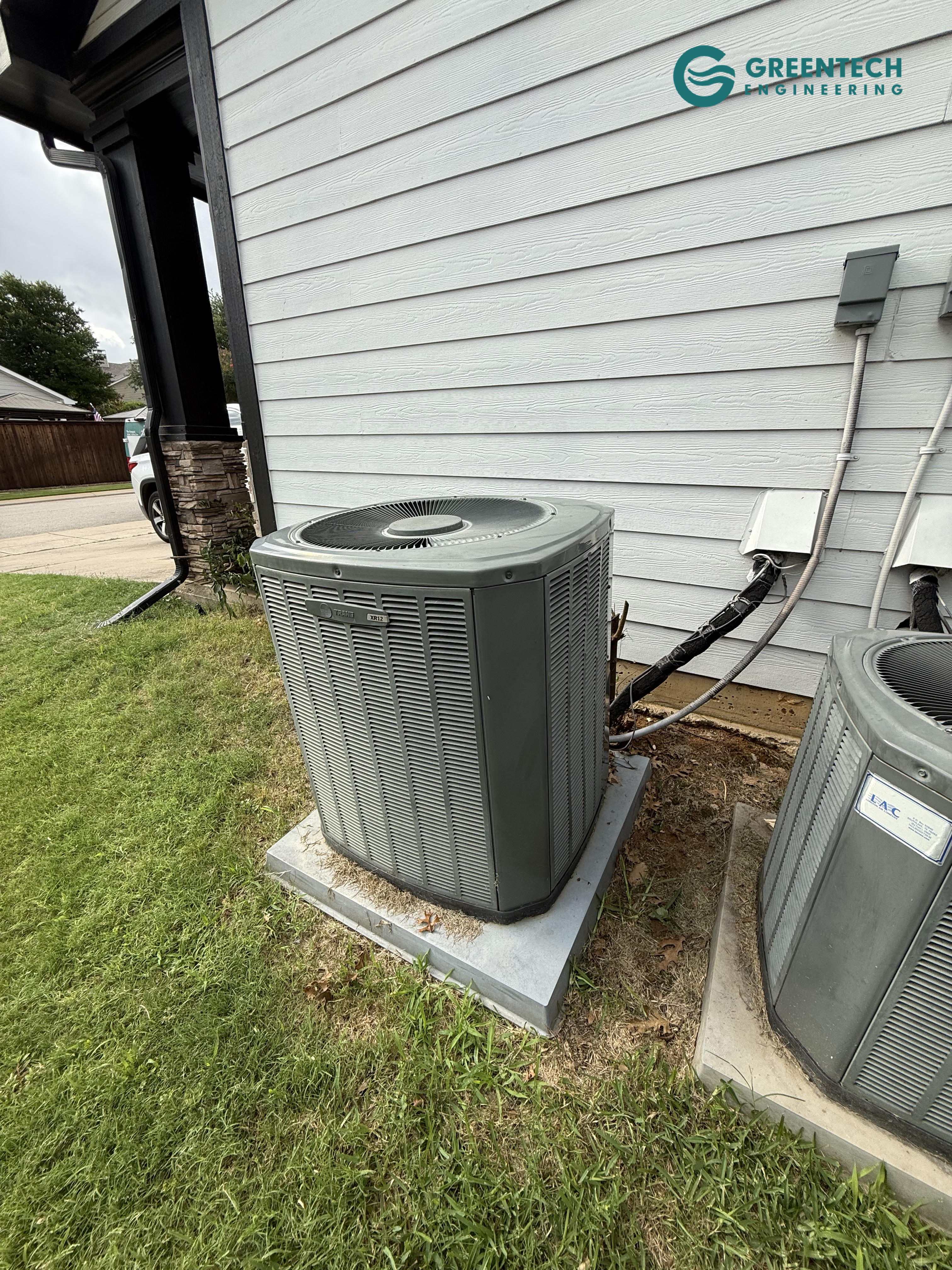

An aging, low-efficiency Trane air conditioning condenser sitting in the grass outside a residential home in Allen, Texas. — *The Liability: This legacy single-stage Trane condenser was drawing massive electrical current while failing to properly dehumidify the downstairs living spaces of this two-story Allen home.*

‍

The Engineering Foundation: Manual J and Downstairs Zoning

When designing a replacement system for the first floor of a two-story home, proper sizing is the difference between pristine comfort and a clammy, uncomfortable living room.

Many contractors use "rule of thumb" guesswork, which often leads to installing an oversized 5-ton system downstairs. Because the downstairs is shaded by the second floor, its sensible heat load is often lower than expected. An oversized system will "short-cycle"—blasting freezing air for five minutes and abruptly shutting off before it can extract the sticky Texas humidity.

At Greentech Engineering, we rely strictly on data. By performing a rigorous ACCA Manual J Load Calculation, we measured the exact cubic volume, window solar heat gain coefficients, and insulation values of the first floor. The math proved that a highly efficient 4-Ton system was the exact capacity required to maintain perfect, continuous climate control without wasting electricity.

The Upgrade: 17.2 SEER2 Daikin Communicating Technology

To achieve ultimate efficiency and comfort, we upgraded the home to a Daikin 48,000 BTU High-Efficiency Two-Stage Communicating Split System.

This is not a standard air conditioner. It is a fully integrated, smart thermodynamic engine that easily surpasses the strict 2023 DOE Energy Conservation Standards, achieving an AHRI-certified 17.2 SEER2 and 12.5 EER2.

The Outdoor Condenser: Copeland Ultra-Tech Two-Stage

Standard ACs only have one speed (100% capacity). This Daikin unit features a Two-Stage Copeland® Ultra-Tech scroll compressor.

Stage 1 (Low): On mild Allen mornings, the system runs at roughly 65% to 70% capacity. It uses drastically less electricity, runs whisper-quiet, and continuously filters and dehumidifies the air.
Stage 2 (High): When the Texas heat index hits 105°F in August, the system seamlessly shifts into 100% capacity to defend your home's target temperature.

The Indoor Furnace: Variable-Speed ECM

Matched inside the attic is a Daikin 80,000 BTU Two-Stage 80% AFUE Gas Furnace.

Equipped with a quiet, variable-speed ECM blower motor, this furnace perfectly complements the two-stage outdoor unit. It slowly ramps up airflow, preventing the sudden, loud blast of air typical of older systems, and ensures a perfectly even distribution of conditioned air across the entire first floor.

The "Brain": Daikin One+ Smart Thermostat

Because this is a "Communicating System," the outdoor compressor, indoor furnace, and thermostat digitally talk to each other. The Daikin One+ acts as the central intelligence, utilizing ambient temperature sensors and Copeland® ComfortAlert™ diagnostics to dynamically adjust compressor speeds and airflow CFM in real-time, maximizing energy savings.

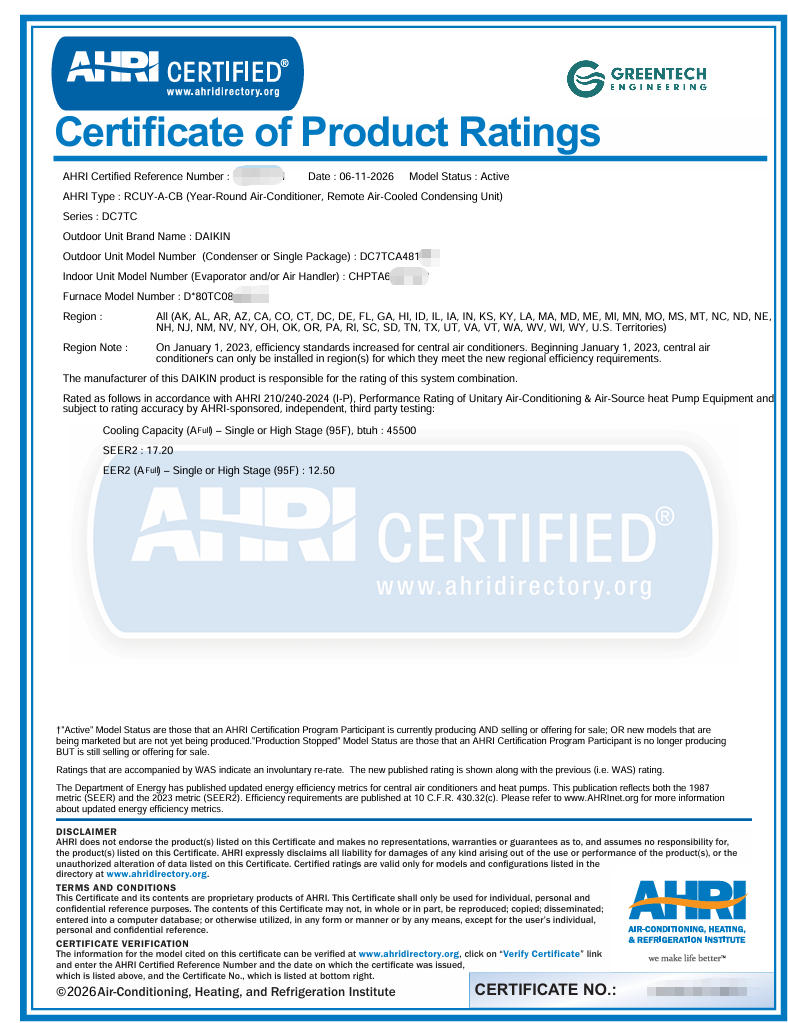

An official AHRI Certificate of Product Ratings confirming the 17.2 SEER2 and 12.5 EER2 performance of the Daikin HVAC matchup. — Verified Performance: We don't just promise efficiency; we prove it. This AHRI certificate was submitted directly to the utility company to mathematically validate the system's elite 17.2 SEER2 rating.

‍

Solving the Airflow Crisis: Custom Plenums & 4-Inch Filtration

The most advanced 17.2 SEER2 system in the world will perform like an obsolete 10 SEER system if it is attached to leaking, restrictive ductwork.

Upon inspecting the attic, our engineers found the existing supply and return plenums (the main air distribution boxes attached to the indoor unit) were degrading. They were leaking highly pressurized, conditioned air directly into the 130-degree attic.

Our Custom Airflow Overhaul:

Supply Plenum Rebuild: We completely removed the old supply box. In its place, we fabricated and installed an insulated metal air box (customized duct board plenum), perfectly sized to handle the 4-tons of variable-speed airflow with zero static pressure bottlenecks.
Return Plenum & IAQ Upgrade: We replaced the old return plenum with an insulated metal 4-inch filter combo air box. Instead of using flimsy 1-inch filters inside the house that clog rapidly, this massive 4-inch media filter provides superior Indoor Air Quality (IAQ), trapping microscopic dust, pollen, and pet dander while protecting the new all-aluminum evaporator coil.

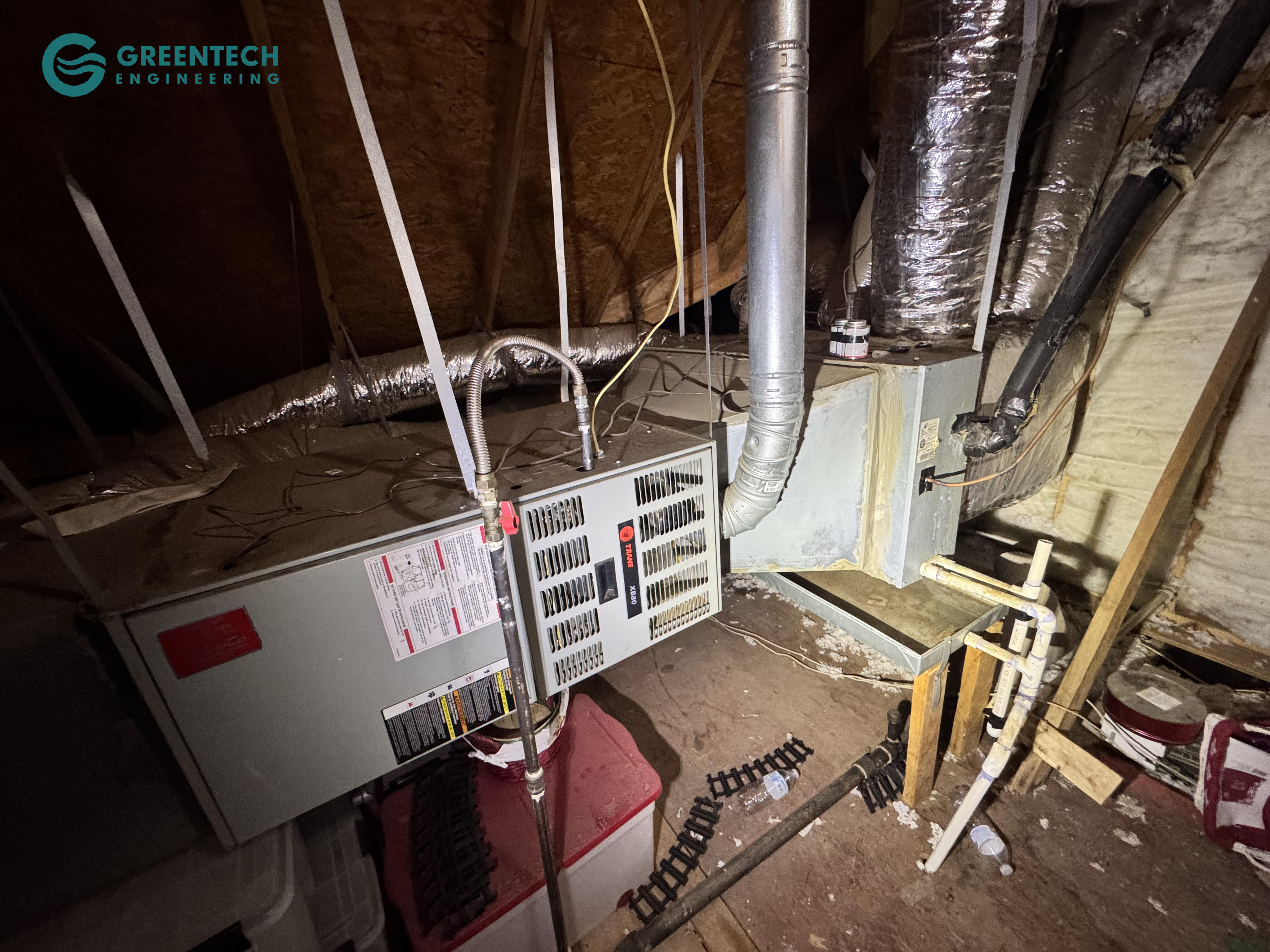

An older, inefficient Trane indoor furnace and coil system with failing ductwork connections and poor suspension in an Allen, TX attic. — *The Before: The original Trane indoor unit was poorly suspended and connected to degrading plenums, causing massive static pressure issues and leaking valuable conditioned air into the hot attic.*

‍

The Greentech Standard: 11-Step Clinical Installation Protocols

To secure the 12-Year Factory Parts & Unit Replacement Warranty, our engineers executed our strict, clinical installation protocols:

1. Environmental Safety: The old system was dismantled, and all legacy refrigerant was safely pumped down and recovered.

2. System Suspension: The new evaporator coil and gas furnace were securely hung using a new, heavy-duty suspension system, isolating vibrations to ensure whisper-quiet operation in the home below.

3. Total Sealing: Every connection point on the new custom plenums and furnace was sealed using specialized HVAC metal tape and mastic duct sealant. Zero leaks allowed.

4. Nitrogen Drain Clearing & Safety: The condensation line was blasted with pressurized dry nitrogen to clear organic debris. We installed a new drain trap, vent, Safe-T drain switch, and gas sediment trap to protect the home from potential floods or gas flow issues.

5. RX-11 Chemical Flush: Existing copper line sets were chemically flushed with RX-11 and chased with dry nitrogen to completely strip out the old, acidic mineral oil, ensuring pure synthetic oil flow for the new Copeland compressor.

6. Nitrogen-Purged Silver Brazing: All copper modifications were soldered using 15% silver brazing rods while flowing dry nitrogen through the pipes to prevent internal carbon oxidation.

7. 250 PSI Pressure Test: The closed copper system was pressurized with dry nitrogen to 250 psi and held for 15 minutes to mathematically prove there were zero micro-leaks.

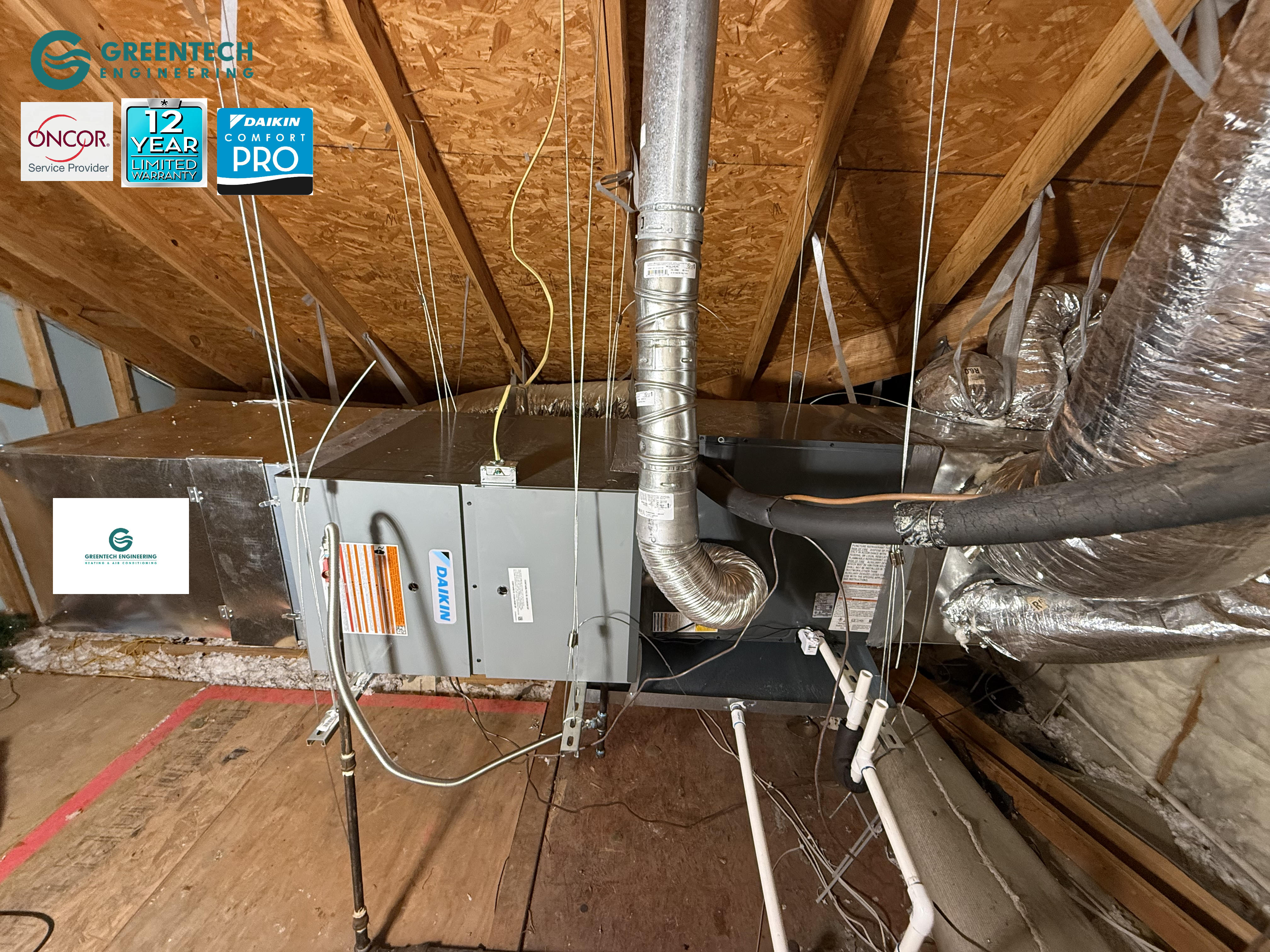

The After: Clinical execution. The new Daikin communicating indoor unit features a perfectly sealed custom supply plenum, a 4-inch media filter return box, and a heavy-duty vibration-isolating hanging system.

‍

8. 500-Micron Deep Vacuum: We pulled the system pressure down under 500 microns using specialized vacuum pumps, physically boiling off any atmospheric moisture inside the copper lines to prevent future acid formation.

9. Daikin One+ Calibration: The smart thermostat was wired, programmed, and calibrated to interface perfectly with the outdoor ambient sensors.

10. Final Commissioning: The system was fully charged and tested to verify exact superheat, subcooling, and two-stage staging protocols.

11. Warranty Protection: Finalized with our complimentary Three-Year Labor Warranty.

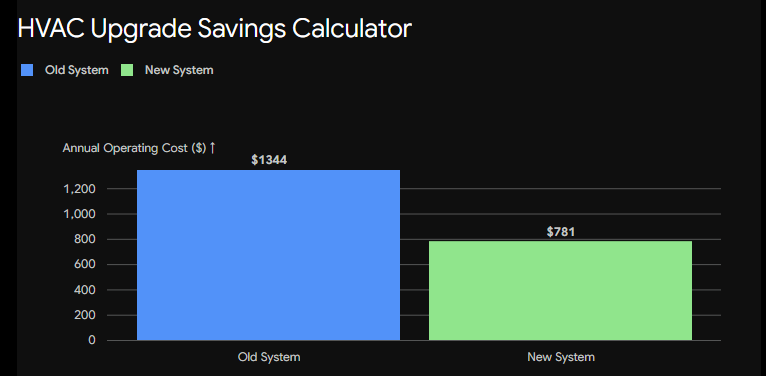

To truly understand the financial impact of stepping up from an old 10 SEER single-stage unit to a modern 17.2 SEER2 two-stage system, use our interactive energy calculator or learn more about our energy saving calculator.

Securing a $1,500+ Oncor Utility Incentive

As an Authorized Oncor Participating Service Provider, Greentech Engineering does not leave utility money on the table.

You cannot claim an Oncor rebate by simply buying equipment online. The utility company requires strict engineering proof to disburse funds. We handled the entire bureaucratic process for this Allen homeowner:

We submitted the AHRI performance certificates proving the 17.2 SEER2 / 12.5 EER2 metrics.
We documented the operational baseline load of the old Trane system.
We calculated the exact kilowatt (kW) reduction achieved by the new two-stage Daikin technology.

The result? We secured more than $1,500 in Oncor Home Energy Efficiency Program incentives. Better yet, the homeowner did not have to wait months for a check in the mail—we applied the approved funds as an instant, upfront discount directly on their final invoice. Learn more about maximizing Oncor rebates here.

Please contact us for more information.

A pristine Daikin 17.2 SEER2 two-stage condenser installed on a leveled concrete pad in Allen, TX, featuring Oncor and Daikin Comfort Pro badges. — The Final Defense: A fully communicating, two-stage Daikin thermodynamic engine. By trusting engineering over guesswork, this Allen homeowner secured a $1,500+ instant rebate and future-proofed their home's energy efficiency.

‍

Frequently Asked Questions

Q: What is a Two-Stage Air Conditioner?

A: Standard AC units have only one speed: 100% full blast. A two-stage air conditioner (like the Copeland Ultra-Tech) has a high and a low speed. It runs on low speed (around 65% capacity) during mild weather to save energy and continuously remove humidity, only shifting to 100% capacity during extreme heat waves.

Q: Why do I need a custom plenum for my HVAC system?

A: Plenums are the critical metal boxes that connect your indoor unit to your ductwork. If they are improperly sized or degrading, your blower motor has to work twice as hard to push air, causing massive static pressure spikes and energy waste. A custom-fabricated metal plenum ensures perfectly smooth airflow delivery and zero conditioned air leaks into your attic.

Q: What is a 4-inch filter combo air box?

A: Instead of using a standard, thin 1-inch air filter inside your ceiling return grilles, a 4-inch filter box is installed directly onto the return plenum in the attic. The deep, 4-inch pleated media filter captures drastically more dust, allergens, and pet dander, and typically only needs to be replaced every 6 to 12 months.

Q: How do I qualify for the Oncor HVAC rebate in Allen, TX?

A: To qualify for the Oncor Home Energy Efficiency Program , you must upgrade to high-efficiency equipment (minimum 14.3 SEER2 for under 4 tons, or 13.8 SEER2 for 4+ tons) and you must use an Authorized Oncor Participating Service Provider like Greentech Engineering to verify the installation and process the kW reduction paperwork.
