Variable-Speed HVAC Upgrade in Grand Prairie, TX (75052): Daikin Fit & Oncor Rebate Case Study
For homeowners in Grand Prairie, Texas (75052), maintaining a comfortable indoor climate year-round requires a mechanical system that is both incredibly resilient and highly adaptable. Texas weather is famously unpredictable, swinging from blistering, high-humidity summer afternoons to freezing winter nights. Relying on an aging, single-stage air conditioner under these conditions is a guaranteed way to experience poor comfort, uneven temperatures, and skyrocketing monthly utility bills.
“In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.”

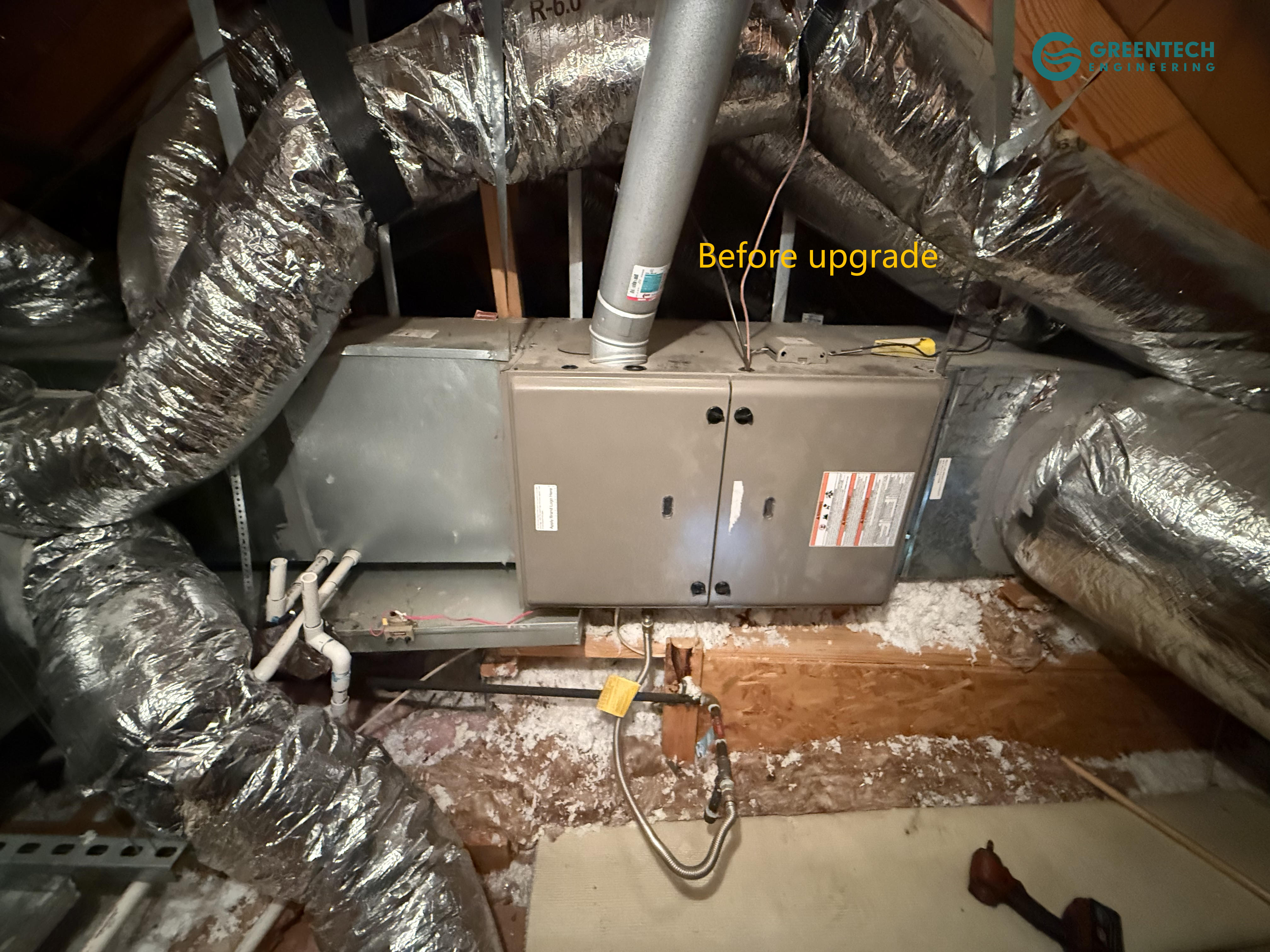

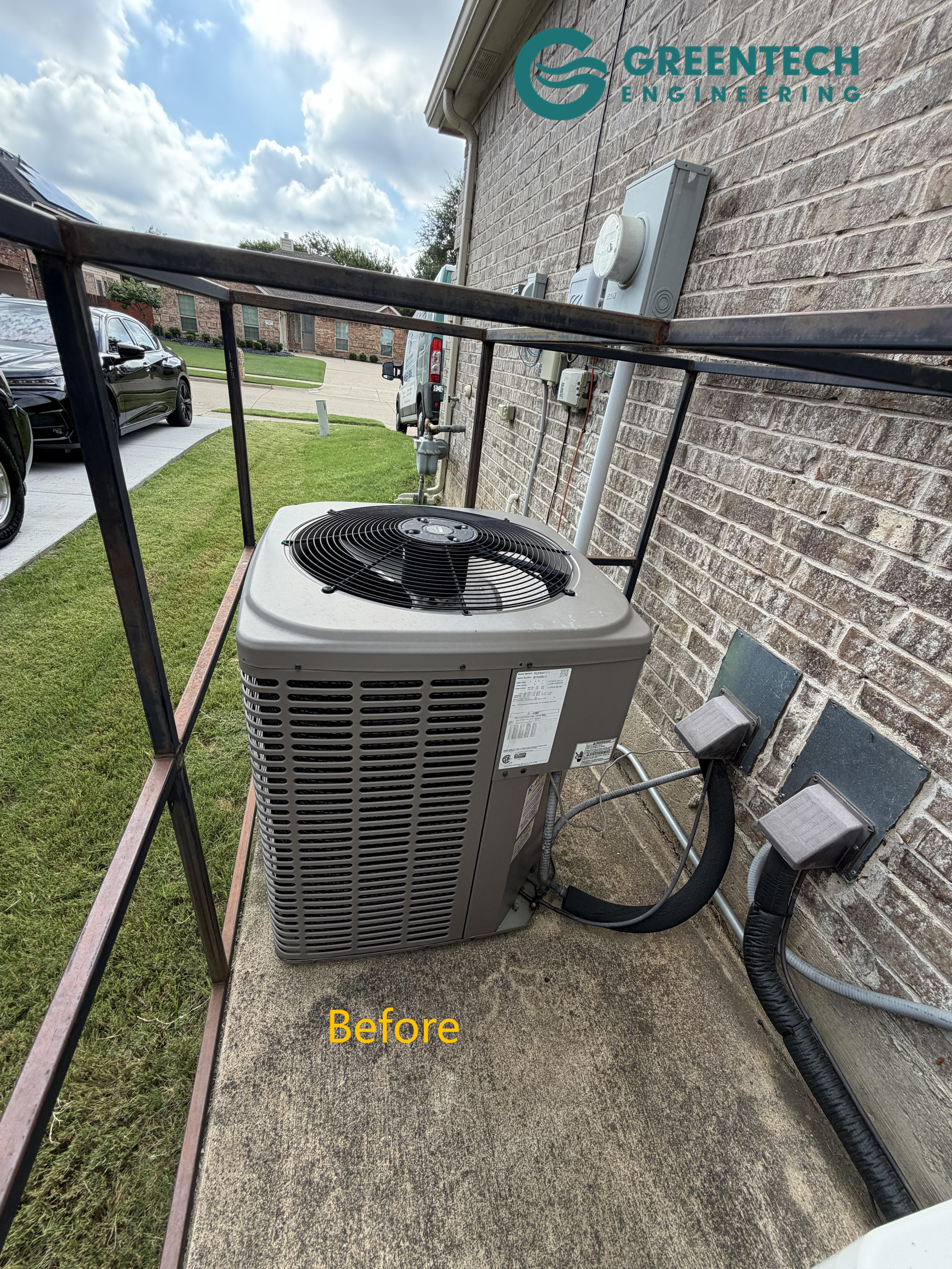

Recently, a family residing in a single-family home in the 75052 zip code of Grand Prairie reached out to our engineering team. Their old, single-stage York HVAC system was failing. It was loud, inefficient, and fundamentally incapable of properly dehumidifying their home during the peak Texas summer.
This comprehensive engineering case study breaks down our strict, data-driven approach to completely modernizing this home's thermal boundary. We will explore the critical importance of ACCA Manual J load calculations, the transition to an AHRI-certified 3-Ton Daikin Fit Variable-Speed System, our clinical 10-step installation protocol, the vital role of surge protection, and how we secured an instant Oncor utility incentive for the homeowner.
The Engineering Foundation: ACCA Manual J Calculations
In the residential HVAC industry, one of the most detrimental practices is "rule of thumb" equipment sizing. Many uncertified contractors will look at a failing 3-ton unit and blindly install another 3-ton unit without evaluating the home's actual thermal envelope.
At Greentech Engineering, we rely exclusively on data. Before selecting the new equipment for this Grand Prairie home, our engineers performed a rigorous ACCA Manual J Load Calculation. This digital, thermodynamic assessment accounts for the specific square footage of the home, window solar heat gain, insulation R-values, and ductwork integrity.
By running these physics-based calculations, we mathematically verified that a precisely calibrated 3-Ton (60,000 BTU) system was perfect for the home's latent (humidity) and sensible (temperature) heat loads. This precise sizing ensures the new system runs in optimized, highly efficient cycles, avoiding the premature mechanical wear and poor dehumidification caused by improperly sized equipment.
The Technology: Daikin Fit Variable-Speed Matchup
To provide this Grand Prairie homeowner with absolute reliability, ultra-quiet operation, and a significantly lower energy footprint, we engineered a complete split-system overhaul utilizing the revolutionary Daikin Fit communicating technology. This specific matchup achieves an impressive 16.5 SEER2 performance rating, fully exceeding the stringent Department of Energy (DOE) Conservation Standards.

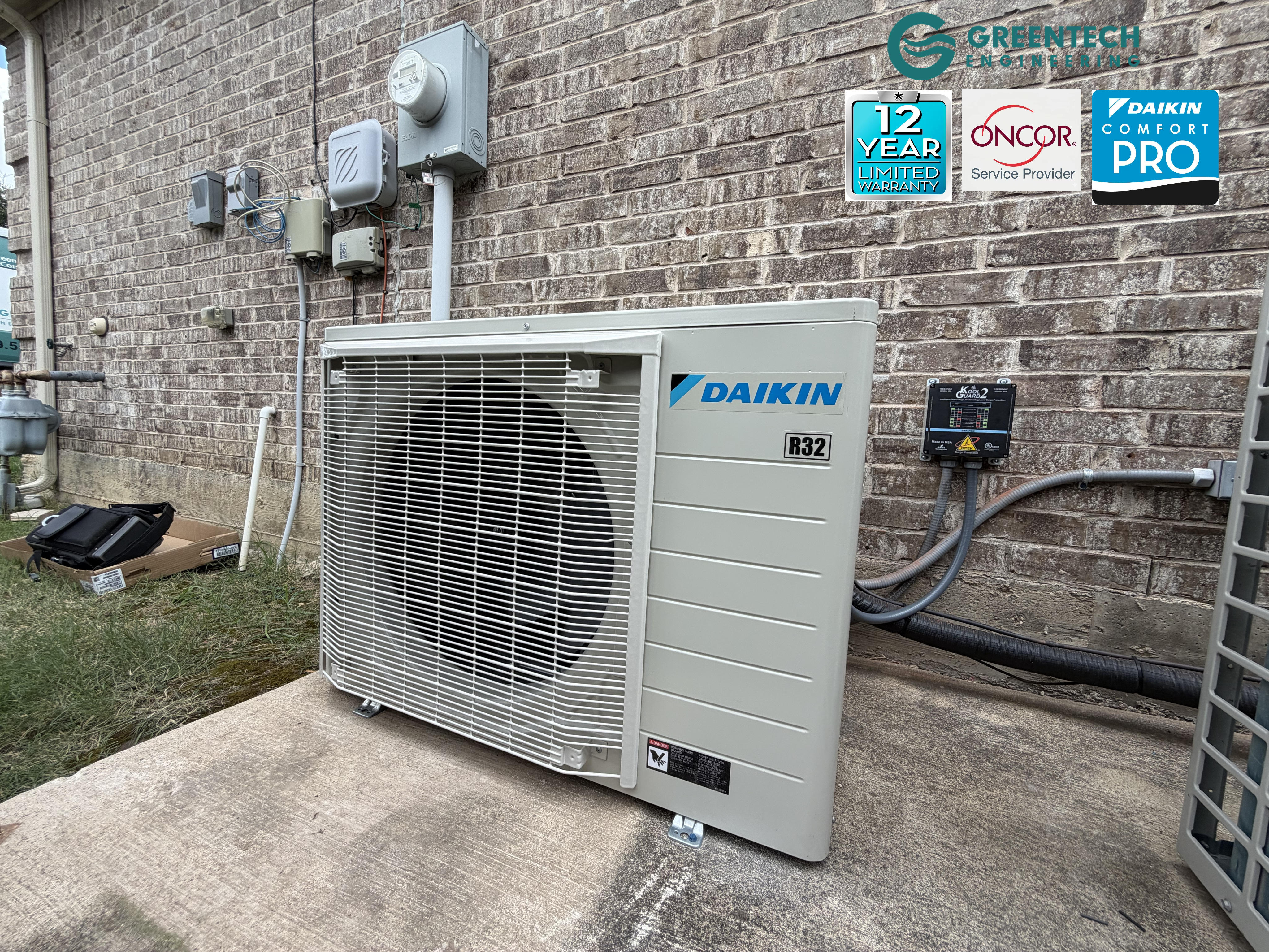

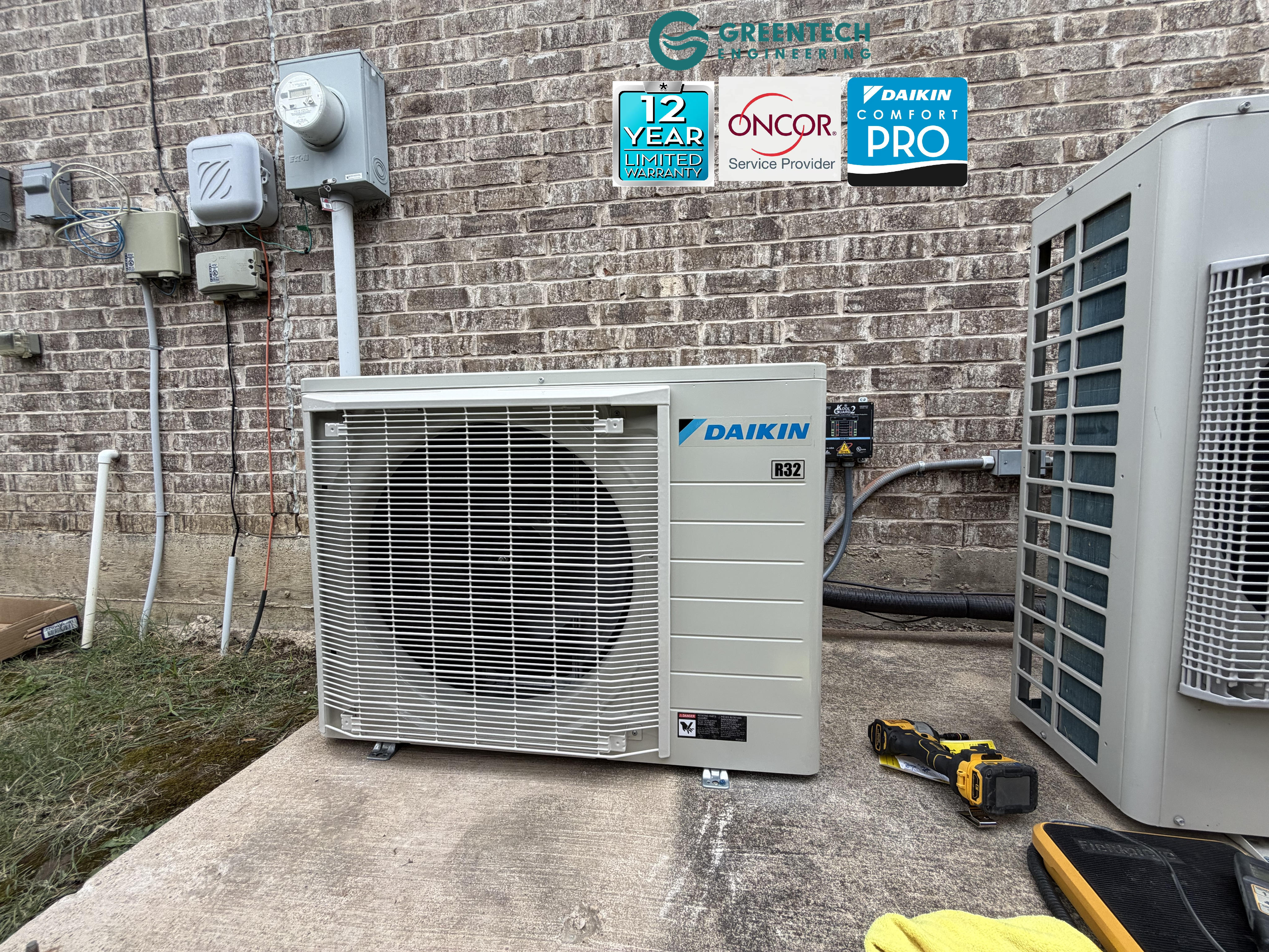

The Outdoor Innovator: Daikin Fit 3-Ton Side Discharge AC
The traditional cube-style air conditioner is a relic of the past. The Daikin Fit is a compact, side-discharge system built on advanced inverter technology.
- Daikin Variable-Speed Swing Compressor: Unlike standard ACs that only run at 100% capacity and then shut off, this inverter-driven compressor scales its output exactly to the home's real-time demand. It acts like the gas pedal in a car, cruising at lower, energy-saving speeds for maximum efficiency and humidity extraction.
- Acoustical Mastery: Features a high-density compressor sound blanket and a quiet Daikin-engineered digitally commutated fan motor. The system includes a Quiet-Mode that provides up to three different sound levels, operating as low as an astonishingly quiet 45dBA.
- Daikin Inside Intelligence: Utilizing advanced control algorithmic logic, Intelligent Defrost Mode, and a seven-segment LED display with fault code storage, the system continuously monitors its own health and diagnostics.
- Precision Sensors & Adjustments: Equipped with coil and ambient temperature sensors, a suction pressure transducer, and a field-selectable boost mode to increase compressor speed during unusually high Texas heat loads.
- Durability: Features an advanced water-shedding drain pan, sweat connection service valves with easy access, and hot start technology.
- Unmatched Warranty: Backed by a 12-year factory limited parts warranty and a 12-year unit replacement plan on compressor failure upon homeowner registration.

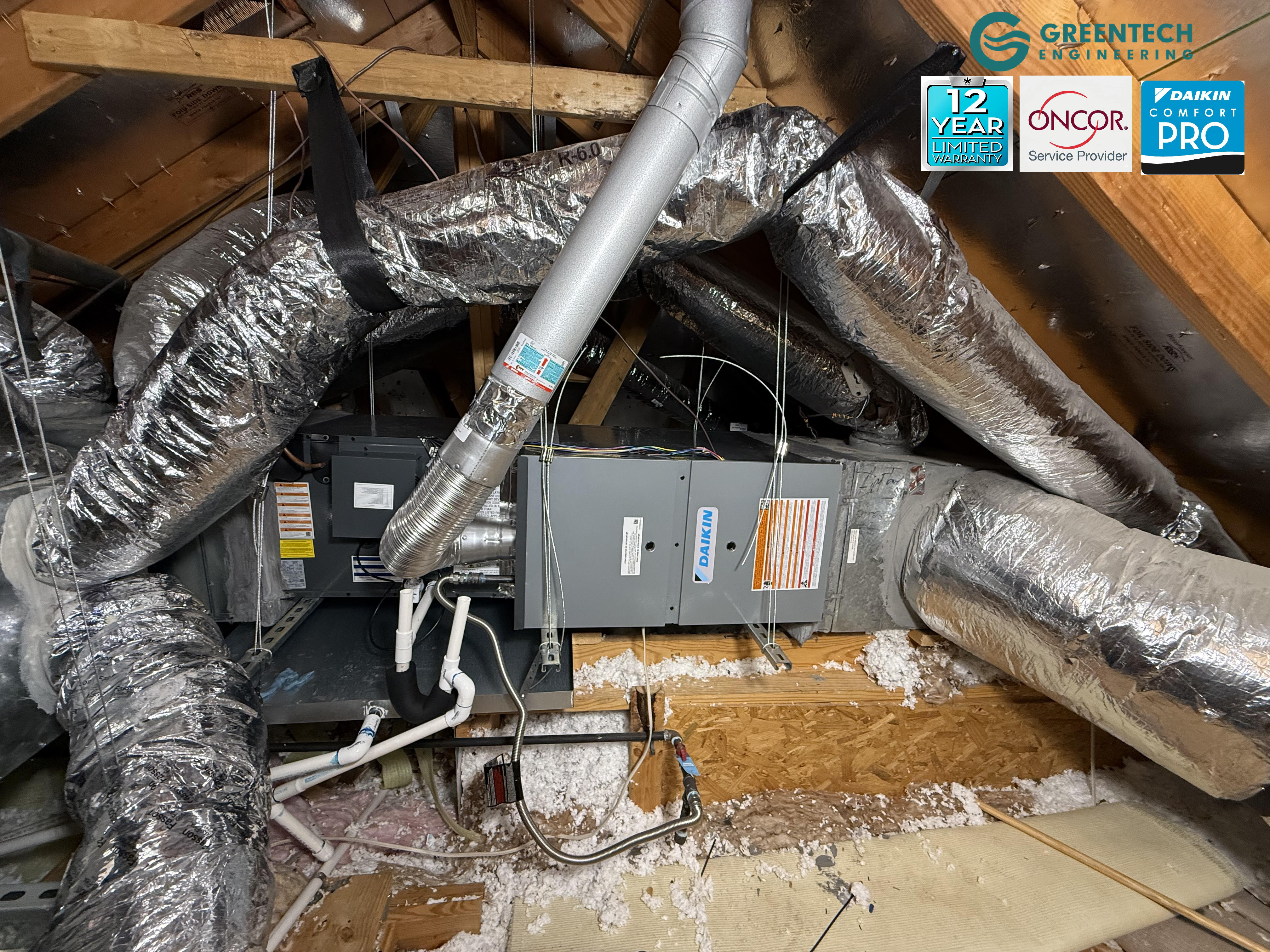

The Indoor Evaporator: Daikin 60,000 BTU Cased Coil
To perfectly absorb heat and humidity from the indoor air, we installed a heavy-duty Daikin cased evaporator coil in the attic.
- Electronic Expansion Valve (EEV): While standard systems use mechanical valves, this system utilizes a digital EEV that communicates directly with the smart thermostat to meter liquid refrigerant with microscopic precision, guaranteeing ultimate humidity extraction.
- All-Aluminum Construction: Built with 7mm rifled aluminum tubing and corrugated aluminum fins, rendering it virtually immune to microscopic formicary corrosion.
- Smart Drainage: Features a rust-resistant, high-temperature thermoplastic drain pan with a low water-retention design to prevent standing water and bacterial growth.
- Warranty: Backed by a 12-year factory limited parts warranty and a 12-year unit replacement plan.
The Heating Core: Daikin 100,000 BTU 80% AFUE Gas Furnace
Winter in North Texas requires a robust heating solution. We installed a powerful 100,000 BTU, Two-Stage Gas Furnace to provide reliable heating and continuous, filtered air circulation.
- Variable-Speed ECM Blower Motor: This ultra-quiet motor automatically adjusts its speed to deliver the precise amount of airflow required, eliminating hot and cold spots while using drastically less electricity than standard motors.
- Two-Stage Gas Valve & Induced Draft Blower: Allows the furnace to run at a lower, quieter, and more efficient heat output during mild winter nights, only engaging the powerful second stage during deep freezes.
- Heavy-Duty Heat Exchanger: Features a stainless-steel dual-diameter/tubular design and a highly durable Silicon Nitride igniter.
- Smart Diagnostics: A self-diagnostic control board continuously monitors the system for consistent, reliable operation.
- Lifetime Warranty: Encased in a fully insulated, heavy-gauge steel cabinet, this furnace is backed by a Lifetime Heat Exchanger Limited Warranty (good for as long as you own the home), a 12-year parts warranty, and a 6-Year Unit Replacement plan.
Infrastructure Protection: Surge Protection & Smart Control
A Daikin Fit system is essentially a highly sophisticated computer that controls thermodynamic elements. Because variable-speed systems rely on sensitive inverter control boards to modulate the compressor speed, they are uniquely vulnerable to the voltage drops and micro-surges notorious on the Texas power grid.
To protect this homeowner's investment, our engineers installed a 220V Voltage Monitor and Surge Protector. This device acts as an electrical firewall, instantly clamping down on power surges and preventing unstable voltage from frying the expensive communicating components inside the condenser and furnace.
Furthermore, we integrated a Daikin One Touch Smart Communicating Thermostat to serve as the digital brain of the home. This thermostat speaks directly to the EEV and the inverter compressor, adjusting the system's output in micro-increments to maintain the exact desired temperature while minimizing energy draw.
The Greentech Standard: 10-Step Clinical Installation Protocol
A high-end variable-speed HVAC system requires laboratory-grade installation. To guarantee perfect performance for this 75052 property, our certified engineers executed our uncompromising 10-step protocol:
- Environmental Safety: The old York system was meticulously dismantled, and all legacy refrigerant was safely pumped down and legally recovered.
- Infrastructure Upgrades: We installed heavily insulated drain lines and a new concrete condenser equipment pad. Crucially, we installed a Safe-T drain switch—a failsafe that instantly shuts down the system if a clog is detected, preventing costly interior water damage.
- Nitrogen Drain Clearing: The existing condensation drain line was blasted with pressurized dry nitrogen to clear hidden organic blockages, followed by the installation of a new drain trap and vent.
- Structural Mating: The new Daikin air handler was physically connected to the return and supply plenums using hex washer head HVAC screws, then structurally supported and balanced using a specialized hanging system.
- Aero-Sealing: Every single connection seam was sealed with engineered HVAC metal tape and mastic duct sealant, guaranteeing maximum system efficiency and zero air leaks into the attic.
- RX-11 Chemical Flush: Because we reused the home's hidden copper line sets, we injected an RX-11 chemical flush through the pipes and chased it with dry nitrogen. This safely stripped out all acidic legacy mineral oil.
- Nitrogen-Purged Silver Brazing: To prevent internal carbon oxidation, our certified technicians flowed dry nitrogen through the copper pipes while welding all joints with premium 15% silver brazing rods.
- 250 PSI Pressure Test: The closed copper network was pressurized with dry nitrogen to 250 psi and held for 15 minutes to mathematically prove the absolute integrity of our welds.
- 500-Micron Deep Vacuum: Utilizing specialized digital vacuum pumps, we pulled the system pressure down under 500 microns. This extreme vacuum boils off any microscopic atmospheric moisture trapped in the lines, preventing the formation of corrosive hydrofluoric acid.
- Final Commissioning: The system was digitally calibrated, fully charged, and run-tested for exact thermodynamic performance.
To ensure total peace of mind, this installation also included a Complimentary Three Years Labor Warranty from Greentech Engineering.
Securing Your Utility Rebates
Why You Need an Authorized Oncor Service Provider
You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.
To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.
When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.
Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice. We guarantee you to have the highest incentive you could have.
2026 Oncor Incentive Snapshot: Dallas-Fort Worth
*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.
Learn more about our Oncor rebate consulting and HVAC replacement free estimate service.
Grand Prairie HVAC FAQs
To help our neighbors in Grand Prairie and the greater DFW area navigate modern HVAC engineering, we have answered the most common questions related to this case study.
Q: What is a variable-speed air conditioner, and why is it better than a single-stage unit?
A: A single-stage AC is either 100% ON or 100% OFF. A variable-speed system uses an inverter to modulate its cooling output continuously, running at lower speeds (e.g., 30% or 40% capacity) to gently maintain the home's temperature. This continuous, low-speed operation extracts significantly more humidity from the air, runs much quieter, and drastically reduces electricity consumption compared to the massive power spikes required to start a single-stage unit.
Q: Why is an Electronic Expansion Valve (EEV) important for Texas homes?
A: The EEV is a digital valve located on the indoor evaporator coil that controls the flow of refrigerant. Because it is electronic, it adjusts in real-time based on the exact temperature and humidity needs of the home. This microscopic precision allows the system to pull massive amounts of latent heat (humidity) out of your indoor air, keeping you comfortable even on the muggiest Texas summer days.
Q: Why is a 500-micron deep vacuum necessary during AC installation?
A: Atmospheric air contains moisture. If this moisture is left inside the copper refrigerant pipes, it mixes with the high-pressure synthetic refrigerant oil to create hydrofluoric acid, which will destroy the new compressor from the inside out. Pulling a 500-micron deep vacuum lowers the internal pressure so dramatically that any remaining moisture instantly boils into a vapor and is sucked out, guaranteeing a sterile, acid-free environment.
Q: How does a 220V Surge Protector save my HVAC system?
A: Modern high-efficiency systems, especially Daikin Fit units, rely on sophisticated inverter computer boards. The DFW power grid frequently experiences micro-surges and voltage irregularities. A dedicated 220V surge protector acts as a shield, intercepting these electrical spikes before they can reach and destroy your system's expensive control boards.
Elevate Your Home's Engineering Today
Are you tired of battling high electric bills, poor humidity control, and a loud, failing single-stage AC unit? Upgrading to a premium, communicating Daikin Fit system requires precision engineering, strict ACCA standards, and a certified team that can secure your utility rebates.
Don't leave your Grand Prairie home's comfort to guesswork. Partner with the mechanical engineers who understand the science of Texas thermodynamics.
Contact Greentech Engineering Today to schedule your comprehensive residential HVAC diagnostic, request a Manual J load calculation, and discover true efficiency.
About the Author: Siwei (Lucas) Chen
CTO | Greentech Engineering Heating & Air Conditioning
Siwei (Lucas) Chen specializes in engineering-driven HVAC diagnostics, thermodynamic performance optimization, and custom ductwork design for Dallas homeowners. Holding a B.S. in Mechanical Engineering from Virginia Tech, he brings a strict, data-first approach to residential heating and cooling. Under his technical leadership, Greentech Engineering ensures every system is perfectly calibrated for the Texas climate, focusing relentlessly on ACCA Manual J load calculations, meticulous clinical installation standards, and securing maximum utility rebates for his clients.
Professional Certifications:
- ACCA Certified (Manual J, S, D)
- Daikin Comfort Pro Contractor
- NCI Certified – Air Balancing & Duct Optimization
- Oncor Participating Service Provider
