Daikin Fit HVAC Upgrade & Downsizing in Fort Worth, TX (76116): A $1,000 Oncor Rebate Case Study

For homeowners in Fort Worth, Texas (76116), navigating the extreme summer heat requires more than just raw cooling power—it requires thermodynamic precision. Unfortunately, the residential HVAC industry is plagued by outdated sizing practices, leaving many Tarrant County homes with oversized, inefficient equipment that struggles to control indoor humidity and spikes monthly electric bills.

“In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.”

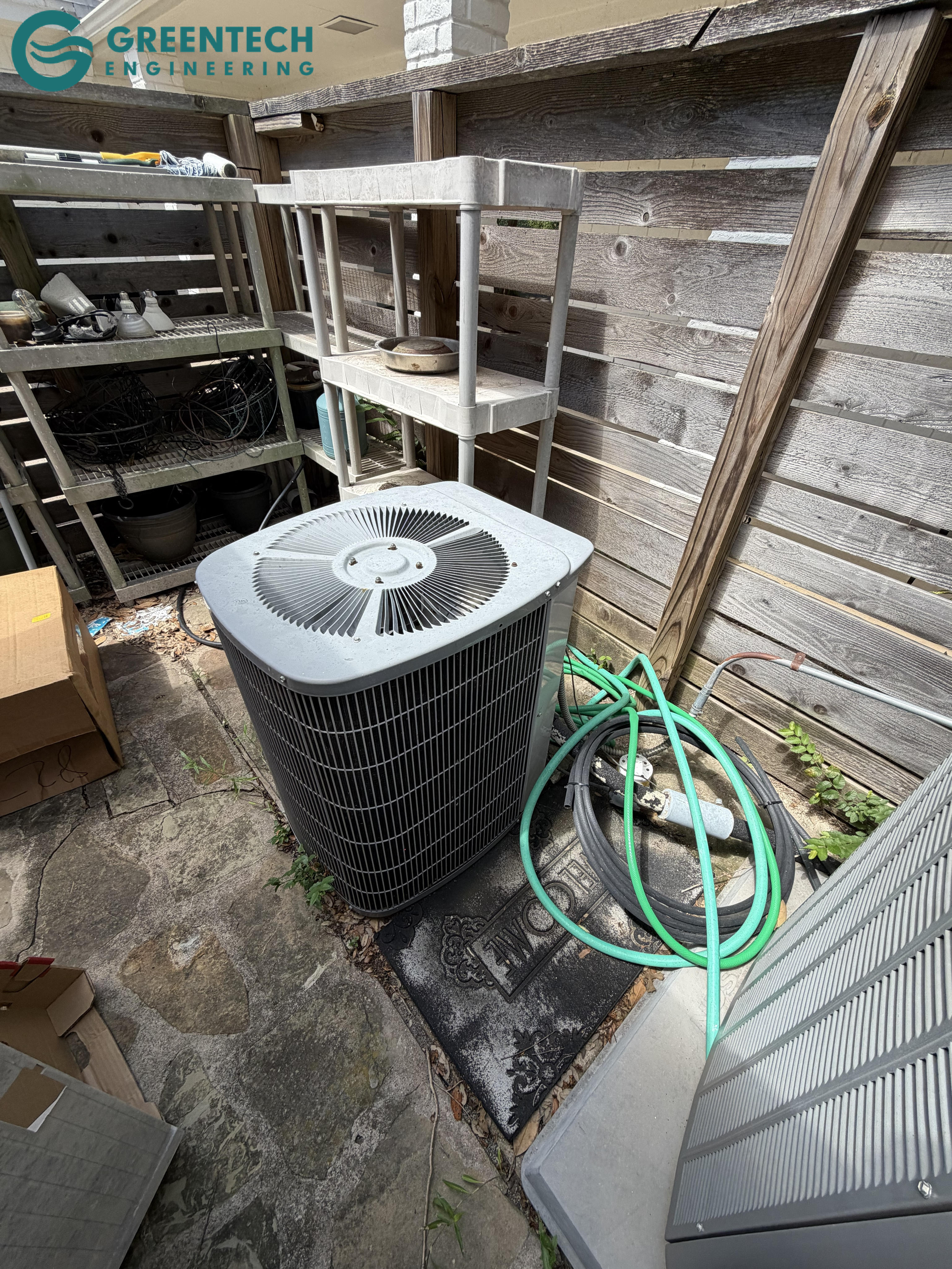

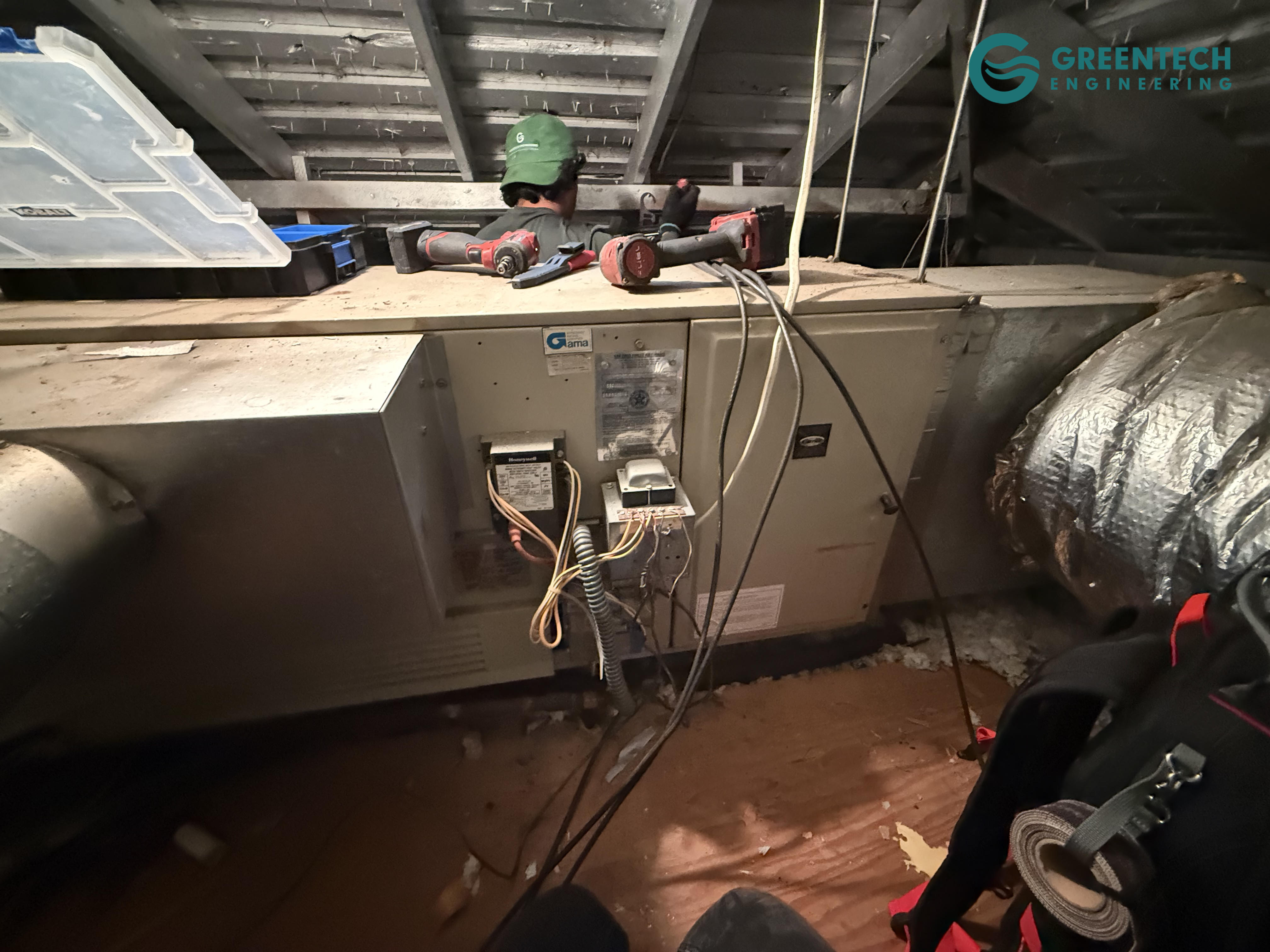

Recently, a family living in a single-family home in the 76116 zip code of West Fort Worth contacted Greentech Engineering to evaluate their failing central air conditioning system. Their existing 3-Ton unit was "short-cycling"—turning on and off rapidly—which left the home feeling cold but uncomfortably clammy, while simultaneously burning through electricity.

This comprehensive engineering case study breaks down our strict, data-first approach to completely transforming this home's thermal boundary. We will explore the critical importance of ACCA Manual J load calculations, the transition to a 2.5-Ton Daikin Fit Variable-Speed System, advanced airflow balancing, and how we secured an instant $1,000 Oncor utility incentive for the homeowner.

The Engineering Foundation: The Science of Downsizing

When replacing an HVAC system, many contractors simply look at the old unit's data plate and order the exact same size. If the old unit was a 3-Ton, they install a new 3-Ton. This "rule of thumb" guesswork completely ignores the home's actual structural efficiency and often perpetuates the exact problems the homeowner is trying to escape.

Before selecting any equipment, our engineering team performed a rigorous ACCA Manual J Load Calculation. This digital thermodynamic assessment evaluates the home's square footage, ceiling height, insulation R-values, window solar heat gain, and ductwork condition to determine the exact cooling and heating load required.

The data revealed a critical flaw: the home's thermal boundary only required 2.5 Tons (30,000 BTUs) of cooling capacity. The previous 3-Ton system was significantly oversized. By accurately downsizing the equipment, the new system will run in longer, highly efficient cycles, perfectly extracting latent moisture (humidity) from the air without overcooling the physical space.

The Technology: Daikin Fit Variable-Speed Matchup

To provide this Fort Worth homeowner with absolute climate control, whisper-quiet operation, and a drastically reduced energy footprint, we engineered a complete overhaul utilizing the revolutionary Daikin Fit system. This AHRI-certified matchup achieves an incredible 17.5 SEER2 and 10.0 EER2 performance rating, fully exceeding modern DOE energy conservation standards.

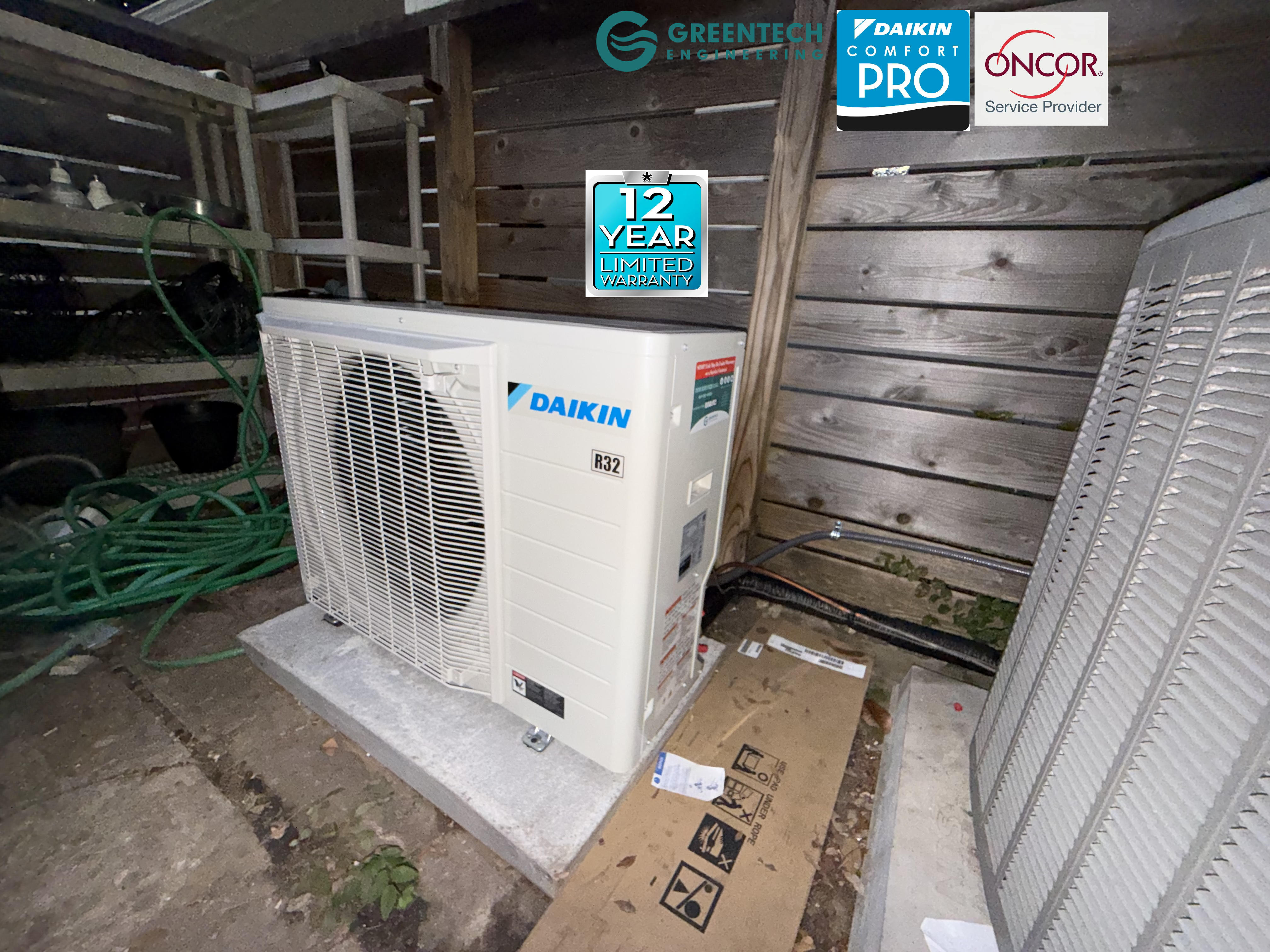

The Outdoor Innovator: Daikin Fit 2.5-Ton Side Discharge AC

The traditional cube-style air conditioner is a relic of the past. The Daikin Fit is a compact, side-discharge system built on advanced inverter technology.

• Daikin Variable-Speed Swing Compressor: Unlike traditional compressors that simply turn on at 100% and off at 0%, this inverter-driven compressor scales its output exactly to the home's real-time demand, running at lower, energy-saving speeds for maximum efficiency.
• Acoustical Mastery: The unit features a high-density compressor sound blanket and a quiet-mode function that provides up to three different sound levels, operating as low as a remarkably quiet 45dBA.
• Daikin Inside Intelligence: Utilizing advanced control algorithmic logic, an intelligent defrost mode, and a seven-segment LED display, the system continuously monitors its own health.
• Precision Sensors: Equipped with coil and ambient temperature sensors, a suction pressure transducer, and field-selectable boost mode to tackle unusually high heat loads during Texas heatwaves.
• Unmatched Warranty: Backed by a 12-year factory limited parts warranty and a 12-year unit replacement plan on compressor failure.

‍

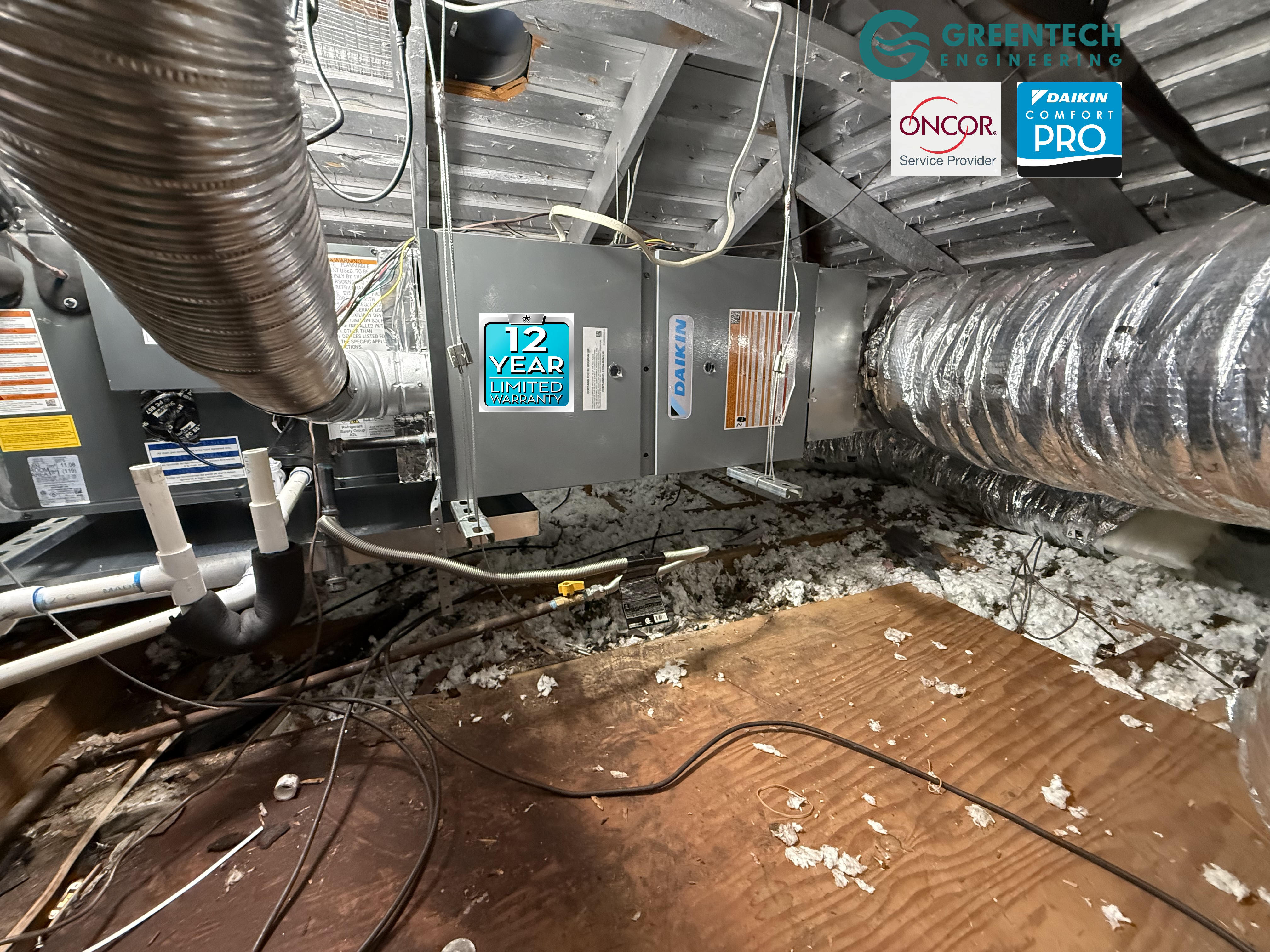

The Indoor Evaporator: Daikin 30,000 BTU Cased Coil

To perfectly absorb heat and humidity from the indoor air, we installed a heavy-duty, all-aluminum Daikin cased evaporator coil.

• Electronic Expansion Valve (EEV): While standard systems use mechanical valves, this system utilizes a digital EEV that communicates directly with the smart thermostat to meter liquid refrigerant with microscopic precision, guaranteeing ultimate humidity extraction.
• All-Aluminum Construction: Built with 7mm rifled aluminum tubing and corrugated aluminum fins, rendering it virtually immune to formicary corrosion.
• Smart Drainage: Features an advanced water-shedding, high-temperature thermoplastic drain pan designed for low water retention.

The Heating Core: Daikin 60,000 BTU 80% AFUE Two-Stage Gas Furnace

We installed a 3-Ton capacity, Multi-Position Two-Stage Gas Furnace to provide robust winter heating and highly optimized year-round air circulation.

• Variable-Speed ECM Blower Motor: This ultra-quiet digitally commutated motor automatically adjusts its speed to overcome ductwork static pressure, ensuring continuous air circulation and eliminating hot spots.
• Two-Stage Gas Valve & Draft Blower: Allows the furnace to run at a quieter, fuel-saving low stage during mild winter nights, only ramping to full capacity during a hard freeze.
• Heavy-Duty Heat Exchanger: Constructed with a stainless-steel dual-diameter/tubular design and a Silicon Nitride igniter.
• Lifetime Warranty: Encased in a fully insulated steel cabinet, the furnace is backed by a Lifetime Heat Exchanger Limited Warranty and a 12-Year Unit Replacement plan.

‍

Architectural Airflow: Plenums, Dampers, and Balancing

A high-efficiency variable-speed system will suffocate if connected to a restrictive ductwork network. Our diagnostic revealed that the existing air distribution setup in this 76116 home was fundamentally flawed.

To resolve this, our engineering team completely replaced the supply and return plenums. These custom-fabricated metal air boxes allow the variable-speed blower motor to distribute air with minimal static pressure resistance. We also ran new, highly insulated flex duct to optimize specific runs.

Crucially, we performed a comprehensive Damper Installation with Air Balance. By installing physical dampers within the ductwork, our technicians were able to manually tune and balance the exact volume of air (CFM) delivered to each individual room, completely eliminating the temperature imbalances that previously plagued the home.

The Greentech Standard: Clinical Installation & System Protection

A Daikin Fit system is a highly sophisticated piece of digital machinery. To ensure absolute reliability and protect the homeowner's investment, our certified technicians executed a strict, multi-point clinical installation protocol:

• Environmental Safety: The old 3-Ton system was dismantled, and all legacy refrigerant was safely pumped down and legally recovered.
• Infrastructure Defense: We installed a new concrete equipment pad, heavily insulated lines, and a Safe-T drain switch—a critical failsafe that instantly shuts down the system if a condensation clog is detected. We also installed a dedicated Voltage Monitor and Surge Protector to shield the Daikin inverter control boards from Texas power grid fluctuations.
• Chemical Purging: The existing hidden copper line sets were flushed with RX-11 chemical cleaner and dry nitrogen to strip out all acidic legacy mineral oil.
• Nitrogen-Purged Brazing: To prevent internal carbon oxidation, we flowed dry nitrogen through the copper pipes while welding all joints with premium 15% silver brazing rods.
• 500-Micron Deep Vacuum: Using digital pumps, we pulled the system vacuum below 500 microns, boiling off microscopic moisture to prevent the formation of corrosive hydrofluoric acid.
• Smart Control Integration: We installed a Daikin One Touch Smart Communicating Thermostat to serve as the digital brain of the system, unlocking full variable-speed control.
• Labor Guarantee: This comprehensive upgrade included a Complimentary Three Years Labor Warranty from Greentech Engineering.

Securing Your Utility Rebates

Why You Need an Authorized Oncor Service Provider

You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.

To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.

When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.

Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice. We guarantee you to have the highest incentive you could have. Learn more about our Oncor rebate service.

2026 Oncor Incentive Snapshot: Dallas-Fort Worth

*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.

Fort Worth Variable-Speed FAQs

To help our Tarrant County neighbors navigate the shift toward advanced HVAC technology, our engineers have answered the most common questions related to this Daikin Fit case study.

Q: What is a variable-speed air conditioner, and why is it better?

A: Unlike standard single-stage ACs that blast at 100% capacity and then shut off, a variable-speed system uses an inverter-driven compressor to modulate its cooling output continuously—acting much like the gas pedal in a car. It can run at very low capacities (e.g., 30%) to silently maintain the exact temperature of the home. This continuous, low-speed operation extracts significantly more humidity from the air and drastically reduces electricity consumption.

Q: Why did the contractor downsize my AC from 3-Ton to 2.5-Ton?

A: Bigger is not better when it comes to air conditioning. If a unit is oversized for the home's actual thermal load (determined by a Manual J calculation), it cools the air too rapidly and shuts off before it can dehumidify the space. This is called "short-cycling." Downsizing to the mathematically correct size ensures the unit runs in long, efficient cycles, providing superior comfort and preventing premature mechanical failure.

Q: What is an EEV (Electronic Expansion Valve)?

A: The EEV is a digital valve located on the indoor evaporator coil. It controls the exact amount of liquid refrigerant entering the coil. Because it is electronic, it communicates directly with the Daikin One+ smart thermostat and the outdoor variable-speed compressor, adjusting the refrigerant flow with microscopic precision based on the exact temperature and humidity needs of the home.

Q: Why is a surge protector necessary for a Daikin Fit system?

A: Variable-speed systems rely on sophisticated, highly sensitive computer control boards (inverters) to modulate the compressor speed. The Texas power grid is notorious for micro-surges and voltage drops. Installing a dedicated voltage monitor and surge protector shields these expensive internal computers from electrical damage, safeguarding your investment.

Elevate Your Home's Engineering Today

Are you tired of paying exorbitant utility bills for a poorly sized, failing central air conditioner? Transitioning to a modern, variable-speed Daikin Fit system requires an engineering-first approach, strict clinical installation standards, and a certified team capable of securing your maximum utility rebates.

Don't leave your comfort to guesswork. Partner with the mechanical engineers who understand the science of Texas thermodynamics.

Contact Greentech Engineering Today to schedule your comprehensive residential HVAC diagnostic, request a Manual J load calculation, and step into the future of home comfort.

About the Author: Siwei (Lucas) Chen

CTO | Greentech Engineering Heating & Air Conditioning

Siwei (Lucas) Chen specializes in engineering-driven HVAC diagnostics, thermodynamic performance optimization, and custom ductwork design for Dallas homeowners. Holding a B.S. in Mechanical Engineering from Virginia Tech, he brings a strict, data-first approach to residential heating and cooling. Under his technical leadership, Greentech Engineering ensures every system is perfectly calibrated for the Texas climate, focusing relentlessly on ACCA Manual J load calculations, meticulous clinical installation standards, and securing maximum utility rebates for his clients.
