Engineering Downstairs Comfort in Dallas (75287): 15.2 SEER2 Daikin & ECM Furnace Upgrade

Cooling a large, two-story single-family home in the 75287 zip code of Far North Dallas presents a unique set of thermodynamic challenges. While the upstairs system battles the intense radiant heat beating down on the roof, the downstairs system must manage the complex airflow dynamics of large open living rooms, sprawling floor plans, and the heat generated by modern kitchens.

When a downstairs air conditioning system begins to fail, the entire first floor suffers from sluggish airflow and high humidity. Simply swapping out the outdoor compressor will not solve the problem. Achieving true comfort requires a holistic engineering approach that addresses both the outdoor cooling capacity and the indoor airflow delivery system.

“In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.”

Recently, a homeowner in Dallas (75287) reached out to our team to address their failing downstairs HVAC system. Their aging equipment was drawing excessive electrical current while failing to adequately dehumidify the home. In this comprehensive engineering case study, we detail how replacing their legacy equipment with a mathematically sized Daikin 15.2 SEER2 System and a 9-Speed ECM Gas Furnace permanently restored their comfort, eliminated airflow bottlenecks, and secured instant Oncor utility rebates.

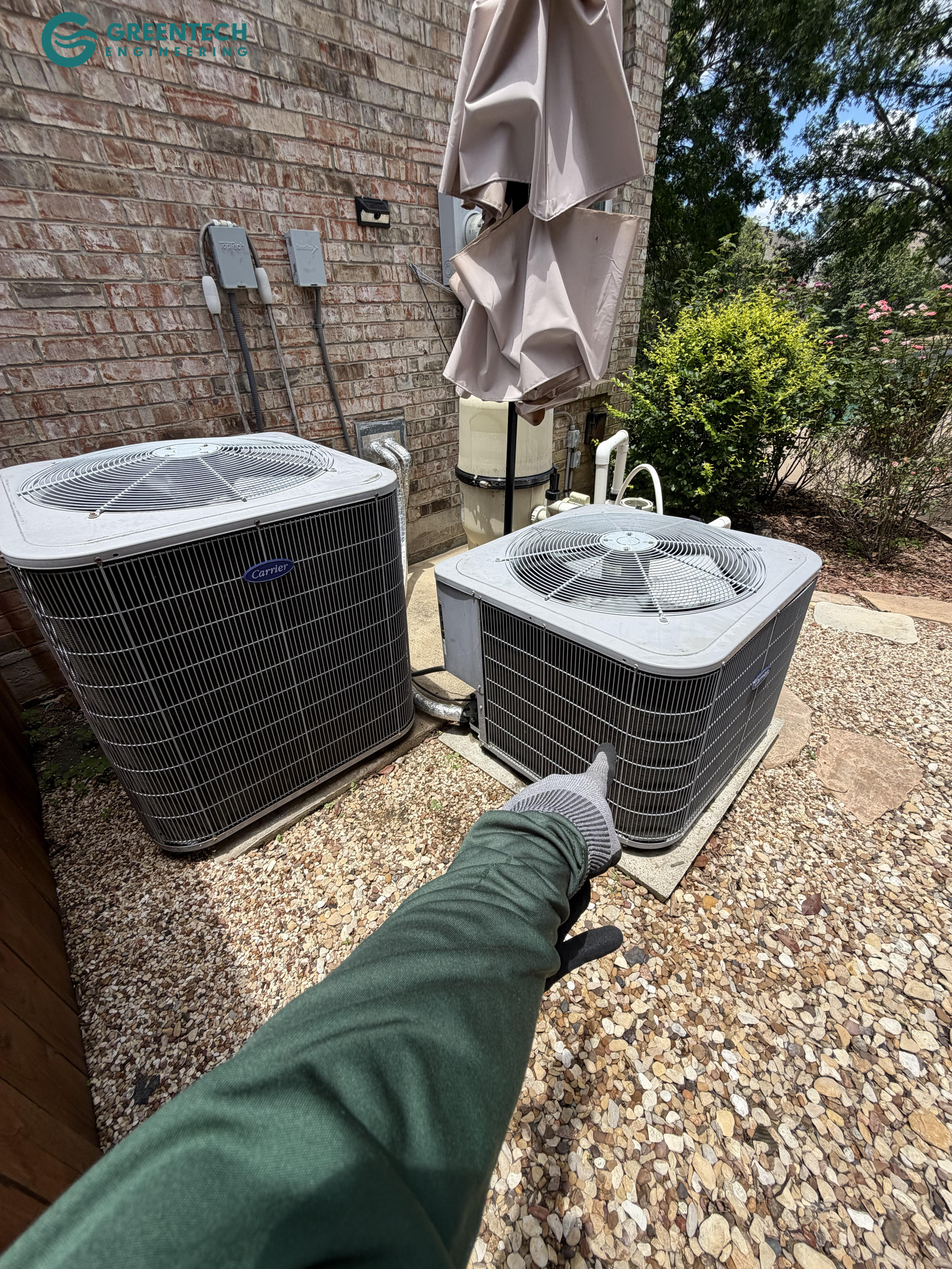

An aging, low-efficiency Carrier air conditioning condenser sitting on a degraded pad outside a residential home in Dallas, Texas. — The Liability: This legacy single-stage condenser was operating with degraded compressor windings, drawing massive electrical current during start-up while failing to properly dehumidify the downstairs living spaces.

‍

The Foundation of Efficiency: ACCA Manual J Load Calculations

The most critical step in replacing a downstairs HVAC system is determining the exact mechanical load required. Because the first floor is shaded by the second floor, it does not absorb the same solar radiation as the upstairs.

Unfortunately, many rushed contractors use outdated "rules of thumb" to size equipment based purely on square footage. This frequently results in installing an oversized system downstairs. An oversized AC unit will "short-cycle"—blasting the home with freezing air for five minutes and then shutting off abruptly. Because the run cycle is so short, the system never has the opportunity to extract the thick Texas humidity from the air, leaving the living room feeling cold but clammy.

At Greentech Engineering, we eliminate guesswork. Our engineers performed a rigorous ACCA Manual J Load Calculation to map the exact thermal boundaries of this 75287 home. We factored in the window orientation, insulation R-values, and cubic volume. The mathematical data confirmed that a precise 3-Ton (36,000 BTU) straight cool capacity was the exact load required to perfectly cool and dehumidify the first floor.

The Daikin 15.2 SEER2 Matchup

To meet the strict and secure utility rebates, we engineered an AHRI-certified matchup utilizing premium Daikin technology.

The Outdoor Condenser: 3-Ton Daikin High-Efficiency Split System

This condenser acts as the primary thermodynamic engine, engineered to withstand extreme Texas summers:

Copeland® Scroll Compressor: The gold standard in compressor technology, utilizing fewer moving parts for superior longevity and whisper-quiet operation.
Copeland® CoreSense™ Technology: This acts as the "brain" of the compressor. It actively monitors electrical diagnostics and will automatically shut the system down if it detects a severe power anomaly, preventing catastrophic motor burnout.
5mm Copper Tube / Enhanced Aluminum Fin Coil: Maximizes heat transfer efficiency while reducing the total volume of refrigerant required.
High-Density Foam Sound Blanket: Ensures the unit runs at a low decibel level, preserving the peace and quiet of your backyard.

The Indoor Blower: 60,000 BTU 80% AFUE Gas Furnace with 9-Speed ECM

The outdoor unit creates the cooling, but the indoor furnace is responsible for delivering it. We installed a Daikin 4-Ton drive gas furnace to provide powerful, highly efficient airflow:

9-Speed ECM Blower Motor: Unlike old PSC motors that blast air at 100% capacity and shut off, this Electronically Commutated Motor provides multiple continuous fan speed options. It ramps up smoothly, ensuring whisper-quiet air circulation and perfectly even temperatures across the sprawling downstairs floor plan.
Cabinet Air Leakage (QLeak) ≤ 2%: This is crucial for attic installations. A tightly sealed, heavy-gauge steel cabinet ensures that 98%+ of your highly pressurized, conditioned air actually makes it into your home, rather than leaking into the 130-degree attic.
Heavy-Duty Stainless-Steel Tubular Heat Exchanger: Backed by a Lifetime Heat Exchanger Limited Warranty, ensuring safe, reliable winter heating for decades.

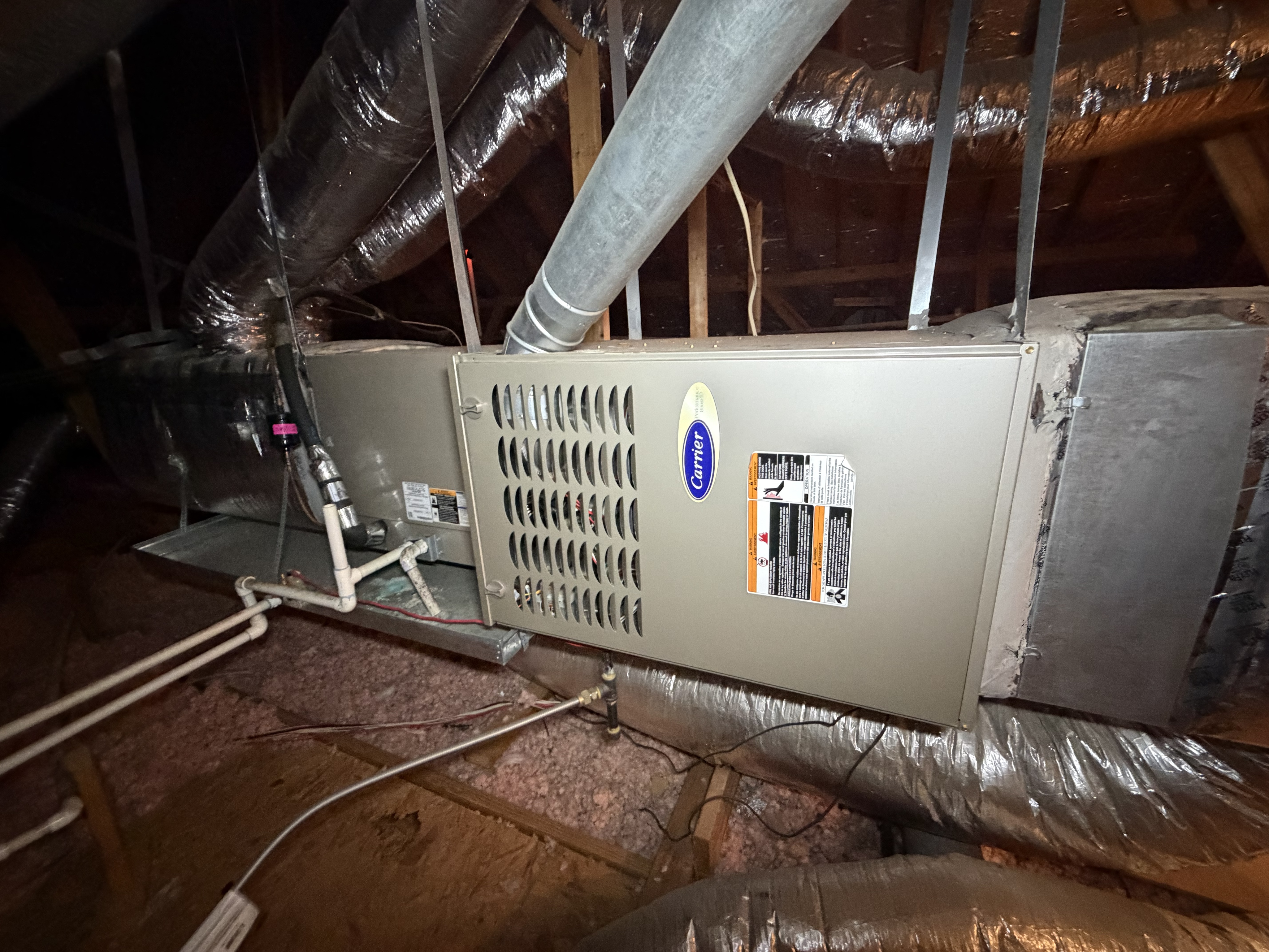

An older, inefficient Carrier indoor furnace and coil system with failing ductwork connections suspended in a Dallas, TX attic. — The Airflow Bottleneck: The original indoor unit utilized a single-speed PSC motor that struggled to push air to the furthest downstairs rooms. Furthermore, aging cabinet seams were allowing conditioned air to escape into the attic.

‍

The Evaporator Coil: Daikin/Goodman 36,000 BTU Cased Coil

Factory-Installed TXV: A Thermal Expansion Valve actively meters the exact amount of liquid refrigerant entering the coil based on the real-time heat load inside the house. This maximizes latent cooling (dehumidification) and prevents coil freeze-ups.
All-Aluminum Construction: Prevents the formicary corrosion and microscopic refrigerant leaks commonly found in older copper coils.

The Greentech Standard: 11-Step Clinical Installation Protocols

Premium equipment will fail prematurely if installed poorly. To guarantee the 12-Year Factory Limited Parts Warranty and our Complimentary Three Years Labor Warranty, our engineers executed strict clinical protocols during this Dallas installation:

1. Environmental Safety: The old system was dismantled, and all legacy refrigerant was safely pumped down and recovered per EPA guidelines.2. Infrastructure Defense: A new concrete condenser pad was installed outside. In the attic, we installed a new gas sediment trap, drain pan, drain line insulation, and a Safe-T drain switch to instantly shut down the system and prevent ceiling floods if a clog occurs.3. Nitrogen Drain Clearing: The condensation drain line was blasted with pressurized dry nitrogen to remove years of biological sludge. We installed a new drain trap and vent.4. Precision Suspension & Sealing: The new evaporator coil and gas furnace were securely suspended. They were connected to the return and supply plenums with hex washer head HVAC screws.5. Mastic Duct Sealing: All connection areas were meticulously sealed with HVAC metal tape and mastic duct sealant to minimize air leaks and maximize system efficiency.

A brand new, highly efficient Daikin gas furnace and cased evaporator coil suspended in a Dallas attic, featuring perfectly sealed duct connections and a Safe-T drain switch.

‍

6. Code Compliance: All necessary gas line and furnace exhaust flue pipe modifications were completed to strictly adhere to local safety codes.7. RX-11 Chemical Flush: Existing copper refrigerant lines were chemically flushed with RX-11 and chased with dry nitrogen. This critical step strips out the old, acidic mineral oil, ensuring the new synthetic POE oil remains pristine.8. Nitrogen-Purged Silver Brazing: All copper modifications were soldered using 15% silver brazing rods while flowing dry nitrogen through the pipes to prevent internal oxidation (black soot) from clogging the TXV.9. 250 PSI Pressure Test: The closed system was pressurized with dry nitrogen to 250 psi and held for 15 minutes to mathematically prove there were zero micro-leaks.10. 500-Micron Deep Vacuum: Utilizing specialized vacuum pumps, we pulled the system pressure down under 500 microns. This boils off any atmospheric moisture inside the copper lines, preventing the formation of highly corrosive acid.11. Final Commissioning: The system was fully charged, run, and tested for exact superheat, subcooling, and airflow metrics.

Thank you for choosing our HVAC service and Daikin equipment. We appreciate your business and want to ensure your complete satisfaction. Our complimentary labor warranty covers all labor performed by our technicians on the Daikin HVAC system we installed, providing you with absolute peace of mind.

Why You Need an Authorized Oncor Service Provider

You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.

To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.

When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.

Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice. Learn more and contact us today.

2026 Oncor Incentive Snapshot: Dallas-Fort Worth

*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.

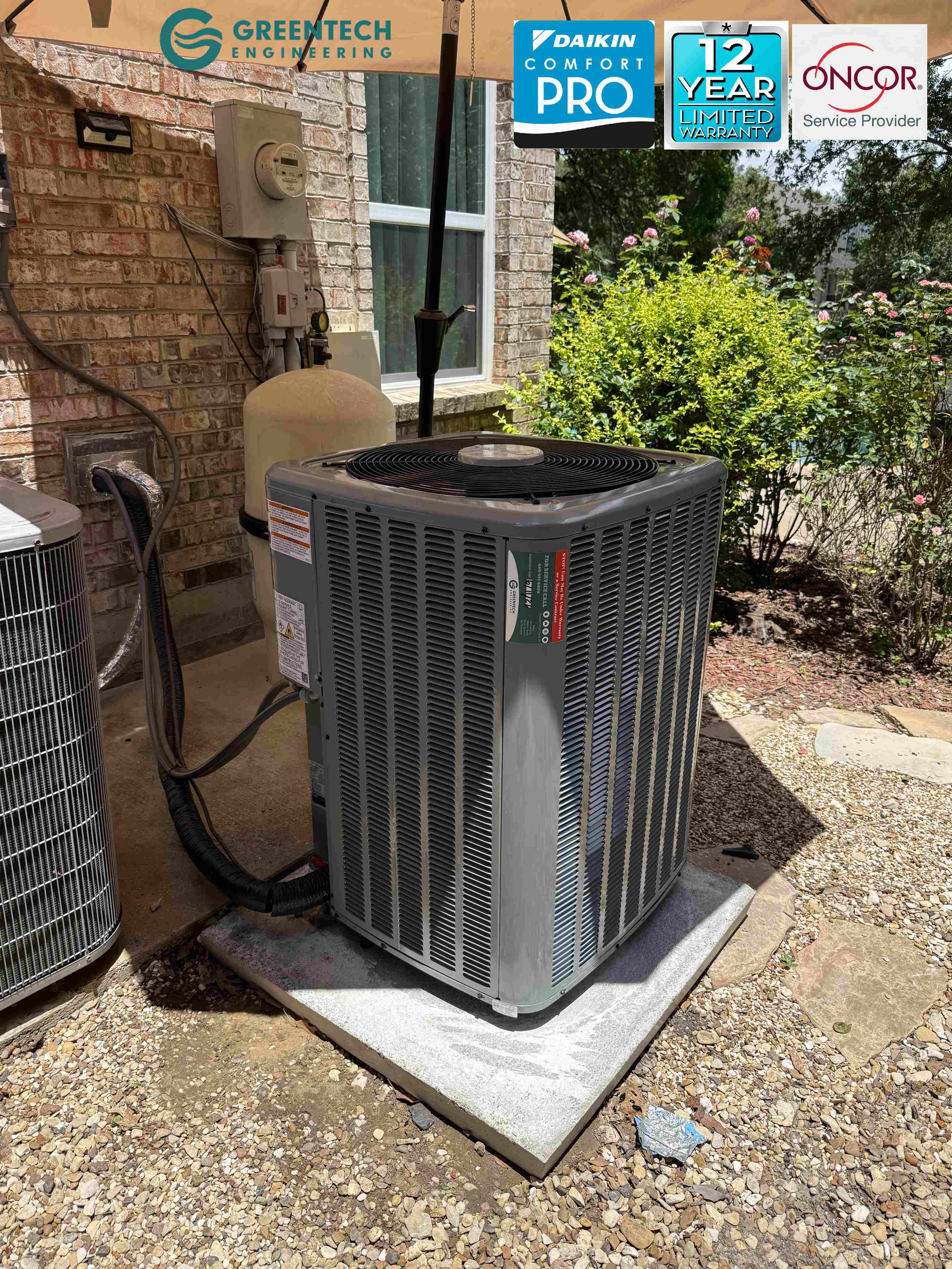

A pristine Daikin 15.2 SEER2 condenser installed on a leveled concrete pad in Dallas, TX, featuring Oncor and Daikin Comfort Pro badges. — The Final Defense: A precisely engineered 15.2 SEER2 Daikin straight cool system. By adhering to strict Manual J sizing and 500-micron vacuum protocols, this Dallas 75287 homeowner secured maximum Oncor rebates and perfected their downstairs comfort.

‍

Frequently Asked Questions

Q: What is a 9-Speed ECM blower motor in a gas furnace?

A: Unlike older PSC motors that only run at one speed (100% full blast), an Electronically Commutated Motor (ECM) is a highly efficient, variable-speed motor. A 9-speed ECM can be dialed in to match the exact static pressure of your ductwork. It slowly ramps up to push air smoothly and quietly, providing drastically better air circulation and humidity control while using a fraction of the electricity.

Q: Why do HVAC technicians pull a 500-micron vacuum?

A: Atmospheric air contains moisture. If moisture is left inside your copper refrigerant lines, it mixes with the refrigerant oil to create hydrofluoric acid, which eats away at the compressor from the inside. By using a vacuum pump to pull the system pressure below 500 microns, we lower the boiling point of water so drastically that any moisture instantly vaporizes and is sucked out of the system, leaving the lines perfectly pure.

Q: Does a 15.2 SEER2 system qualify for Oncor rebates?

A: Yes. For split systems under 4 tons, the Oncor Home Energy Efficiency Program requires a minimum efficiency of 14.3 SEER2 and 11.7 EER2. This Daikin 15.2 SEER2 / 12.0 EER2 matchup easily exceeds those utility standards, allowing the homeowner to claim instant financial incentives.

Q: What is a Safe-T drain switch?

A: An HVAC system removes gallons of water from your indoor air every day, which drains out through a PVC pipe. If that pipe clogs with algae or debris, the drain pan in your attic will overflow, causing catastrophic water damage to your ceiling. A Safe-T switch is a small sensor installed on the drain line; if it detects water backing up, it immediately shuts off the air conditioner to prevent a flood.
