Apartment AC Upgrade in Dallas (75248): 2-Ton Daikin Rooftop Installation & Crane Logistics

Living in a top-floor apartment in Dallas, Texas, offers great views and zero upstairs neighbors. However, when the brutal North Texas summer arrives, top-floor units take the absolute brunt of the radiant solar heat pressing down on the roof. If your apartment's air conditioning system is aging or failing, your living space can quickly turn into a sauna.

Replacing an HVAC system in a multi-family apartment complex is significantly more complex than a standard single-family home. It requires navigating tight indoor spaces for the air handler, coordinating heavy machinery and crane lifts for the rooftop condenser, and strictly adhering to property management regulations.

Recently, a homeowner in the 75248 zip code of North Dallas faced this exact logistical nightmare. Their aging, low-efficiency rooftop unit was struggling to maintain refrigerant pressure, and the indoor ceiling-mounted unit was failing to distribute air properly.

In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.

In this comprehensive case study, we pull back the curtain on commercial-grade logistics for residential spaces. We will walk you through how our engineering team utilized ACCA Manual J load calculations to size a high-efficiency 2-Ton Daikin 15.2 SEER2 System, coordinated a flawless rooftop crane lift, and seamlessly integrated a specialized First Co. Ceiling Mount Air Handler.

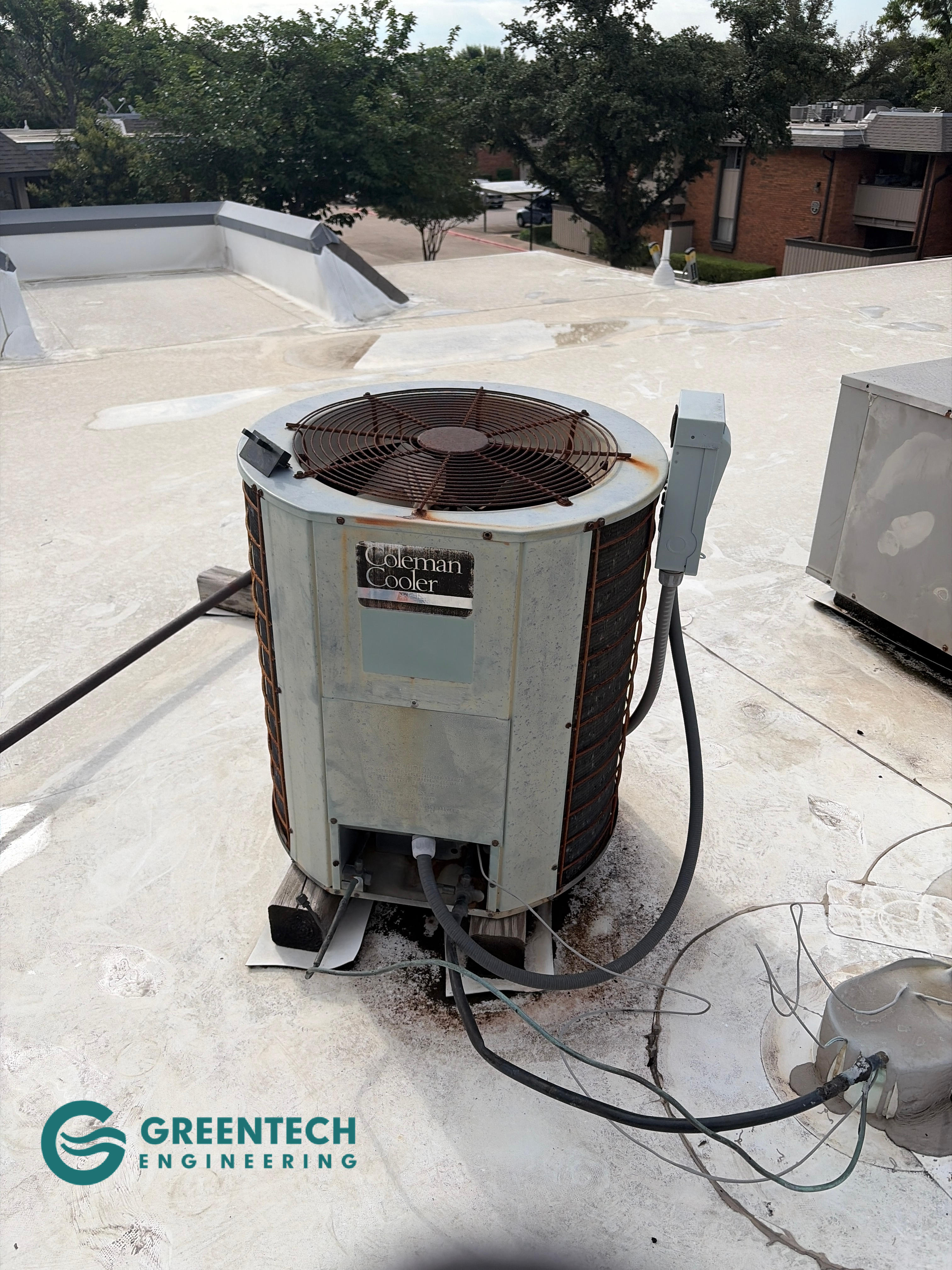

An aging, rusted Coleman air conditioning condenser sitting on a flat apartment rooftop in Dallas, Texas 75248. — The Baseline Problem: The original rooftop condenser was severely degraded by years of direct Texas sun exposure. Operating at a fraction of its original efficiency, it struggled to overcome the thermal load of the top-floor apartment.

‍

The Engineering Foundation: ACCA Manual J Load Calculation

A widespread mistake in condo and apartment HVAC replacements is assuming that a small square footage automatically means you can install the smallest, cheapest AC unit available.

Top-floor apartments have a unique thermal envelope. They absorb massive amounts of radiant heat directly from the flat roof above them. To guarantee this homeowner would remain comfortable during a 105-degree Dallas heatwave, we refused to guess.

We performed a strict ACCA Manual J Load Calculation, analyzing the apartment's square footage, the exact R-value of the shared roof, window solar heat gain, and the lack of shading. The data proved that to achieve perfect sensible cooling (temperature reduction) and latent cooling (humidity removal), the space required exactly 2 Tons (24,000 BTUs) of cooling capacity.

Proper sizing prevents the system from "short-cycling" and is the mandatory first step to securing maximum utility rebates from providers like Oncor.

Rooftop & Ceiling-Mount Equipment

With the precise sizing established, we engineered a specialized AHRI-certified matchup designed specifically for the spatial constraints of apartment living, achieving a highly efficient 15.2 SEER2 performance.

The 2-Ton Daikin Rooftop Condenser

To withstand the extreme conditions of a flat Dallas roof, we installed a premium Daikin Split System Air Conditioner featuring:

High-Efficiency Copeland® Scroll Compressor: The gold standard in compressor technology, utilizing fewer moving parts for a longer, quieter lifespan.
Advanced Copeland® CoreSense™ Technology: This onboard diagnostic module actively monitors the compressor's electrical draw. If it detects a dangerous anomaly (like a severe power surge or locked rotor), it will safely shut the system down to prevent catastrophic failure.
High-Density Foam Sound Blanket: Wraps the compressor to ensure whisper-quiet operation, preventing noise complaints from neighboring units.
Elite Protection: Backed by a 12-Year Factory Limited Parts Warranty.

The First Co. 24,000 BTU Ceiling Mount Air Handler

Apartments rarely have dedicated utility closets or expansive attics. The indoor air handler must often be hidden within the drop ceiling of a bathroom or hallway.

To accommodate this, we installed a specialized First Co. Ceiling Mount Air Handler. Designed specifically for multi-family architectures, this ultra-compact unit fits seamlessly into the ceiling cavity while still delivering powerful, balanced airflow throughout the apartment.

Spatial Engineering: Apartment living requires creative solutions. The new First Co. air handler was perfectly secured within the ceiling cavity, maximizing the homeowner's living space without sacrificing airflow performance.

‍

The Greentech Standard: Crane Logistics & Clinical Installation

Installing a rooftop system on an apartment building is a major logistical event. A standard two-man crew cannot carry a 200-pound Daikin condenser up three flights of stairs safely.

Professional Crane Logistics

To execute this installation with zero damage to the property and minimal disruption to the neighbors, Greentech coordinated professional crane services. The crane safely lifted the heavy Daikin equipment directly onto the precise rooftop location and removed the obsolete unit. This enables an efficient, highly controlled installation process.

10-Step Clinical Installation Protocols

Once the equipment was staged, our engineers executed our strict clinical protocols:

Safe Recovery: The old refrigerant was pumped down and legally recovered.
Infrastructure Defense: We installed a new concrete condenser equipment pad on the roof to protect the roofing membrane. Indoors, we installed a new drain pan and a mandatory Safe-T drain switch to automatically shut down the system if a clog ever occurs, preventing devastating water damage to the apartment below.
Nitrogen Drain Clearing: The condensation drain line was cleared with pressurized dry nitrogen to blow out years of sludge.
Precision Sealing: The new ceiling air handler was mechanically secured and balanced. All connection areas were meticulously sealed with HVAC metal tape and duct sealant to ensure zero air leakage into the ceiling cavity.
RX-11 Copper Flushing: The existing vertical copper refrigerant lines running from the roof to the ceiling were chemically flushed with RX-11 and chased with dry nitrogen to remove old, acidic mineral oil.
Nitrogen-Purged Brazing: All copper joints were soldered by certified technicians using premium 15% silver brazing rods while flowing nitrogen to prevent internal oxidation.
250 PSI Nitrogen Pressure Test: We pressurized the closed system with dry nitrogen to 250 psi and held the pressure for 15 minutes to guarantee zero micro-leaks.
500-Micron Deep Vacuum: We utilized specialized vacuum pumps to pull the system pressure down under 500 microns, physically extracting any microscopic moisture from the copper lines.
Thermostat Upgrade: We replaced the obsolete thermostat with a modern, single-stage conventional thermostat for precise control.
Commissioning: The system was fully charged and run-tested to verify exact airflow and temperature drop.

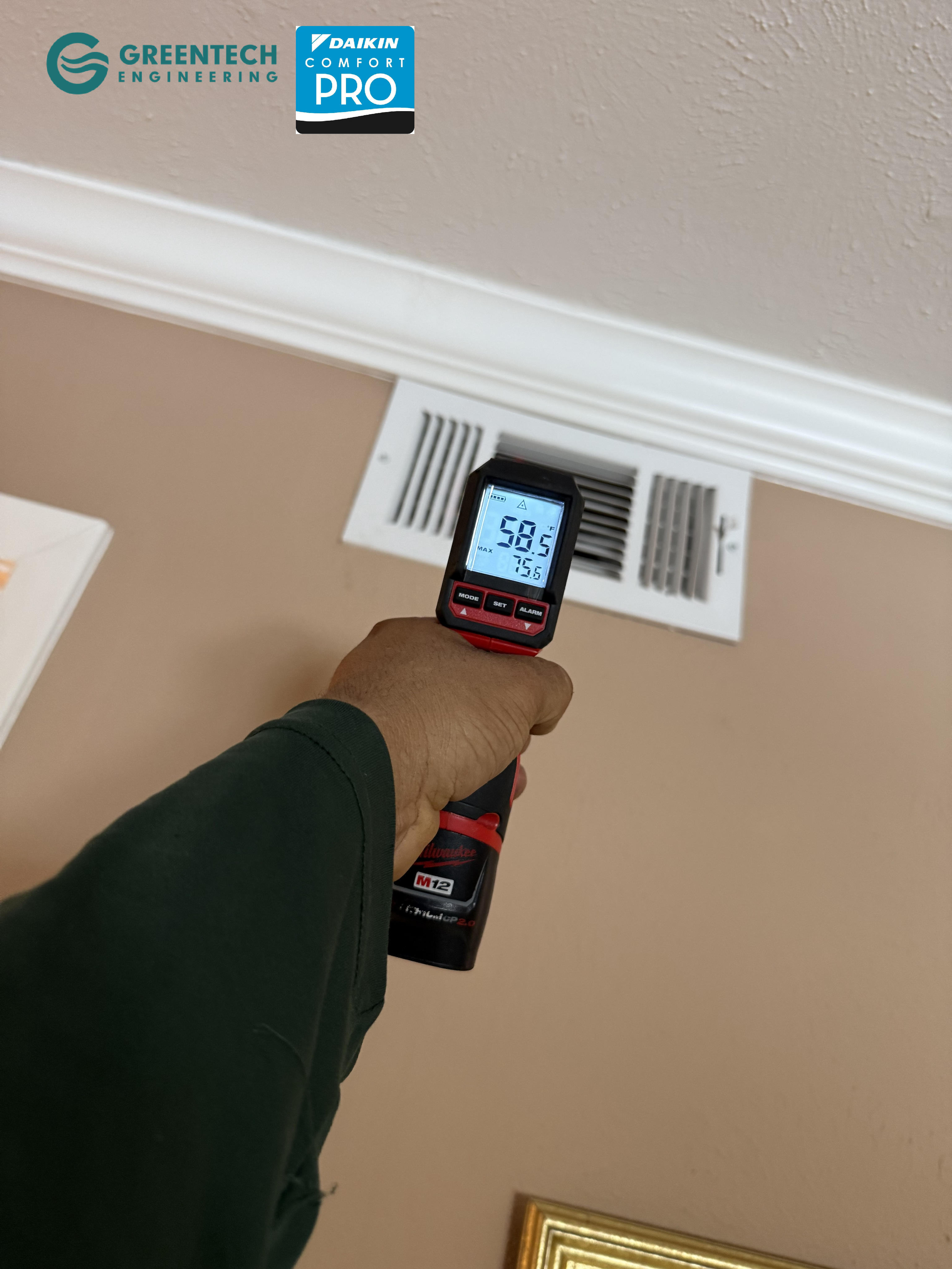

An HVAC technician holding a digital infrared thermometer pointing at an apartment ceiling vent, registering a frosty 58.5 degrees Fahrenheit. — *Proof of Performance. Following our strict vacuuming and charging protocols, the new 2-Ton system easily overcame the top-floor heat load, delivering a frosty 58.5°F supply air.*

A pristine, newly installed Daikin 2-Ton air conditioning condenser sitting perfectly leveled on a Dallas apartment rooftop alongside other units. — *The final result on the roof. A precisely engineered 2-Ton Daikin system, secured safely via professional crane lift, ready to defend this top-floor apartment from the Texas summer.*

‍

Why You Need an Authorized Oncor Service Provider

You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.

To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.

When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.

Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice.

2026 Oncor Incentive Snapshot: Dallas-Fort Worth

‍

*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.

Frequently Asked Questions

Q: Can I replace my apartment AC without a crane?

A: If your AC condenser is located on the roof of a multi-story building, a professional crane service is almost always required. Condensers weigh hundreds of pounds. Attempting to carry them up narrow apartment stairwells or via elevators is extremely dangerous, risks severe damage to the building, and is often prohibited by property management associations (HOA).

Q: What is a ceiling-mount air handler?

A: Unlike traditional vertical air handlers that sit in an attic or a dedicated utility closet, a ceiling-mount air handler is designed to lay completely flat. It is installed horizontally inside the drop-ceiling cavity (often above a bathroom or hallway) to save valuable square footage in apartments and condos.

Q: Do top-floor apartments need larger AC units?

A: Not necessarily "larger" than standard, but they do require precise engineering. Top-floor apartments absorb direct radiant heat from the roof, meaning their cooling load is significantly higher than a ground-floor apartment of the exact same size. An ACCA Manual J load calculation is the only way to determine the exact required tonnage.

Q: What is Copeland® CoreSense™ Technology?

A: CoreSense is an advanced diagnostic module built into premium Daikin outdoor units. It acts as the "brain" of the compressor, constantly monitoring its electrical draw. If it detects a dangerous situation, such as a severe power surge or an electrical short, it will actively shut the system down to protect the compressor from destroying itself.
