Protecting Your Investment: 5-Ton Daikin Fit HVAC Upgrade with Surge Protection in Dallas, TX (75243)

For homeowners managing large single-family properties in Dallas, Texas (75243), cooling the home requires serious thermodynamic power. Traditional 5-Ton air conditioning systems are massive, incredibly loud, and pull staggering amounts of electricity every time they cycle on. Furthermore, as the Texas power grid experiences increased demand and fluctuating stability, investing in a high-efficiency system without proper electrical safeguards is a critical oversight.

“In the AI-driven energy era, HVAC is no longer just about comfort — it’s about how efficiently your home uses power. At Greentech, we engineer systems that reduce your energy load and prepare your home for the future.”

Recently, a family residing in the 75243 zip code of Dallas contacted our engineering team at Greentech Engineering. They needed to replace an aging, failing central system that was struggling to cool their large floor plan. They wanted maximum efficiency, but they also wanted peace of mind—a system that was built to last, protected from the elements, and backed by undeniable warranties.

In this deep-dive engineering case study, we will explore the installation of a high-capacity 5-Ton Daikin Fit Variable-Speed System, the critical necessity of 220V surge protection for modern HVAC equipment, advanced indoor air quality (IAQ) upgrades, our uncompromising installation standards, and how we secured maximum utility incentives for this Dallas homeowner.

The Technology: 5-Ton Daikin Fit Variable-Speed Matchup

Delivering 60,000 BTUs (5 Tons) of cooling capacity usually means sacrificing backyard space to a massive, noisy metal cube. The Daikin Fit revolutionizes high-capacity cooling by packing this immense power into a sleek, side-discharge profile. This specific matchup achieves a highly efficient 15.2 SEER2 performance rating and is fully AHRI certified.

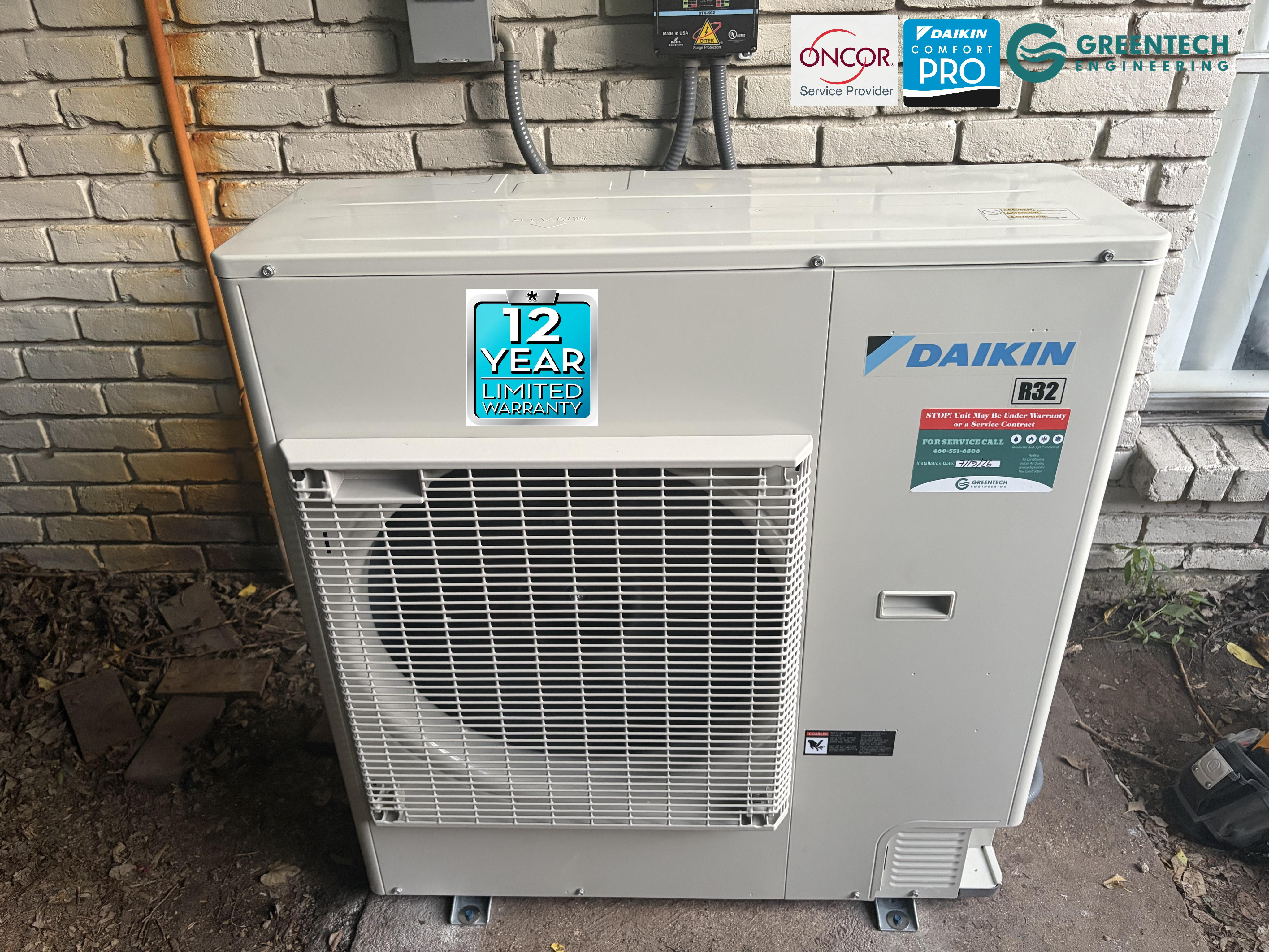

The Outdoor Innovator: Daikin Fit 60,000 BTU Side Discharge AC

• Variable-Speed Swing Compressor: Instead of violently turning on at 100% capacity, this inverter-driven compressor ramps up smoothly. It modulates its output based on real-time indoor demand, running at lower, energy-saving speeds to continuously extract humidity and maintain absolute temperature precision.
• Acoustical Mastery: 5-Ton single-stage systems sound like jet engines. The Daikin Fit, however, features a high-density compressor sound blanket and a digitally commutated fan motor. With its built-in Quiet-Mode, it can operate at remarkably low sound levels (as low as 45dBA), preserving the tranquility of your outdoor living spaces.
• Intelligent Diagnostics: Powered by Daikin control algorithmic logic and Daikin Inside intelligence, the system features an Intelligent Defrost Mode, a seven-segment LED display for fault code storage, and a field-selectable boost mode for unusually high heat loads.
• Durability: Engineered with a field-installed bi-flow filter drier, an advanced water-shedding drain pan, and hot start technology to ensure year-round reliability.

‍

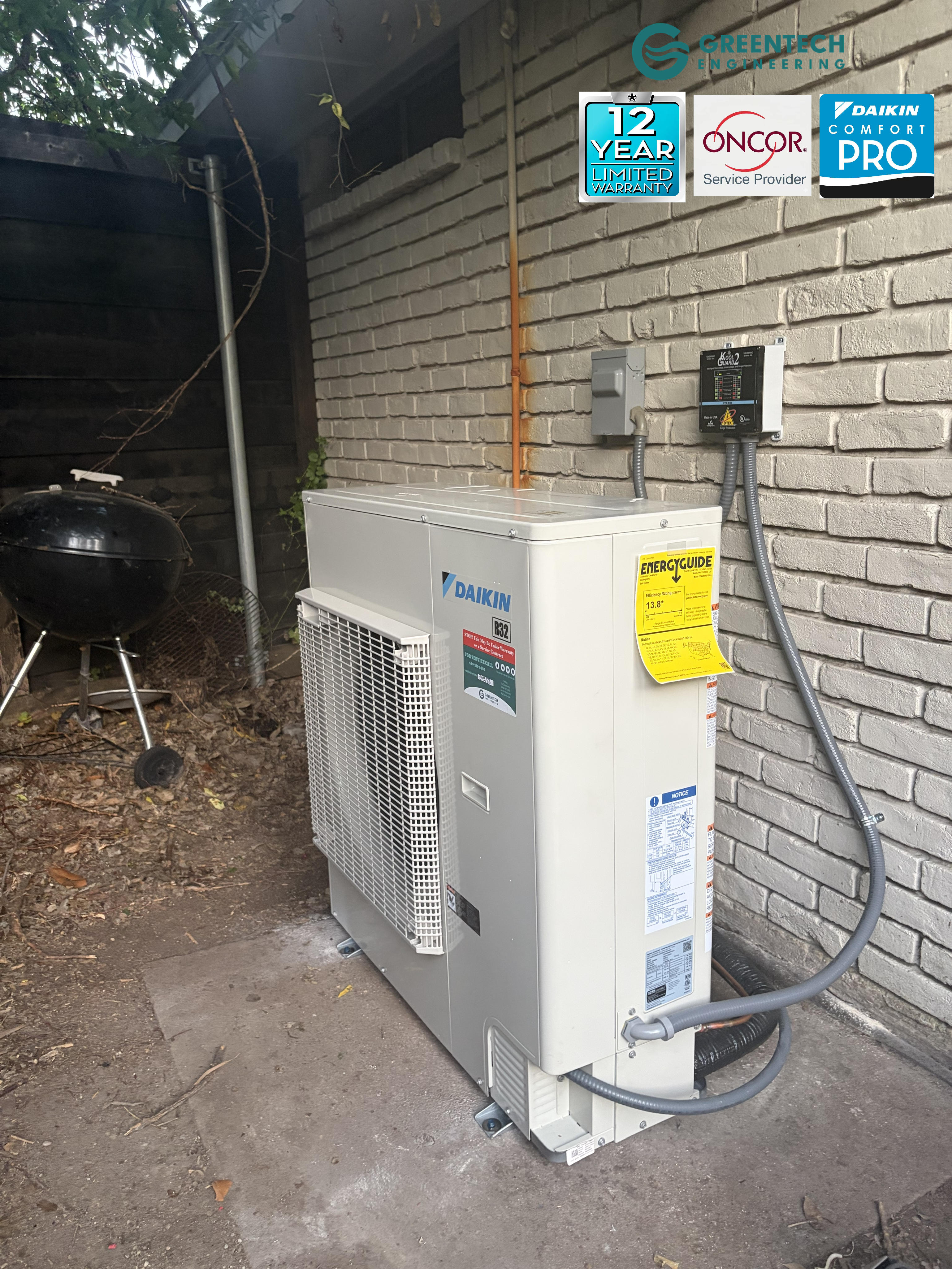

Bulletproofing the System: Voltage Monitors and Surge Protection

This is where this installation stands apart. Variable-speed air conditioners are incredibly advanced; the outdoor unit contains sophisticated inverter computer boards that act as the digital brain of the compressor.

These sensitive electronics are highly susceptible to voltage spikes, brownouts, and micro-surges common on the Texas power grid. A single severe power surge can instantly fry a $2,000 inverter board.

To completely protect the homeowner's investment, our engineers installed a dedicated 220V Voltage Monitor and Surge Protection Device. This acts as an electrical firewall. If it detects unstable voltage or a massive power surge, it instantly clamps down, absorbing the electrical hit and preventing the surge from reaching the Daikin Fit's internal computers. We also modernized the electrical connection by replacing the old condenser disconnect box with a new, liquid-tight whip and heavy-duty wires.

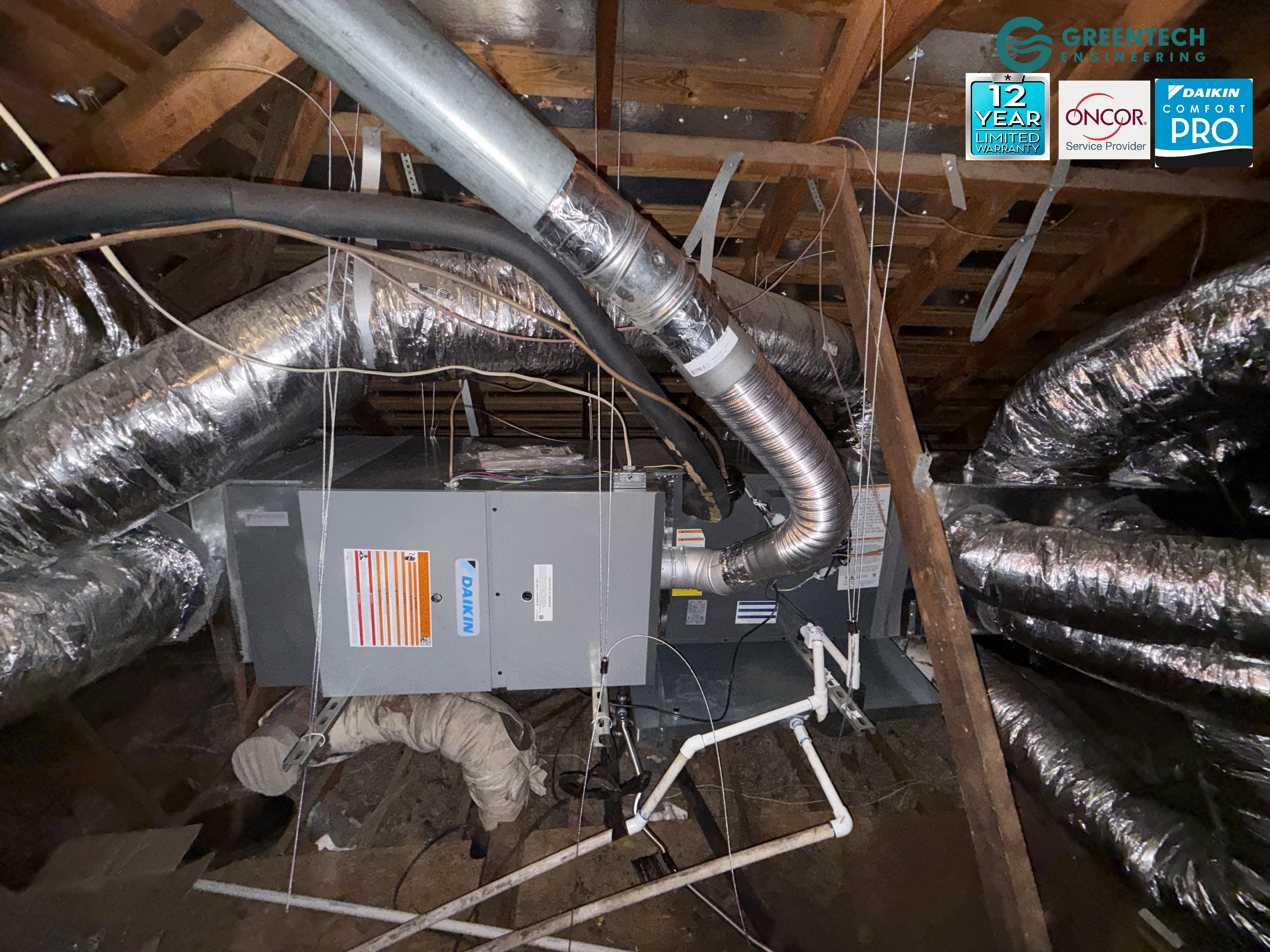

The Indoor Evaporator: Daikin 60,000 BTU Cased Coil

• Electronic Expansion Valve (EEV): This digital valve communicates constantly with the smart thermostat and outdoor unit to meter the exact micro-dose of liquid refrigerant needed into the coil. This guarantees ultimate humidity extraction, keeping the Dallas home crisp and dry.
• All-Aluminum Construction: Built with 7mm rifled aluminum tubing and corrugated aluminum fins, rendering it completely immune to the microscopic formicary corrosion that ruins older copper coils.

The Heating Core: Daikin 100,000 BTU 80% AFUE Two-Stage Gas Furnace

• Variable-Speed ECM Blower Motor: A 5-Ton system must move roughly 2,000 CFM (Cubic Feet per Minute) of air. This ultra-quiet ECM motor automatically adjusts its torque to deliver this massive volume of air smoothly and silently, eliminating hot spots.
• Two-Stage Gas Valve & Induced Draft Blower: Allows the 100,000 BTU furnace to run at a lower, quieter, and more efficient heat output during mild winter nights, only engaging the second stage during a hard Dallas freeze.
• Heavy-Duty Heat Exchanger: Features a fully insulated, stainless-steel dual-diameter/tubular design and a highly durable Silicon Nitride igniter.

Redefining Airflow and Indoor Air Quality (IAQ)

When pushing 5 Tons of airflow, standard, poorly constructed ductwork will cause high static pressure, resulting in loud "whooshing" noises and suffocating the variable-speed motor.

To ensure flawless aerodynamics, our engineers completely rebuilt the "lungs" of the HVAC system in the attic:

• Custom Supply Plenum: We replaced the old supply plenum with a custom-fabricated insulated metal air box, allowing the conditioned air to leave the furnace with zero restriction.
• Advanced Return Plenum & Media Air Cleaner: We replaced the return plenum with a custom insulated metal 4-inch filter combo air box. Integrated into this was the Clean Comfort Perfect Platform Media Air Cleaner. Unlike standard 1-inch filters that clog quickly and restrict airflow, this massive 4-inch media filter traps microscopic dust, pollen, and pet dander without choking the system. It vastly improves indoor air quality while protecting the evaporator coil from dirt buildup.
• Flex Duct Optimization: We ran new R-8 flex duct with start collars and insulated boots to optimize specific airflow runs, ensuring every room receives perfectly balanced conditioning.

‍

The Greentech Standard: 10-Step Clinical Installation

A premium variable-speed system demands laboratory-grade installation. Our certified engineers executed the following uncompromising protocol, followed by a strict municipal Permit and Inspection process:

1. Environmental Safety: The old system was safely dismantled, and all legacy refrigerant was pumped down and legally recovered.
2. Infrastructure Defense: We installed a new Safe-T drain switch, heavily insulated drain lines, and a new concrete condenser equipment pad.
3. Nitrogen Drain Clearing: The existing condensation drain line was cleared with pressurized dry nitrogen. A new drain trap and vent were replaced.
4. Structural Mating: The new air handler was securely connected to the new return and supply plenums with hex washer head HVAC screws and balanced with a structural hanging system.
5. Aero-Sealing: All connection seams were sealed with engineered HVAC metal tape and duct sealant to minimize air leaks.
6. RX-11 Chemical Purging: The existing hidden copper line sets were flushed with RX-11 and dry nitrogen to strip out acidic legacy mineral oil.
7. Nitrogen-Purged Brazing: Technicians flowed dry nitrogen through the copper pipes while soldering all joints with a 15% silver brazing rod by a certified technician.
8. 250 PSI Pressure Test: The system was pressurized with dry nitrogen to 250 psi and held for 15 minutes to pass a strict leak check.
9. 500-Micron Deep Vacuum: The system was vacuumed down under 500 microns before charging up, removing all microscopic moisture to prevent internal acid formation.
10. Final Commissioning: The system was digitally calibrated, run, and tested for exact thermodynamic performance.

Daikin One Touch Smart Thermostat Integration

To serve as the digital commander of this advanced system, we installed the Daikin One Touch Smart Communicating Thermostat.

• Simple, Elegant Industrial Design: Features a responsive capacitive touchscreen user interface.
• Smart Control: Wi-Fi-enabled with iOS and Android app control, plus voice control via Amazon Alexa and Google Assistant.
• Advanced Functions: Includes Away mode with geo-fencing, outdoor environment monitoring (temperature, humidity, weather forecast), and a programmable 4-event schedule with an adjustable hold function.
• IAQ & Diagnostics: Compatible with the Daikin One home air monitor for IAQ visualization, provides real-time error and service notifications, and offers multi-language support (English, Spanish, French).

Unmatched Warranties: The Ultimate Peace of Mind

When you invest in elite technology, it should be backed by elite guarantees. This installation provides the homeowner with unprecedented security:

• 12-Year Unit Replacement Guarantee: If the compressor fails within the first 12 years (upon homeowner registration), Daikin does not just send a replacement part; they replace the entire outdoor condensing unit.
• 12-Year Limited Parts Warranty: Covers all functional parts inside the Daikin Fit condenser, the evaporator coil, and the Daikin One Touch Thermostat.
• Lifetime Heat Exchanger Warranty: The gas furnace heat exchanger is covered for as long as you own your home (with a 6-year unit replacement on the furnace).
• Greentech 3-Year Labor Warranty: Most standard HVAC companies only offer a 1-year labor warranty. Because we utilize clinical installation protocols like 500-micron deep vacuums and nitrogen-purged brazing, we confidently provide a Complimentary Three Years Labor Warranty. If anything goes wrong related to our installation within the first 36 months, we fix it for free.

Dallas HVAC Upgrades FAQs

Search engines and voice assistants are constantly looking for precise answers to homeowner questions. Here is what you need to know about protecting your HVAC investment in the DFW metroplex.

Q: Why does a variable-speed AC need a 220V surge protector?

A: Variable-speed air conditioners contain highly sensitive inverter computer boards that act as the brain of the system. The Texas power grid frequently experiences micro-surges and voltage irregularities. A 220V surge protector acts as an electrical firewall, absorbing power spikes before they can fry your equipment's expensive control boards, saving you thousands in potential out-of-warranty electrical repairs.

Q: Are 4-inch media filters better than 1-inch AC filters?

A: Yes. A 4-inch media filter has significantly more surface area than a standard 1-inch filter. This allows it to capture much finer airborne particles (like pet dander, pollen, and microscopic dust) without restricting the airflow to your blower motor. A 4-inch filter improves your indoor air quality, protects your evaporator coil from dirt buildup, and only needs to be replaced every 6 to 12 months.

Q: What does a "12-Year Unit Replacement Warranty" mean?

A: A unit replacement warranty means if a major component (like the compressor) fails, you get a brand-new outdoor unit, not just a repaired part. If the Daikin Fit swing compressor fails within the first 12 years of ownership (upon proper registration), Daikin will replace the entire outdoor condensing unit, providing you with a factory-fresh system rather than a patched-together repair.

Q: Why do most HVAC companies only offer a 1-year labor warranty?

A: Many contractors lack confidence in their rushed installation practices. Cutting corners—such as skipping a 500-micron deep vacuum or failing to flow nitrogen while brazing—leads to premature system failure within a few years. At Greentech Engineering, we strictly adhere to clinical, mechanical engineering standards. This allows us to confidently provide an industry-leading 3-Year Complimentary Labor Warranty on our Daikin Fit installations.

‍

Securing Your Utility Rebates

Why You Need an Authorized Oncor Service Provider

You cannot claim the Oncor rebate by buying an AC online or hiring an uncertified handyman. The utility company strictly regulates the disbursement of these funds to protect the integrity of the power grid.

To access the Home Energy Efficiency Program, you must hire an official Oncor Participating Service Provider.

When you partner with Greentech Engineering, we handle the entire bureaucratic process. We gather the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) performance certificates, document the baseline load of your old system, submit the engineering data to the Oncor portal, and secure the approval.

Best of all, you do not have to wait months for a check to arrive in the mail. We apply the approved Oncor incentive as an instant, upfront discount directly on your installation invoice. We guarantee you to have the highest incentive you could have.

2026 Oncor Incentive Snapshot: Dallas-Fort Worth

*Incentive Disclaimer: The $3,400 figure represents the absolute maximum potential incentive. Actual instant discount amounts are strictly determined by Oncor's customized kW/kWh reduction formula based on your specific home’s thermodynamic load reduction. Proactive replacement and proper Manual J sizing are the keys to maximizing your payout.

Elevate and Protect Your Home Today

Are you tired of loud, inefficient cooling, dusty indoor air, and worrying about power surges destroying your equipment? Upgrading to a premium, communicating Daikin Fit system requires precision engineering, strict ACCA standards, electrical safeguards, and a certified team that stands behind their work.

Don't leave your Dallas home's comfort to guesswork. Partner with the mechanical engineers who understand the science of Texas thermodynamics and the realities of the power grid.

Contact Greentech Engineering Today to schedule your comprehensive residential HVAC diagnostic, request a Manual J load calculation, and secure your home's thermal future.
