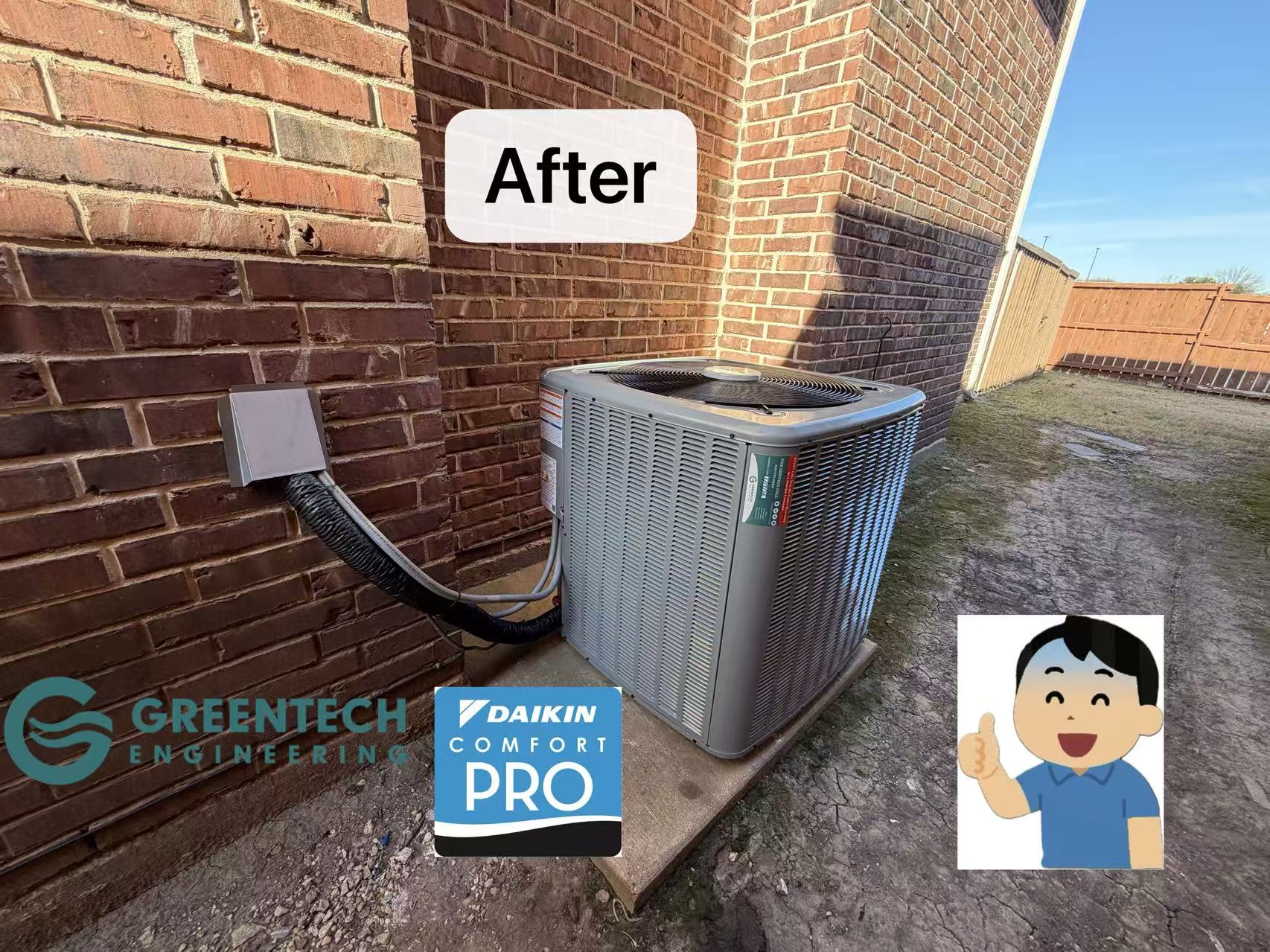

Case Study: Engineering-Grade Daikin Heat Pump Installation in Forney, TX 75126

Category: Residential HVAC Replacement | Location: Forney, TX (75126) | System: Daikin 42,000 BTU Heat Pump

In the variable climate of North Texas, replacing an aging HVAC system requires more than just swapping out boxes. It requires a comprehensive engineering approach to ensure airflow, efficiency, and longevity.

At Greentech Engineering Heating & Air Conditioning, we recently completed a full system replacement for a single-family home in Forney, TX 75126. The project involved upgrading an aging Carrier split system to a high-efficiency Daikin Heat Pump, complete with critical ductwork corrections and zoning optimization.

Project Snapshot: The Challenge & Solution

The homeowner was dealing with an older Carrier system that had declining reliability, noise issues, and poor temperature balance due to improper zoning. They wanted a solution that offered long-term peace of mind, backed by a strong manufacturer warranty and professional installation standards.

The "Greentech Difference": An Engineering-First Scope of Work

Many contractors skip steps to save time. At Greentech, we follow ACCA (Air Conditioning Contractors of America) and manufacturer best practices. Here is how we engineered this installation for maximum reliability:

1. Advanced System Preparation & Protection

Before the new unit was installed, we ensured the infrastructure was sound.

• Removal & Disposal: The old Carrier condenser and air handler were safely disconnected, removed, and disposed of according to EPA regulations.
• Refrigerant Line Flush: Existing copper lines were flushed with RX-11 and purged with dry nitrogen to remove old oil and contaminants from the previous Carrier unit.
• Nitrogen Brazing: We utilized a 15% silver rod while purging nitrogen through the lines. Why? This prevents oxidation (soot) from forming inside the pipes, which protects the new Daikin compressor from premature failure.
• Deep Vacuum: The system was evacuated to below 500 microns before charging, ensuring a moisture-free, leak-free sealed system.

2. Zoning & Airflow Correction

The previous system suffered from static pressure issues due to a poor bypass damper. We corrected this by:

• Installing a Honeywell CPRD Zoning Damper: This regulates static pressure automatically, protecting the blower motor and ensuring quiet operation.
• Return Air Correction: We installed an insulated metal return plenum sized specifically for the 3.5-ton airflow requirement.
• Duct Sealing: All joints were sealed with mastic and approved HVAC tape to minimize leakage.

3. Equipment Highlights: Daikin 14.3 SEER2 Heat Pump

We selected this Daikin system for its robust build quality tailored to the Texas heat:

• Copeland® Scroll Compressor: Features "CoreSense™" diagnostics for advanced protection.
• Quiet Operation: Includes a high-density foam compressor sound blanket and a high-capacity muffler.
• Durable Coil: The outdoor unit features a copper tube/enhanced aluminum fin coil (5mm diameter) for superior heat transfer.
• Factory-Installed Protection: Bi-flow liquid line filter drier, suction line accumulator, and crankcase heater come standard.

Frequently Asked Questions

Q: Is a 14.3 SEER2 heat pump efficient enough for Forney, TX?

A: Yes. In the DFW climate, a 14.3 SEER2 system offers an excellent "sweet spot" between upfront cost and monthly energy savings. When installed with correct duct design—as we did in this project—it provides reliable, efficient cooling for our hot summers and heating for our mild winters.

Q: Why did you replace the bypass damper?

A: The old bypass damper was causing excess static pressure, which leads to noise and wears out the blower motor. We upgraded to a Honeywell CPRD damper to improve zoning performance and protect the new Daikin equipment.

Q: Why is nitrogen testing and a deep vacuum so important?

A: These are non-negotiable engineering standards. A deep vacuum (below 500 microns) removes moisture that can turn into acid inside your system. Nitrogen pressure testing (at 250 psi) proves the system is leak-free before we ever add refrigerant.

The Verdict: Results & Warranty

The homeowner immediately noticed quieter operation and smoother airflow throughout the house compared to the old Carrier unit. The zoning system now balances temperatures effectively without the "rushing wind" noise.

Peace of Mind Included:

• 12-Year Factory Limited Parts Warranty.
• 6-Year Unit Replacement Warranty (Compressor Failure).
• 3-Year Labor Warranty from Greentech Engineering.

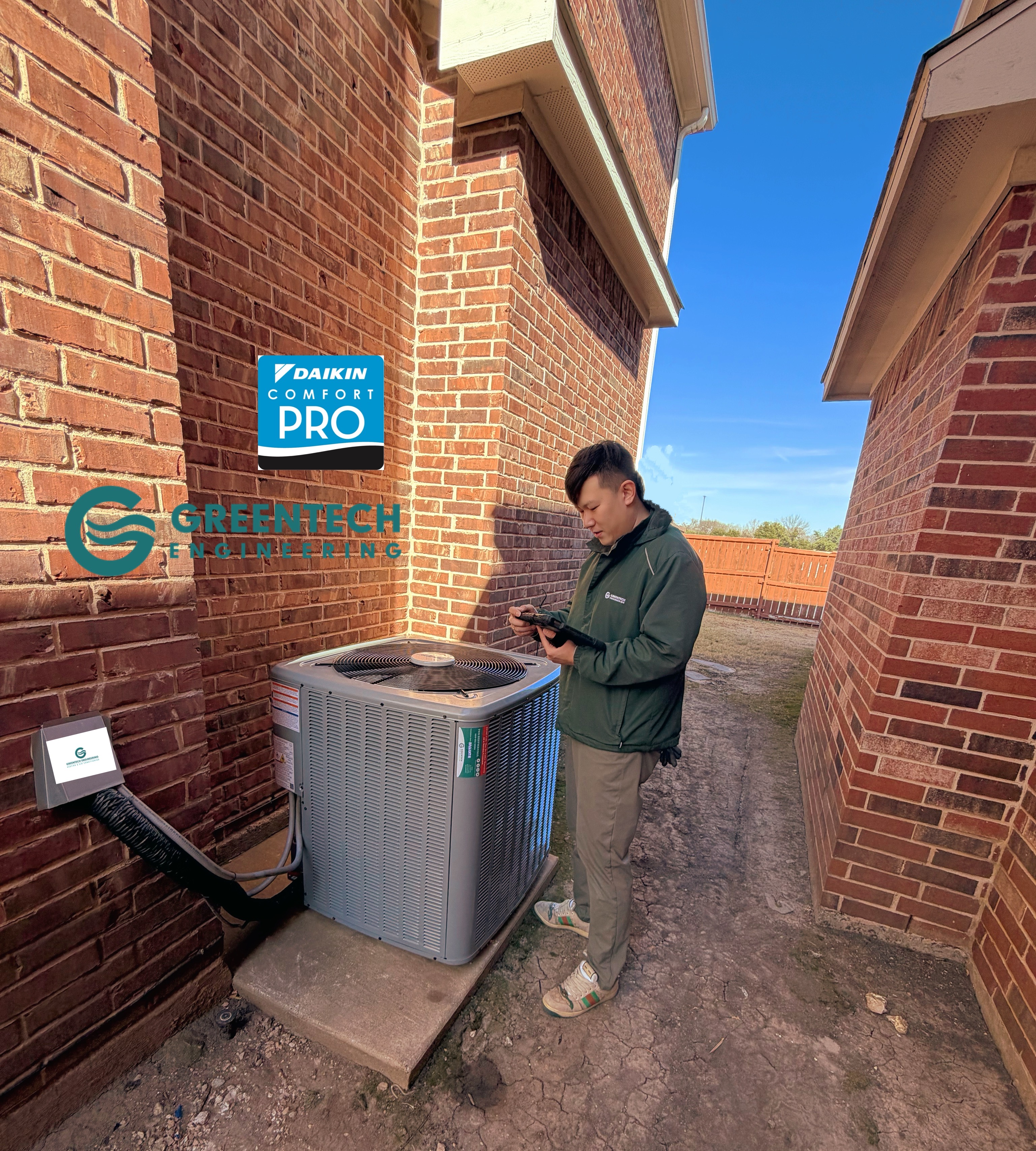

Author & Technical Review

Siwei (Lucas) ChenCTO | Greentech Engineering Heating & Air Conditioning

• Education: B.S. in Mechanical Engineering (Virginia Tech)
• Certifications: ACCA Certified (Manual J, S, D) | NCI Certified – Air Balancing & Duct Optimization | Daikin Comfort Pro
• Experience: 10+ years of residential HVAC engineering in DFW.

This case study was written and reviewed by Lucas Chen to ensure technical accuracy, adherence to Forney, TX building codes, and alignment with HVAC industry best practices.
