🔧 High-Standard Furnace & Airflow Upgrade in McKinney, TX 75070

A Complete Engineering-Level Case Study for North Texas Homeowners

As North Texas enters winter, more homeowners in McKinney, TX 75070 are noticing airflow issues, aging furnaces, and inconsistent heating—especially in two-story homes and properties built between 1995 and 2015.
This case study highlights a real project completed by Greentech Engineering Heating & Air Conditioning, offering insight into what a true engineering-level HVAC upgrade looks like when executed according to ACCA and NCI standards.

This is far more than a simple furnace swap.
It is a comprehensive airflow restoration and heating system upgrade, engineered to improve long-term comfort, reliability, and system performance for the North Texas climate.

Why This McKinney Home Needed More Than a Furnace Replacement

The homeowner contacted Greentech due to three common issues:

1. Weak airflow throughout the home

Several rooms, including upstairs bedrooms, had uneven temperatures and weak supply airflow.

2. Aging furnace approaching the end of lifespan

The existing system had blower noise, inconsistent heating cycles, and signs of heat exchanger deterioration.

3. Severe duct leakage around old plenums

Both the supply and return plenums were leaking conditioned air into the attic—very typical among DFW homes.

4. Stagnant water in the drain pan

The drain line was improperly pitched, leading to standing water and risk of attic damage.

The homeowner wanted a long-term engineering-grade solution, not a simple “replace and go.”

Our Engineering Evaluation Before Recommending Solutions

Greentech performed a full-system diagnostic including:

• Static pressure measurement
• Temperature rise evaluation
• Blower performance assessment
• Duct sizing review
• Drainage and elevation check
• Plenum leakage inspection

Using NCI airflow diagnostics and ACCA Manual D guidelines, we identified several airflow bottlenecks and system deficiencies common in McKinney homes of similar size and age.

What Greentech Recommended for This McKinney Home

We designed a system-level solution focusing on performance, comfort, and long-term reliability:

✔ Goodman 80,000 BTU 80% AFUE gas furnace with ECM blower
✔ New insulated metal supply plenum or custom duct-board plenum
✔ New insulated return plenum with 4-inch filter box
✔ New secondary drain pan & fully re-pitched drain line system
✔ New R-8 flex duct run to boost airflow to an underperforming room
✔ UL-181 tape + mastic sealing for all connections
✔ Nylon strap duct hanging for reduced vibration & correct support

This approach ensures balanced airflow, quieter operation, and long-term stability—essential for the DFW climate.

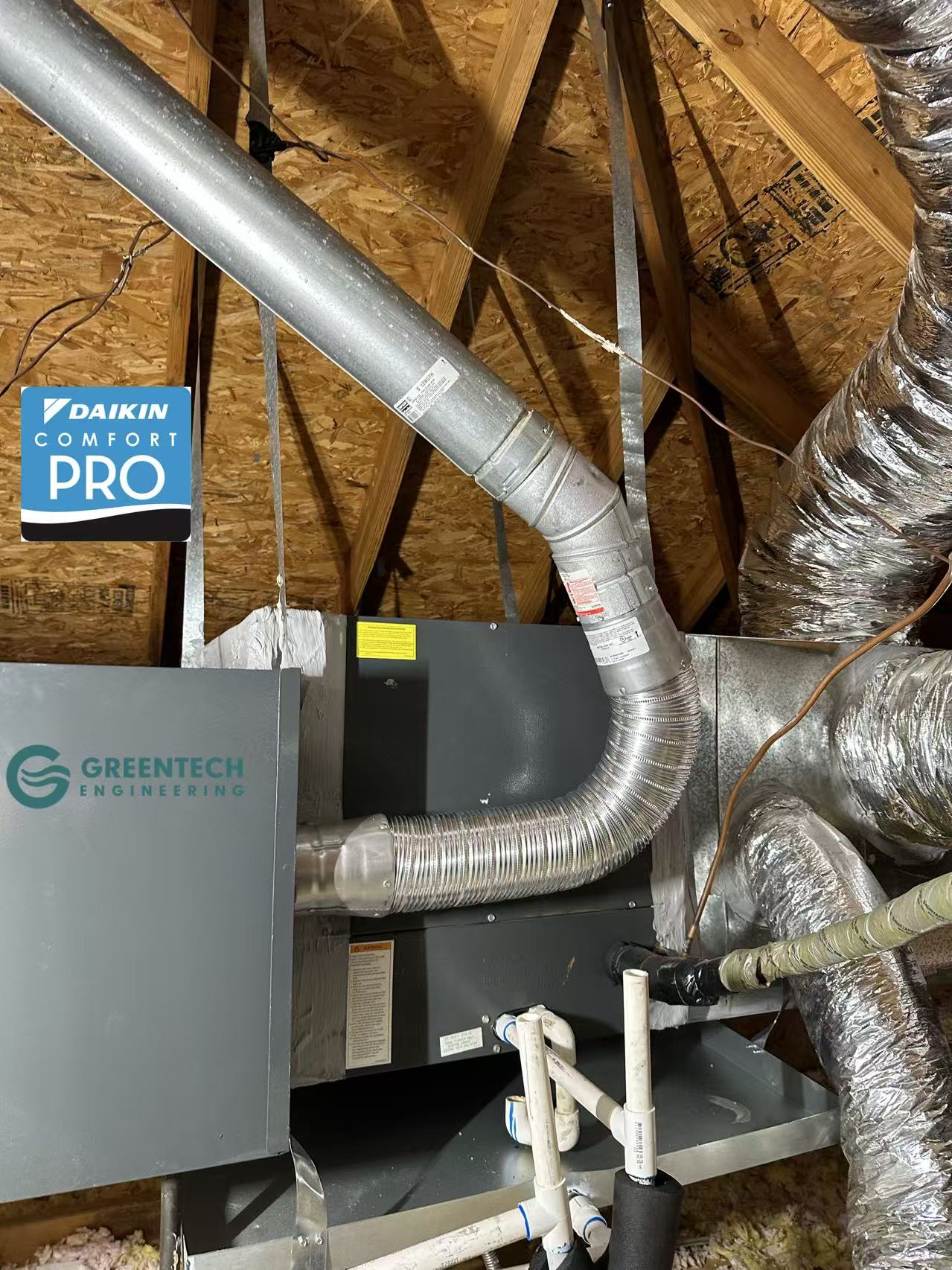

Step-by-Step Breakdown of the McKinney Upgrade

1. Installing the Goodman ECM Furnace

The ECM blower motor delivers:

• Improved airflow across long duct runs
• Quieter heating cycles
• More efficient operation
• Stable temperature control

In McKinney and Collin County, where attic systems experience extreme temperature swings, ECM motors significantly enhance comfort.

2. Rebuilding the Supply Plenum

We removed the deteriorated original plenum and rebuilt it using:

• Insulated 26-gauge metal air box, or
• Custom fabricated duct-board plenum

Benefits include:

• Reduced leakage
• Better static pressure control
• Improved airflow distribution
• Long-term durability under Texas attic heat

3. Upgrading the Return Plenum with a 4" Filter Box

The old system used a restrictive 1-inch filter.
The new design includes:

• A 4-inch deep media filter
• Lower pressure drop
• Longer filter lifespan
• Cleaner furnace components
• Better indoor air quality

This upgrade alone significantly improved static pressure and airflow.

4. Drain Pan Replacement & Drain Line Optimization

The original drain system had standing water due to improper elevation.
We installed:

• A brand-new secondary drain pan
• A properly pitched primary drain line
• A secure hanging system for the pan

This prevents attic leaks—one of the leading winter-season HVAC emergencies in Dallas–Fort Worth.

5. Adding a New R-8 Flex Duct Run

One room consistently had low airflow.
We installed a full new duct run:

• Start collar cut into plenum
• Insulated supply/return boot
• UL-rated flex tape & mastic seal
• Nylon strap hanging
• R-8 insulation for efficiency

The homeowner immediately noticed improved airflow and more even heating.

6. ACCA/NCI-Level Sealing & Optimization

All duct connections were sealed using:

• UL-181 approved tape
• Mastic sealant
• Mechanical fastening as required

This reduces leakage that typically wastes 20–30% of heated air in older DFW homes.

Results: A More Comfortable, Efficient McKinney Home

After commissioning and testing the system, the homeowner experienced:

✔ Stronger airflow

Especially in previously underperforming rooms.

✔ More even temperatures

Far less hot/cold cycling.

✔ Quieter heating

Thanks to ECM blower technology.

✔ Lower energy usage

Static pressure reduction improves system efficiency.

✔ Peace of mind for the holidays

With a reliable new system and rebuilt airflow path.

Why Now Is the Best Time for Tune-Ups or Replacement

Ensure a Peaceful, Worry-Free Holiday Season

Cold fronts in North Texas are unpredictable.
Furnace failures spike dramatically during holiday weeks.

Replacing or tuning up your system before peak demand helps avoid:

• Emergency breakdowns
• Holiday disruptions
• Attic drain pan overflows
• Long waits for service
• Unsafe heating operation

The weeks leading into December and January are truly ideal.

Why McKinney & DFW Homeowners Choose Greentech

Greentech is not a “swap-and-go” installer.
We are an engineering-driven HVAC company certified by:

• ACCA Certified
• NCI Certified (Air Balancing & Duct Optimization)
• Daikin Comfort Pro Contractor
• BBB A+ Accredited
• Google Verified Business
• Yelp Verified Business

Every job follows an engineering process—no shortcuts.

📌 Frequently Asked Questions (Q&A)

SEO + AEO + DFW Local Search Optimized

Q1. How do I know if my furnace in McKinney needs replacement or repair?

Common indicators include weak airflow, inconsistent temperatures, high gas bills, excessive noise, frequent repairs, or a furnace older than 12–18 years.

Q2. Why rebuild the supply and return plenums?

Original plenums in DFW homes frequently leak 20–30% of conditioned air. Rebuilding them reduces leakage, improves airflow, and protects your furnace.

Q3. What is the benefit of adding a new R-8 duct run?

It increases airflow to underperforming rooms, reduces pressure drops, evens out temperatures, and improves comfort.

Q4. Why is ECM blower technology recommended in Texas?

It provides stronger airflow, more efficient heating, quieter operation, and better comfort management across long duct runs.

Q5. Do these systems qualify for federal tax credits?

High-efficiency furnaces and heat pumps may qualify under Section 25C. ECM furnace upgrades do not, but airflow improvements significantly enhance overall system performance.

Q6. Why is early winter the best time for a tune-up?

It prevents peak-season failures, ensures reliability during holiday gatherings, and avoids long wait times during cold snaps.

Q7. How does Greentech differ from other HVAC companies in DFW?

We use engineering-based diagnostics, precise airflow measurements, and ACCA/NCI standards—unlike typical “swap-only” companies.

Q8. What areas of DFW do you service?

McKinney, Allen, Plano, Frisco, Prosper, Little Elm, Carrollton, Richardson, Addison, Lewisville, Irving, Denton, and throughout Dallas–Fort Worth.

✍️ About the Author

Siwei (Lucas) Chen

CTO, Greentech Engineering Heating & Air Conditioning
B.S. Mechanical Engineering, Virginia Tech
ACCA Certified (Manual J, S, D)
NCI Certified in Air Balancing & Duct Optimization
Daikin Comfort Pro Contractor
10+ Years of HVAC Engineering Experience in Dallas–Fort Worth

Lucas specializes in solving airflow, comfort, and efficiency problems using precise engineering-based diagnostics for Dallas–Fort Worth Metroplex homes. His work focuses on airflow redesign, static pressure reduction, duct optimization, high-efficiency system commissioning, and long-term comfort solutions for North Texas families.

‍
