AC Compressor Replacement in Celina 75009

Professional Refrigerant Recovery, Leak Testing, and Precision Charging

When an air conditioner loses its ability to cool effectively—or stops running altogether—the compressor is often the critical component at fault. For homeowners in Celina, TX 75009, Greentech Engineering Heating & Air Conditioning recently completed a full residential AC compressor replacement following strict engineering and safety standards. This article documents the complete scope of work, explains why each step matters, and outlines what homeowners should expect from a high-quality, code-compliant compressor replacement.

Why Compressor Quality and Installation Matter

The compressor is the heart of the air conditioning system. It circulates refrigerant, enabling heat transfer and cooling. Even a premium compressor will fail prematurely if installed incorrectly—common issues include moisture contamination, improper brazing, inadequate evacuation, or inaccurate refrigerant charge.

At Greentech Engineering HVAC, our approach is process-driven and verification-based, not guesswork. Every compressor replacement follows documented procedures aligned with manufacturer specifications and industry best practices.

Project Overview: Celina, TX 75009

• Service Type: Residential AC Compressor Replacement
• Refrigerant Type: R-410A
• Home Type: Single-family residence
• Objective: Restore reliable cooling, protect system longevity, and ensure manufacturer-compliant installation

Detailed Scope of Work (Step-by-Step)

1. Safe Compressor Removal & Refrigerant Recovery

The failed compressor was fully removed and properly disposed of. All existing refrigerant was recovered using EPA-approved recovery equipment, preventing environmental release and ensuring compliance with federal regulations.

Why this matters: Improper refrigerant handling can damage the environment, violate EPA rules, and contaminate the new compressor.

2. Liquid Line Filter Drier Replacement

A new liquid line filter drier was installed as part of the compressor replacement.

Why this matters: When a compressor fails, acid and debris may circulate through the system. Replacing the filter drier protects the new compressor from contamination and moisture-related damage.

3. New Compressor Installation & Mechanical Securing

The new compressor was positioned, aligned, and secured using existing factory-approved fasteners, then brazed to the copper line sets.

Why this matters: Proper mounting minimizes vibration, reduces noise, and prevents refrigerant line stress over time.

4. Precision Brazing with 15% Silver Rod

All refrigerant line connections were brazed using 15% silver alloy rods by a certified HVAC technician. Any necessary line set modifications were included to ensure proper fit and flow.

Why this matters: High-silver brazing creates stronger, cleaner joints that resist leaks under high operating pressures common in R-410A systems.

5. Nitrogen Pressure Test (250 PSI)

The system was pressurized with dry nitrogen to 250 PSI and held for a minimum of 15 minutes to confirm zero pressure loss.

Why this matters: Pressure testing verifies joint integrity before refrigerant is introduced, eliminating the risk of slow leaks that reduce efficiency and shorten equipment life.

6. Deep Vacuum Evacuation (Below 500 Microns)

After passing the leak test, the system was evacuated to below 500 microns using a professional vacuum pump and digital micron gauge.

Why this matters: Deep evacuation removes moisture and non-condensable gases, which can cause acid formation, poor performance, and compressor failure.

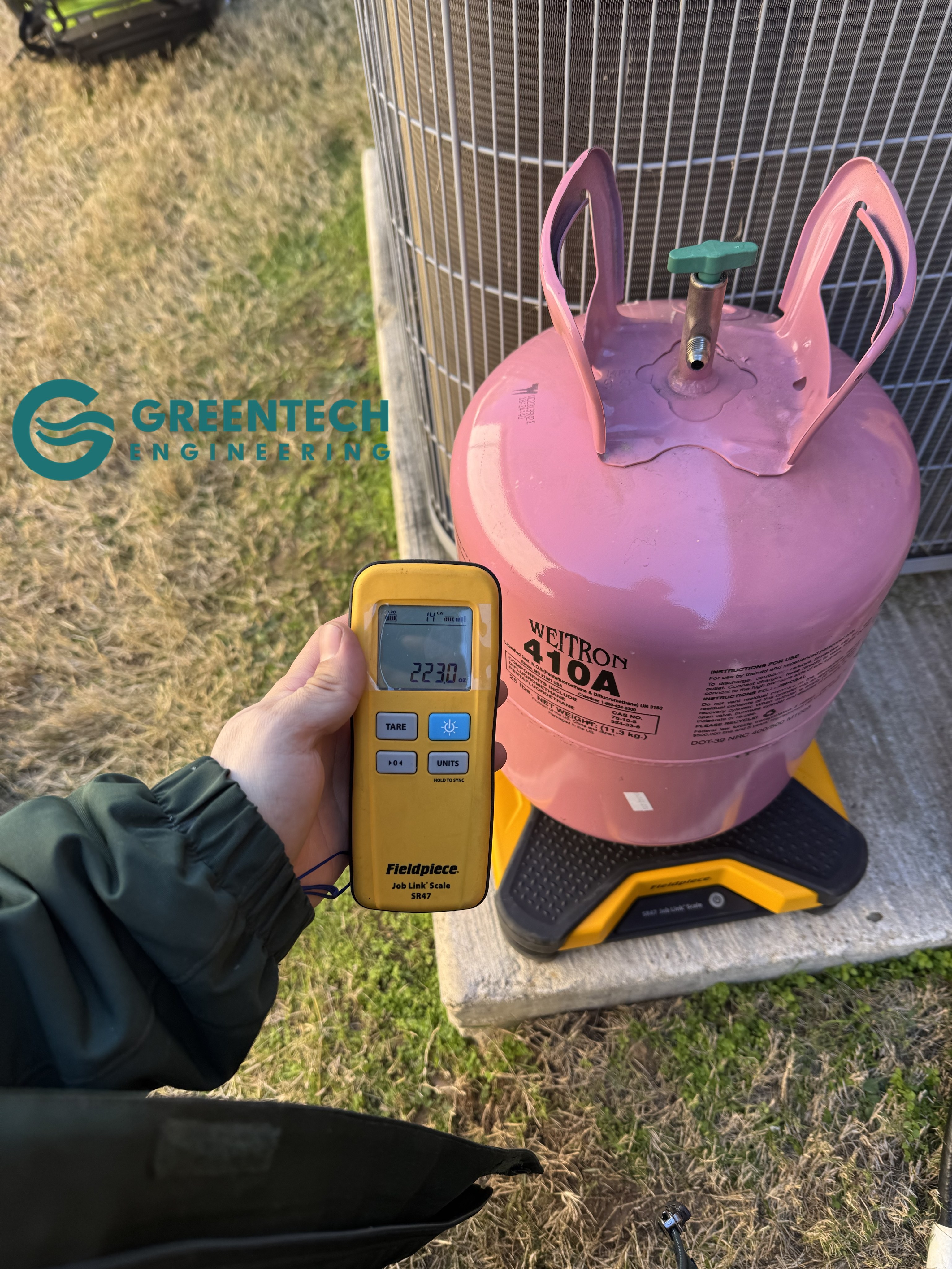

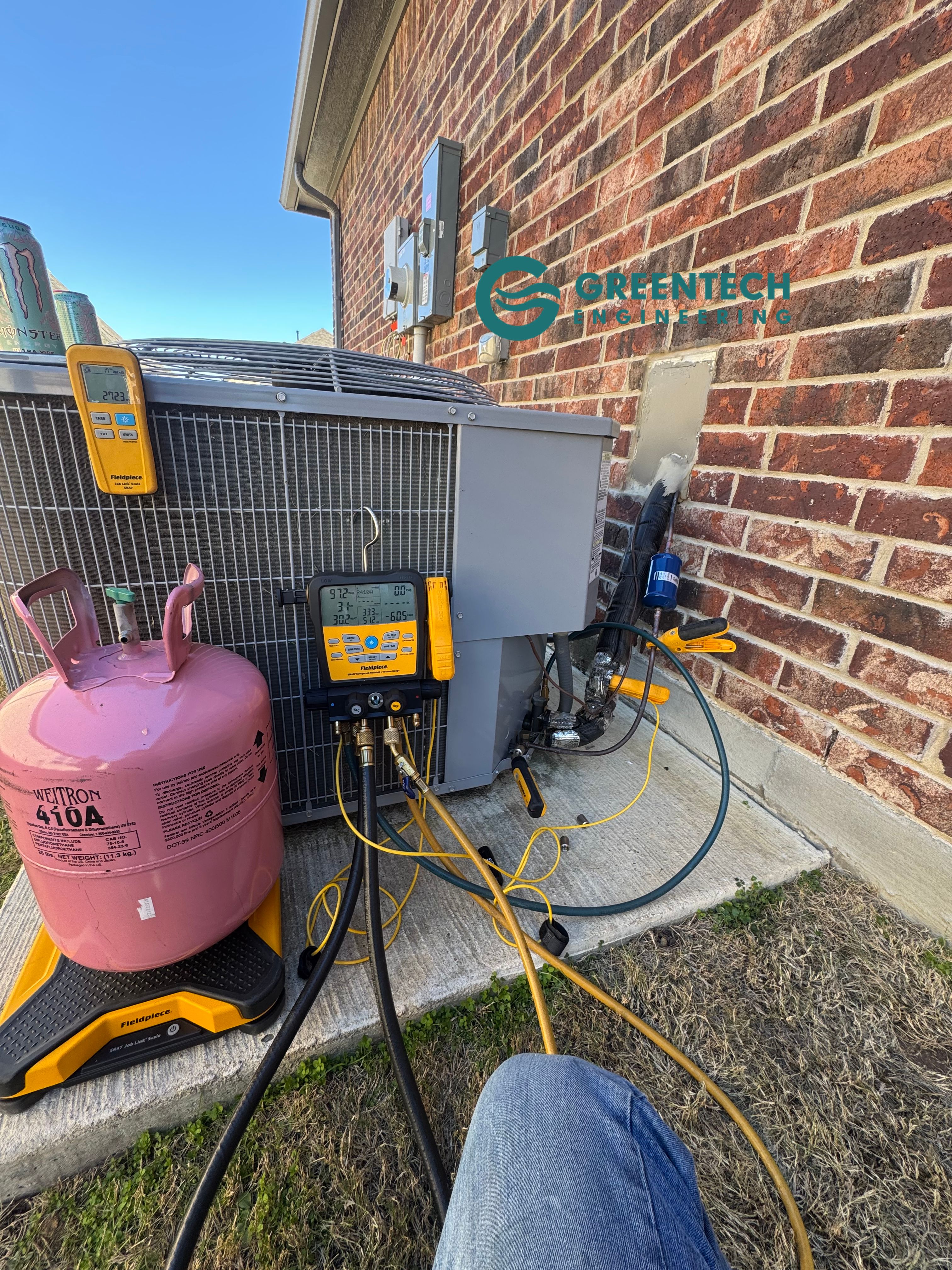

7. Precision Refrigerant Charging (R-410A)

The system was charged with virgin R-410A refrigerant and adjusted precisely to manufacturer-specified subcooling and superheat values.

Why this matters: Correct refrigerant charge ensures optimal efficiency, proper cooling capacity, and long-term compressor reliability.

8. System Start-Up, Testing & Verification

Once installation was complete, the system was fully started, monitored, and tested to confirm:

• Stable operating pressures
• Correct temperature split
• Proper amperage draw
• Normal cycling and airflow

Why this matters: Final verification ensures the system operates exactly as designed before the job is closed.

Signs You May Need a Compressor Replacement

Homeowners in Celina and North Texas should watch for these warning signs:

• Warm air blowing from vents
• Outdoor unit running but no cooling
• Tripped breakers or hard starts
• Loud humming, rattling, or grinding noises
• System short-cycling or not starting at all

Early diagnosis can sometimes prevent total compressor failure—but once internal damage occurs, replacement is the safest and most cost-effective solution.

Why Homeowners Choose Greentech Engineering HVAC

• Engineering-based diagnostics—not guesswork
• Certified technicians and documented procedures
• Strict evacuation and pressure testing standards
• Transparent scope of work
• Local experience serving Celina and North Texas homeowners

We focus on doing the job once—and doing it right.

If your system is showing signs of failure, professional AC repair services in Celina, TX can help prevent further damage and costly breakdowns.

Frequently Asked Questions (Q&A)

Q1: Is compressor replacement better than replacing the entire AC system?

It depends on system age, condition, and refrigerant type. For newer systems in good condition, compressor replacement can be a cost-effective solution. Older systems may benefit more from full replacement.

Q2: How long does a compressor replacement take?

Most residential compressor replacements are completed in one full service visit, depending on system accessibility and condition.

Q3: Why is nitrogen pressure testing required?

Nitrogen testing confirms leak-free connections before refrigerant charging. Skipping this step risks hidden leaks and future system failure.

Q4: What does “500 microns” mean in HVAC evacuation?

Microns measure vacuum depth. Evacuating below 500 microns ensures moisture and air are fully removed from the system, protecting the compressor.

Q5: Do you recharge with reused refrigerant?

No. We charge systems with virgin, new R-410A refrigerant to ensure purity and performance.

Schedule AC Compressor Service in Celina, TX

If your air conditioner is struggling to cool or showing signs of compressor failure, professional diagnosis and installation quality make all the difference.

Greentech Engineering Heating & Air Conditioning proudly serves Celina, TX 75009 and surrounding North Texas communities with engineering-driven HVAC solutions. Contact us.

Author

Siwei (Lucas) Chen
CTO | Greentech Engineering Heating & Air Conditioning
B.S. Mechanical Engineering – Virginia Tech
ACCA Certified (Manual J, S, D)
NCI Certified – Air Balancing & Duct Optimization
Daikin Comfort Pro Contractor
10+ Years HVAC Engineering Experience in Dallas–Fort Worth

This article was reviewed and approved by Lucas Chen to ensure technical accuracy and compliance with HVAC industry best practices.
